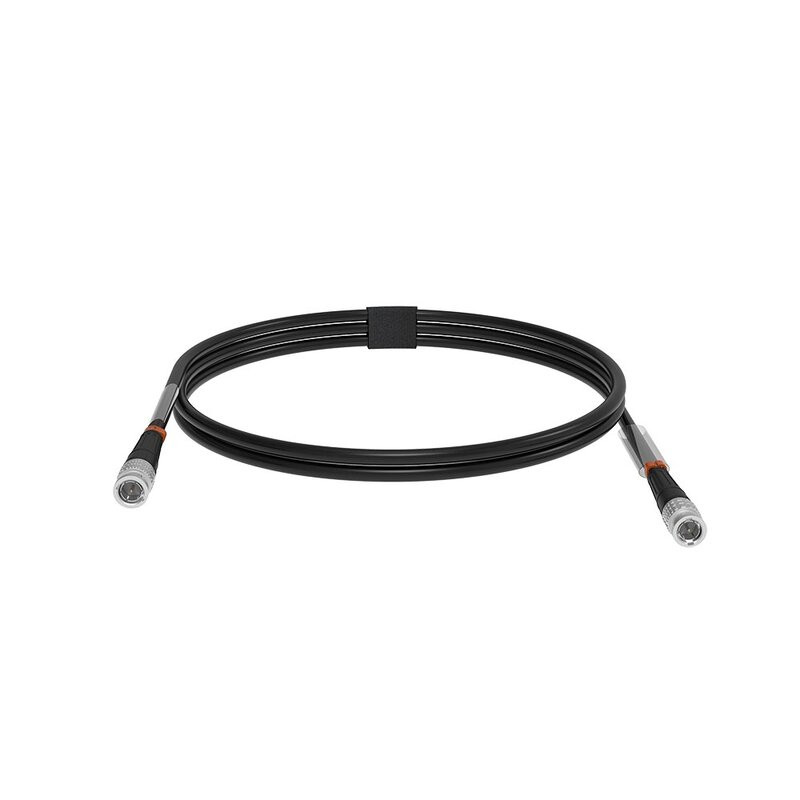

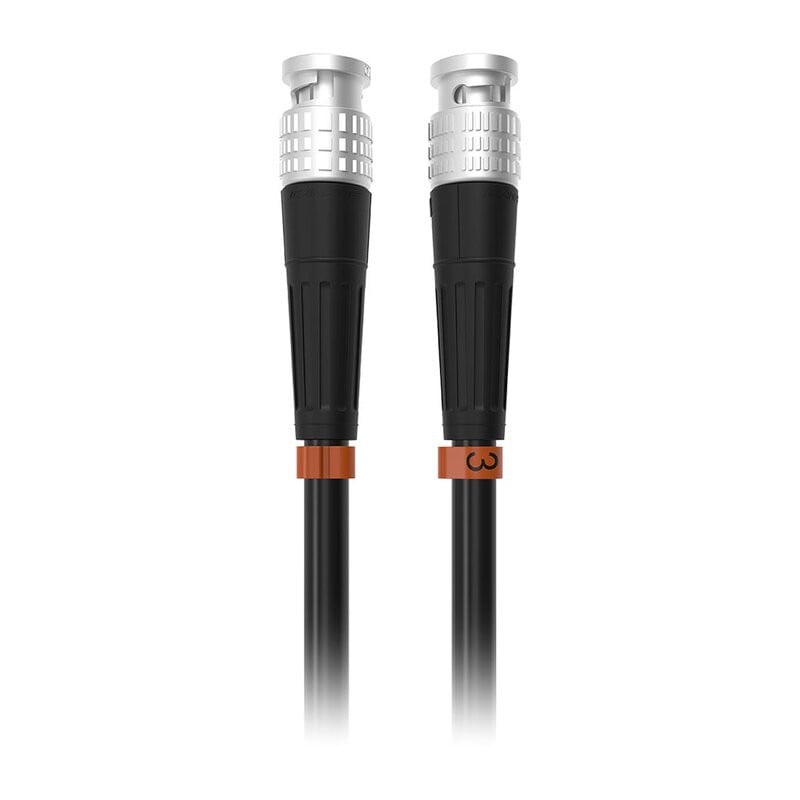

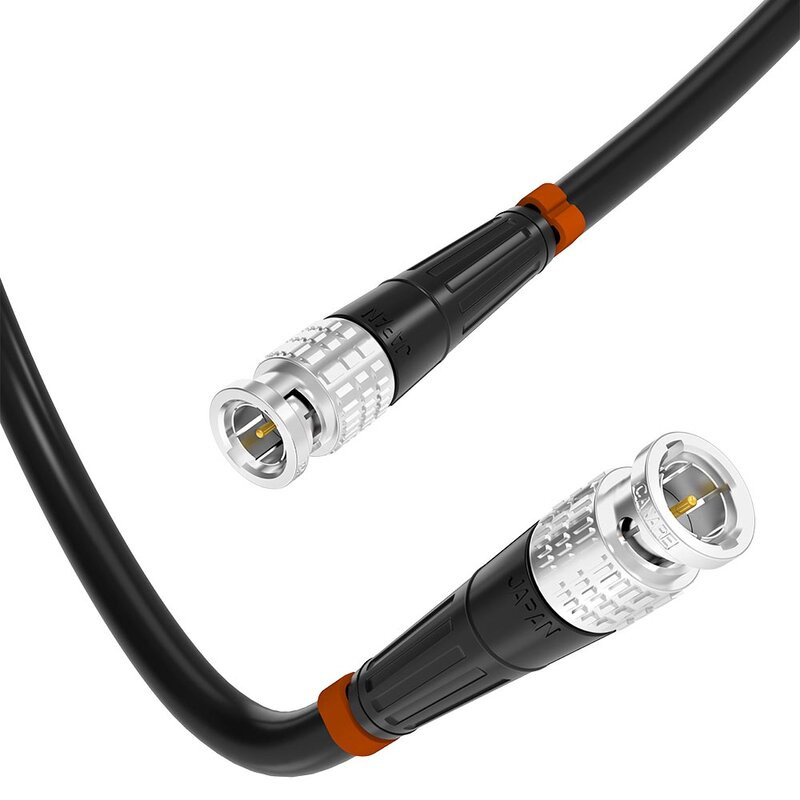

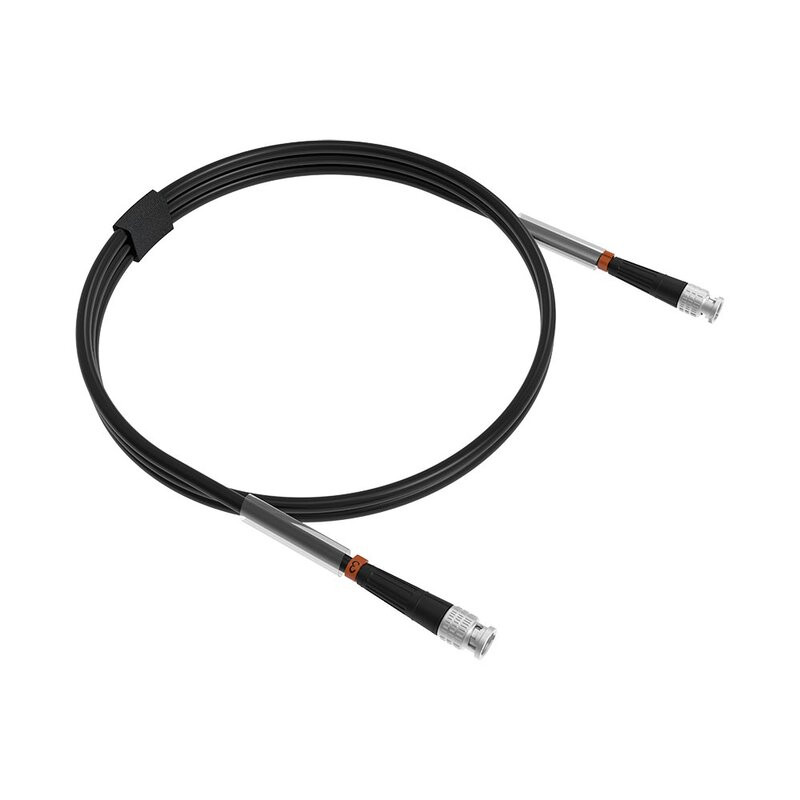

Beetek - FSC-50M

12G-SDI cable designed for professional audio and video industry with a length of 50 m.

In this FSC series, the 20AWG single-strand oxygen-free copper inner conductor is used in cables less than or equal to 50 meters, as in this case.

The outer conductor is shielded with double aluminum foil and braided with tinned copper wires, a durable material suitable for events, broadcasting and many other applications.

This cable can be used with SDI converters, professional video cameras, SDI monitors, SDI HD capture cards, digital video recorders, SDI splitters etc.

Main features

• 99.9995% pure copper material
• Thick outer jacket with high flexibility
• Double shielding structure, high density double aluminum foil shielding and copper wire braid (over 90% copper) ensure stable transmission
• A wide variety of lengths available to suit any application
• Maintains impedance and return loss characteristics even with excessive handling during installation

Technical characteristics

• Lenght: 50 m
• Impedance: 75 ±2 ohm
• Capacitance: 54 ±2 pF/m
• Shield: dual aluminium foil
• Braid: copper wire braid
• Inner conductor: single bare copper wire
• Jacket diameter: 6.1 ±0.15 mm
• Insulation diameter: 3.7 ±0.1 mm
• Velocity: 83%
• Frequency: 1500 MHz
• Peak power: 1.6 kW
• Structure: inner conductor + insulation + outer conductor + braid + jacket
• Inner conductor material: 20AWG single-strand oxygen-free copper
• Inner conductor diameter: 0.8 ±0.02 mm
• Dielectric material: FPE
• Braid diameter: 4.4 ±0.1 mm
• Jacket material: composite material
• Jacket color: black
• Operating temperature: -40 to 70 °C
• Rated voltage: AC 60 V_RMS
• Min. bend radius: 62 mm
