Beetek - H20-FLEX-PRO-3M

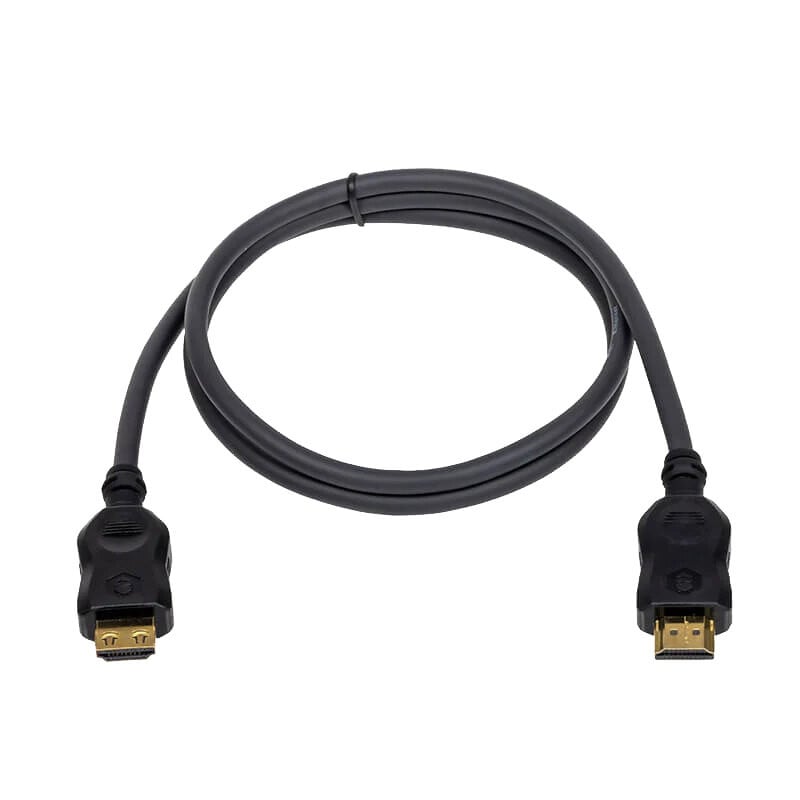

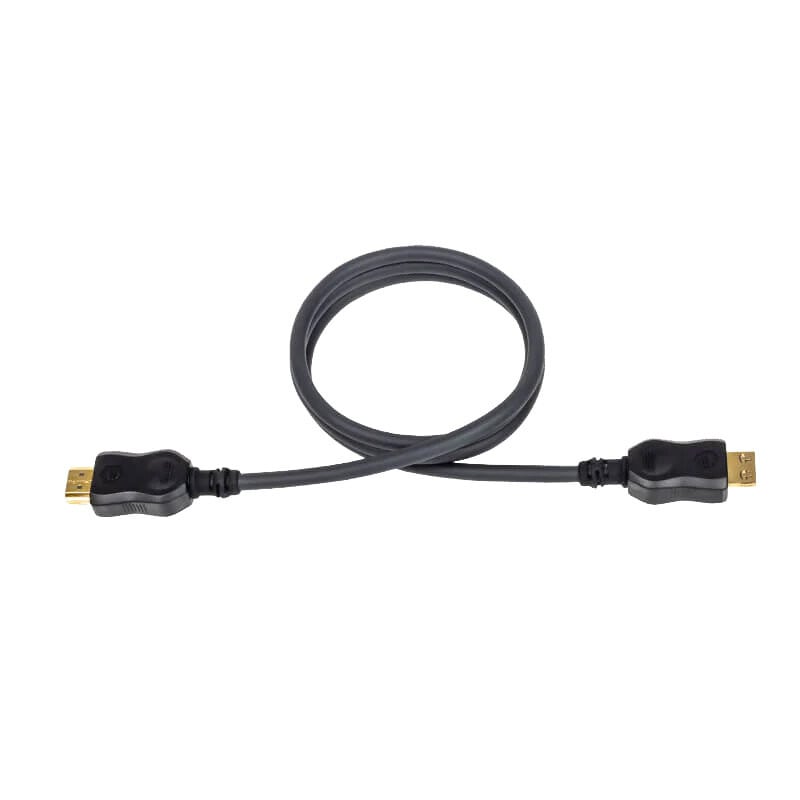

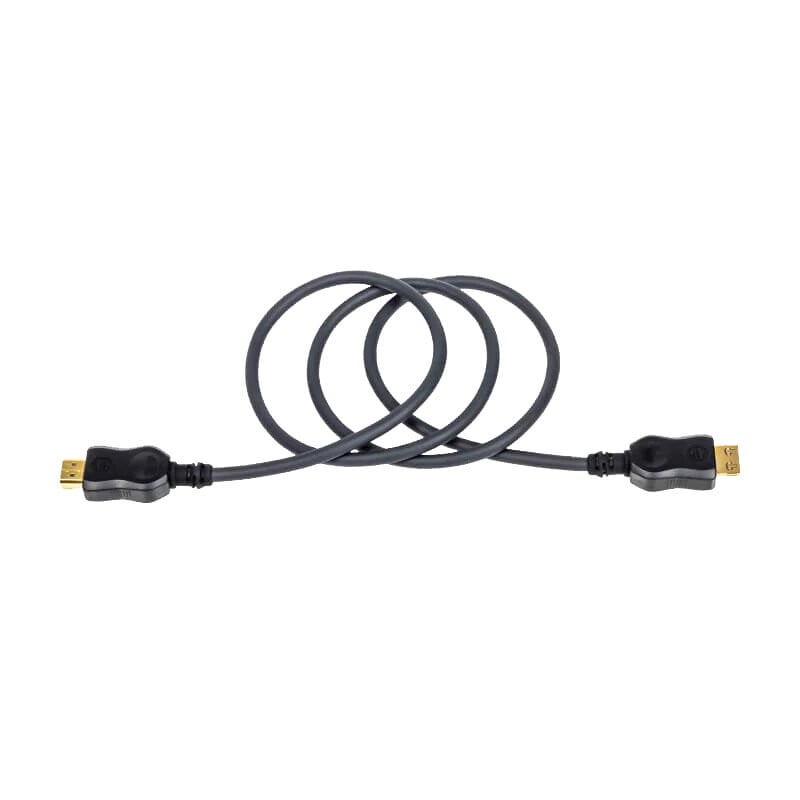

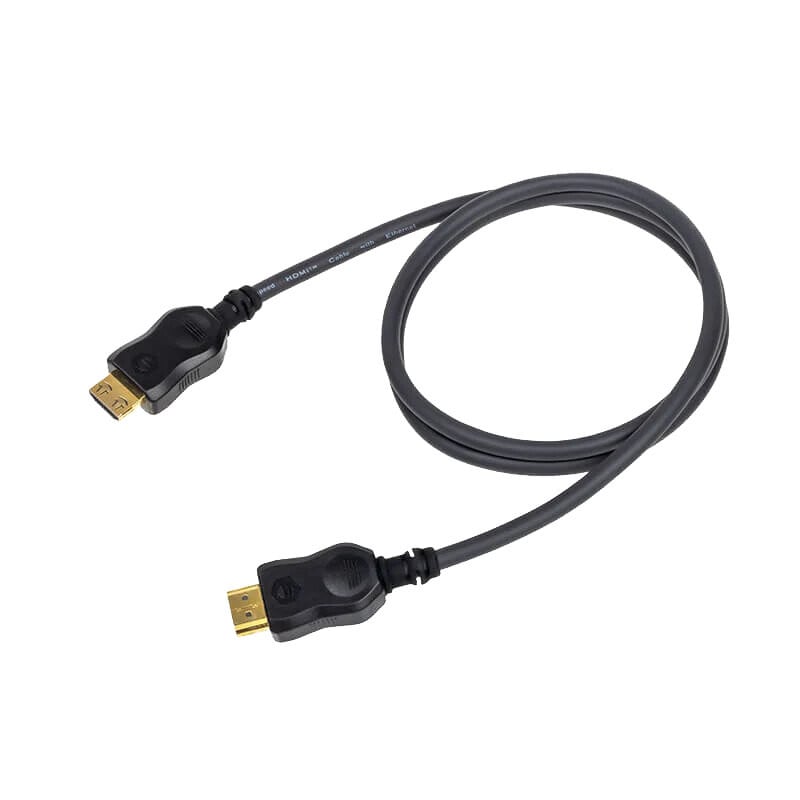

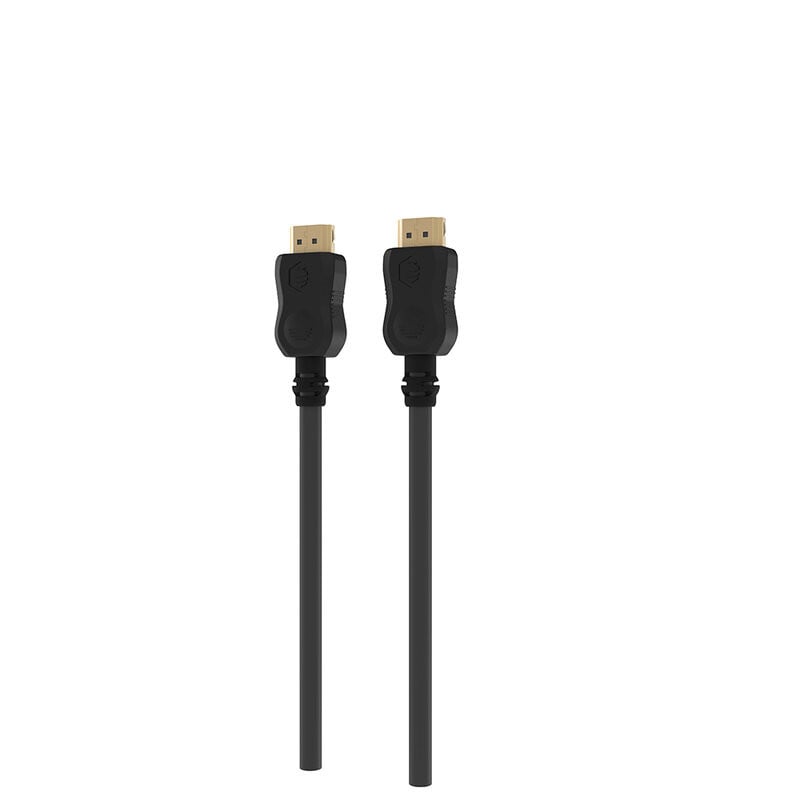

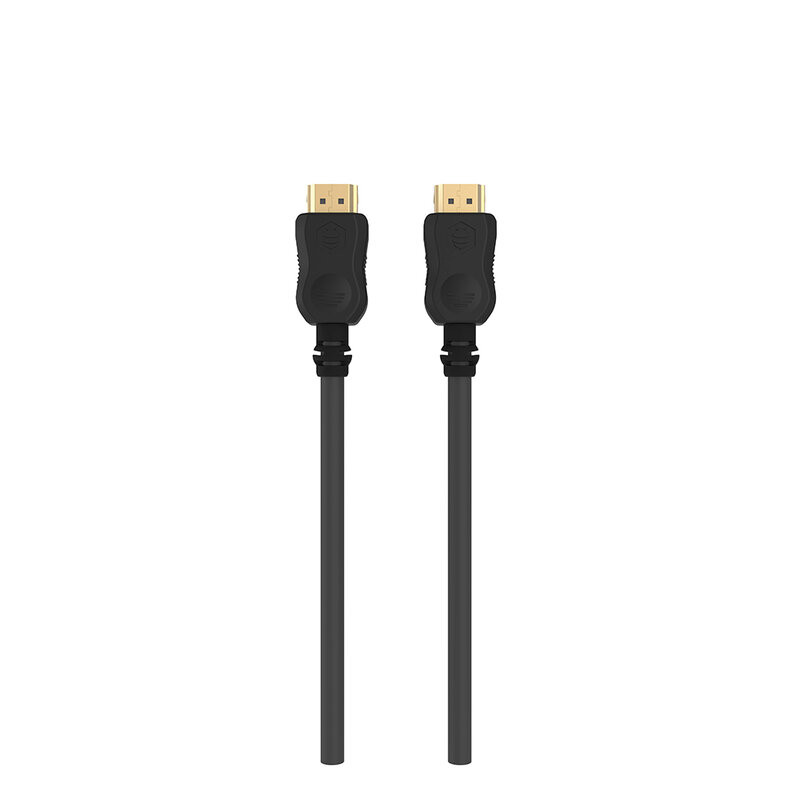

This 3 m Beetek HDMI 2.0 cable is designed for specific configurations in small spaces, offering exceptional adaptability and high performance. Designed for maximum flexibility in rack installations, these cables of the H20-Flex-Proseries feature a slim design and a soft outer jacket, making them easy to install even in tight spaces.

Despite their extraordinary flexibility, signal quality remains impeccable thanks to the 28AWG tinned copper wire, which ensures reliable and stable transmission, while the reinforced internal tinned sheet protection improves strength and durability over time.

The innovative Flow Silicone technology, inspired by the structure of beehives, allows the cable to withstand repeated bending without compromising its integrity. In addition, the extremely secure plug-sure HDMI connectors require a force of 7 kg to be removed, preventing accidental disconnections.

Perfect for applications that require flexibility and high performance, the H20-Flex-Proseries cables are an excellent choice for professional installations.

Main features

• HDMI 2.0 4K compatible with transmission speeds up to 18 Gbps
• Reinforced tin-plated connectors

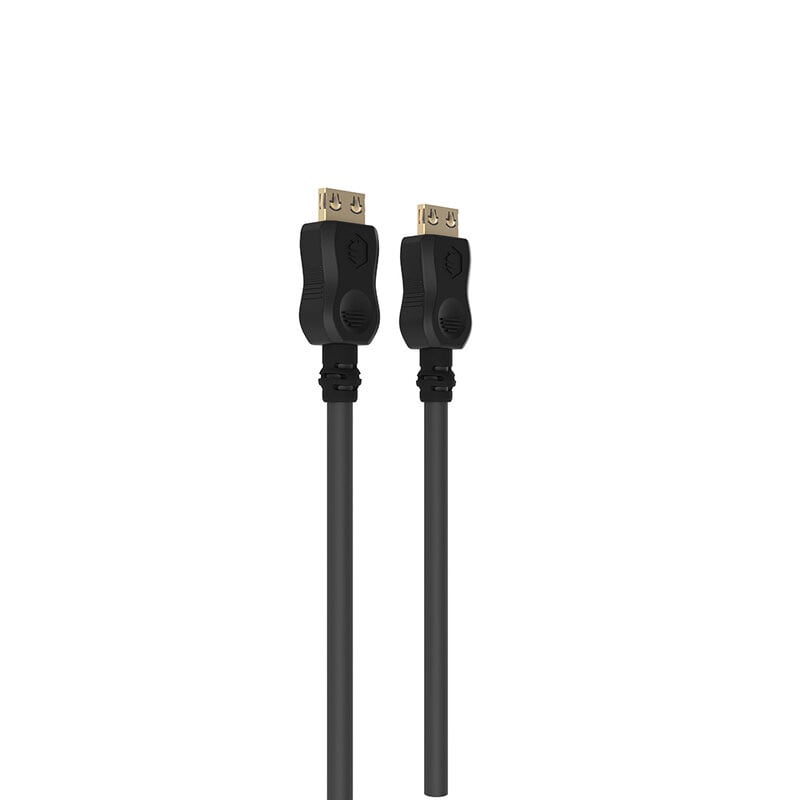

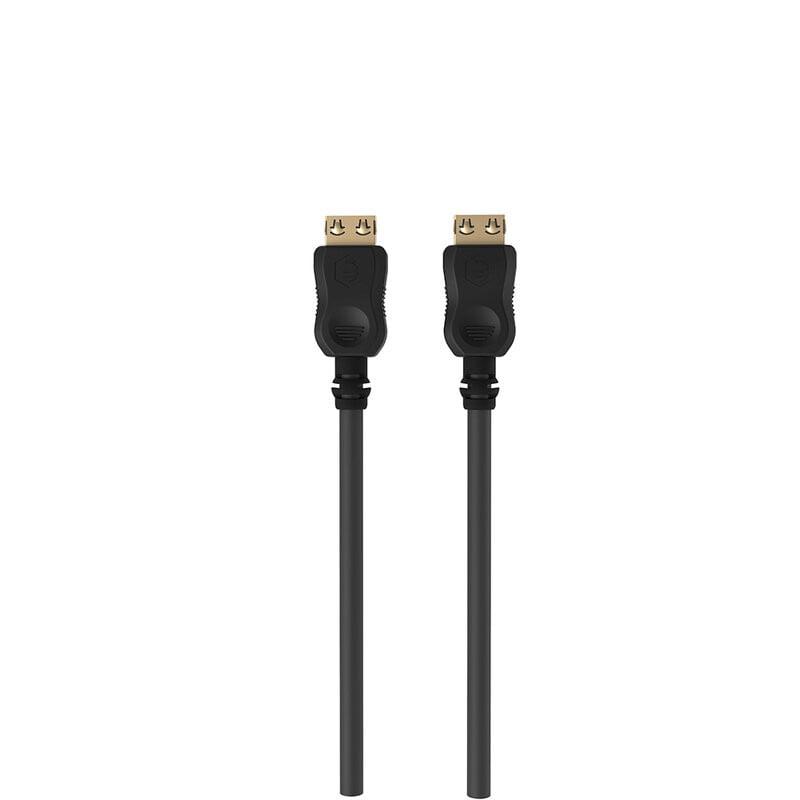

• Beetek plug-sure HDMI connectors
• Fluid silicone strain relief
• Gold-plated contacts
• HDR, CEC and ARC compliant
• HDMI cable available in 0.5, 1, 2, 3, 5 and 10 meters lengths

Technical characteristics

• Lenght: 3 m
• Signal type: HDMI 2.0

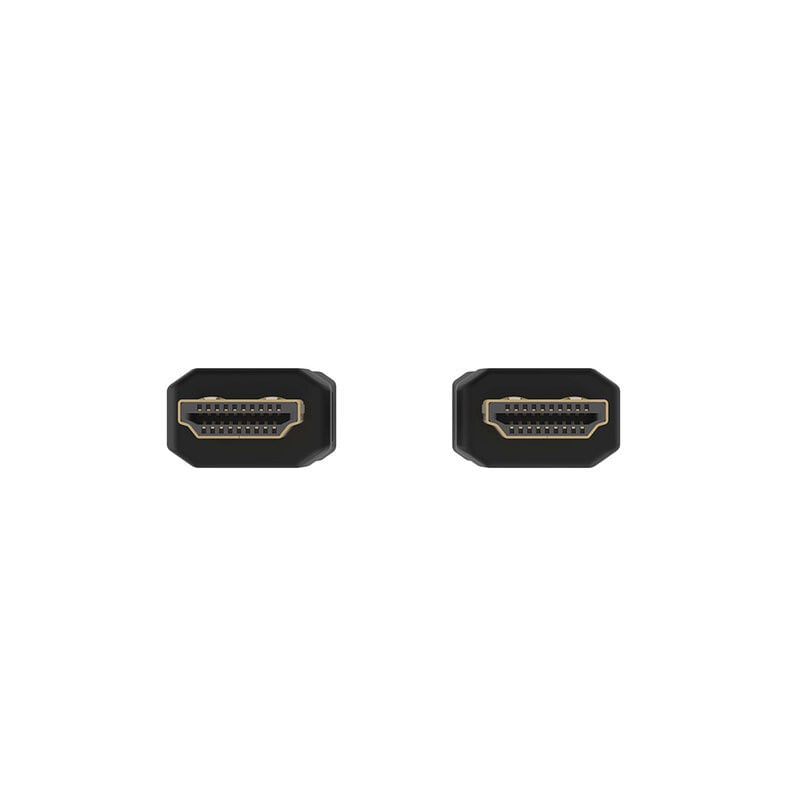

• Connector type: HDMI TypeA M. - HDMI TypeA M.
• Environmental info: RoHS 2.0 compliant
• Connector gold plating: shell 3 μm, pins 15 μm
• Connector size: 49.78 x 22 x 12 mm
• Connector structure: plug plate + inner mold + tinplate + copper foil + shell
• Internal mold: transparent PE material
• Copper foil: double-sided conductive copper foil
• Tinplate: upper and lower assembled tinplate

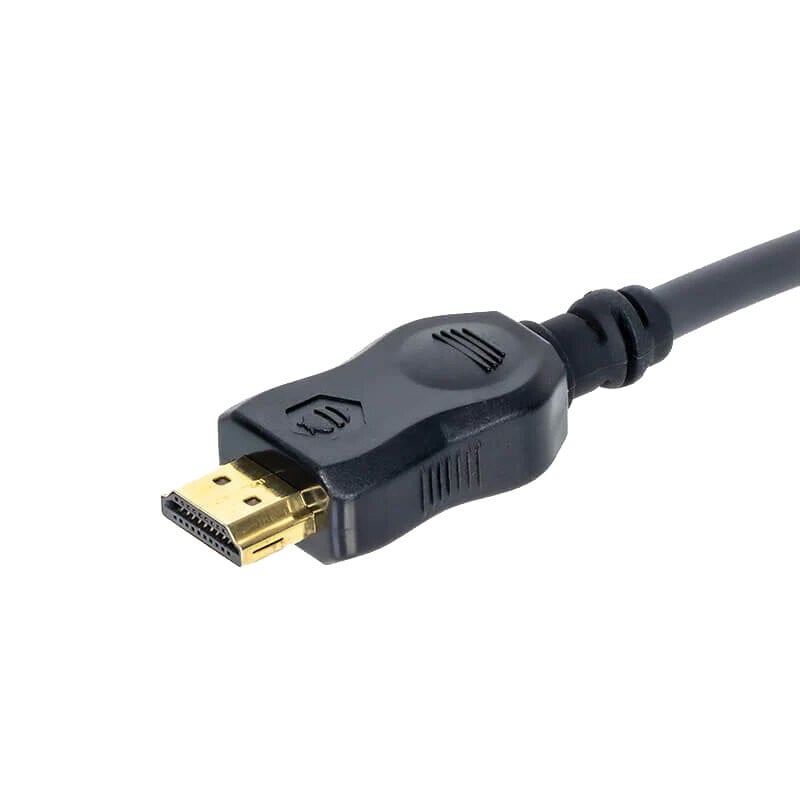

• Connector fastening type: plug-sure type HDMI connector
• Shell: PVC injection molded shell (UL, RoHS)
• SR: liquid silicone rubber
• Components: conductor + drain (copper) + FEP wrap + aluminum foil + mylar + braid + jacket
• Conductor material: stranded tinned copper
• Conductor gauge: 28AWG
• Braid material: braided copper wire
• Shield coverage: 80%
• Jacket material: flexible PVC
• Cable diameter: 5.7 ±0.2 mm
• Cable color: dark grey

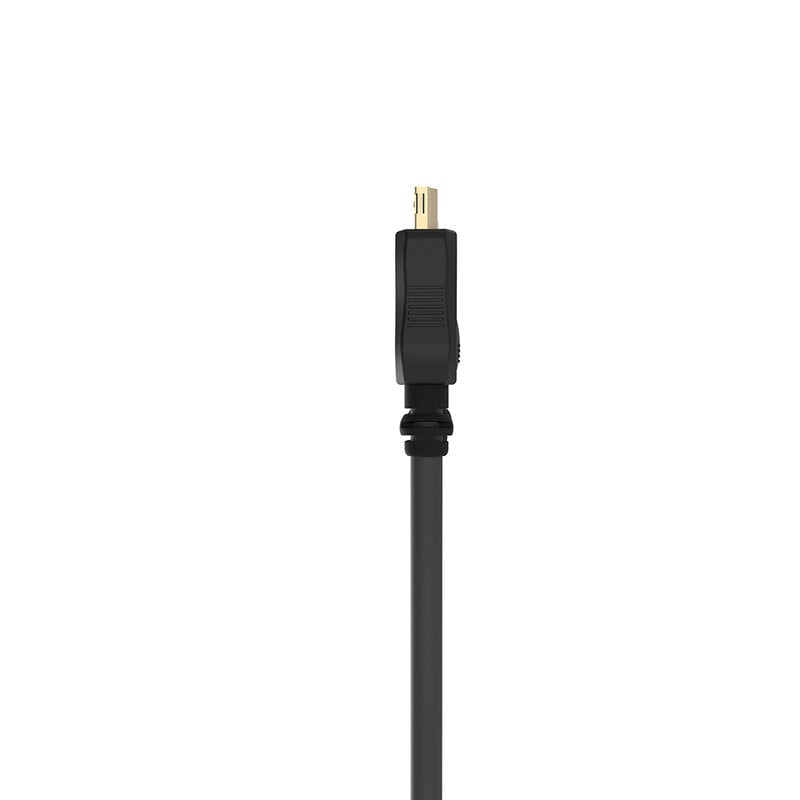

• Strain relief (SR): silicone
• EDID: yes
• DDC: yes
• HDMI audio: yes
• 3D: yes
• CEC: yes
• ARC: yes
• HDCP: yes
• HDR: yes
• XvYCC color space: yes
• Compatibility: backward compatible with HDMI and DVI-SL
• Supported resolutions: 3840 x 2160 @ 60 Hz
• Clock bandwidth: 600 MHz x 3
• Transmission rate: 18 Gbps
• Plug & play: yes
• Delay: zero
• Deep color: yes
• Sampling rate: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Compression: none
• Electrical test (voltage): 30 V_DC
• Spark test: 1500 V_AC / in the air
• Dielectric strength: 500 V_AC/1 sec min.
• Operating temperature: -20 to 80 ℃
• Conductor resistance: 30AWG - 376 ohm/km max. at 20 ℃; 28AWG - 237 ohm/km max. at 20 ℃
