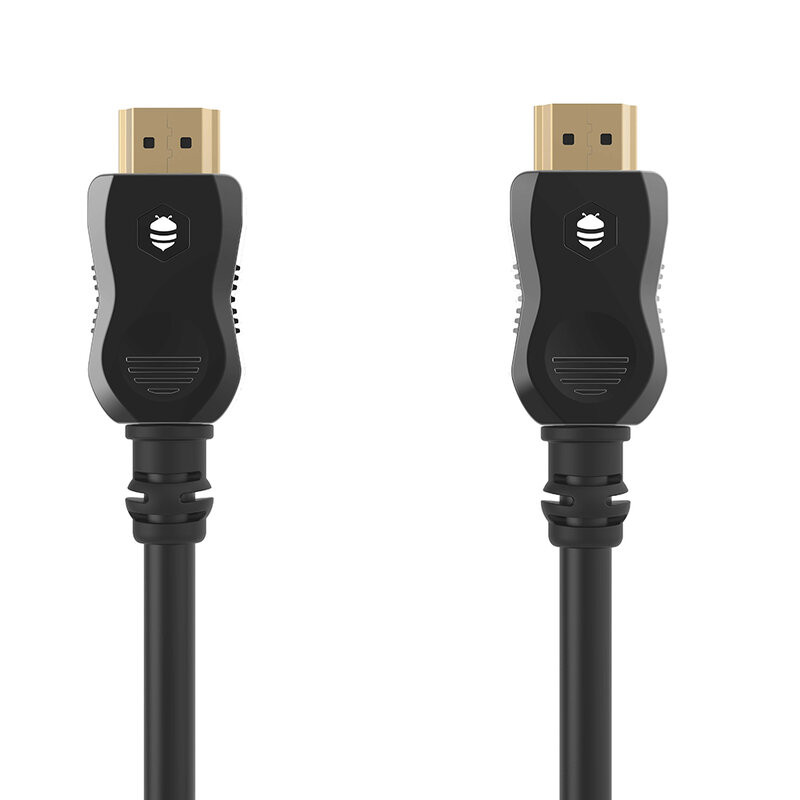

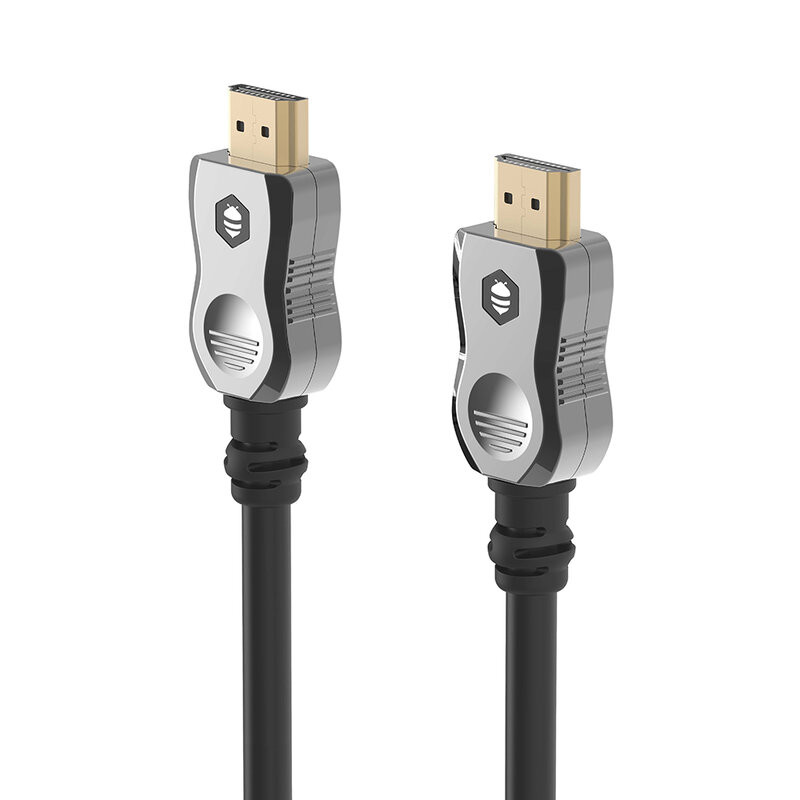

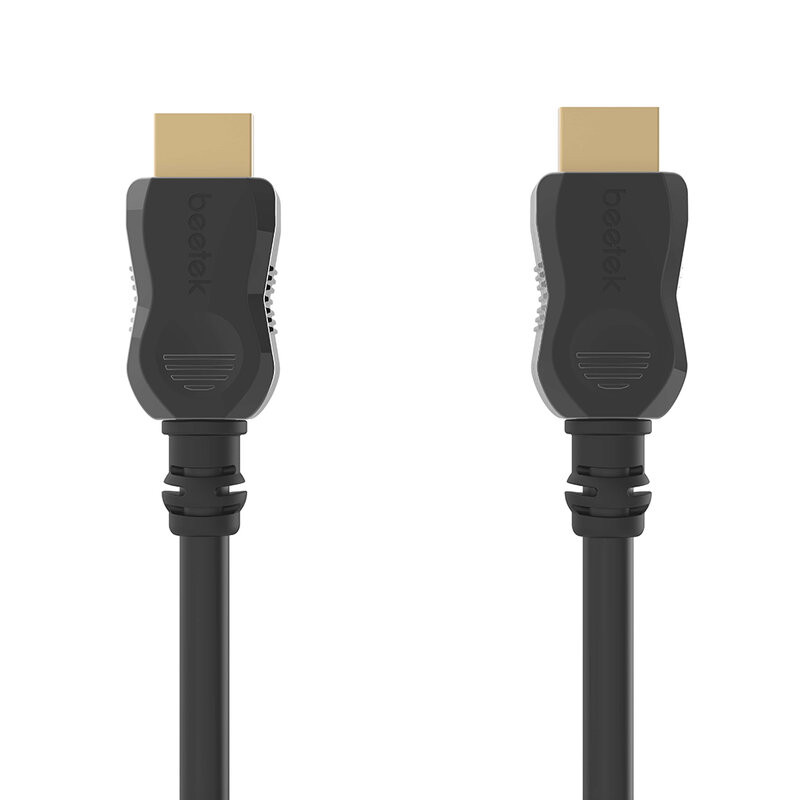

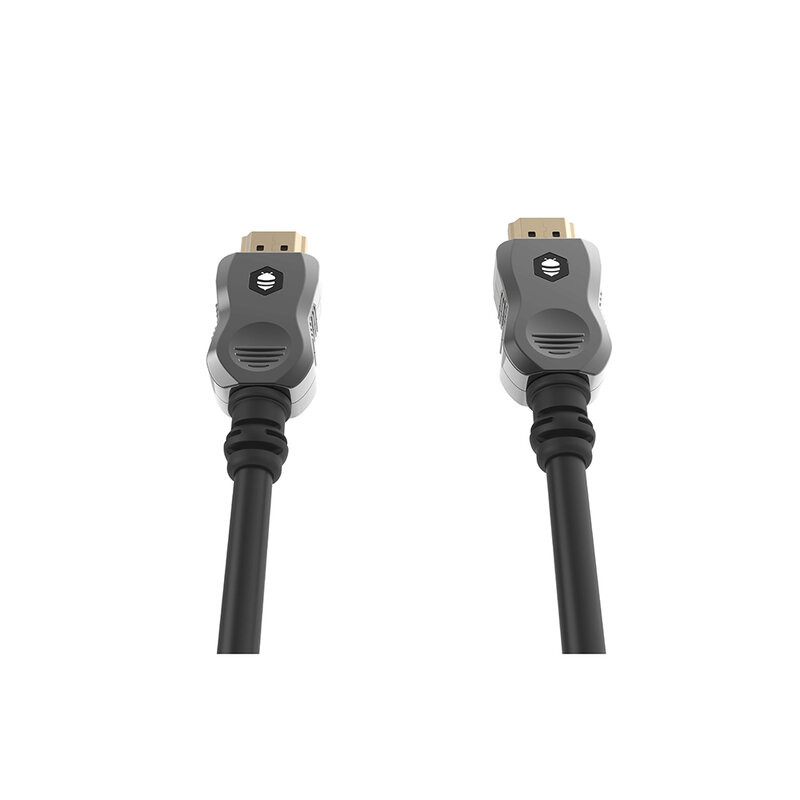

Beetek - H21-HTSIL-2M

H21-HT-SIL-2M is a premium 2 meter 8K HDMI cable designed for Full / Ultra-High Resolution and high refresh rate transmissions, designed to meet the needs of professional applications, including gaming, media server rendering and home theater systems. It offers a transmission speed of 48 Gbps, supporting resolutions up to 7680 x 4320 at 60 Hz.

Made of 28 AWG multi-strand silver-plated copper wire, this cable ensures exceptional signal integrity, without delays or latency. Its design integrates a high-quality silicone outer jacket and is designed to withstand repeated bending without compromising its durability, offering an anti-tangle and anti-dust solution, with an integrated strain relief system for greater durability.

Equipped with plug-sure HDMI connectors with 15 μm gold-plated pins, it ensures stable, safe and reliable connections, even in demanding usage environments.

Ideal for the most advanced 8K audio and video applications, this high-performance cable is available in 2, 3, and 5 meter lengths to accommodate a variety of configurations.

Main features

• Premium silicone 8K HDMI cable
• Offers a transmission rate of 48 Gbps, supporting resolutions up to 7680 x 4320 at 60 Hz, compliant with HDMI 2.1
• 28 AWG multi-strand silver-plated copper wire for exceptional signal integrity without delays and latency for high refresh rate video transmission
• Features plug-sure HDMI connectors with 15 μm gold-plated pins, ensuring stable, secure, and reliable connections
• Premium silicone outer jacket designed to withstand repeated bending without compromising durability, providing a tangle-free and dust-proof solution, with integrated strain relief for added durability
• Designed for professional-grade 8K gaming, Pro AV, multimedia rendering and home theater applications

Technical characteristics

• Lenght: 2 m
• Signal type: HDMI 2.1
• Connector type: HDMI TypeA M. - HDMI TypeA M.
• Environmental info: RoHS 2.0 compliant
• Connector gold plating: 15 μm
• Connector size: 42 x 22 x 12 mm
• Connector structure: plug plate + inner mold + copper foil + shell
• Connector fastening type: plug-sure type HDMI connector
• Shell: gloss zinc alloy
• Components: conductor + drain (copper) + PTFE tape + filler + aluminum foil + mylar + braid + silicone jacket
• Conductor material: silver-plated copper stranded
• Conductor gauge: 28AWG
• Braid material: braided copper wire
• Shield coverage: 75%
• Jacket material: silicone
• Cable diameter: 7.0 ±0.2 mm
• Cable color: graphite black
• Strain relief (SR): silicone
• EDID: yes
• DDC: yes
• HDMI audio: yes
• 3D: yes
• CEC: yes
• ARC: yes
• HDCP: yes
• HDR: yes
• XvYCC color space: yes
• Compatibility: backward compatible with HDMI and DVI-SL
• Supported resolutions: 7680 x 4320 @ 60 Hz
• Clock bandwidth: 1600 MHz x 3
• Transmission rate: 48 Gbps
• Plug and play: yes
• Delay: zero
• Deep color: yes
• Sampling rate: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Compression: none
• Electrical test (voltage): 300 V_DC
• Impedance test (insulation): insulation resistance ≥ 10 Mohm
• Impedance test (continuity): on-resistance ≤ 2 ohm
• Tensile strength: ≤ 400 N
• Bending angle: 90°
• Operating temperature: -20 to 80 ℃
• Optional length: 0.5, 1, 2, 3, 5 meters
• Bag size: 175 g
• Uninterrupted duration: 7 x 24 x 365
• Applications: residential, fixed installation, IT peripherals and gaming
