Beetek - H802M-3M

Beetek HDMI - DVI-M E2 cables are specifically designed for the rental and staging industry. They support resolutions up to 4K @ 60 Hz with 18 Gbps transmission speed and feature a 5-layer shielding structure against interference, covering over 85% of the cable surface.

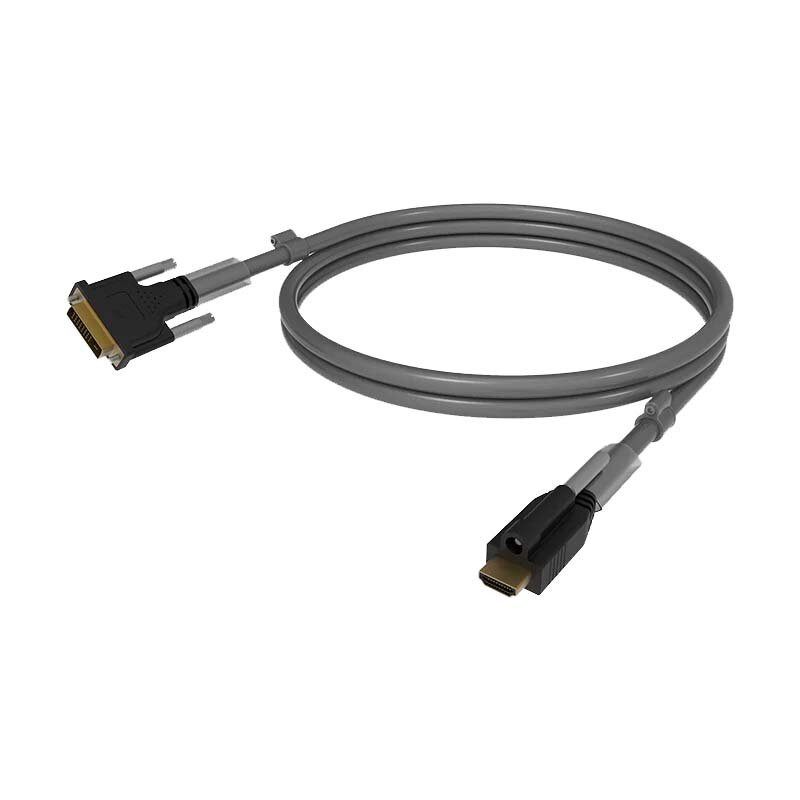

This 3 m HDMI - DVI cable is made of 99.995% oxygen-free copper (OFC), tinned. The HDMI connector, shell and pins have been improved with an additional level of rigidity.

Main features

• Locking HDMI Screws
• E2 Special Series
• Supports resolutions up to 4K @ 60Hz 4:4:4 at a transmission rate of 18Gbps
• The HDMI cable features a 15μm gold-plated connector that withstands over 1000 insertions and removals and a stainless steel knurled joint screw with a unique removable dust cap
• Add your company information label using the included transparent heat-shrink tubes

Technical characteristics

• Lenght: 3 m
• Signal type: HDMI 2.0
• Connector type: HDMI Type A M. - DVI M.
• Environmental info: RoHS 2.0 compliant
• Connector gold plating: shell 3 μm, pins 15 μm
• Connector dimensions: HDMI 54 x 20.8 x 20.6 mm; DVI 59.2 x 40 x 17 mm
• Connector structure (HDMI): plug plate + inner mold + tinplate + copper foil + shell + screw + protective cap
• Connector structure (DVI): soldered plug + inner mold + copper foil + tinplate + shell + screw + protective cap
• Internal mold: transparent PE material
• Copper foil: double-sided conductive copper foil
• Tinplate: HDMI upper and lower assembled tinplate, DVI three-piece tinplate
• Shell: 45P PVC injection molded shell (UL, RoHS)

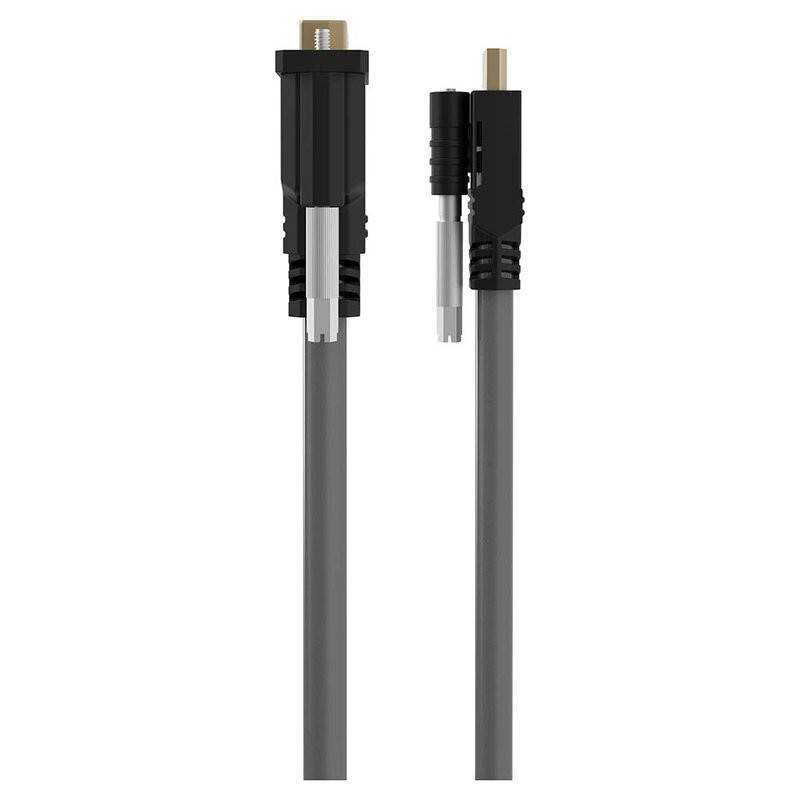

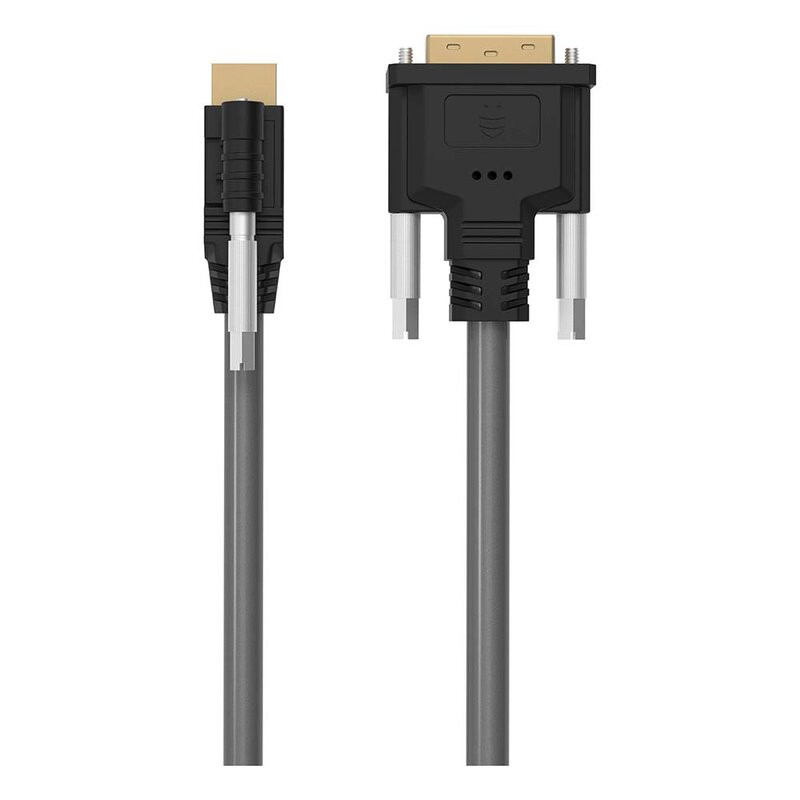

• Lockable screw: stainless steel locking screw

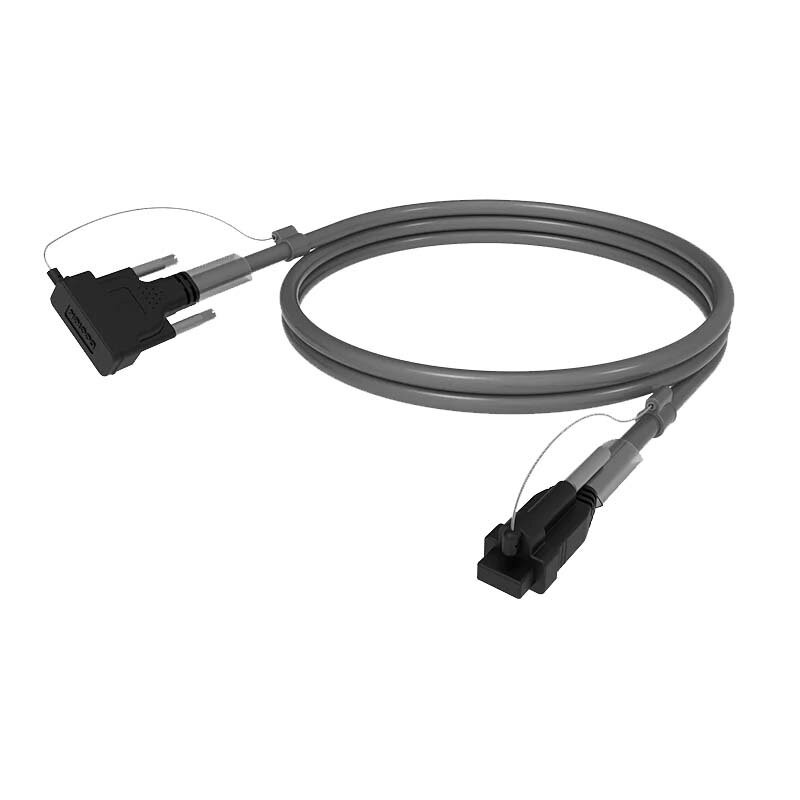

• Protective cap: detachable cap with cord leash
• Components: conductor + copper foil + mylar + braid + jacket
• Conductor material: stranded tinned copper
• Conductor diameter: 28AWG
• Braid material: 16 x 10 braided copper wire
• Shielding rate: 7 mesh 85% shielding rate
• Jacket material: 90P PVC (UL, RoHS)
• Cable diameter: 8.5 mm
• Cable color: fluorescent gray
• Cable meter marking: waterproof yellow text
• Velcro: p-shaped velcro strap 20 x 200 mm
• Custom label: heat-shrink transparent tubing on both ends for custom labels
• EDID: yes
• DDC channel: yes
• HDMI audio: yes
• 3D: yes
• CEC: yes
• ARC: yes
• HDCP: yes
• HDR: yes
• XvYCC color space: yes
• Compatibility: backward compatible with HDMI and DVI-SL
• Supported resolutions: 3840 x 2160 @ 60 Hz / 1920 x 1080 @ 120 Hz
• Clock bandwidth: 600 MHz × 3
• Transmission rate: 18 Gbps
• Plug and play: yes
• Delay: zero
• Deep color: yes
• Color sampling rate: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
• Compression: none
• Electrical test (voltage): 300 V_DC
• Impedance test (insulation): insulation resistance ≥ 10 Mohm
• Impedance test (continuity): on-resistance ≤ 2 ohm
• Tensile strength: ≤ 400 N
• Bending angle: 120°
• Operating temperature: -20 to 80 ℃
