Beetek - W400-100M-A+DF200+BH03

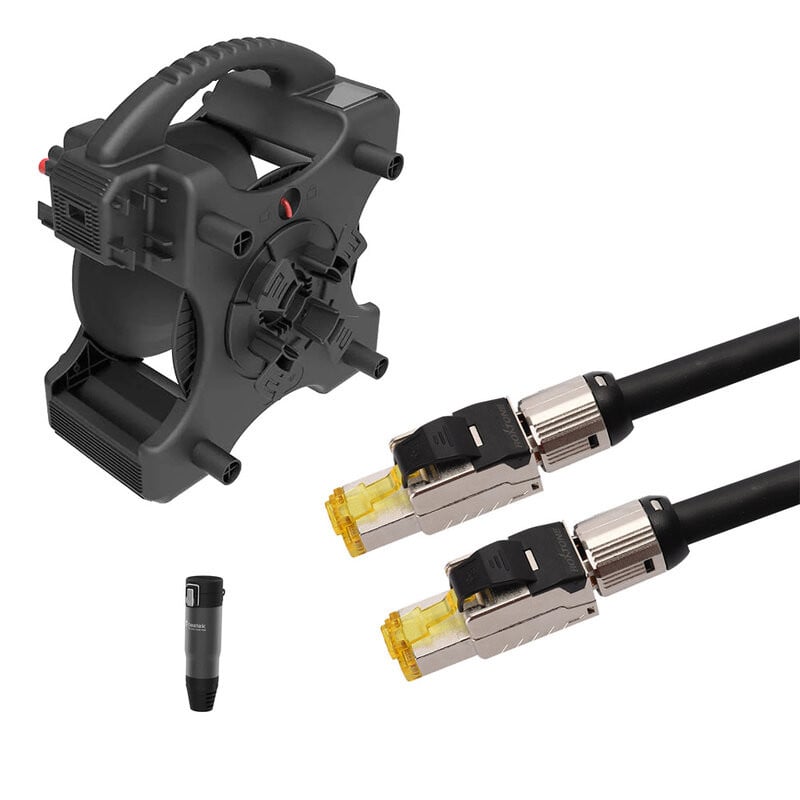

Kit consisting of 100 m CAT6a S/FTP cable (W400-100M-A) + cable reel (DF200) + protective cap to protect the CAT cable (BH03).

W400-100M-A

Specially designed for digital mixers, DMX lighting, HDBaseT extenders and LED systems, this 100 m CAT6a S/FTP cable adopts an outer jacket made of unique TPE material to increase flexibility, tensile/wear resistance and durability.

The cable body is made of 23 AWG 8-core oxygen-free copper (OFC). It uses braided aluminum foil shield and braided aluminum magnesium shield with 100% shielding ratio for superior performance. The RJ45 connector is designed to minimize latency during data transmission and adopts 50 μm gold-plated pins; it supports repeated plugging and unplugging. The single-piece connector with quick coupling plate can be quickly repaired without
professional tools. The use of German standard cat 6A zinc alloy shell, anti-fall, provides greater protection.

Main features

• Ready-to-use CAT6a S/FTP network cable designed for DMX mixers and lighting applications
• Double shielded with 8 conductors
• 500 MHz transmission frequency and 10 Gbps transmission speed
• Single-strand OFC (oxygen-free) copper with 8 conductors 23 AWG
• Stranded and braided shielding offer 100% shielding rate
• TPE jacket material for increased flexibility, tensile strength and cable durability
• RJ45 "crystal head" connector with 50 μm gold-plated pins
• One-piece connector with quick mating plate can be repaired quickly without professional tools
• Available in lengths from 5 to 100 m
• Lengths of 20 m and more can be wound on Beetek DF and PCD series cable reels

DF200

Stackable cable reel made of ABS, specifically developed and designed for the rental and staging sector, suitable for fiber optic and network cables. It offers excellent protection from drops and impacts and can be stacked vertically or horizontally, or hung for easy transportation and storage.

DF200 can be used to store 250 m of fiber optic cable and 150 m of network cable with an external diameter of 5 mm.

Main features

• Can be easily handled by a single person
• Designed for repeated use and mobile cable distribution
• The unique external design allows it to be stacked vertically, horizontally or hung on racks, freeing up space and making it easy to grab and carry
• Fully-enclosed winding reel is safe from drops and impacts that may occur during transportation

BH03

BH03 is a medium aluminum clamshell-style cap to protect fiber optic and other types of cables during installations. It can be used with any cable with an outside diameter of up to 35mm. A simple yet effective product, specifically designed for the rental and stage industry to protect six-core fiber optic, CAT, SDI, HDMI, DP and other cables from harsh environments.

Technical characteristics

W400-100M-A

• CAT6 S/FTP network cable (low-latency crystal head)
• Lenght: 100 m
• Connector type: RJ45 S/FTP
• Connector size: 56.4 x 17.4 x 13.8 mm
• Cable type: CAT6a SFTP
• Environmental information: RoHS 2.0 compliant
• RJ45 connector: low-latency crystal head (with built-in quick-connect circuit board)
• Gold plate thickness: 50 µm
• Latch tab: integrated break-resistant tab
• Structure: conductor + insulation + aluminum foil + ground wire + braid + jacket
• Conductor gauge: 23AWG
• Conductor size: 0.26 ±0.008 mm x 8
• Conductor material: single strand oxygen free copper
• Insulation material: foam-skin PE
• Insulation color code:
  • 1P: blue & white / blue
  • 2P: orange & white / orange
  • 3P: green & white / green
  • 4P: brown & white / brown
• Core wire direction: s
• Core wire lay length: < 30 mm
• Cable direction: s
• Cable lay length: ≦ 120 mm
• Outer jacket material: double-layer PVC
• Aluminium foil: aluminum foil pair shielded
• Ground wire: 7 x 0.16 mm multi-strand oxygen free copper (26 AWG）
• Braid material: 128 x 0.12 mm tinned copper braid shield
• Shielding rate: 100%
• Jacket material: TPE
• Jacket outer diameter: 8.0 ±0.20 mm
• Jacket color: black
• Conductor resistance:＜68.4 ohm/km at 20 ℃
• Insulation resistance: ＞5000 ohm at 20 ℃
• Withstand voltage: 1000 V_DC/1 min, no breakdown
• Delay difference: ≤ 30 ns/100 m (1 - 125 MHz）
• Frequency: 500 MHz
• Testing: PASS FLUKE
• Insulation elongation: ≥ 300%
• Insulation tensile: ≥16 Mpa
• Jacket elongation: ≥ 100%
• Jacket tensile: ≥ 12.5 Mpa
• Maximum relative mutual coupling capacitance: 5.6 nF/100 m
• Maximum capacitance unbalance: 330 pF/100 m
• Operating temperature: -20 to 80 ℃
• Operating voltage: 60 V

DF200

• Product material: ABS, PP
• Product color: black
• Multi-surface placement: all five surfaces can be placed on the ground / table surface
• Portable / hanging: portable, or placed on a cable rack
• Stackable: multiple units can be stacked together to save space
• Custom information: user can customize information for easy management
• Anti-fall & anti-collision: enclosed reel design is anti-fall and anti-collision, convenient for transportation
• Single-person manageability, one person can quickly unwind and retract cable
• Folding handle: yes
• Extended handle: supports detachable extended handle
• Bearing structure: labor-saving built-in bearing
• Cable holder: yes
• RJ45 connector holder: yes
• Connector protector holder: supports BH01 and BH02 connector protector
• Applicable products: fiber cable, CAT cable, AOC cable
• Applicable length: fiber cable & AOC cable: 250 m; CAT cable: 150 m
• Dimensions: 404 x 288 x 456.77 mm
• Weight: 3.95 kg

BH03

• Product material: aluminum alloy shell
• Product color: black
• Applicable products: fiber, CAT, HDMI / DP cables
• Maximum outer diameter: 35 mm
• Product structure: peanut shell structure (detachable design for easy installation)
• Customer logo: customization provided for 1000 pieces or more
• Size: 130 x 35 x 48.47 mm
• Weight: 56.6 g
