Beetek - W400-50M-B+DF100+ BH03

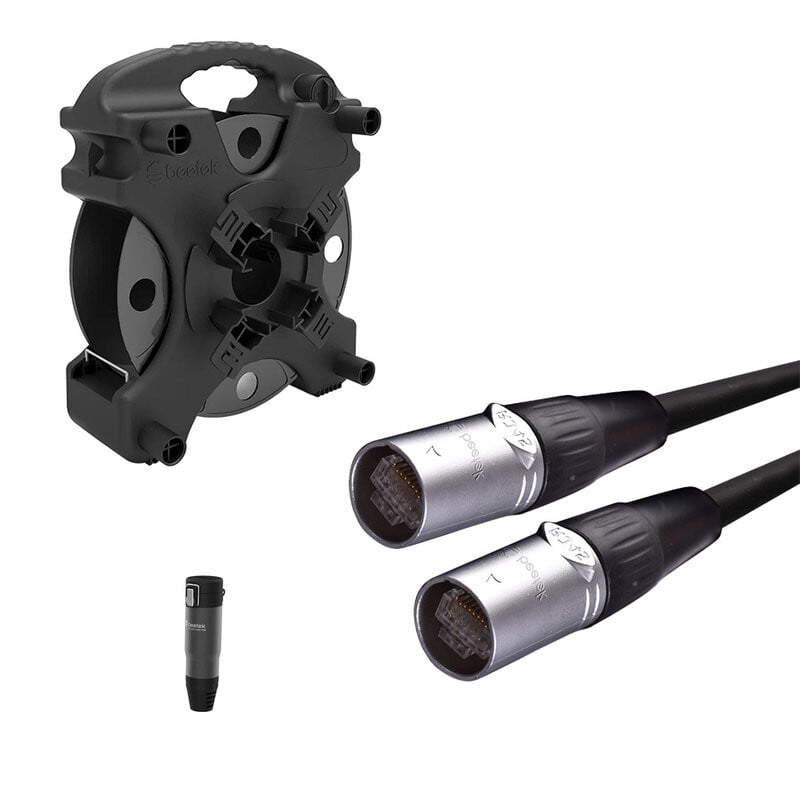

Kit consisting of 50 m CAT6a S/FTP cable with etherCON connectors (W400-50M-B) + cable reel (DF100) + protective cap to protect the CAT cable (BH03).

W400-50M-B

Specially designed for digital mixers, DMX lighting, HDBaseT extenders and LED systems, this 50 m CAT6a S/FTP cable adopts an outer jacket made of the unique TPE material to increase flexibility, tensile/wear resistance and durability.

The cable body is made of 23 AWG 8-wire oxygen-free copper (OFC). It uses braided aluminum foil shield and braided aluminum magnesium shield with a 100% shielding ratio for superior performance. The RJ45 connectors are etherCON type with 50 μm gold-plated pins.

Main features

• Ready-to-use CAT6a S/FTP network cable designed for DMX mixers and lighting applications
• Double shielded with 8 conductors
• 500 MHz transmission frequency and 10 Gbps transmission speed
• Single strand OFC (oxygen-free) copper with 8 conductors 23 AWG
• Stranded and braided shielding offer 100% shielding rate
• TPE jacket material for increased flexibility, tensile strength and durability of the cable
• Robust RJ45 etherCON connectors
• Available in lengths from 5 m to 100 m
• Lengths of 20 m and more can be wound on Beetek DF and PCD series cable reels

DF100

Cable reel specifically developed and designed for the rental and staging industry, suitable for video, audio, fiber optic and network cables. Different colors are available to differentiate the various types of cable and labeling is possible for easy identification. It has matching aluminium alloy connector protective sleeves based on the type of cables used.

DF 100 is lightweight and can be used to store 100 m of fiber optic cable and 70 m of network cable.

Main features

• The integrated bearing structure and stopper can retract and unwind easily and can be operated by a single person
• It can be stacked or hung on the rack, saving more space for storage
• Fully enclosed reel serves as a protector, anti drop, anti collision and easy to transport

BH03

BH03 is a medium aluminum clamshell-style cap to protect fiber optic and other types of cables during installations. It can be used with any cable with an outside diameter of up to 35mm. A simple yet effective product, specifically designed for the rental and stage industry to protect six-core fiber optic, CAT, SDI, HDMI, DP and other cables from harsh environments.

Technical characteristics

W400-50M-B

• CAT6 S/FTP network cable (etherCON)
• Lenght: 50 m
• Connector type: RJ45 S/FTP
• Cable type: CAT6a SFTP
• Environmental information: RoHS 2.0 compliant
• RJ45 connector: etherCON
• Connector type: RJ45 S/FTP
• Gold plate thickness: 50 µm
• Latch tab: integrated break-resistant tab
• Structure: conductor + insulation + aluminum foil + ground wire + braid + jacket
• Conductor gauge: 23AWG
• Conductor size: 0.26 ±0.008 mm x 8
• Conductor material: single strand oxygen free copper
• Insulation material: foam-skin PE
• Insulation color code:
  • 1P: blue & white / blue
  • 2P: orange & white / orange
  • 3P: green & white / green
  • 4P: brown & white / brown
• Core wire direction: s
• Core wire lay length: < 30 mm
• Cable direction: s
• Cable lay length: ≦ 120 mm
• Outer jacket material: double-layer PVC
• Aluminium foil: aluminum foil pair shielded
• Ground wire: 7 x 0.16 mm multi-strand oxygen free copper (26 AWG）
• Braid material: 128 x 0.12 mm tinned copper braid shield
• Shielding rate: 100%
• Jacket material: TPE
• Jacket outer diameter: 8.0 ±0.20 mm
• Jacket color: black
• Conductor resistance:＜68.4 ohm/km at 20 ℃
• Insulation resistance: ＞5000 ohm at 20 ℃
• Withstand voltage: 1000 V_DC/1 min, no breakdown
• Delay difference: ≤ 30 ns/100 m (1 - 125 MHz）
• Frequency: 500 MHz
• Testing: PASS FLUKE
• Insulation elongation: ≥ 300%
• Insulation tensile: ≥16 Mpa
• Jacket elongation: ≥ 100%
• Jacket tensile: ≥ 12.5 Mpa
• Maximum relative mutual coupling capacitance: 5.6 nF/100 m
• Maximum capacitance unbalance: 330 pF/100 m
• Operating temperature: -20 to 80 ℃
• Operating voltage: 60 V

DF100

• Product material: ABS, PP
• Product color: black
• Multi-surface placement: all five surfaces can be placed on the ground / table surface
• Portable / hanging: portable, or placed on a cable rack
• Stackable: multiple units can be stacked together to save space
• Custom information: user can customize information for easy management
• Anti-fall & anti-collision: enclosed reel design is anti-fall and anti-collision, convenient for transportation
• Single-person manageability, one person can quickly unwind and retract cable
• Folding handle: yes
• Extended handle: supports detachable extended handle
• Bearing structure: labor-saving built-in bearing
• Cable holder: yes
• RJ45 connector holder: yes
• Connector protector holder: supports BH01, BH02 and BH03 connector protector

BH03

• Product material: aluminum alloy shell
• Product color: black
• Applicable products: fiber, CAT, HDMI / DP cables
• Maximum outer diameter: 35 mm
• Product structure: peanut shell structure (detachable design for easy installation)
• Customer logo: customization provided for 1000 pieces or more
• Size: 130 x 35 x 48.47 mm
• Weight: 56.6 g
