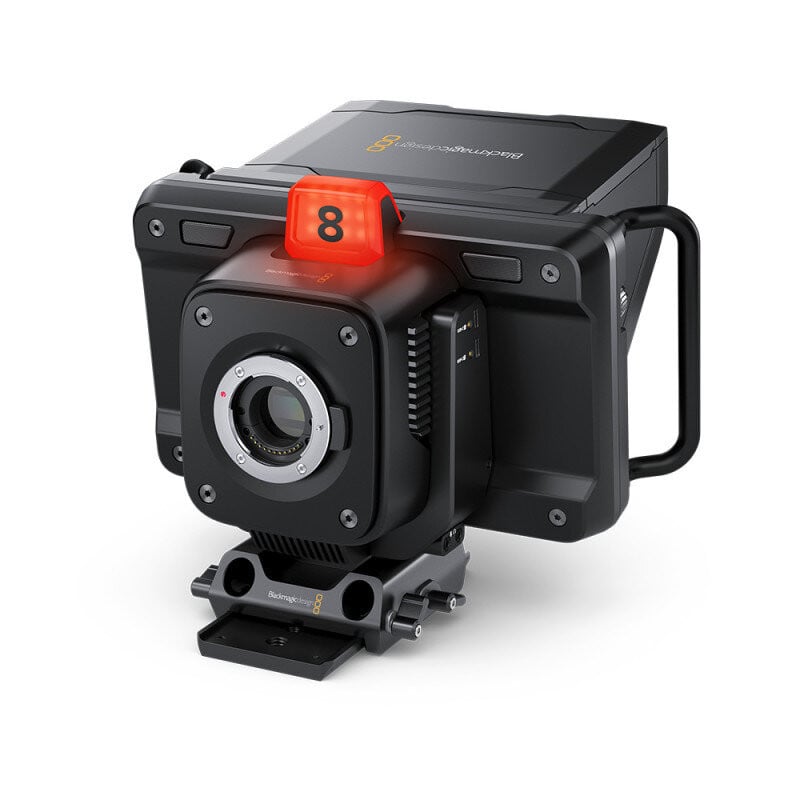

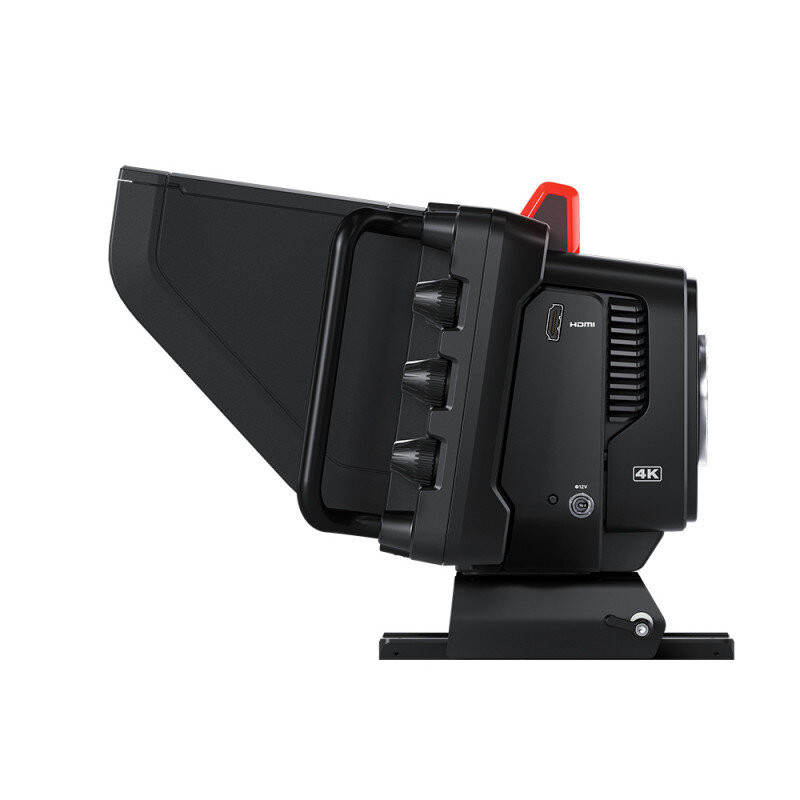

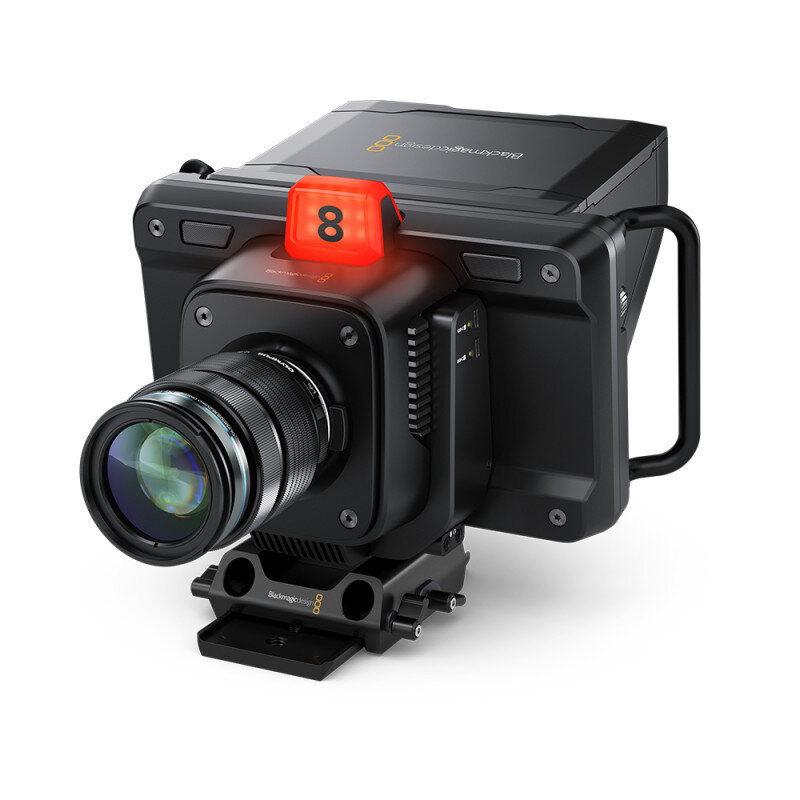

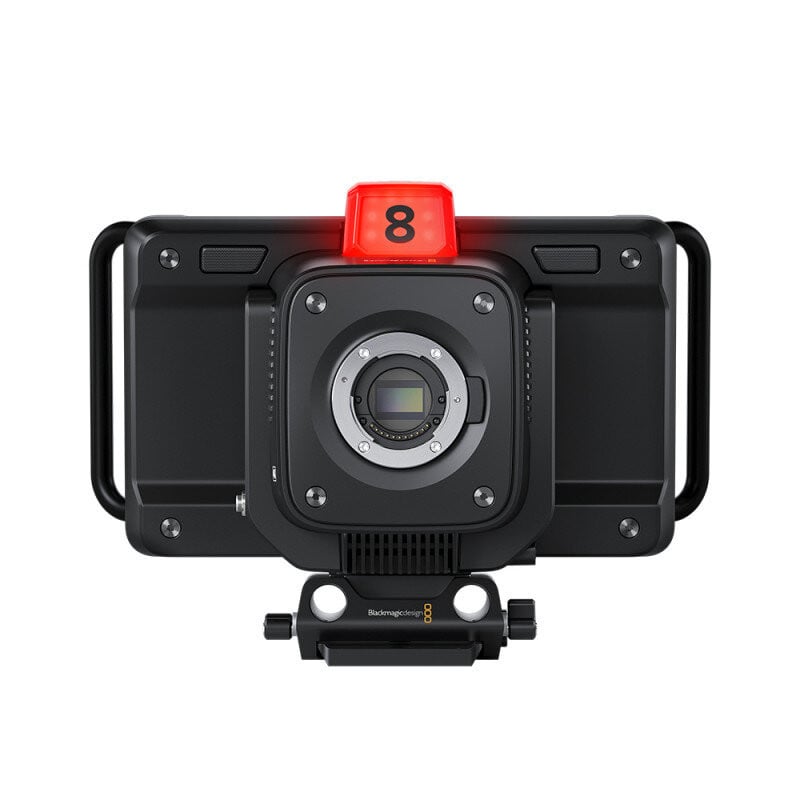

Blackmagic Design - Blackmagic Studio Camera 4K Plus

The Studio Camera 4K Plus has been specifically designed as the perfect camera for ATEM Mini. It's the same high quality broadcast camera, but the HDMI centric design removes all the expensive broadcast connections so it's much lower cost. The HDMI is incredibly powerful as it connects video to the ATEM Mini, while at the same time camera control, tally and the remote record trigger is sent to the camera using the same HDMI connection. That makes it very fast to set up for a job.

Camera Features

Effective Sensor Size: 17.78mm x 10 mm (Four Thirds)

Lens Mount: Active MFT Mount.

Lens Control: Iris, focus, zoom on supported lenses.

Dynamic Range: 13 Stops.

Dual Native ISO: 0 dB and 18dB gain.

Sensitivity at 0 dB Gain:

f11 with 2160p59.94.

f12 with 2160p50.

at 2,000 lux with 89.9% reflectance.

Signal to Noise Ratio: 63 dB for 2160p.

Shooting Resolutions: 3840 x 2160 (Ultra HD) up to 60 fps.

Frame Rates:

23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second.

Off-speed frame rates up to 60 fps in Ultra HD.

Focus: Auto focus available using compatible lenses.

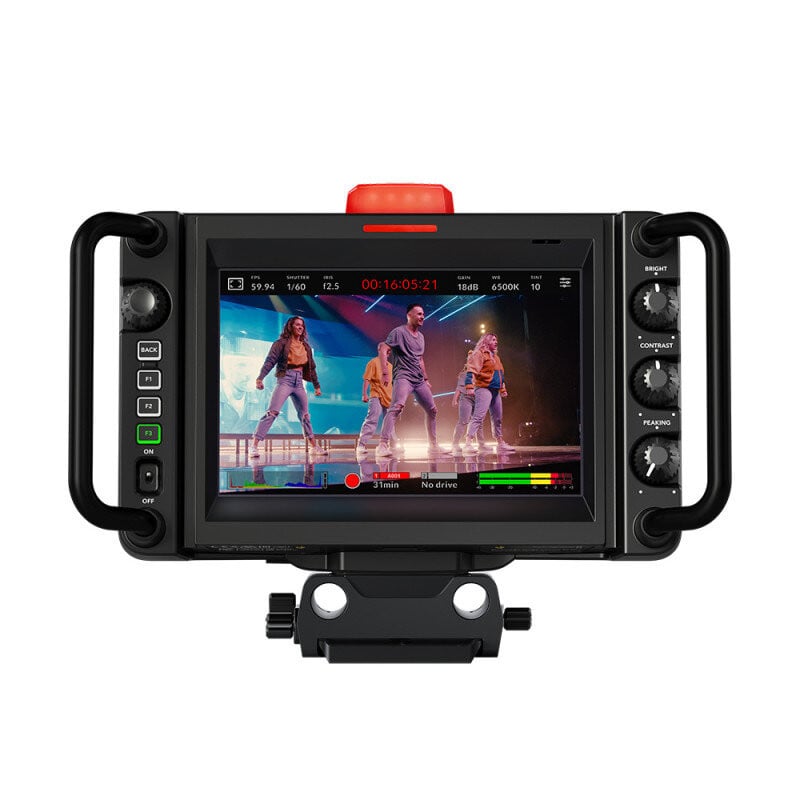

Screen Dimensions: 7 inch 1920 x 1200

Screen Type: LCD capacitive touchscreen.

Screen Brightness: 600 nits

Controls: Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials.

Mounting Options:

2 x 1/4 inch tripod mount.

1 x 3/8 inch tripod mount.

Connections

HDMI 2.0 Video Outputs: 1

Analog Audio Input: 1 x 3.5 mm Stereo Input. Can also be used for Time Code input.

Analog Audio Output: 1 x 3.5 mm mini-jack for headphones.

Remote Control: Remote camera control over HDMI.

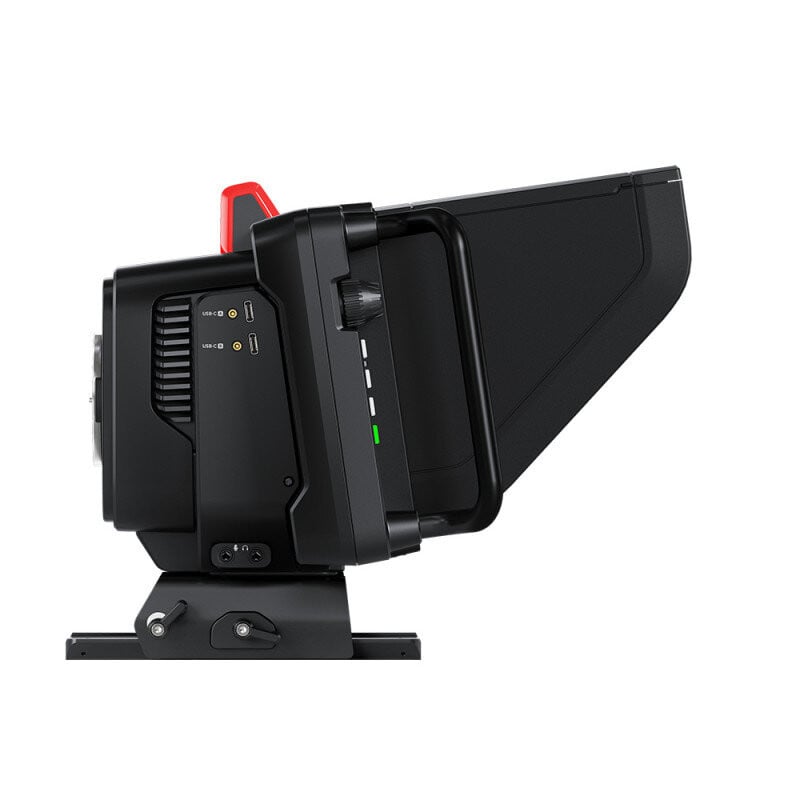

Computer Interface: 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A.

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Standards

SD Video Standards: None

HD Video Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

HDMI Audio Sampling: Television standard sample rate of 48 kHz and 24‑bit.

Media

Media: 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW.

Media Format: Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

Codecs

Blackmagic RA W Constant Bitrate 3:1,
Blackmagic RA W Constant Bitrate 5:1,
Blackmagic RA W Constant Bitrate 8:1,
Blackmagic RA W Constant Bitrate 12:1,
Blackmagic RA W Constant Quality Q0,
Blackmagic RA W Constant Quality Q1,
Blackmagic RA W Constant Quality Q3,
Blackmagic RA W Constant Quality Q5

Storage Features

Storage Type: 2 x USB‑C 3.1 Gen 1 expansion ports for external media.

Recording Formats: Blackmagic RA W 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in Ultra HD 3840 x 2160 at the selected frame rate.

Storage Rates: Storage rates based on 30 frames per second.

3840 x 2160 (Ultra HD)

Blackmagic RA W 3:1 - 127 MB/s
Blackmagic RA W 5:1 - 77 MB/s
Blackmagic RA W 8:1 - 48 MB/s
Blackmagic RA W 12:1 - 32 MB/s
Blackmagic RA W Q0 - 96 to 190 MB/s
Blackmagic RA W Q1 - 64 to 153 MB/s
Blackmagic RA W Q3 - 43 to 109 MB/s
Blackmagic RA W Q5 - 26 to 64 MB/s

Constant Quality storage rates quoted are indicative only.

Actual storage rates are entirely dependent on image subject matter.

Control

External Control: Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.

Blackmagic Control Protocol over HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Advanced Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.

Color Corrector

DaVinci YRGB

Tally

Live Tally Indicator:

1 x front facing for talent,

1 x rear facing for operator.

Software

Software Included: Blackmagic Camera Setup for Mac and Windows.

Operating Systems

Mac 10.15 Catalina, Mac 11.1 Big Sur or later.

Windows 10, 64-bit.

Power Requirements

Power supply: 1 x External 12 V_DC 60 W power supply.

Power Inputs: 1 x 12 V_DC locking 5.5 mm barrel connector.

Power Usage: 26 ‑ 40 W.

Optional Accessories

Blackmagic Focus Demand

Blackmagic Zoom Demand

ATEM Mini switchers

ATEM Television Studio HD and HD Pro switchers

Blackmagic 3G‑SDI Shield for Arduino

Environmental Specifications

Operating Temperature: 0° to 40° C (32° to 104° F)

Storage Temperature: -20° to 45° C (-4° to 113° F)

Relative Humidity: 0% to 90% non-condensing
