Blackmagic Design - Blackmagic StudioBridge 100G

The Blackmagic StudioBridge 100G converts a single 100G SMPTE-2110 Ethernet connection into a redundant broadcast system with dual 100G connections.

It also features two 100G Ethernet connections for cameras, which can be combined to provide a total bandwidth of over 100 Gbps, allowing two cameras, such as the URSA Cine 12K 100G, to be integrated into a redundant broadcast system. It also includes a separate 10G Ethernet channel for accessories, an NMOS control port, and two redundant internal power supplies.

User benefits

• Operational reliability thanks to full 100G redundancy and dual internal AC power supplies
• Easily integrate into SMPTE-2110 workflows with 2022-7 redundancy for business continuity
• Management of ultra-high bandwidth streams to connect 12K cameras
• Fast monitoring via front-panel LCD for immediate verification without external tools
• Future scalability with native support for HD, Ultra HD, and immersive 8K

Areas of use

• IP broadcast production based on SMPTE-2110 with 2022-7 redundancy for business continuity
• Integration of URSA Cine 12K 100G cameras into high-bandwidth 100G infrastructures
• Connection of 100G multi-camera systems in television studios, control rooms, and live production centers
• Transportation of Ultra HD and immersive 8K streams over 100G networks for advanced post and live workflows
• Broadcast Infrastructures Redundant systems requiring dual AC power and network failover
• Installations in OB vans and mobile environments requiring compact 100G bridging in 1 RU
• Mixed 100G/10G systems with flow separation for accessories, control, and external devices

Technical characteristics

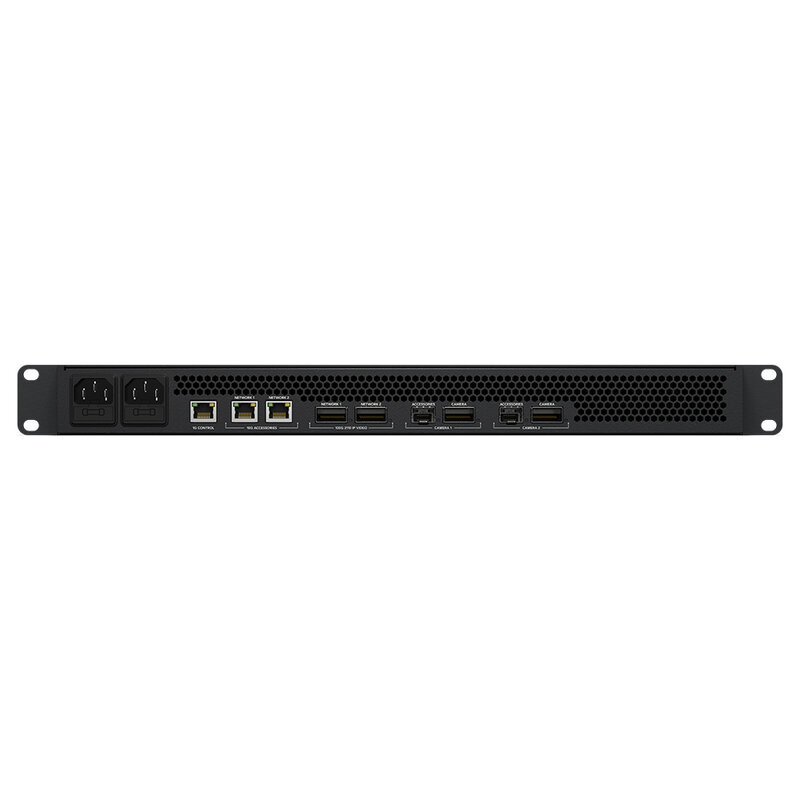

Connections

• 100G 2110 IP networks: 2 × 100G QSFP28 network connections, supports ST 2022‑7 redundant delivery of IP streams over the two ‘100G 2110 IP video’ network connections
• 100G 2110 IP camera: 2 × 100G QSFP28 camera connections
• Senders and receivers per 100G pair: 1 × 100G URSA Cine or 2 × URSA Cine Immersive / URSA Immersive
• 10G 2110 IP networks: 2 × 10G SFP optical fiber connections, 2 × 10G RJ45 connections
• Senders and receivers per 10G pair: 8 × Ultra HD or HD
• 1G control network: 1 × 1G RJ45 for NMOS control, configuration and software updates
• SMPTE ST 2110 IP audio inputs: 16 ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet
• SMPTE ST 2110 IP audio outputs: 16 ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet
• Multi rate support: auto detection of HD, Ultra HD and 4K
• Computer interface: 1 × USB‑C for configuration and firmware updates
• Power: 2 × IEC C14 power inputs

Video standards

• HD video standards: 720p 50, 720p 59.94, 720p 60, 1080i 50, 1080i 59.94, 1080i 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 50, 1080p 59.94, 1080p 60, 1080PsF 25, 1080PsF 29.97, 1080PsF 30
• Ultra HD video standards: 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 50, 2160p 59.94, 2160p 60
• 8K video standards: 8160 × 7200 × 2 stereo immersive
• SMPTE compliance: SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7
• Color precision: 10‑bit 4:2:2 YUV
• Color space: REC 709, REC 2020
• SDI auto switching: automatically detects HD and Ultra HD

IP video compliance

• IP video compliance: SMPTE 2110‑20 (uncompressed video), IGMP v2, SMPTE 2110‑21 (traffic shaping) sender narrow, receiver narrow, wide synchronous, asynchronous, SMPTE 2110‑30 (PCM) audio conformance level C, SMPTE 2110‑40 (ancillary data) full access to entire SMPTE ancillary data stream including RP 188 / SMPTE 12M‑2, closed captioning and HDR static metadata

• Codec: Blackmagic IP10 codec optional for 2160p 59.94 and 2160p 60 as 2110 IP video

• Precision time protocol: IEEE 1588‑2008 (PTP v2), ST 2059‑1, ST 2059‑2

• NMOS IS‑04 discovery and registration: version 1.3.2, peer‑to‑peer via mDNS / DNS‑SD
• NMOS IS‑05 connection management: version 1.1.2
• NMOS BCP‑002‑01: natural grouping
• NMOS BCP‑004‑01: receiver capabilities

Displays

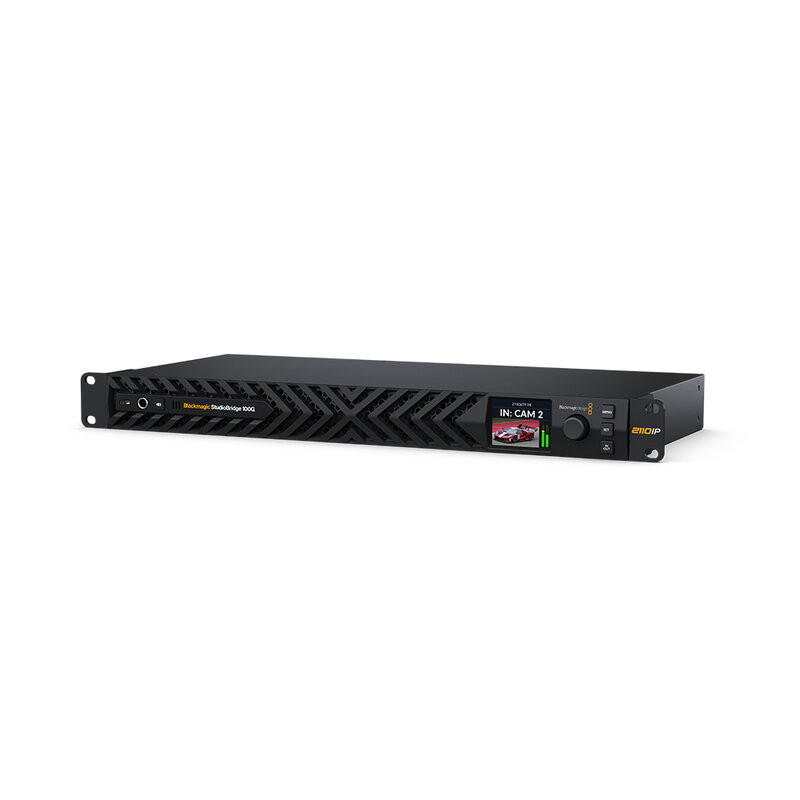

• Display: built in 2.2" LCD for monitoring video, audio, video standard and timecode plus menu settings, use search dial to scrub between all available inputs and monitor on front panel

Control

• Built in control panel: 2.2" color display, 3 button control panel and spin knob for source and destination setup and menu settings
• External control: RJ45 Ethernet and USB‑C

Operating systems

• Mac: Mac 15.0 Sequoia, Mac 26.0 Tahoe or later
• Windows: Windows 11

Power requirements

• Power supply: 2 × 100 - 240 V_AC 50/60 Hz internal power supplies
• Power inputs: 2 × IEC C14 sockets
• Power usage: TBC

Environmental specifications

• Operating temperature: 5 to 40 °C
• Storage temperature: −20 to 45 °C
• Relative humidity: 0% to 90% non‑condensing

Physical specifications

• Dimensions: 4.4 × 48.2 × 22.1 cm
• Weight: 3.2 kg

What’s in the box

• Blackmagic StudioBridge 100G
• Welcome wallet with QR code for software download
