Blackmagic Design - HyperDeck Extreme 4K HDR

HyperDeck Extreme 4K HDR features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs and HDR support! With the ability to record up to native 4K in H.265, you get reduced storage costs and amazing image quality. The large touch screen ensures a perfect view of your recording as well as control over all deck settings.

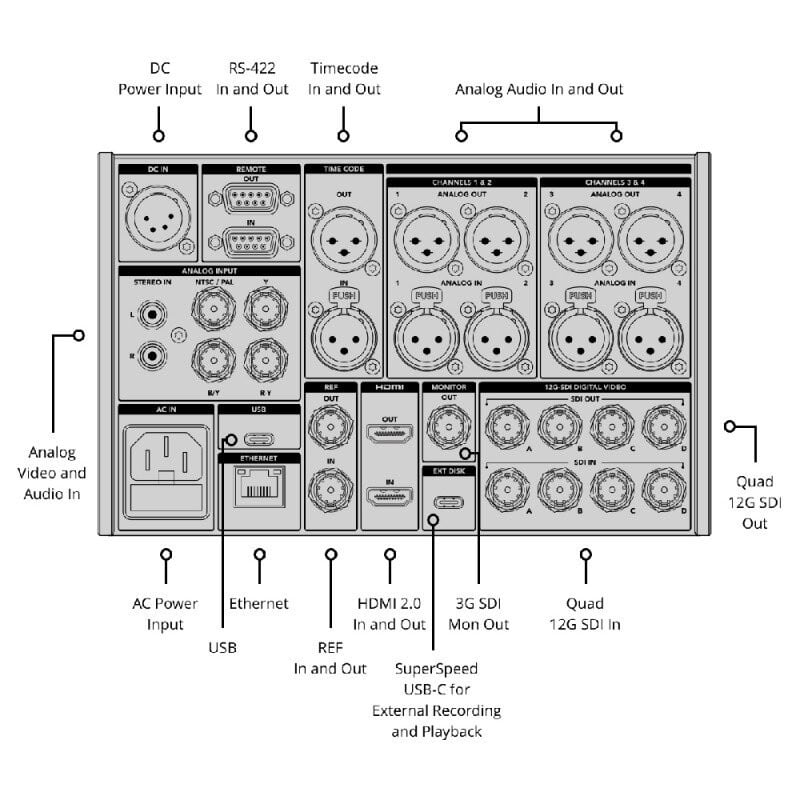

• SDI Video Inputs: 1
• SDI Video Outputs: 3  (12G-SDI A and B plus 3G-SDI Monitor Out)
• SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
• HDMI 2.0 Video Inputs: 1
• HDMI 2.0 Video Outputs: 1
• Analog Video Inputs: 1 x Component YUV on 3 BNCs, 1 x Composite NTSC/PAL on 1 BNC.
• Analog Video Outputs: None
• Analog Audio Inputs: 4 CHannels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
• Built in Speaker: Mono

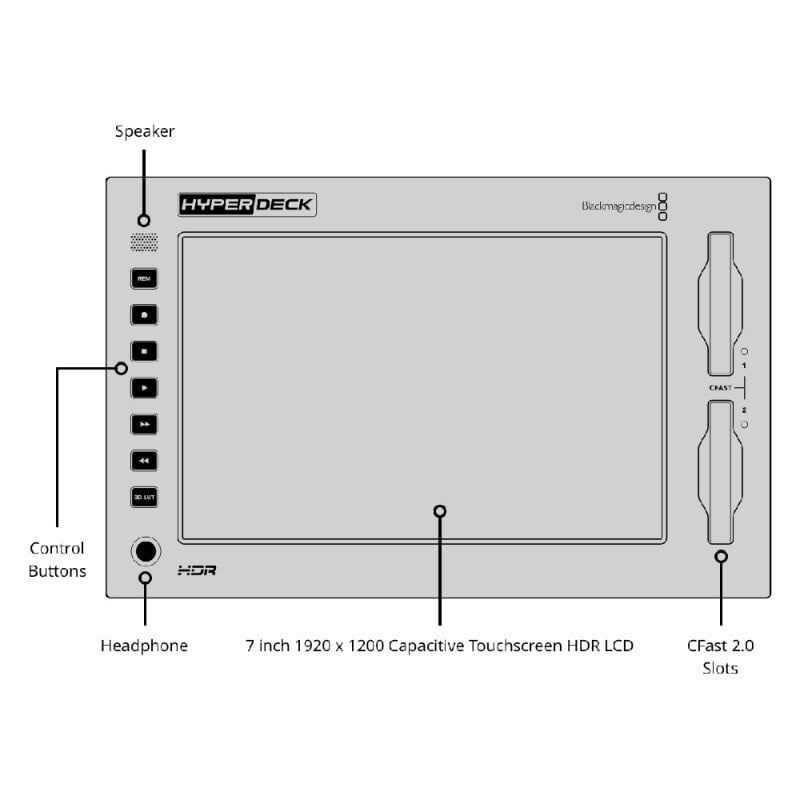

• Screen: 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
• Time Code Connections: 1 x XLR in and 1 x XLR out.
• Reference Input: Tri-Sync or Black Burst.
• SDI Audio Inputs: 16 channels embedded audio.
• SDI Audio Outputs: 16 channels embedded audio.
• HDMI Audio Inputs: 8 channels embedded audio.
• HDMI Audio Outputs: 8 channels embedded audio.
• Remote Control: 1 x RS-422 In, 1 x RS-422 Out.
• Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.
• Ethernet: 10Gb/s
• External Recording: 1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
• Computer Interface: 1 x USB-C for software updates.
