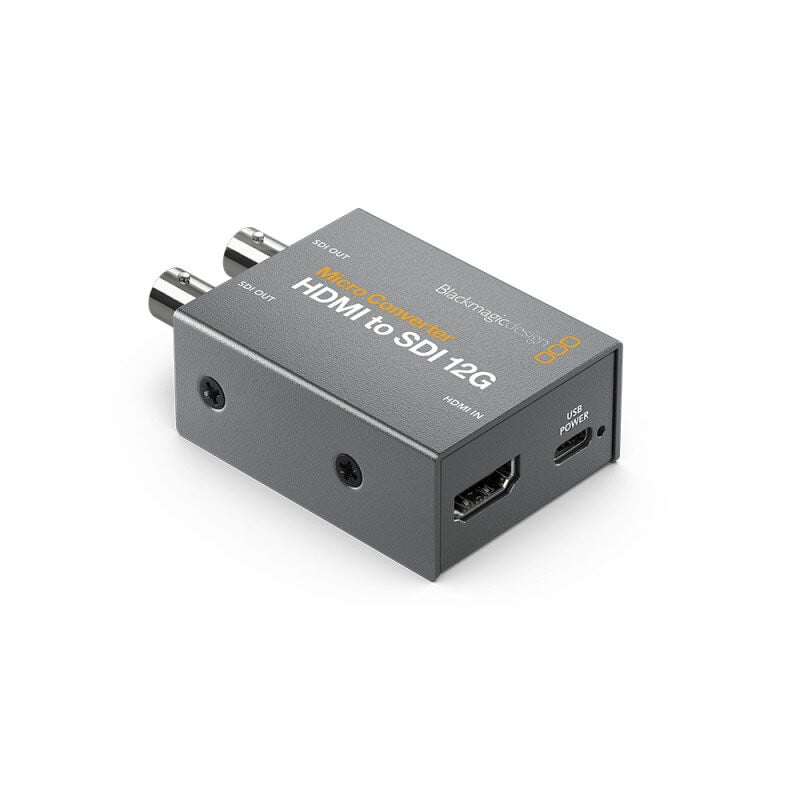

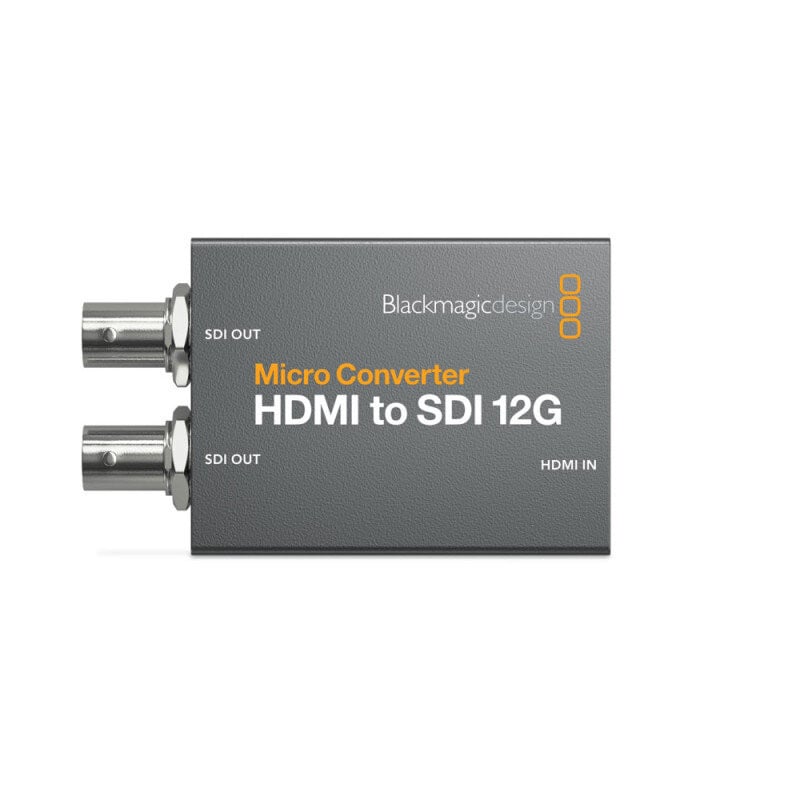

Blackmagic Design - Micro Converter HDMI to SDI 12G

Micro Converter HDMI to SDI 12G is an ultra-compact professional video converter designed for connecting HDMI-equipped devices (such as cameras, computers, or media players) to broadcast systems with SDI inputs.

With a miniature yet broadcast-quality design, it features two 12G-SDI outputs that can be configured for Level A or Level B of 3G-SDI signals. It features a standard HDMI connection and two professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, and 2160p formats, including 4Kp24/47.95/48 DCI.

Power it via USB from a laptop or phone charger!

Technical characteristics

Connections

• SDI video inputs: 1
• SDI video outputs: 1 loop
• HDMI video outputs: 1 HDMI 2.0 Type A
• USB Type C: configuration, updates and power
• SDI rates: 270 Mb, 1.5G, 3G, 6G, 12G
• Multi rate support: auto detection of SD, HD, 2K, Ultra HD and 4K

Standards

• SD video standards: 640 x 480i 59.94 NTSC, 625 x 576i 50 PAL
• HD video standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K video standards: 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
• UHD video standards: 3840 x 2160p 23.98, 3840 x 2160p 24, 3840 x 2160p 25, 3840 x 2160p 29.97, 3840 x 2160p 30, 3840 x 2160p 47.95, 3840 x 2160p 48, 3840 x 2160p 50, 3840 x 2160p 59.94, 3840 x 2160p 60
• 4K video standards: 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI
• SDI compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084, SMPTE 2108-1
• SDI video rates: switchable between SD, 720p, 1080i, 1080p, 2K DCI, UHD and 4K DCI
• SDI color precision: 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color
• SDI color space: YUV
• SDI auto switching: automatically detects SD, HD Level A or B for 3G SDI, 2K DCI, UHD and 4K DCI
• HDMI video standards: 640 x 480i 59.94 NTSC, 625 x 576i 50 PAL
• HDMI video standards: 525i 59.94 NTSC, 625i 50 PAL, 720p 50, 720p 59.94, 720p 60, 1080p 23.98, 1080p 24, 1080p 25, 1080p 29.97, 1080p 30, 1080p 47.95, 1080p 48, 1080p 50, 1080p 59.94, 1080p 60, 1080i 50, 1080i 59.94, 1080i 60, 2160p 23.98, 2160p 24, 2160p 25, 2160p 29.97, 2160p 30, 2160p 47.95, 2160p 48, 2160p 50, 2160p 59.94, 2160p 60, 4Kp 23.98 DCI, 4Kp 24 DCI, 4Kp 25 DCI, 4Kp 29.97 DCI, 4Kp 30 DCI, 4Kp 47.95 DCI, 4Kp 48 DCI, 4Kp 50 DCI, 4Kp 59.94 DCI and 4Kp 60 DCI
• HDMI color precision: 4:2:2. A 33 point LUT can be loaded via the software utility for calibrating or improving monitor color
• HDMI color space: YUV

Settings control

• Via macOS and Windows software utility connected by USB

Operating systems

• macOS 10.15 Catalina, macOS 11.1 Big Sur or later
• Windows 10, 64-bit

Software

• Internal software upgrade via USB

Power requirements

• Power consumption: 4 W max.
• Operational voltage range: 4.4 to 5.25 VDC

Environmental specifications

• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 60 °C

Physical specifications

• Dimensions: 78 x 45.8 x 24.8 mm
• Weight: 0.15 kg
