SKU: CONVCMIC/HS12G/WPSU
EAN: 9338716007077
Blackmagic Design - Micro Converter - HDMI to SDI 12G PSU
HDMI to SDI converter up to 2160p60 with PSU
Not available.
delivery is not available for this product.
Free shipping for orders over € 199 (within Europe)
Variants of this product
SDI audio embedder from 8 CH AES/EBU or 4 CH analog audio up to Ultra HD
12G-SDI audio de-embedder to analog or AES/EBU audio
455.00 €
Ultra-wide range video scaler, VGA / HDMI / SDI to HDMI / SDI, multi-format up / down / cross
SDI to HDMI converter up to 2160p60 with PSU
For add multiple microphones or external audio mixer sources on the ATEM Television Studio switchers
Product Details

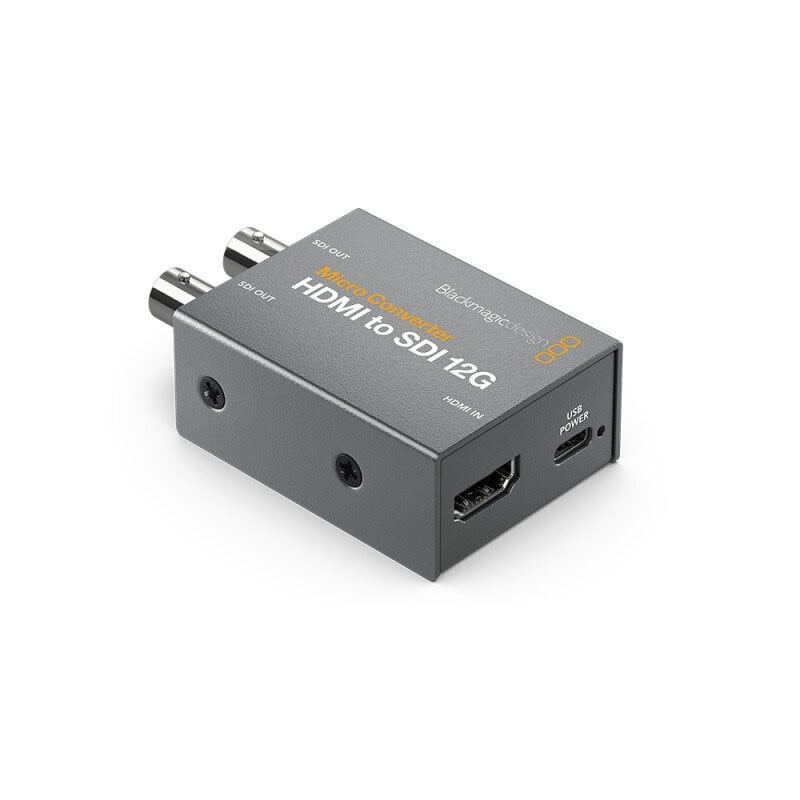

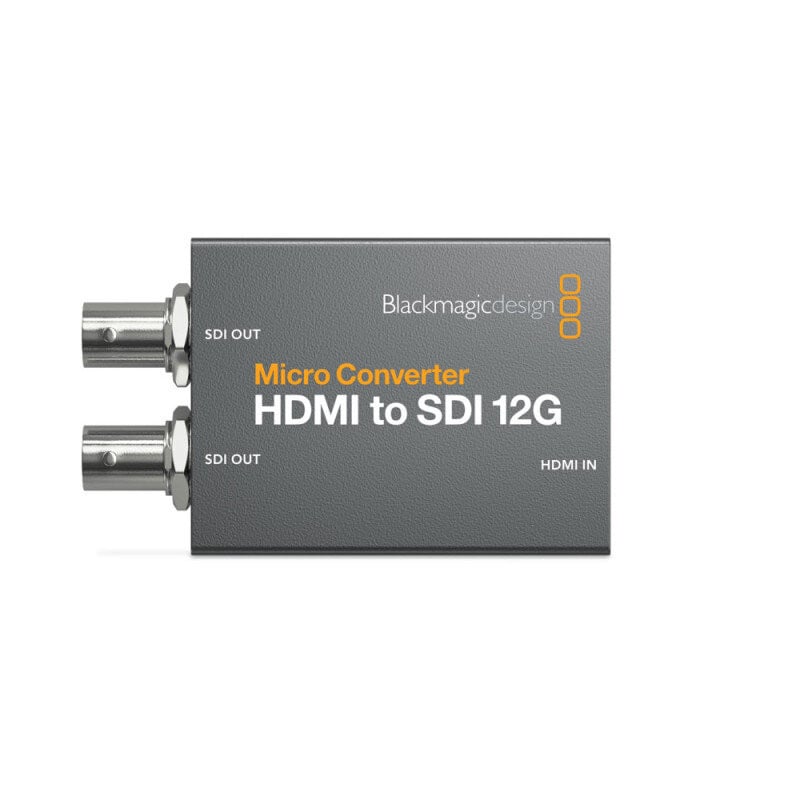

Blackmagic Micro Converter HDMI to SDI 12G is a miniaturized broadcast quality video converter that’s perfect for connecting HDMI cameras and computers to professional SDI equipment! You get two 12G-SDI outputs which can be set to level A or B for 3G-SDI signals. Micro Converters feature full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080i, 2160p rates, including 4Kp24/ 47.95/48 DCI. You get a universal power supply with international AC plug adapters, or you can power it over USB from a laptop or a mobile phone charger.

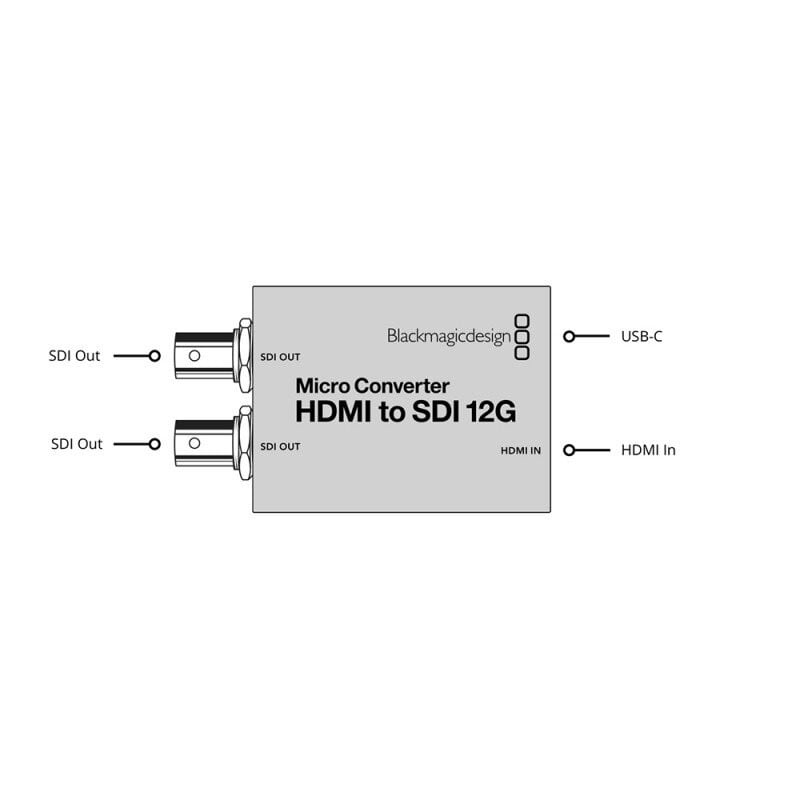

Connections
- SDI Video Outputs: 2 Automatically matches the HDMI input.
- HDMI 2.0 Video Outputs: 1 x type A.
- SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.
- Multi Rate Support: Auto detection of SD, HD, 2K, Ultra HD and 4K.
- Updates, Configurations and Power: USB Type‑C.
- Reclocking: Yes
More..
Show less
HDMI to SDI converter up to 2160p60 with PSU
