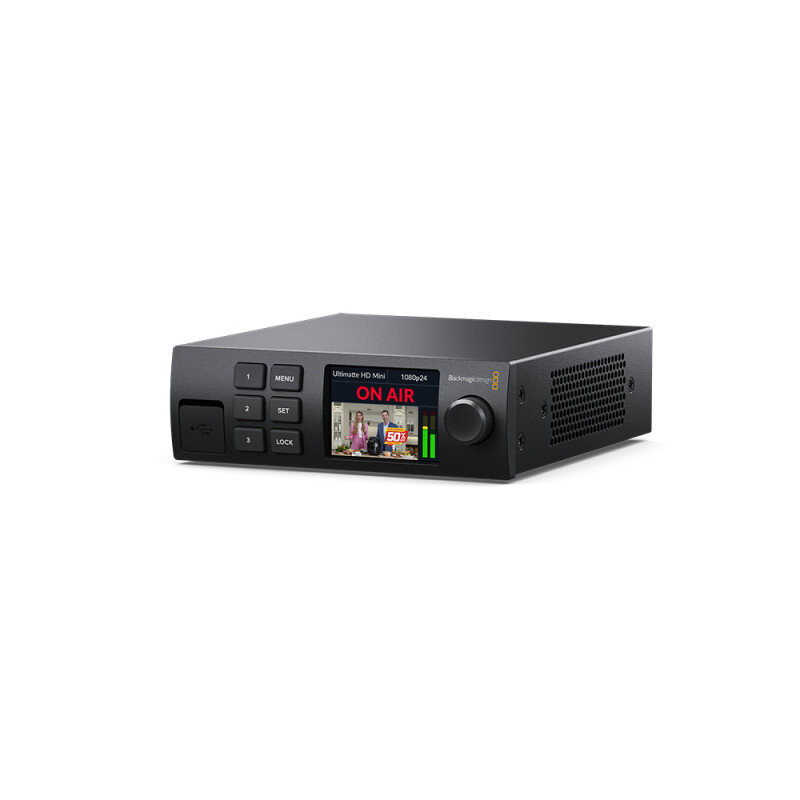

Blackmagic Design - Ultimatte 12 HD Mini

Ultimatte 12 HD Mini is an advanced real time keyer designed for creating next generation virtual sets and more with consumer cameras. The HDMI connections are perfect for use with Blackmagic Studio Cameras, Pocket Cinema Cameras and ATEM Mini live production switchers. Plus there’s a massive 6 GB frame store for realistic fixed camera virtual sets from pre rendered still frames. Ultimatte 12 HD Mini features broadcast quality algorithms and color science to deliver photorealistic composites.

Connections

• SDI Video Inputs: 2 Monitor In for monitor cascade plus Return In for camera control.
• SDI Video Outputs: 2
• HDMI Video Inputs: 2
• HDMI Video Outputs: 1
• Video Input Re-Sync: On all inputs.
• SDI Rates: 270Mb, 1.5G, 3G.
• Ethernet: Up to 1Gb/s for device control and loading stills into Media Pool.
• Computer Interface: 1 x USB-C 3.0 for device configuration and software updates.

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60 - 1080i50, 1080i59.94, 1080i60 - 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
• Video Sampling: 4:2:2
• Color Precision: 10-bit
• Color Space: REC 601, REC 709.
• Multiple Rate Support: Auto detection of SD and HD.

Composite Sources

• Foreground: 1 x HDMI In
• Bac kground: 1 x HDMI In. Still from Media Pool
• Bac kground Matte: Internal Window. Still from Media Pool
• Garbage Matte: Internal Window. Still from Media Pool
• Holdout Matte: Internal Window. Still from Media Pool
• Layer: Still from Media Pool
• Layer Matte: Internal Window. Still from Media Pool

Composite Outputs

• Program: 1 x HDMI - 1 x 3G-SDI

Monitor

• Monitor In: 1 x 3G-SDI for monitor cascade
• Monitor Out: 1 x 3G-SDI. For monitoring Program, Foreground Input, Bac kground Input, Combined Matte, Internal Matte, Fill Out, Layer Input, Bac kground Matte Input, Garbage Matte Input, Holdout Matte Input, Layer Matte Input, Processed Layer Matte, Processed Holdout Matte, Processed Garbage Matte, Processed Bac kground Matte, Screen Correction.

Media Pool

• Bac kground Still Image Formats: TG A, TIFF, BMP, PNG, JPG.
• Bac kground with Alpha Still Image Formats: TG A, TIFF, BMP.
• Layer Image Still Image Formats: TG A, TIFF, BMP, PNG, JPG.
• Layer with Alpha Still Image Formats: TG A, TIFF, BMP.
• Garbage Matte Still Image Formats: TIFF, BMP, PNG, JPG.
• Holdout Matte Still Image Formats: TIFF, BMP, PNG, JPG.
• Media Pool Memory: 6GB non-volatile internal storage.

Displays

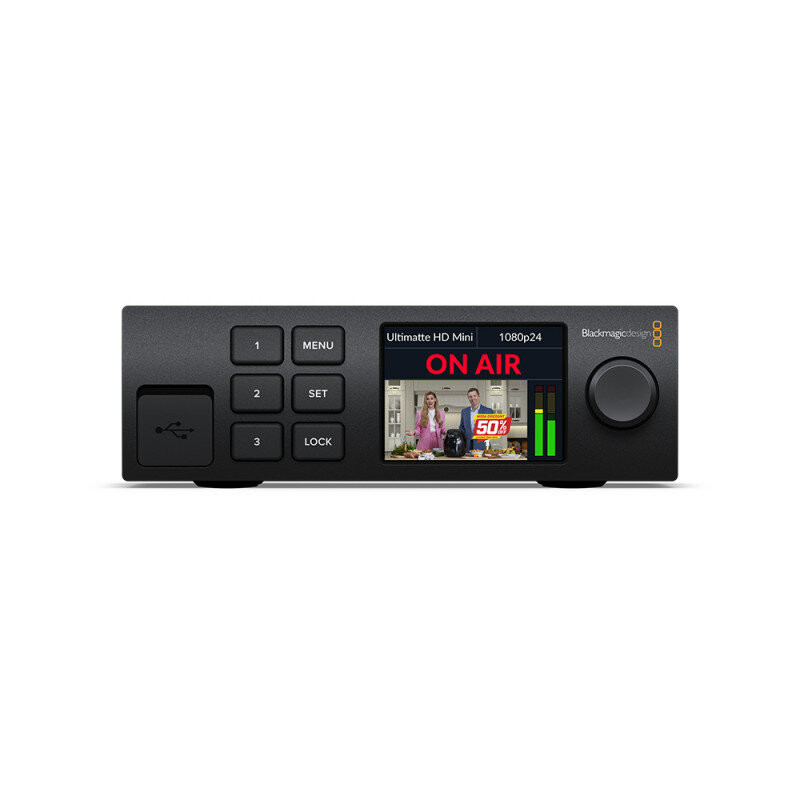

• Built in 2.2 inch color display for device name, video preview, video standard audio meters, status and menus.
