Blackmagic Design - Videohub Master Control Pro

Name: Videohub Master Control Pro
Brand: Blackmagic Design
SKU: VHUB/WMSTRCRL/PRO
Price: 604 EUR
Availability: OutOfStock

48 button control panel for XY or single destination control with spin knobs and LCD

(0)

1,226.00 €

- 51%

604.00 €

Pay in 4 interest-free payments of 151.00 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

Blackmagic Design - Videohub Smart Control Pro

622.50 €

(0)

48 button control panel for XY or single destination control

Blackmagic Design - Blackmagic Videohub 40x40 12G

3,366.50 €

(0)

Largest 40 x 40 zero latency 12G-SDI video router

Pulse-Eight - NeoX+ Kit

4,926.50 €

(0)

8 x 8+2 HDBaseT 2.0 matrix, 4K 60 Hz 4:4:4, 100 m, Dolby down mixing, audio return channel, 4 x audio only inputs, HDBaseT diagnostics, remote monitoring, IR, CEC, RS232 and Alexa. Kit includes 8 x PoH receivers P8-HDBT2-U-RX

Blackmagic Design - Blackmagic Videohub Mini 4x2 12G

465.50 €

(0)

Compact SDI video router, 4 x 12G-SDI inputs and 2 outputs, clean switch technology, front-panel controls, emergency input for quick connectivity

Blackmagic Design - Blackmagic Videohub Mini 8x4 12G

790.00 €

(0)

Compact SDI video router, 8 x 12G-SDI inputs and 4 outputs, clean switch technology, front-panel controls, emergency input for quick connectivity

Product Details

Videohub Master Control Pro is a 1 RU Ethernet hardware panel with rotary encoder control that gives you complete control of your entire router from anywhere in the studio.

Connecting Master Control Pro to your Ethernet network gives you full control of every crosspoint on your router, meaning you can view and route all your crosspoints remotely, even on the largest Videohub! The front panel features programmable buttons, encoders, and an elegant LCD for displaying source and destination labels.

Main features

Ideal for controlling Videohub remotely via Ethernet
Scroll wheel for sources and destinations
Clean-cut selection: supports multiple destinations
Elegant LCD display for viewing sources and destinations

Technical characterisitcs

Connections

Ethernet: RJ45 Ethernet IN and OUT. Power over Ethernet supported on Ethernet IN. No power over Ethernet on Ethernet OUT
RS-422: IN and OUT for future implementation
Computer interface: USB-C for configuration and software updates
Power: 100 - 240 V_AC

Hardware control

21 assignable buttons with scroll wheel for fast selection of source and destination
LCD information screen

IP video compliance

PTP (Precision Time Protocol): IEEE 1588-2008 (PTP V2), ST 2059-1, ST 2059-2
NMOS IS-04 discovery and registration: v1.3.2, peer-to-peer via MDNS/DNS-SD
NMOS IS-05 connection management: v1.1.2
NMOS BCP-002-01: natural grouping
NMOS BCP-004-01: receiver capabilities

Internal software

Internal software upgrade via included firmware updater application via USB or Ethernet

Operating systems

Mac 13.0 Ventura, Mac 14.0 Sonoma or later, Windows 10 64-bit, Windows 11

Physical installation

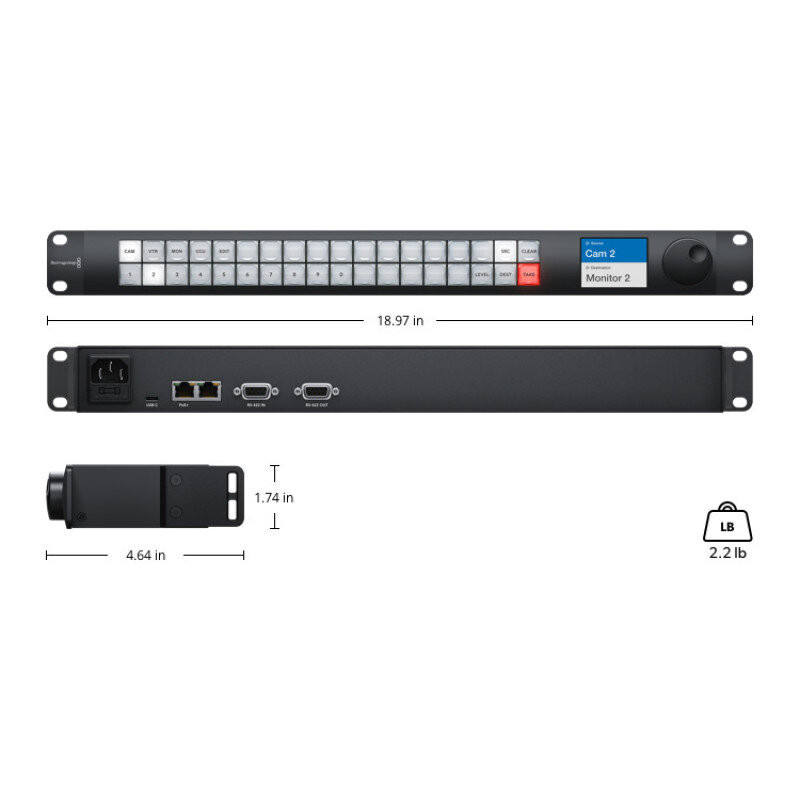

1 rack unit size, less than 3" deep

Button configuration

Included free for Windows and Mac via USB 2.0 high speed 480 Mb/s interface

Power requirements

Power fail requirements: button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall
Power supply: internal 100 - 240 V_AC

Environmental specifications
