BoomTone DJ - Maxi Beam 100

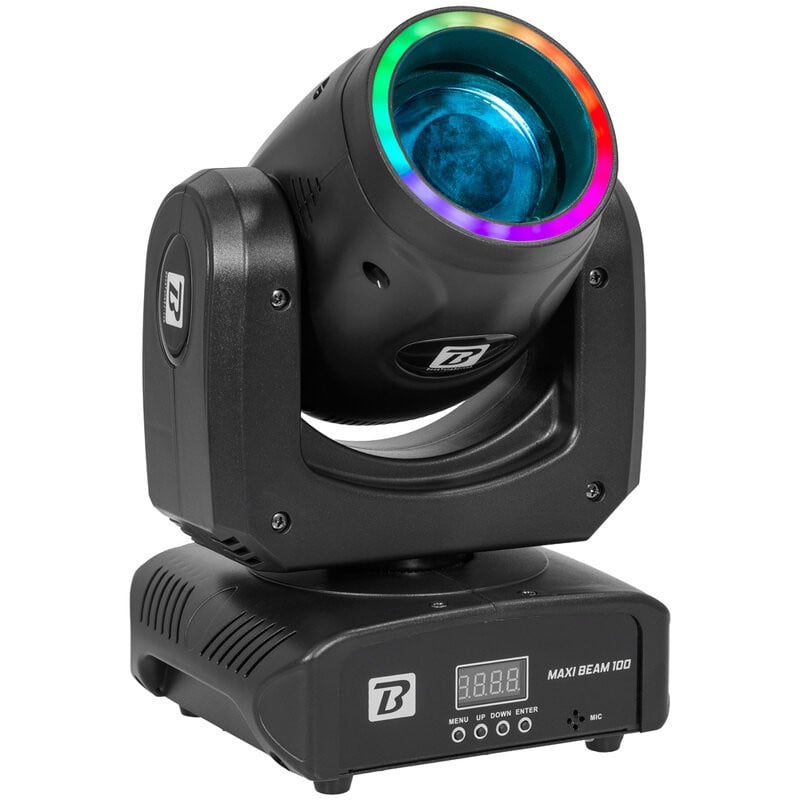

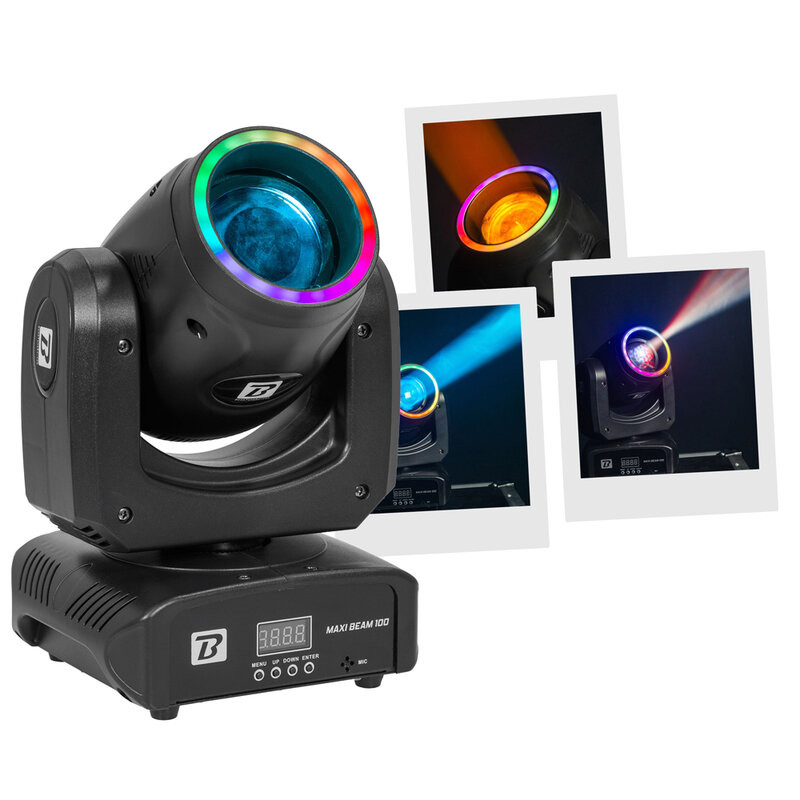

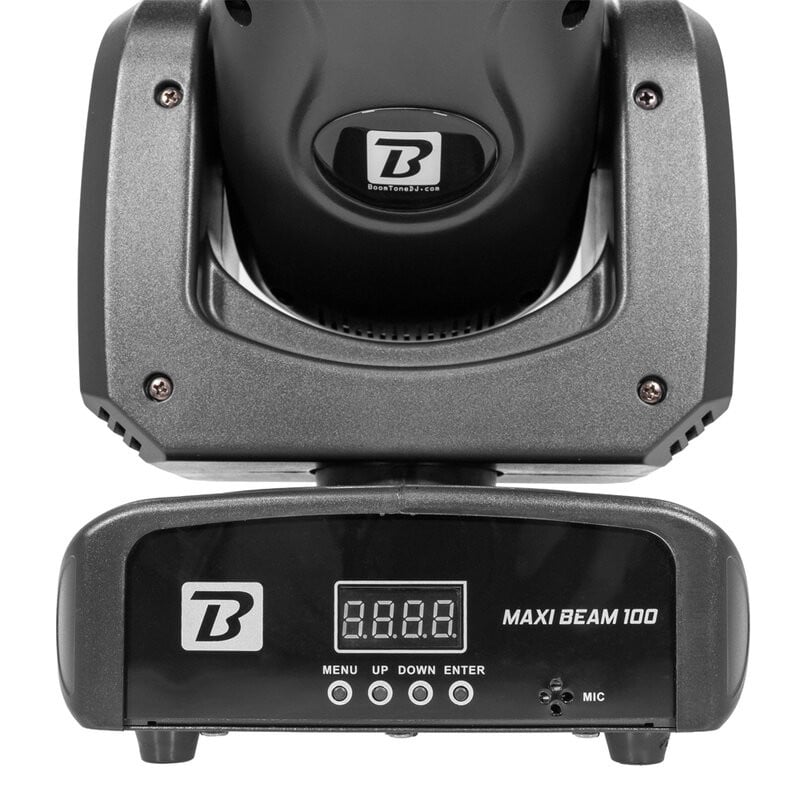

The BoomToneDJ Maxi Beam 100 is a compact yet extremely powerful beam moving head, designed to create incisive, graphic effects even in small spaces.

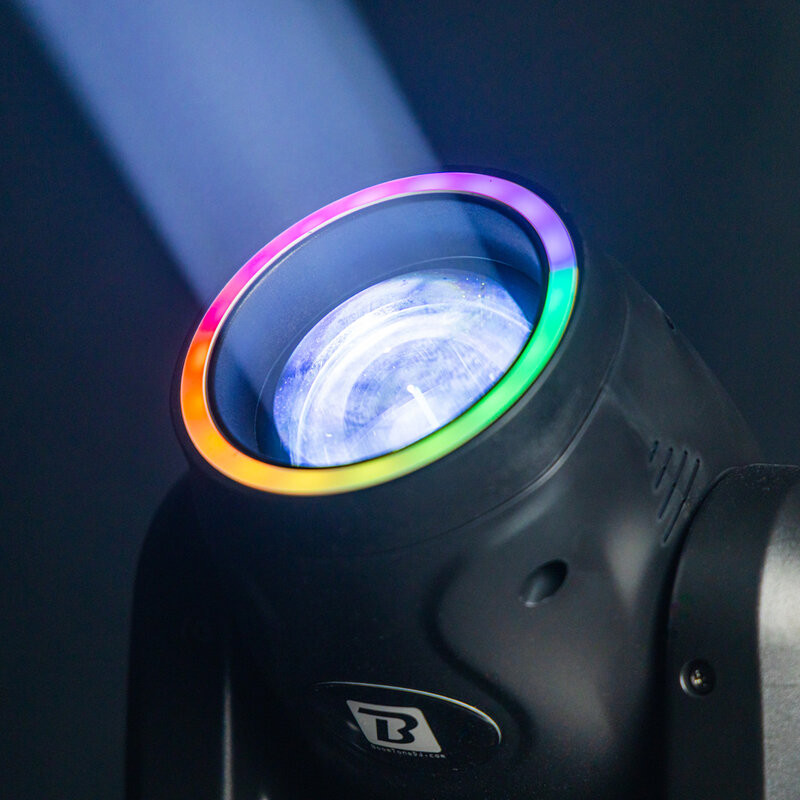

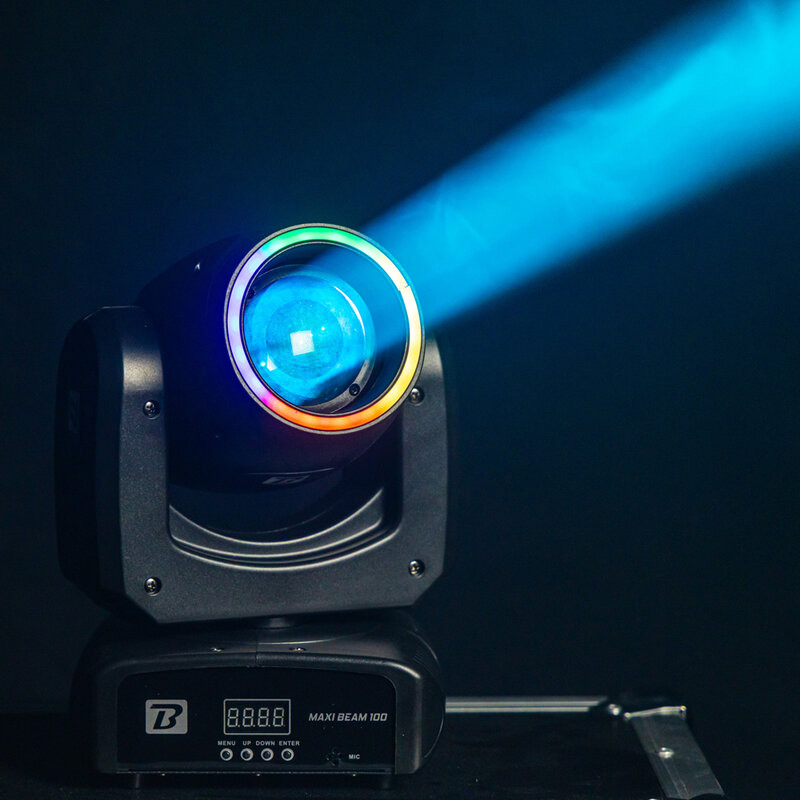

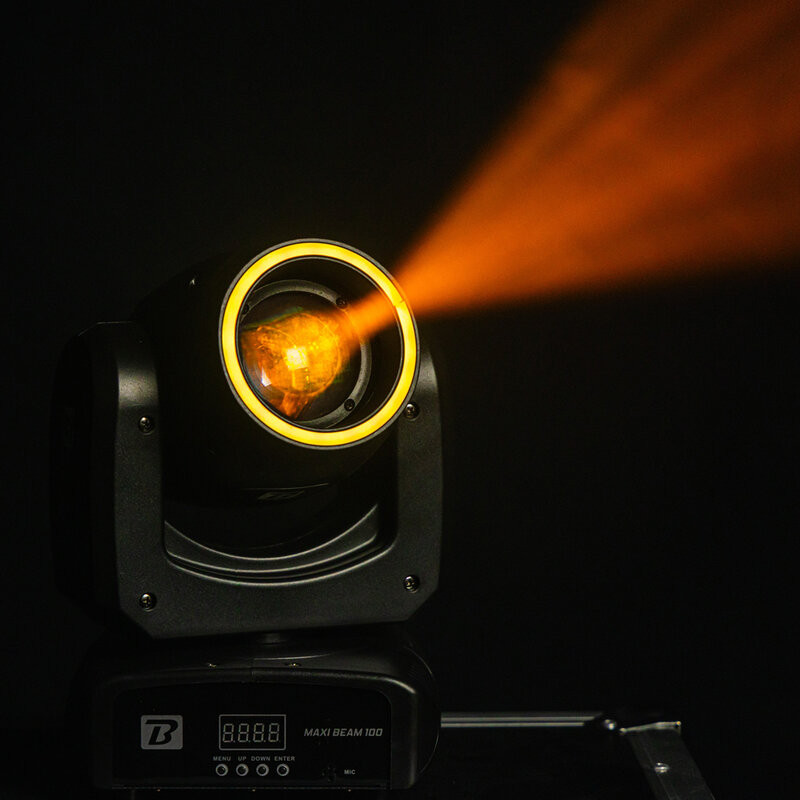

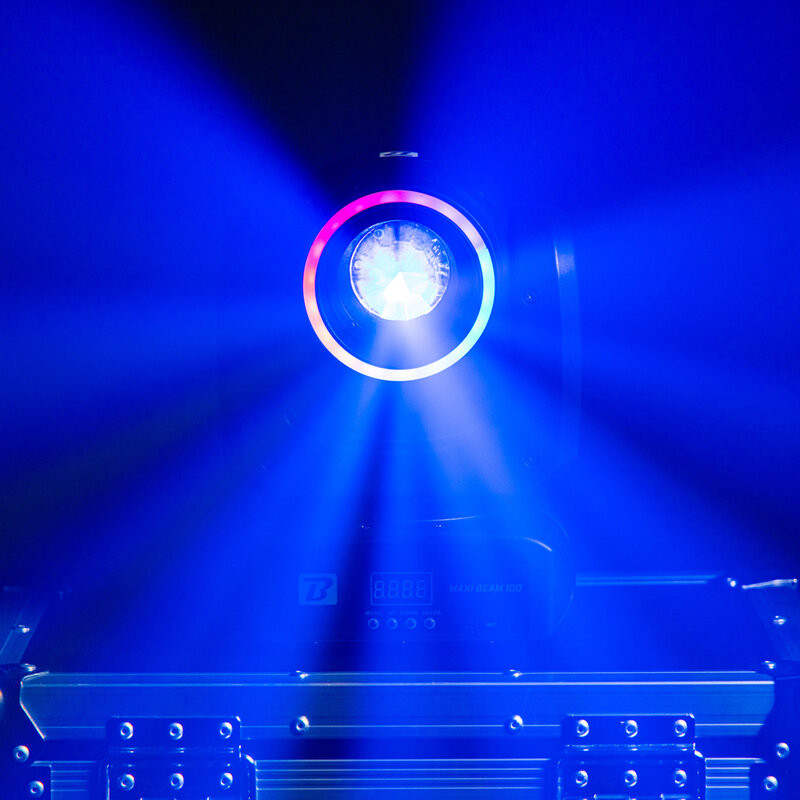

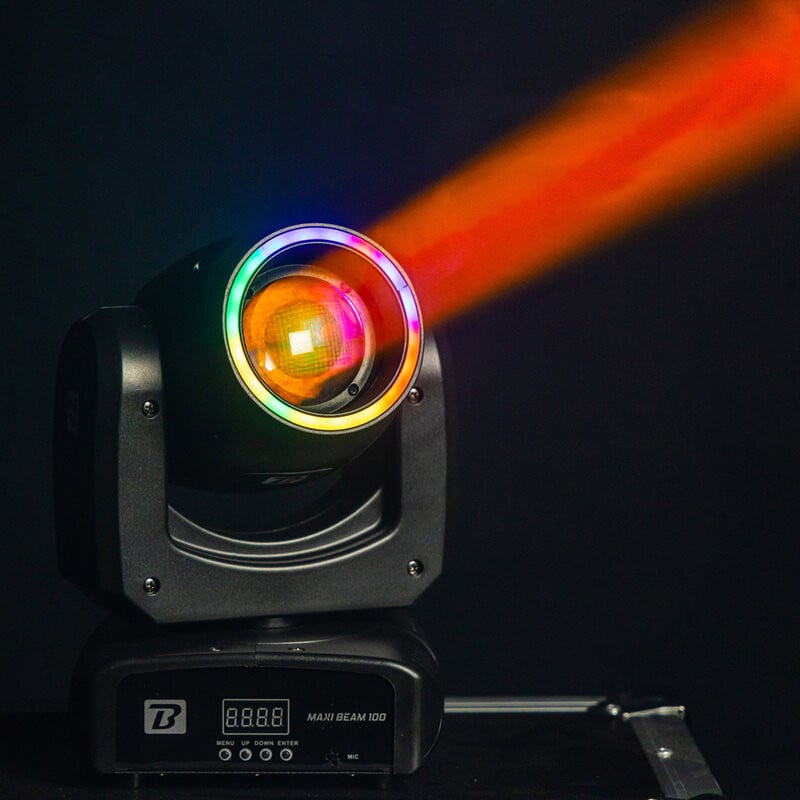

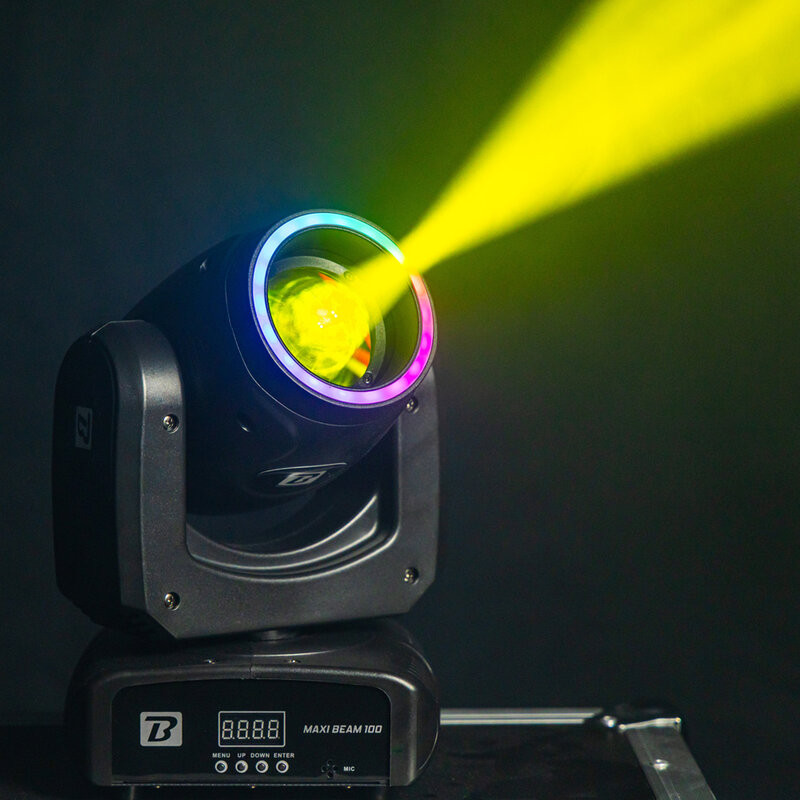

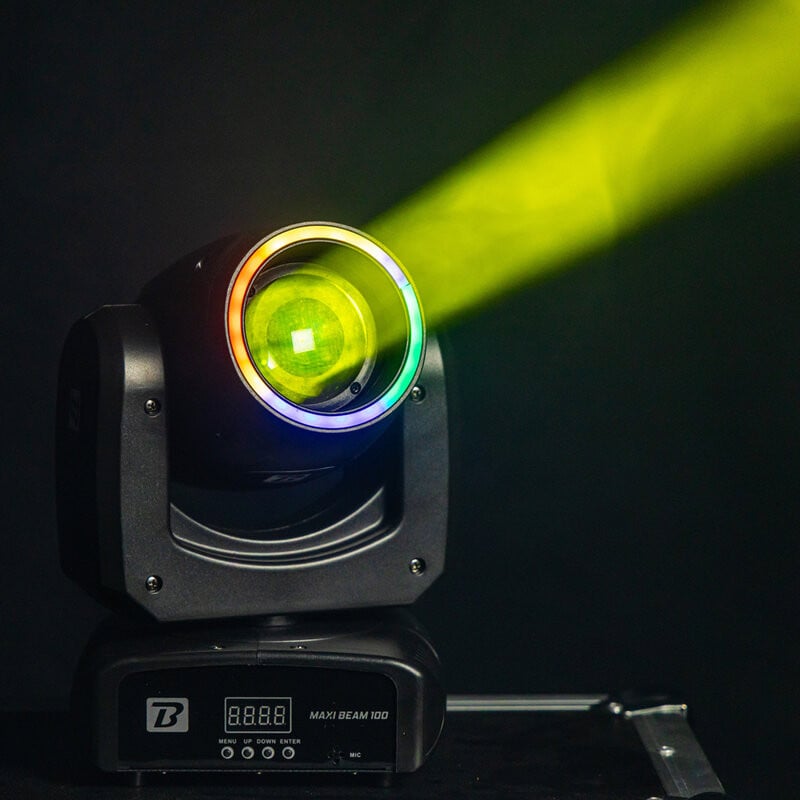

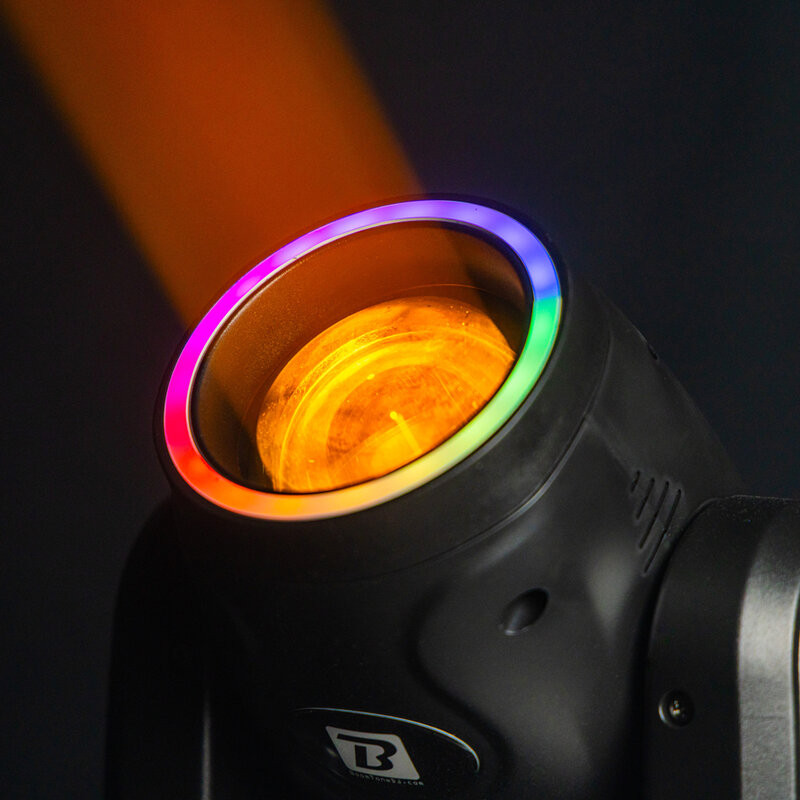

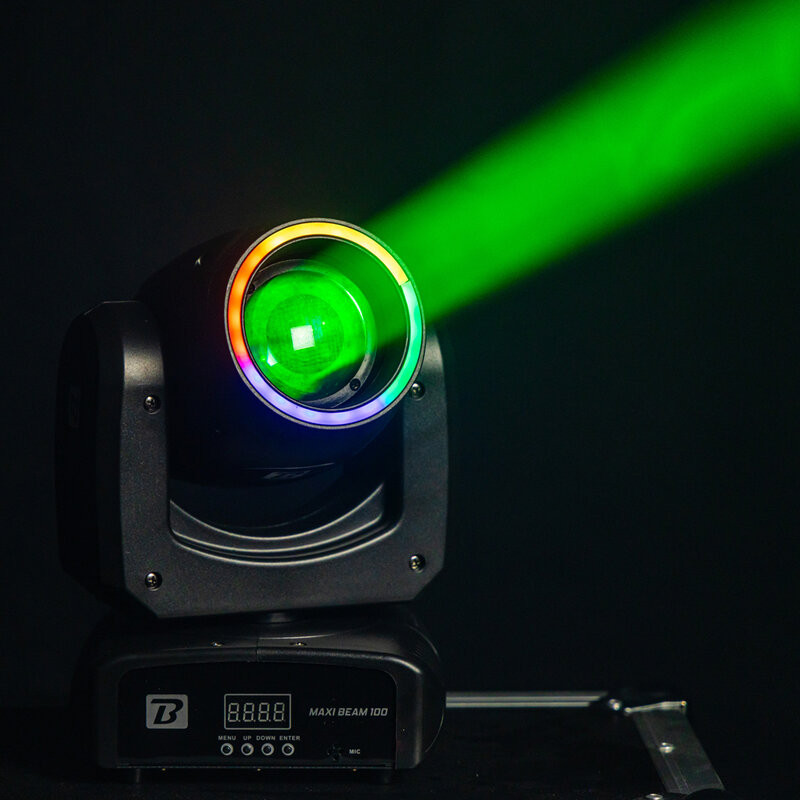

The 100 W white CREE LED generates a very narrow 2° beam, capable of crossing spaces with great intensity and definition. The 9-color wheel, the Gobo wheel with 13 fixed patterns, and the double rotating prism (6 + 12 faces) allow for a wide range of visual combinations.

Pan / Tilt movement is fast and precise, while the 0 - 100% linear dimmer and variable-speed Strobe add dynamism to shows. The fixture can operate in automatic, music-based, or DMX modes, with 12 or 14 channel configurations to suit both simple setups and more advanced programming.

Lightweight, compact, and easy to integrate, the Maxi Beam 100 is an effective solution for creating beam effects.

User benefits

• Extremely powerful and narrow 2° beam
• Wide variety of effects thanks to colors, gobos, and dual prisms
• Very fast and precise Pan / Tilt movements
• Immediate operation (auto / sound) or fully programmable via DMX
• Compact, lightweight, and ideal for mobile or fixed installations

Areas of use

• DJ sets, clubs, dance floors
• Live events and small stages
• Mobile services and productions
• Indoor scenic installations
• Corporate events and shows

Technical characteristics

• 1 x 100 W CREE white LED
• Stroboscope effect
• 9 colour wheel
• 13 fixed Gobos
• 6 + 12 facet prism
• Operating modes: auto, sound, DMX
• 13 DMX channels
• Pan / Tilt: 540° / 260°
• DMX controllable in 12 or 14 channels
• Highly linear 0 - 100% dimmer + variable-speed strobe effect
• Very fast Pan / Tilt movements
• Supply voltage: 100 - 240 V_AC  50/60 Hz
• Light beam angle: 2°
• Fuse: T 1 A
• Protection rating: IP20
• Power consumption: 120 W max
• Dimensions: 20 x 16 x 30 cm
• Net weight: 3.65 kg
