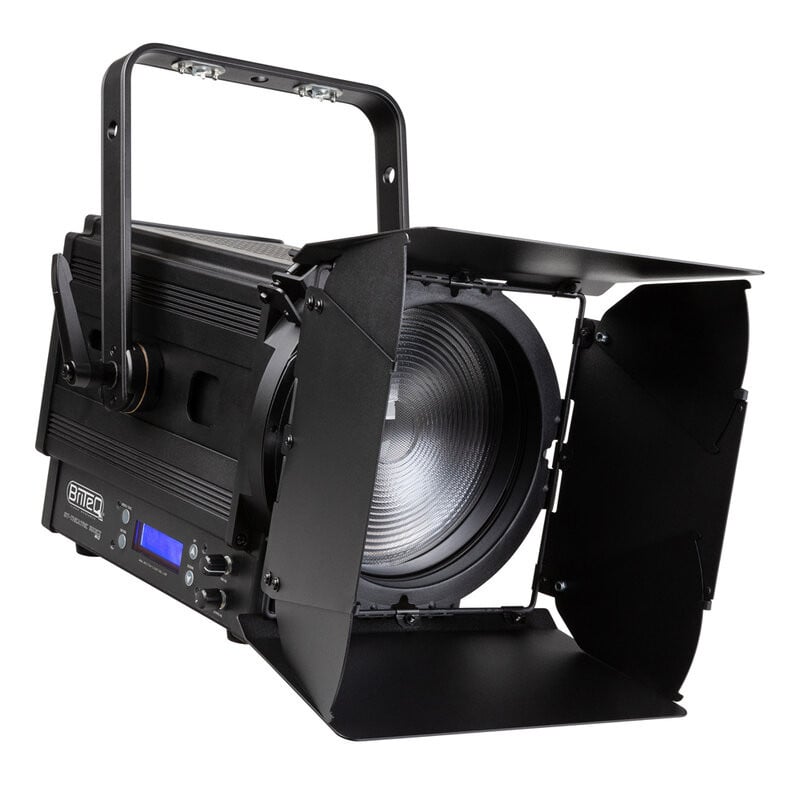

Briteq - BT-THEATRE 150EZ Mk3

Mk3 version of the popular BT-THEATRE 150EZ Mk2 LED theater spotlight.

The new 150 W LED projector boasts a 12.5° to 56.2° motorized zoom and an excellent, ultra-low-noise cooling system. It performs like a halogen Fresnel projector, thanks to the redshift / amber drift effect!

Main features

• The 150 W warm white LED at 3200 K produces incredible light output, far surpassing even traditional 1 kW halogen theater projectors!
• Excellent photometric characteristics: CRI/Ra >97, TLCI >97, CQS >95, Rf >95, R9 >97!

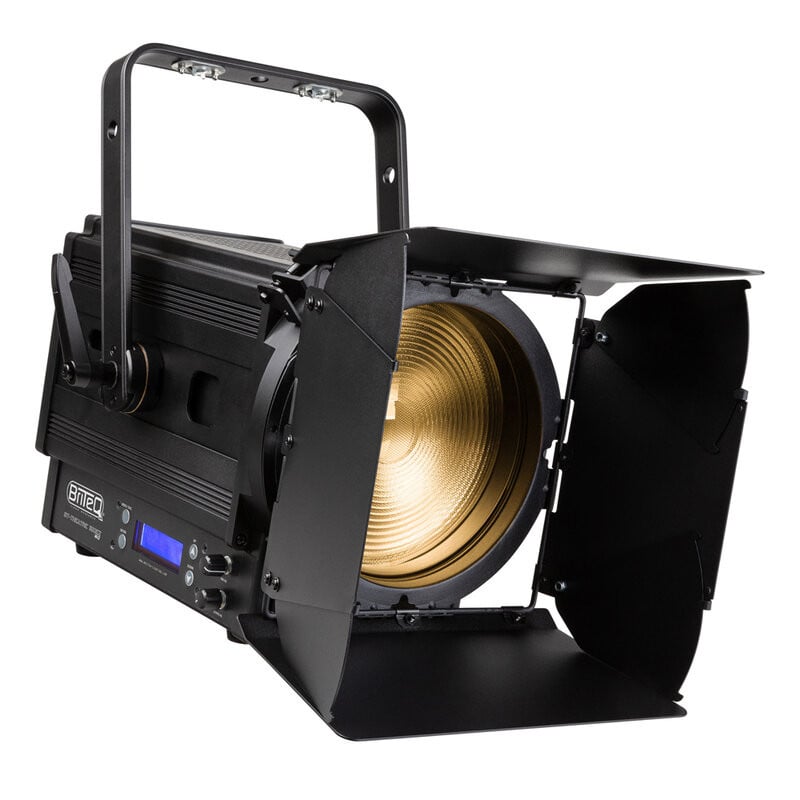

• Colored frame for the use of color filters and eight-wing flags included
• No more heavy and expensive dimmers!
• The lamp's behavior can be continuously adjusted from LED to halogen
• Four dimming curves: linear, square, inverse square, and S-curve
• Redesigned cooling system for extremely quiet operation, low LED temperatures, and very stable light output

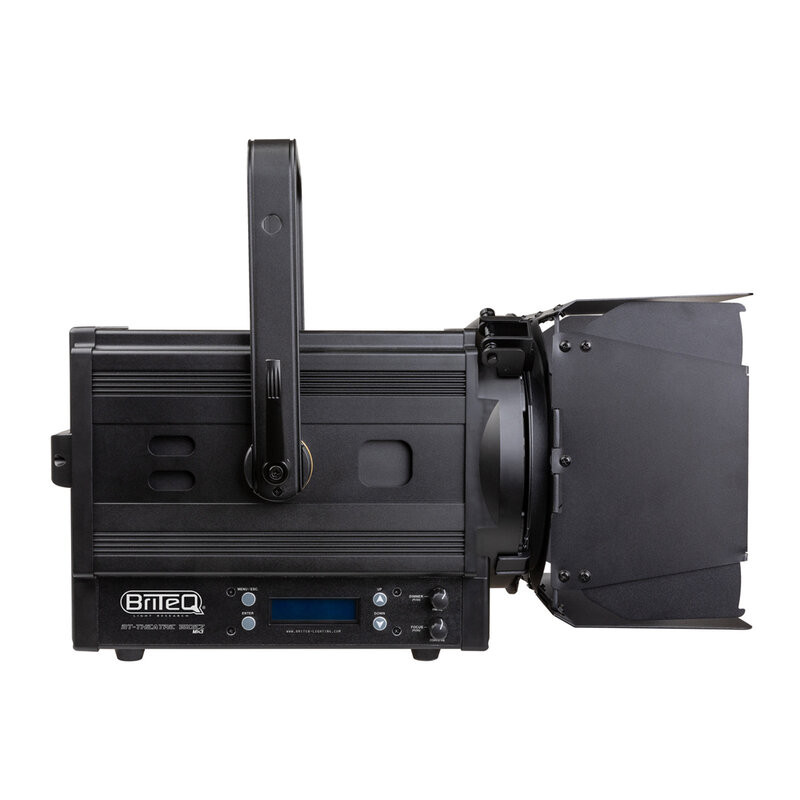

• LCD display for easy navigation through the redesigned configuration menu
• DMX-controlled: 7 different channel modes (8-bit and 16-bit dimming) for maximum flexibility
• Wireless DMX ready: simply connect an optional WTR-DMX dongle!
• Flicker-free TV recordings and no high-frequency dimming noise thanks to HF PWM dimming: up to 20 kHz
• Manual dimming and zoom/focus control: easy alignment of the projector on stage + use in trade show booths
• In the event of a DMX failure, you can choose between blackout and freeze modes
• RDM functionality for easy remote configuration: DMX addressing, channel mode, etc.
• Lock function to prevent unwanted changes to settings
• Default factory settings + saveable/loadable user settings

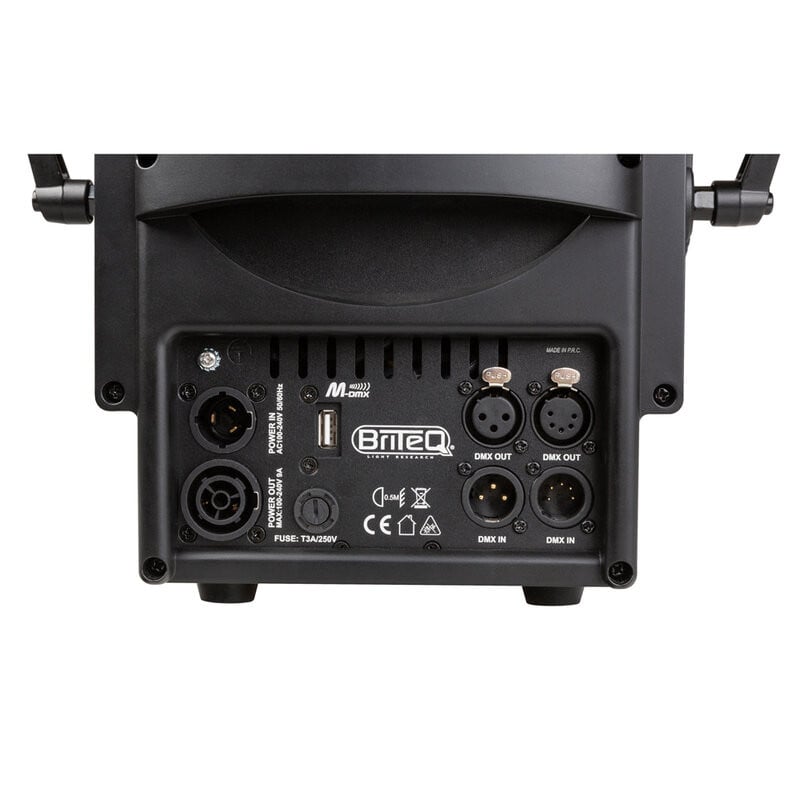

• 3- and 5-pin DMX inputs/outputs + powerCON TRUE1-compatible inputs/outputs for easy daisy-chaining

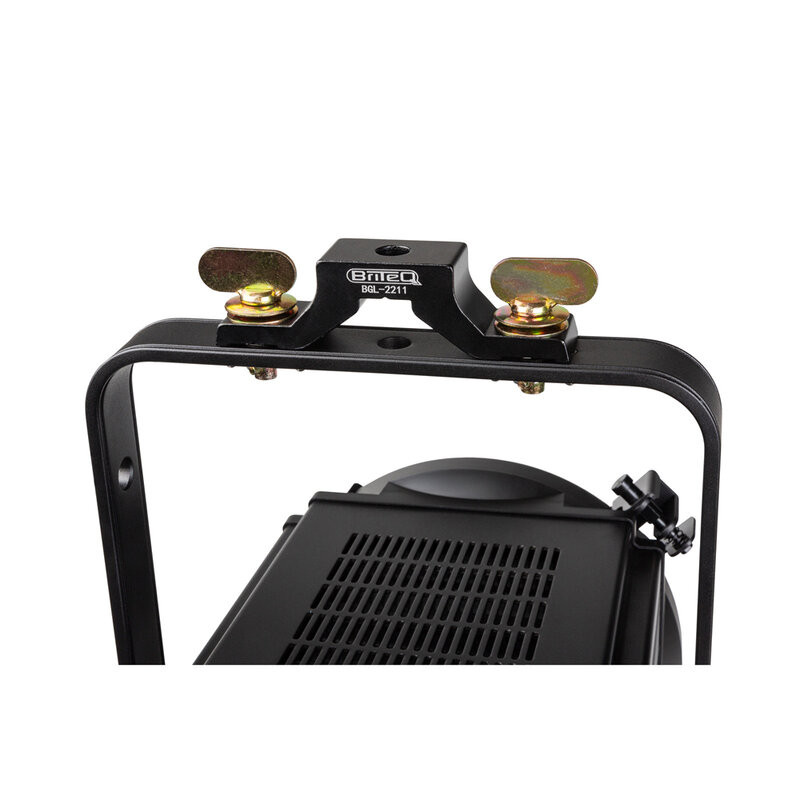

• The suspension bracket can be equipped with the small "omega bracket"

Technical characteristics

• Power input: 100 - 240 V_AC 50/60 Hz
• Power consumption: 160 W
• Color: black
• Display: LCD
• Fixation: optional omega bracket, M12
• IP rating: indoor
• Modes: stand-alone fixed, manual, DMX, Master/Slave
• Protocol: DMX, Wireless DMX, RDM
• Upgradable software: yes
• Min. DMX channels: 1
• Max. DMX channels: 9

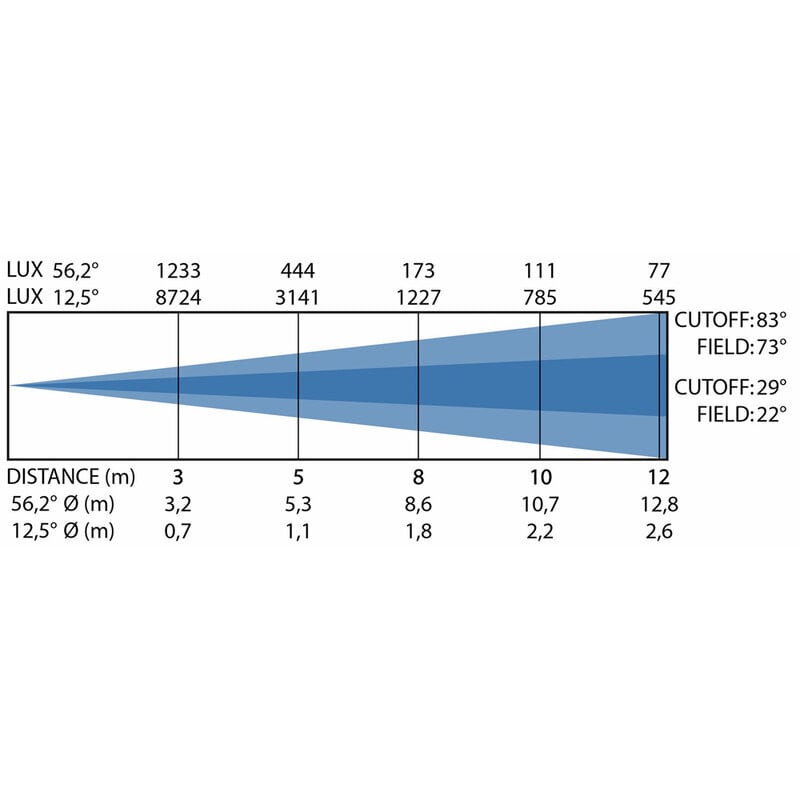

• Lux: 3141 (@ 5 m, beam 12.5°)
• Lumen output max.: 9178 lm
• Lamp: COB
• Min. color temperature: 3150 K
• Max. color temperature: 3250 K
• CRI: 97
• Colors: warm white
• Functions: motorized zoom
• Zoom range: 12.5° - 56.2°
• Max. refresh rate: 20 kHz
• Input: 3-pin XLR, 5-pin XLR, Wireless DMX optional, USB, RDM, powerCON TRUE1 or compatible
• Output: 3-pin XLR, 5-pin XLR, powerCON TRUE1 or compatible

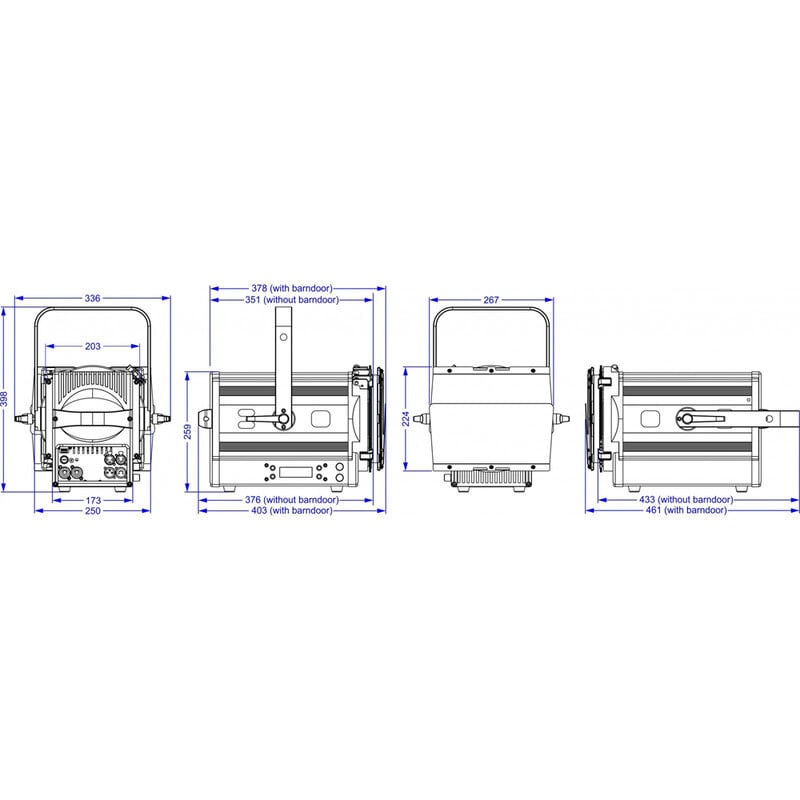

• Dimensions: see drawing
• Weight (kg): 9.8
