Briteq - BTI-AKKUCHROMA

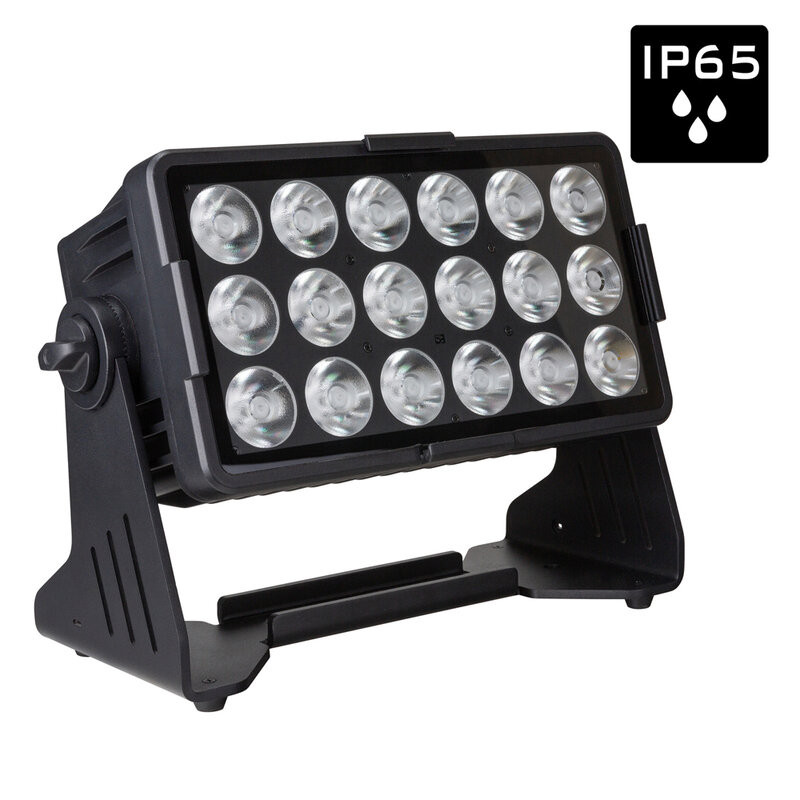

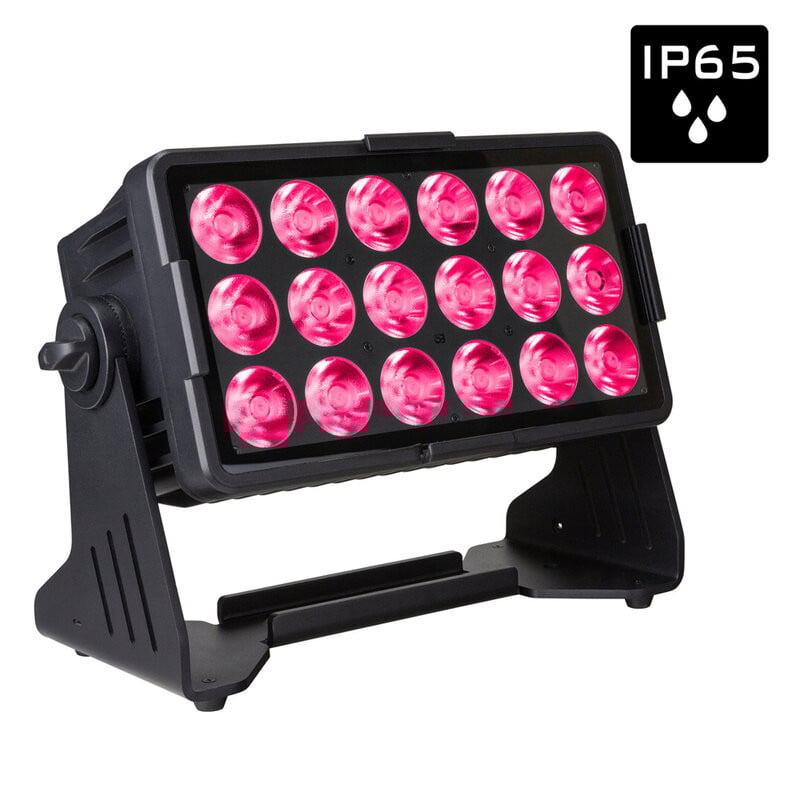

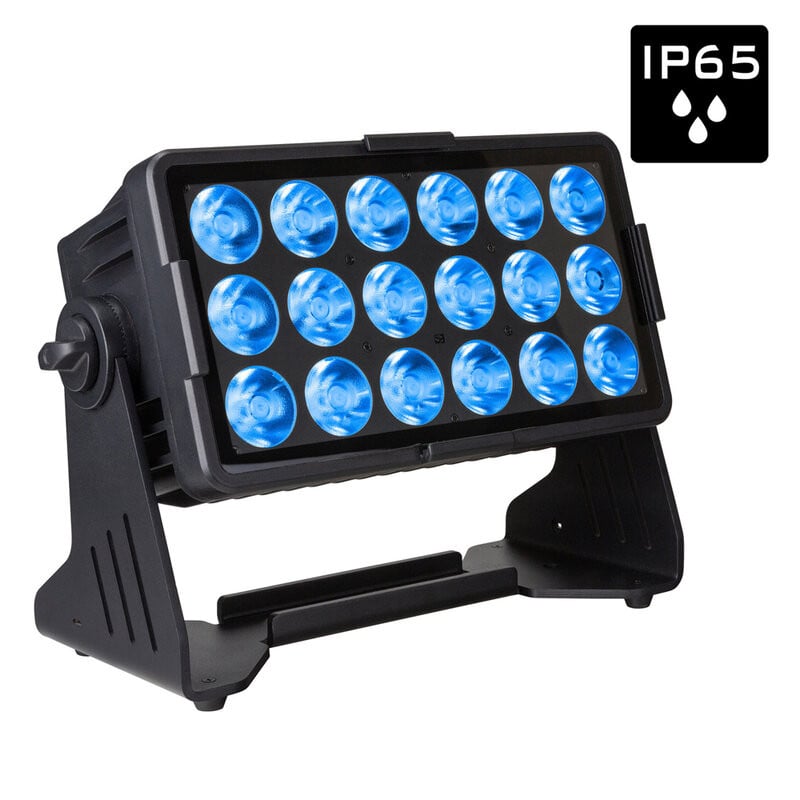

BTI-AKKUCHROMA is a powerful 180 W battery-powered RGBL LED projector, designed for outdoor use thanks to its IP65 rating.

It has 18 LEDs of 10W each, produces a standard 12° beam (5700 lux at 5 m) and has a 12,500 mAh Li-ion battery for up to 10 hours of battery life. Includes wired and wireless DMX (W-DMX compatible), stand-alone mode, Master/Slave and optional IR remote control. Passive cooling ensures completely silent operation.

Main features

• It can be used for different applications:
• Powerful battery-powered uplight projector: thanks to the sturdy bracket, batteries and integrated Wireless DMX
• LED projector for truss: the bracket can be equipped with optional truss clamps and/or omega brackets

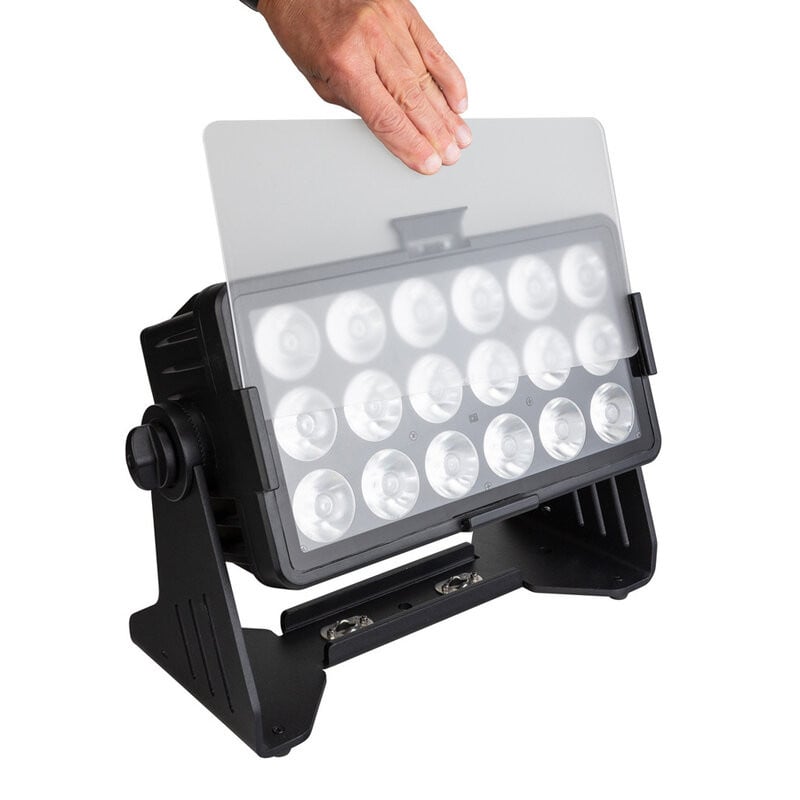

• The standard 12° light beam (5700 lux at 5 m) can be modified using optional filters (1 frost filter included)
• The wireless transceiver module (transmitter + receiver) is 100% compatible with the W-DMX G4 protocol
• Extremely smooth RGBL color change thanks to the high-frequency dimming electronics
• The internal battery charger recharges the battery while the projector is powered by the mains
• Different operating modes for maximum flexibility:
• Stand-alone: ​​​​custom colors, color presets + CCT or automatic color changes
• Master/Slave mode: the Master controls the Slaves wirelessly or via XLR cables, creating fantastic light showsDMX
• control: wired and wireless (4 modes: 3-channel HSV, 4-channel RGBL, 4-channel LEDCON-02 Mk2 and 8-channel STAGE for extended control)
• Used as a wireless transceiver: In the absence of a separate W-DMX transceiver, this projector can be used perfectly as a replacement!

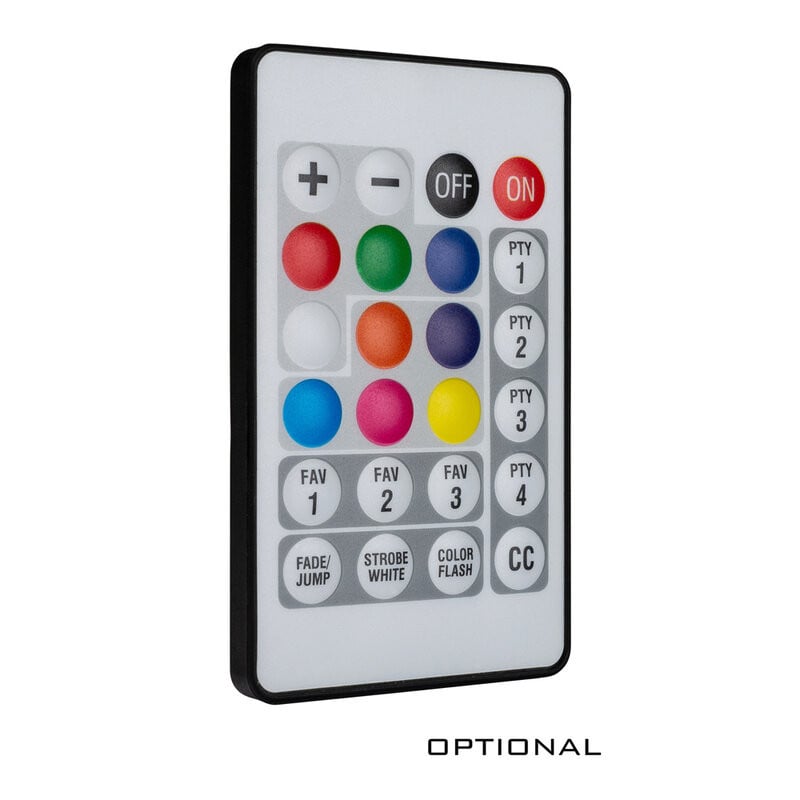

• Infrared remote control: Easy control via a remote control (optional), even in Master/Slave mode
• The graphic OLED display shows many important information, such as the remaining battery life. In combination with the touch keys, it also ensures smooth operation of the setup menu
• Seetronic powerCON TRUE1 compatible network input and output for easy daisy-chaining

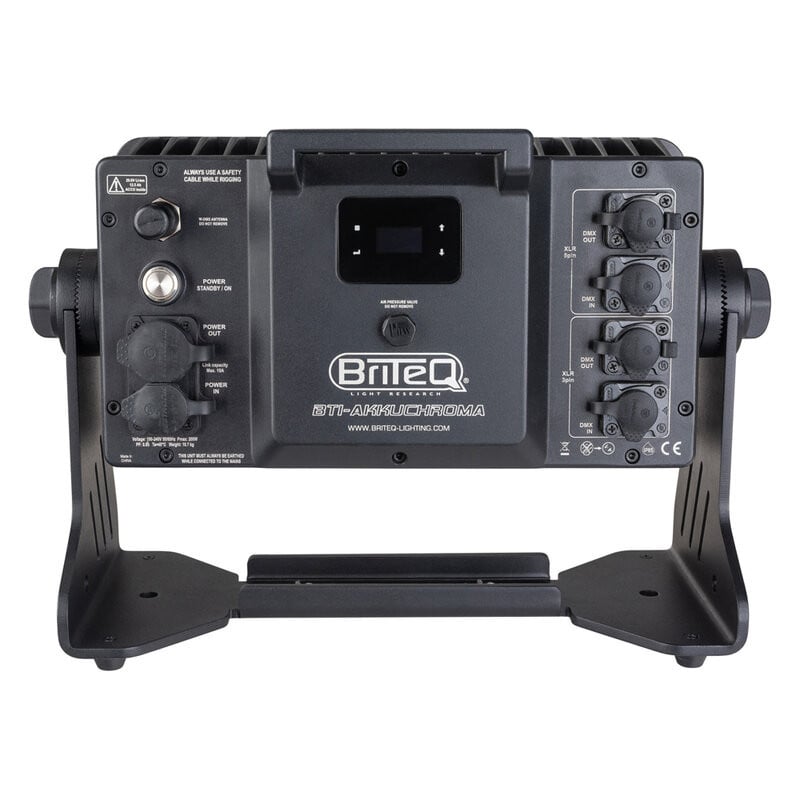

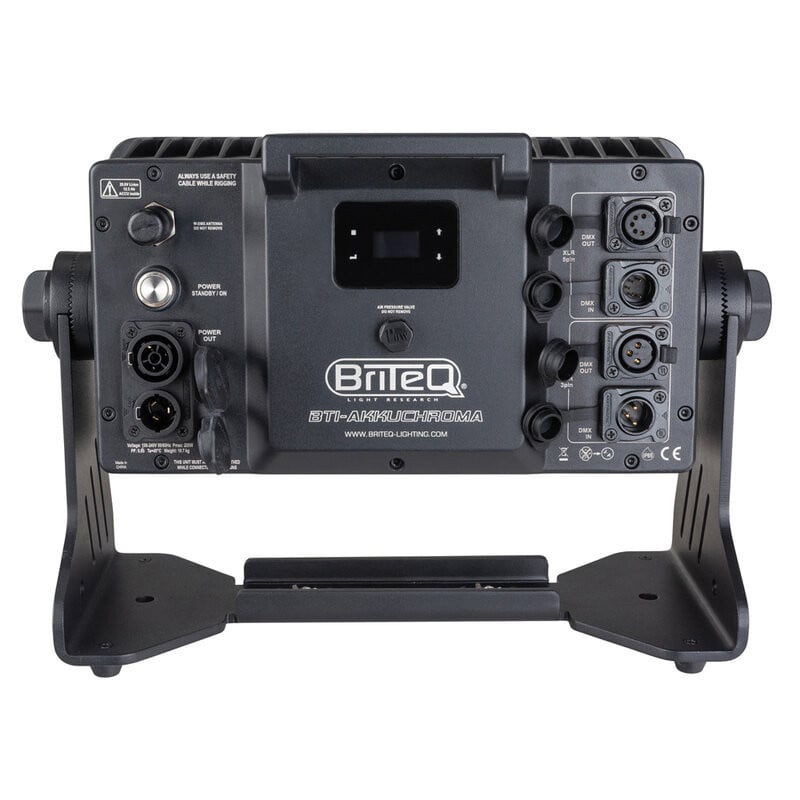

• Standard 3- and 5-pin XLR weatherproof input and output connectors for maximum flexibility
• Can be secured with a standard laptop anti-theft lock (available from various brands)
• Optional 120 x 60 cm flight case, in which up to 4 projectors can be charged

User benefits

• Quality of light produced by 18 x 10W RGBL LEDs with smooth color mixing and 12° beam, changeable with filters
• Up to 10 hours of runtime thanks to the 12,500 mAh Li-ion battery
• Flexible control
• Integrated wireless transceiver function
• Completely silent "passive" cooling (no cooling fan!)

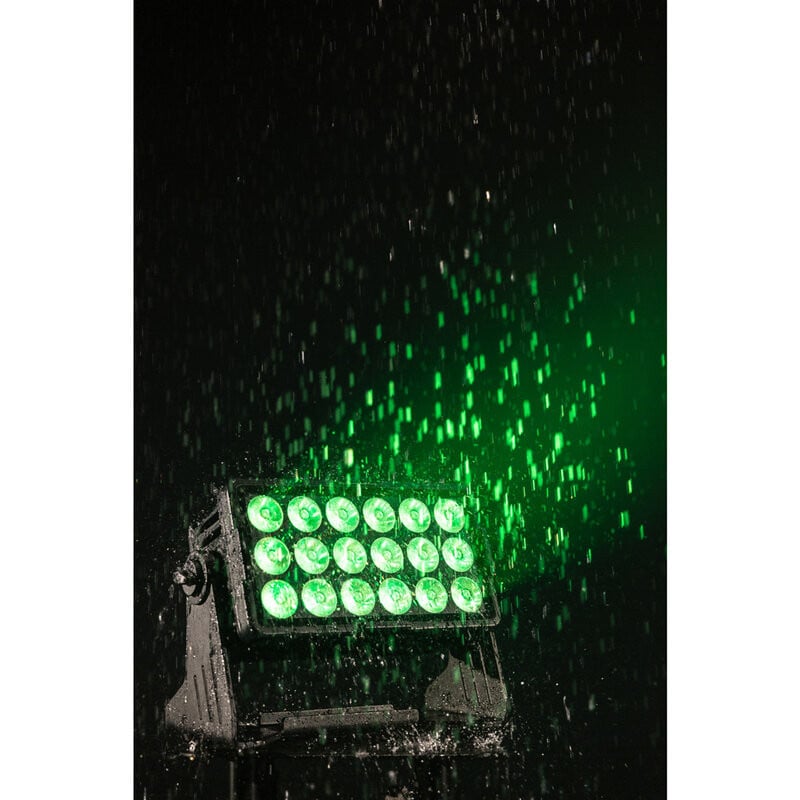

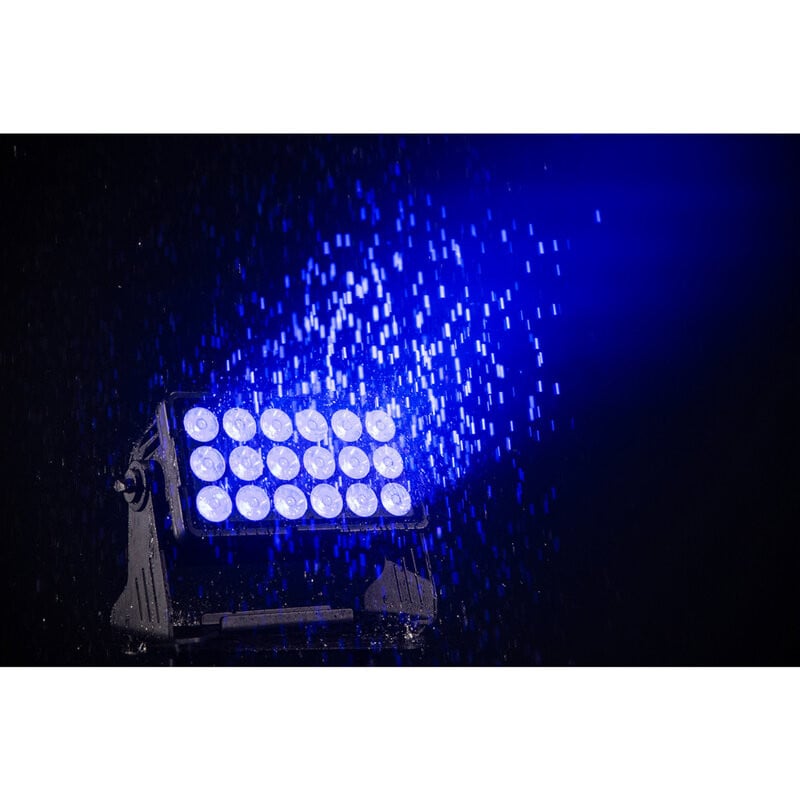

• IP65
• Automatic charging during use at network

Areas of use

• Weddings
• Trade fairs
• Artistic exhibitions and installations
• Concerts and live shows
• DJ sets
• Temporary architectural lighting
• Theatrical performances
• Travelling productions

Technical characteristics

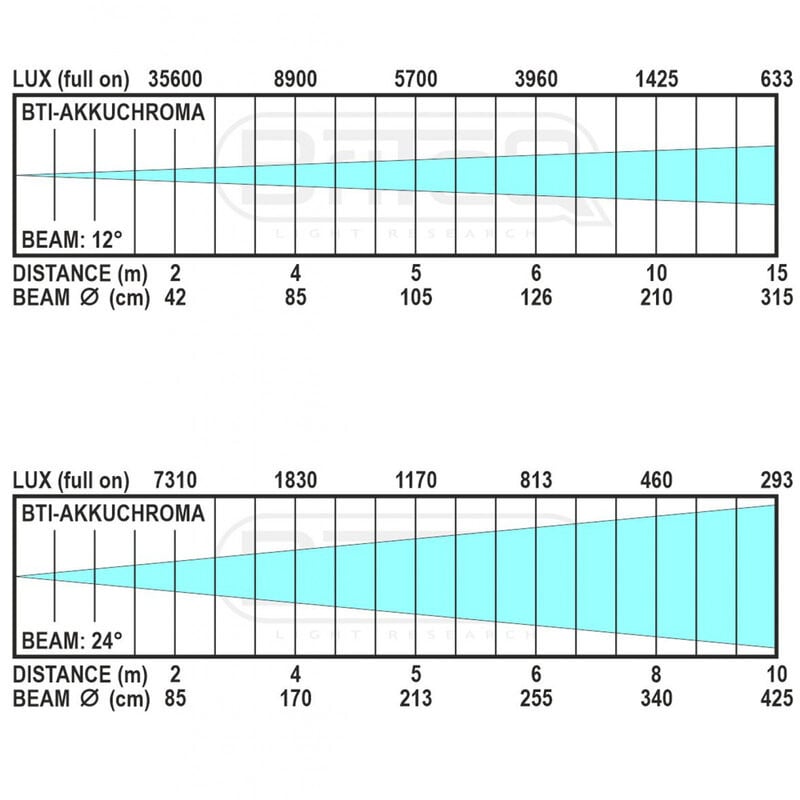

• Lux: 5700 @ 5 m (beam 12°)
• Lamp: LED
• Min. color temperature: 2500 K
• Max. color temperature: 6000 K
• Colors: RGBL
• Mix colors: yes
• Functions: 1 frost filter included
• Min. beam angle: 12°
• Max. beam angle: 24°
• Max. refresh rate: 7.2 kHz
• Power input: 100 - 240 V_AC 50/60 Hz
• Works on battery: yes
• Power consumption: 200 W
• Color: black
• Display: OLED
• Fixation: optional omega bracket
• IP rating: outdoor (IP65)
• Modes: Stand-alone fixed, stand-alone automatic, remote, manual, DMX, Master/Slave
• Protocol: DMX, Wireless DMX, RDM
• Upgradable software: yes
• Min. DMX channels: 3
• Max. DMX channels: 8
• Input: 3-pin XLR, 5-pin XLR, Wireless DMX, RDM, powerCON TRUE1 or compatible
• Output: 3-pin XLR, 5-pin XLR, Wireless DMX, RDM, powerCON TRUE1 or compatible

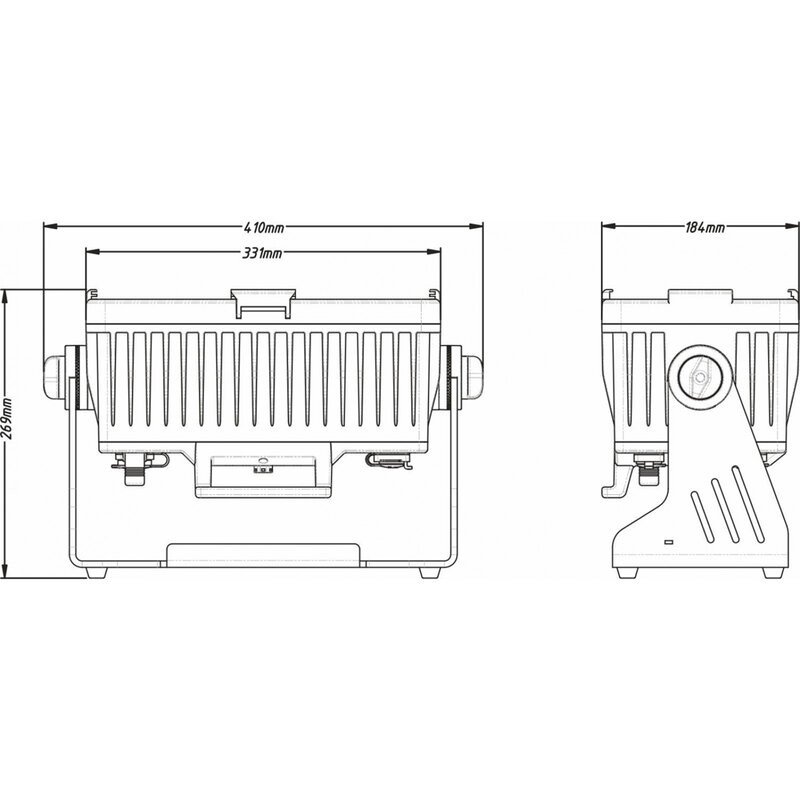

• Dimensions: 41 x 18.4 x 26.9 cm
• Weight: 10.7 kg
