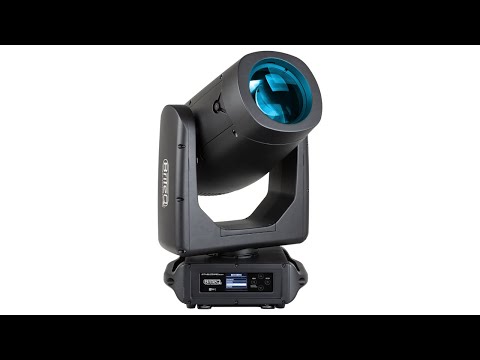

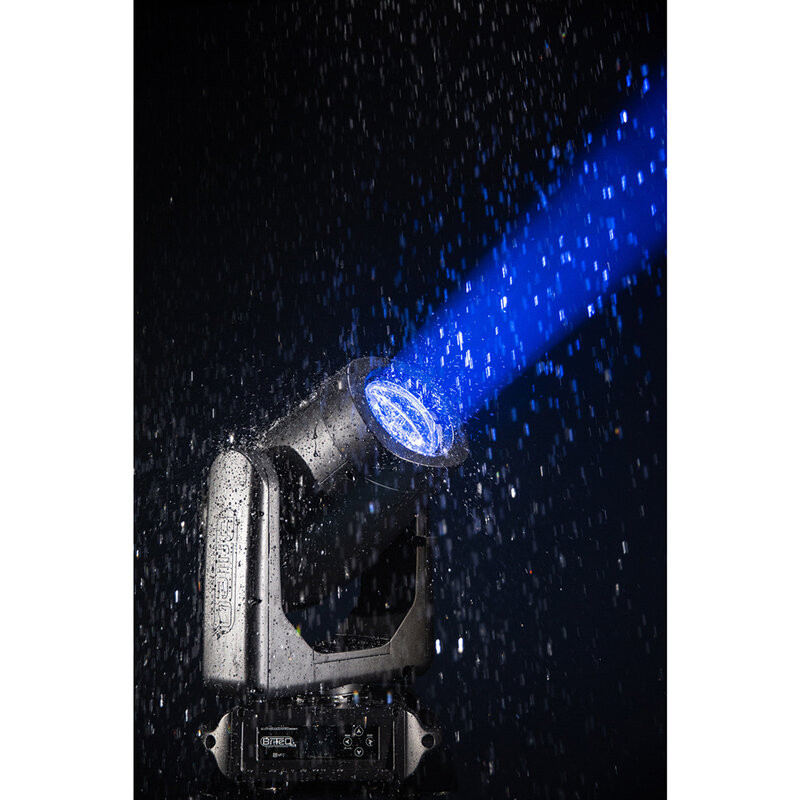

Briteq BTI-BLIZZARD BSW1 is a powerful IP65 hybrid projector with a 350 W white LED module. It offers a zoom range from 2° to 35°, a CMY color system and different combinations of Gobos and prisms. It is ideal for both outdoor and indoor use.
Main features
- Wide range electronic zoom, 2° to 35°
- Auto focus for different zoom settings
- Silent fan mode for theatrical applications
- Fast 16-bit Pan / Tilt movements with position correction and Pan / Tilt speed channel
- CMY color system, including several color macros and 8+1 fixed colors
- 7+1 replaceable rotating glass gobos with fine indexing
- 12+1 static glass gobos for gobo layering
- Precise strobe with built-in random, pulse and burst effects
- Combinable 6-facet linear and 8-facet circular prisms
- Frost filter for perfect wash effect
- Smooth 24-bit dimmer with fast and slow dimmer modes
- RDM functionality for easy remote setup
- Uses 21, 26 or 28 DMX channels
- Optional wireless DMX receiver: compatible with W-DMX / CRMX
- NFC function: reads error codes and more information, perfect for rental companies (dedicated APP still under development)
- LCD matrix display ensures easy navigation through the different configuration menus
- 3 and 5-pin DMX inputs / outputs + PowerCON TRUE1 compatible inputs / outputs
- IP65 protection
- Silent operation
- Equipped with omega brackets for quick installation
User benefits
- Based on a 350 W white LED module, it offers intense light in a compact format
- IP65 rating for outdoor use
- Wide zoom range
- Very quiet, ideal for theatrical applications
- Versatility, even in control modes
Application areas
- Concerts, festivals and outdoor shows
- Theatres
- TV productions
Technical characteristics
- Powerinput: 100 – 240 VAC 50/60 Hz
- Power consumption: 420 W
- Color: black
- Display: LCD
- Fixation: included omega bracket
- IP rating: outdoor
- Modes: stand-alone fixed, stand-alone automatic, manual, DMX
- Protocol: DMX, wireless DMX, RDM
- Upgradable software: yes
- Min. DMX channels: 21
- Max. DMX channels: 28
- Lux: 82300 @ 5 m (beam 2°)
- Lumen: 7220
- Lamp: LED
- Colors: CMY
- Mix colors: yes
- Functions: motorized focus, motorized zoom, motorized frost, 8 facet round prism, 6 facet linear prism
- Fixed Gobos: 12
- Rotating Gobos: 7
- Min. beam angle: 1.8°
- Max. beam angle: 35.6°
- Max. refresh rate: 25 kHz
- Input: 3-pin XLR, 5-pin XLR, wireless DMX optional, RDM, powerCON TRUE1 or compatible
- Output: 3-pin XLR, 5-pin XLR, wireless DMX optional, RDM, powerCON TRUE1 or compatible
- Dimensions: 35.9 x 24.4 x 59.5 cm
- Weight: 22 kg
