SKU: B05145
EAN: 5420025651455
Briteq - LDP-COLORBAR 12FC
LED bar RGB W 48 cm IP65 (12 x 4 W), 15°, 2 sections
Available
delivery is available for this product.
This item is currently in stock and will be shipped from our supplier's warehouse in Europe.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
507.00 €
LED Bar RGB W 96 cm IP65 (24x4W) - 15° 4 sections
456.00 €
LED Bar RGB W 96 cm IP65 (24x4W) - 15° 4 sections
481.00 €
IP66 architectural spotlight, 12 RGBL LEDs, 50 W, 12° aperture, 2 zones
700.50 €
IP66 architectural spotlight 24 LEDs 2700–5600 K, 100 W, 15 x 30° aperture
700.50 €
IP66 architectural spotlight, 24 RGBL LEDs, 100 W, 12° aperture - 4 zones
Product Details

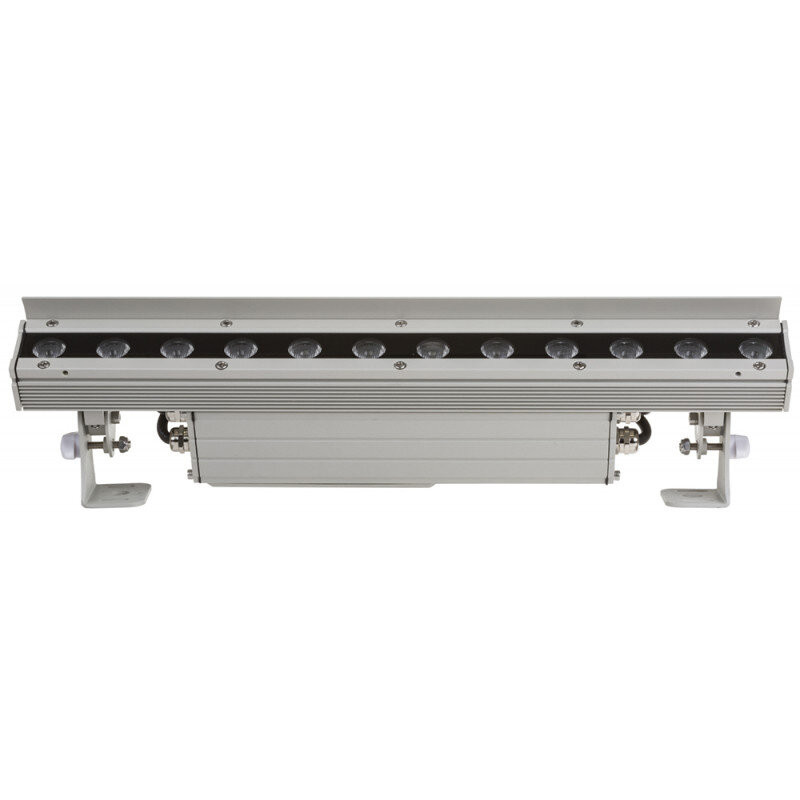

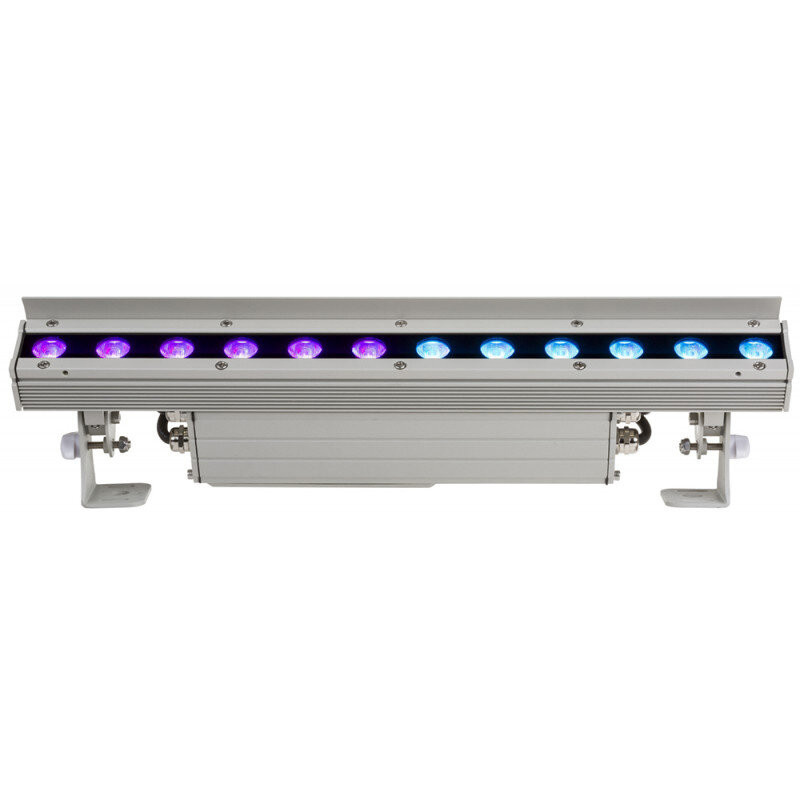

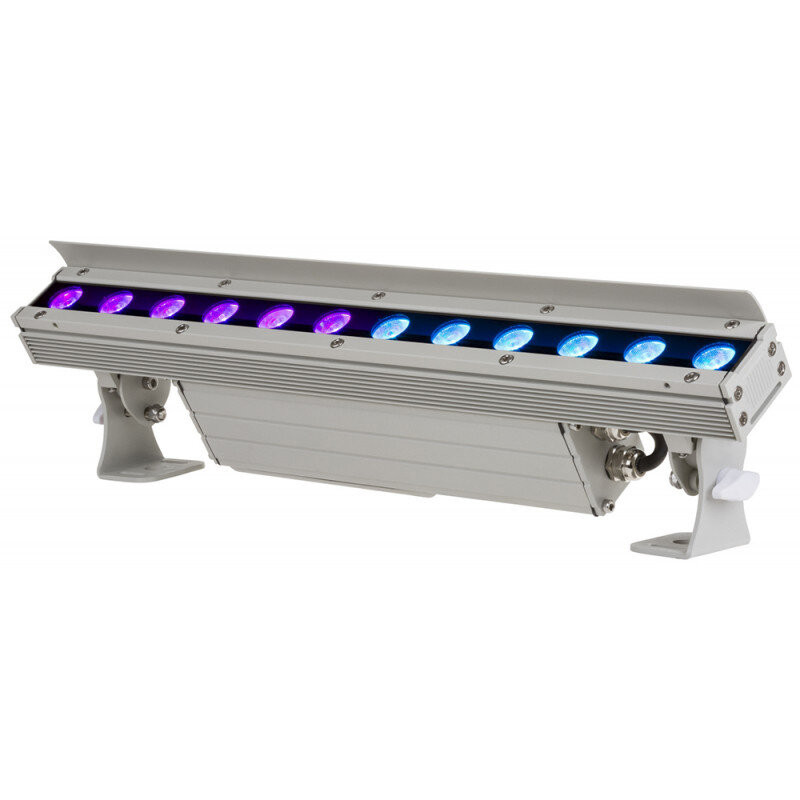

IP-rated RGBW LED bar, designed to illuminate cycloramas and for use as a wall washer.
The compact 48 cm structure ensures uniform illumination of large surfaces, even from close distances.

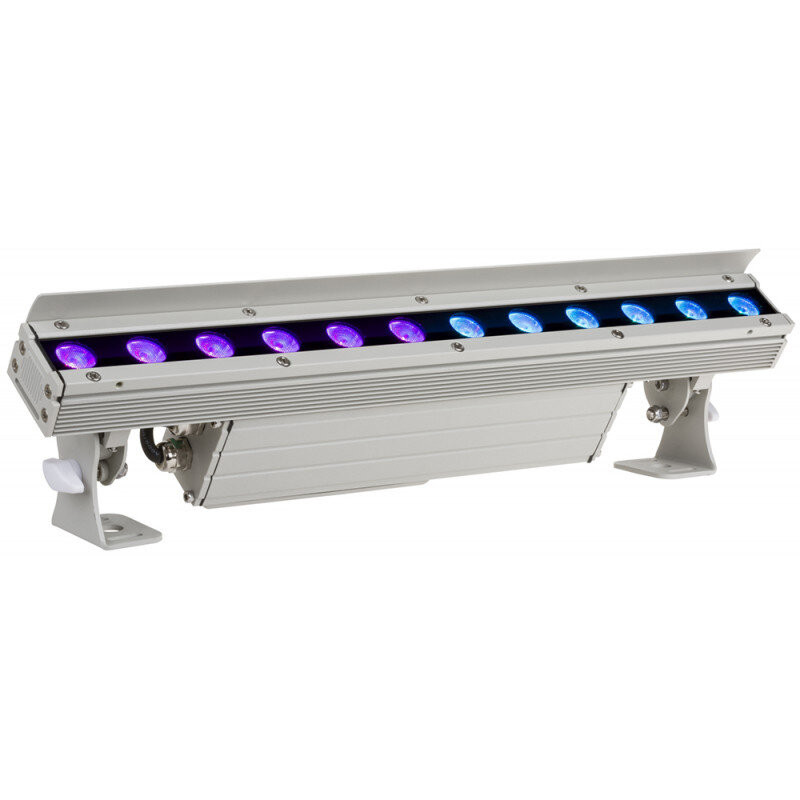

The light source consists of 12 4W RGBW LEDs, divided into two independent sections, with high-quality optics that ensure flawless color mixing. The dimmer offers four selectable curves (linear, square, inverse square, and S-curve), while natural convection cooling ensures completely silent operation.
Comprehensive DMX control is available, with modes for 3 to 10 channels, including both sections. In the event of signal loss, you can choose between blackout and freeze. Stand-alone and Master/Slave modes are also available, with static colors, fades, and integrated automatic sequences.

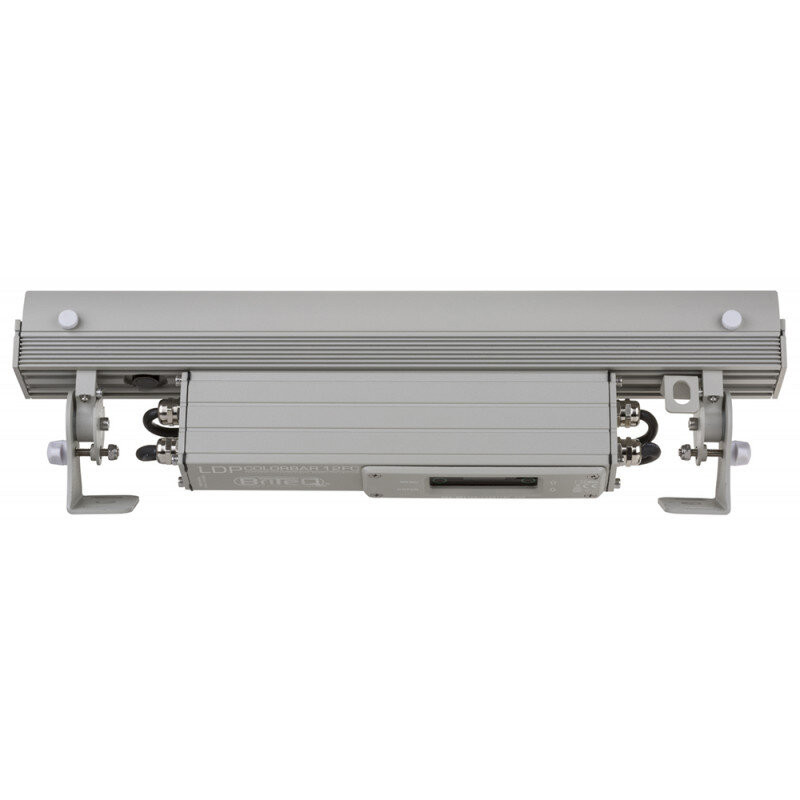

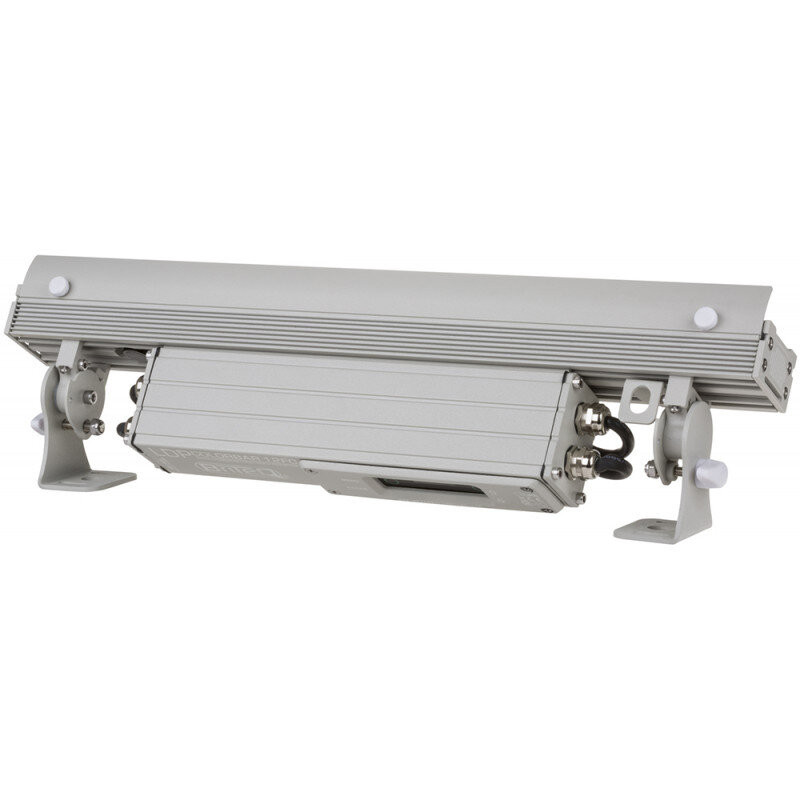

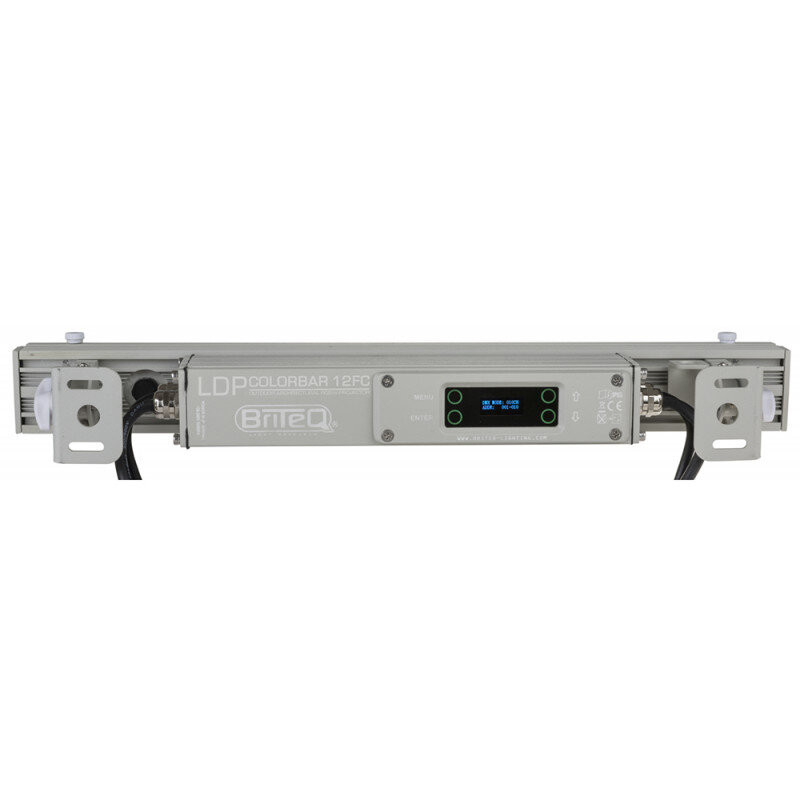

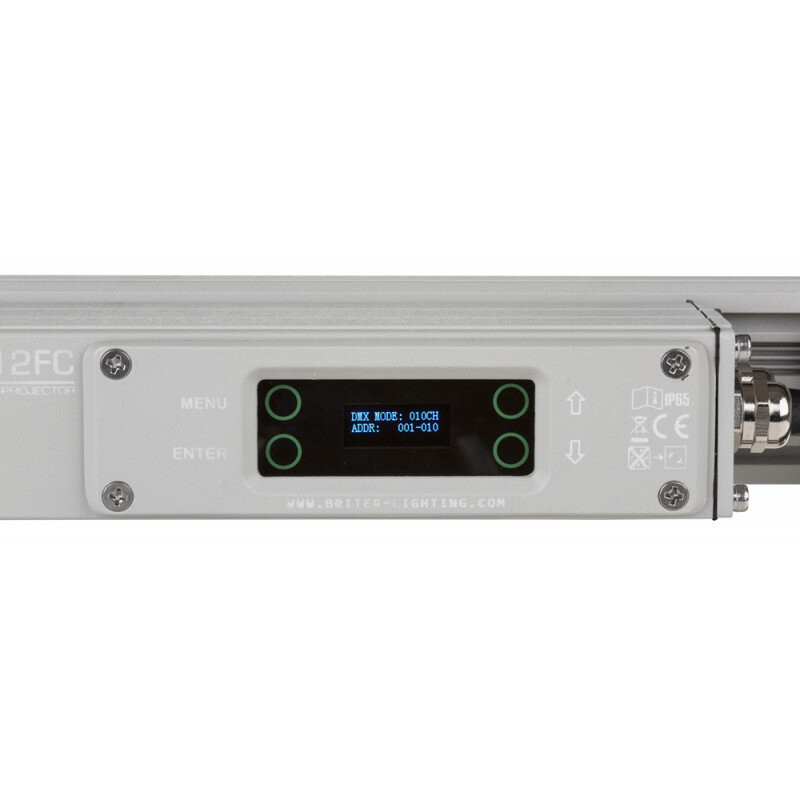

The fixture offers high light output, perfect color mixing, and internal automatic fade programs. The power supply and DMX/LED drivers are integrated into an elegant extruded aluminum body, featuring excellent thermal management. Configuration is via an OLED display with backlit touch keys. IEC-C13/C14 and 3-pin XLR IN/OUT connectors are provided, allowing for the connection of up to 32 units, as well as waterproof DMX connectors with dedicated XLR adapters. A built-in GORE valve prevents humidity and condensation from forming inside the fixture.

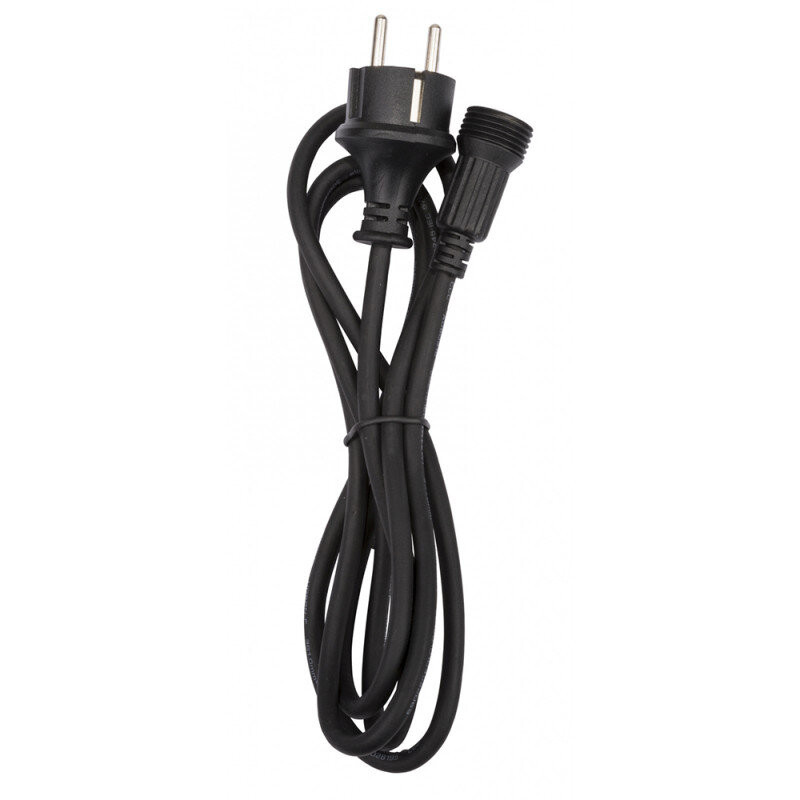

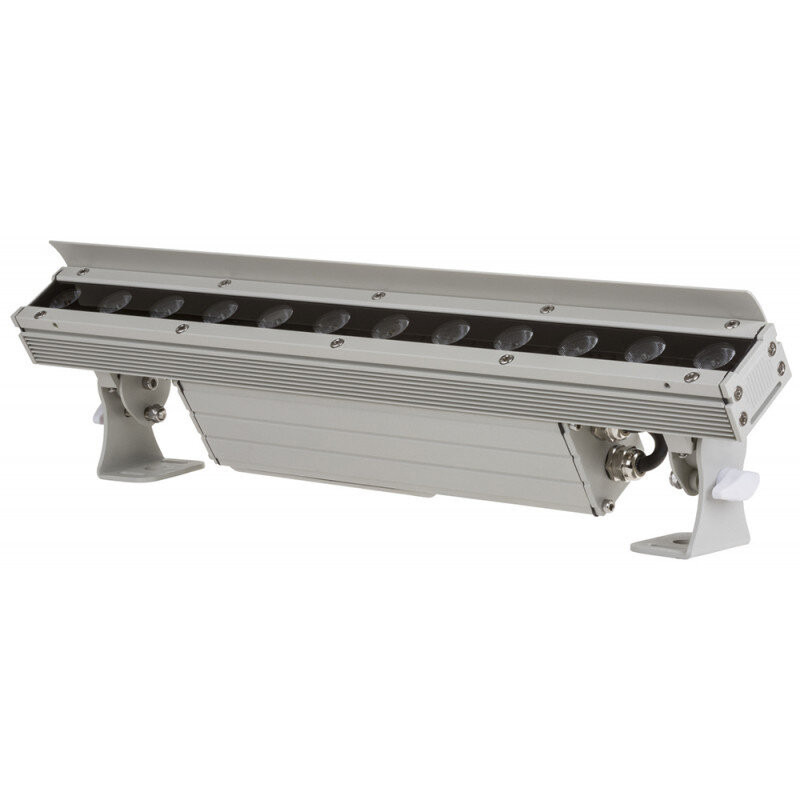

A barndoor to shield the LED sources is included, along with a discreetly designed adjustable bracket. Optional cables are available for waterproof cascade connection (LDP-Powercable and Signal Link Cable).
Areas of use
Theatre stages
TV studios
Architectural installations
Lounges and clubs
Hotels
Shops
Showrooms
Trade fair stands
Corporate events
Gardens
Service
Rental companies
Technical characteristics
| Power input | 100 - 240 VAC 50/60 Hz |
| Power consumption | 56 W |
| Color | white |
| Display | OLED |
| Fixation | M10 |
| IP rating | outdoor |
| Manual | yes |
| Master/Slave | yes |
| Smart-DMX | yes |
| Stand-alone | automatic, fixed |
| Upgradable software | yes |
| Max. DMX channels | 10 |
| Lamp socket | none |
| Lamp | LED |
| Colors | red, green, blue, white, RGB, RGBW |
| Mix colors | yes |
| Beam angle | 15 ° |
| Min. refresh rate | 3.6 kHz |
| Max. refresh rate | 3.6 kHz |
| Input | 3-pin XLR, IP-powerlink connector |
| Output | 3-pin XLR, IP-powerlink connector |

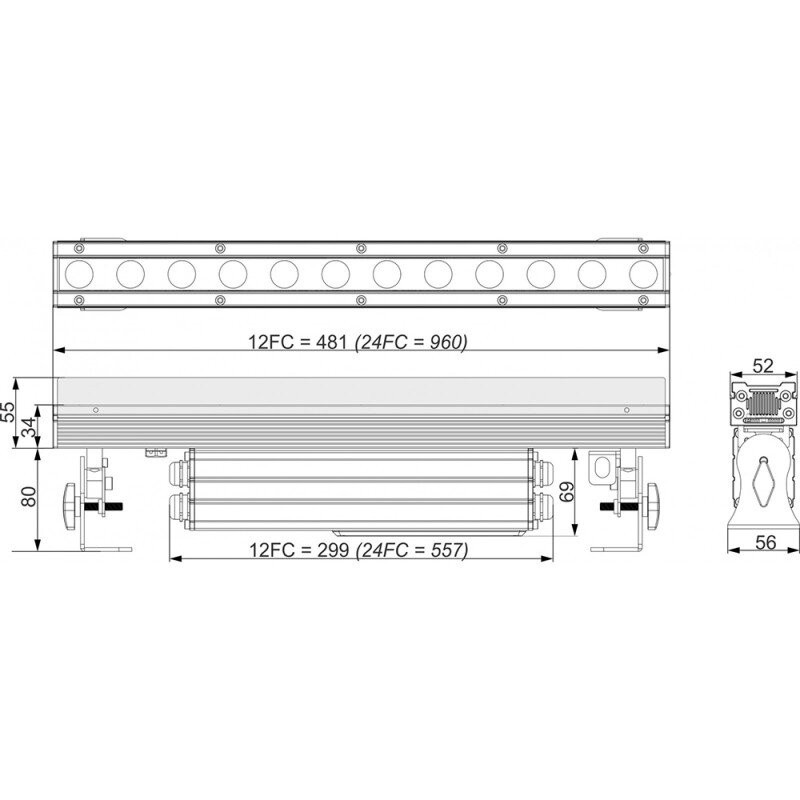

| Dimensions | 46 × 5.6 × 11.4/13.5 cm |
| Weight | 3 kg |
