SKU: H10658
EAN: 3662009017327
Contest - CEIL6TC-MKII
Projector with 6 LEDs 3W TC 48VDC 20° IP65
Available
delivery is available for this product.
This item is currently in stock and will be shipped from our supplier's warehouse in Europe.
Free shipping for orders over € 199 (within Europe)
Variants of this product
818.50 €
90 W water effect LED architectural projector, IP66, 25°~55° 7800 K
19.00 €
3x3W tricolor LEDs waterproof projector
Product Details

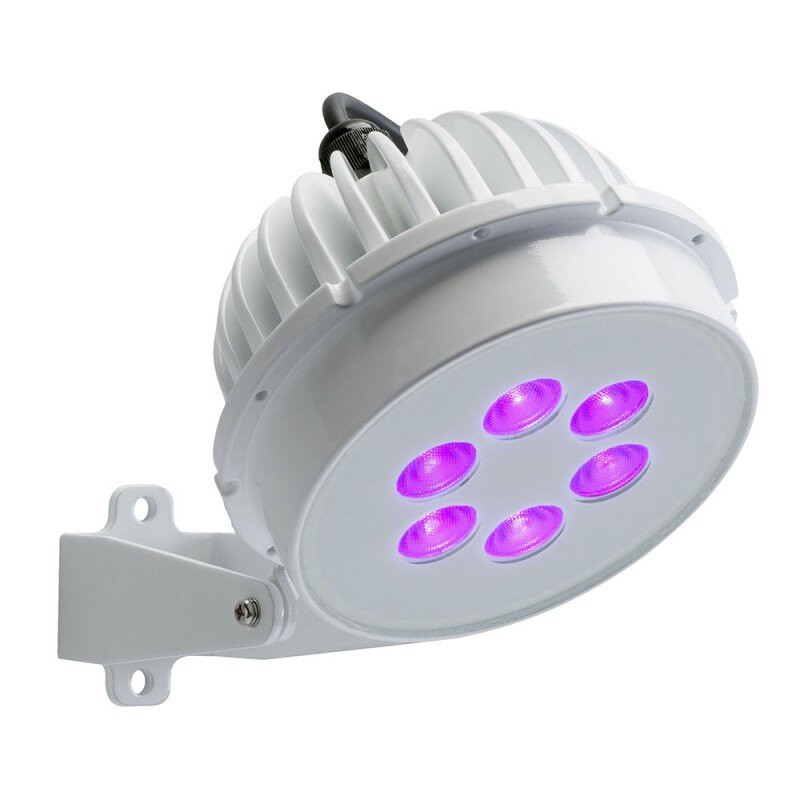

Waterproof projector with 6 x 3W RGB LEDs, supplied with fixation bracket. Connection via RJ45 socket to the PILOT series power supply units. No end link connector required for the last device or your chain.
Optical
- 6 x 3W trichromatic LEDs
- Lenses have been equipped with a filter for a better diffusion
- Almost infinite variety of shades without reflects from phantom colours
- No infrared or UV emission
- LEDs lifespan: 25 000 hours at full power
- Flux (Lm): 590 +/- 2.5%
- Efficiency (Lm/W): 33
- Light output: 266 Lux at 3m in white
Housing
- Extruded aluminium body
- Convection-cooled
- Waterproof cable gland
- IP tightness: 65 (fully protected against dust and water splashes)
Technical specifications
- Power supply: 12-48V, DC 350 mA (max) /48V
- Power consumption: 18 W
- Compatible power supply and control units: PILOT60/120/240
- Cable: 1 m Cat.5e with 8-pin RJ45 connector
- Operating temperature: -10°C ~ 40°C

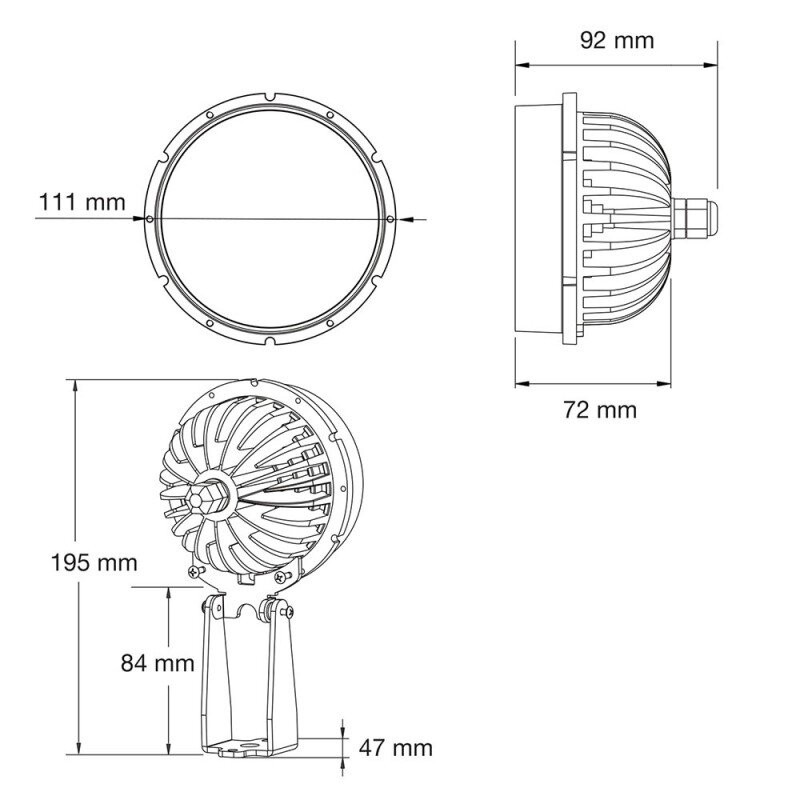

- Dimensions: Diameter 111 mm
- Length 72 mm (without cable gland) / 92 mmm (with cable gland)
- Weight: 0.775 Kg
More..
Show less
Projector with 6 LEDs 3W TC 48VDC 20° IP65
