Contest - HEZO120Z

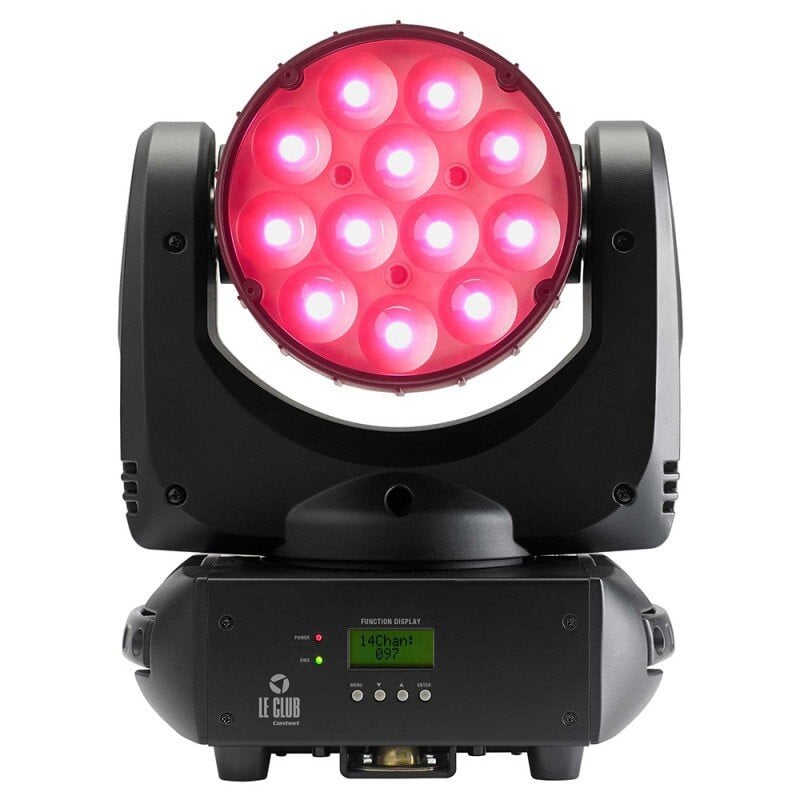

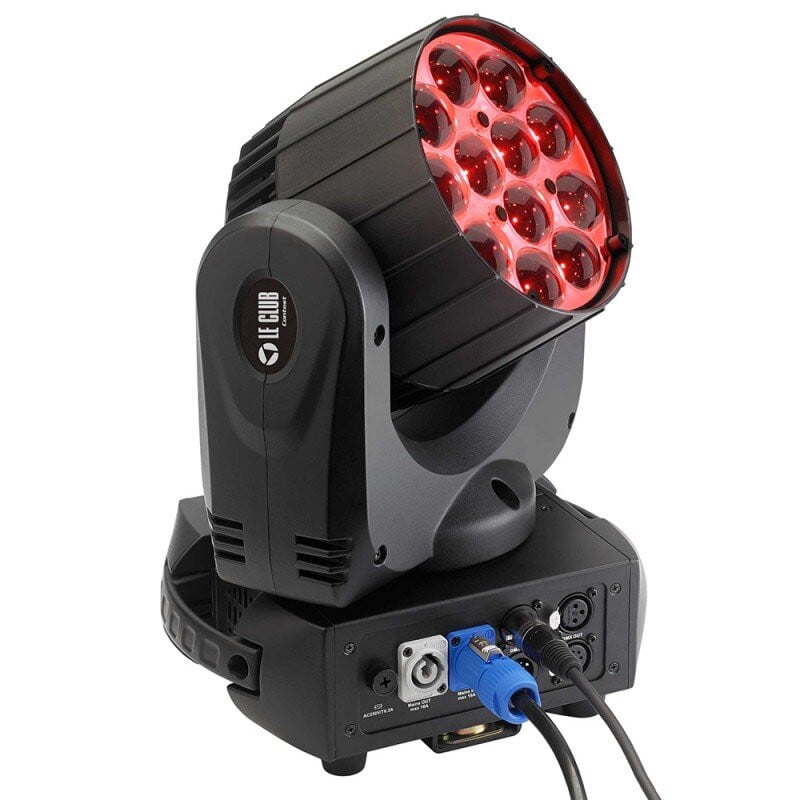

Fast-moving, compact, and lightweight LED wash moving head.

Twelve 10 W Osram 4-color LEDs with incredible color rendering. 540° pan and 270° tilt rotation. Position memory with automatic repositioning. Linear zoom from 10° to 60° with zoom lenses and HD focus. Adjustable fan speed. DMX control from 1 to 17 channels. Standalone, Master/Slave, and sound modes.

Areas of use

• Concerts
• Live performances
• Discos
• Clubs
• Entertainment venues
• Rental service

Technical characteristics

Light source

• 12 x 10 W 4-in-1 LEDs 50,000 hours (expected)

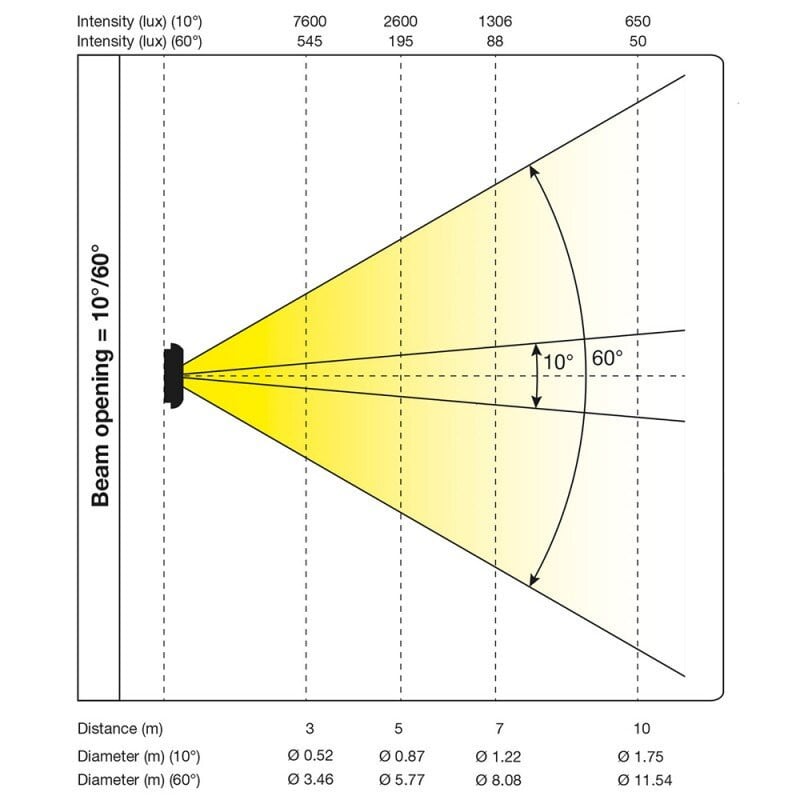

• Beamwidth: from 10° to 60°
• Low temperature, low power consumption and works many hours continuously

Colors

• 14 Le Club-compatible colors
• Adjustable white balance settings
• Color presets

Effects

• Strobe at increasing speed, pulse effect, music-sensitive flash
• Adjustable electronic dimmer from 0 to 100%
• Beamwidth and movement at adjustable speed from 10° to 60%

Control

• Standard DMX-512
• 1 to 17 DMX channels
• Built-in music-sensitive programs (internal microphone)
• Simplified control of several units via Master/Slave mode
• Color LCD drop-down menu to choose and assign the different modes

Movements

• Whole Pab and Tilt movements and independent rotation of the effect lens
• Ranges: Pan 540°, Tilt 270°
• Adjustable movement speed
• Position memory and Pan / Tilt auto repositioning
• Movement macros at increasing speed

Additional characteristics

• Adjustable fan speed
• 1 fixation brackets with omega holders
• Power consumption: 198 W max.
• Power supply: 100 - 230 V_AC 50/60 Hz
• Dimensions: 26.3 x 18.3 x 34 cm
• Net weight: 7.5 kg

What's in the box

• HEZO120Z
• User guide
• 1 x 2-pole + earth power cord / powerCON socket
