SKU: H10572
EAN: 3662009016467
Contest - TAPElive4
12 zones controller, Wi-Fi, 4 channels, 12 - 24 V DC, 4 x 4A, 2.4 GHz remote
Not available.
delivery is not available for this product.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
49.50 €
Device that extends SPI signal range from 10 up to 250 m using differential transmission over CAT5 cables, 5 to 24 V power supply
850.00 €
Power Pack 1000-48 1000W 8 Outputs Power Supply
57.00 €
Power supply 24 VDC 100 W max - IP67 - 1 output
1 SPI port, 1440 pixel, Wi-Fi controller
87.00 €
4-Channel signal booster 5-24 VDC - 3 x 3A + 1 x 9A max.
Product Details

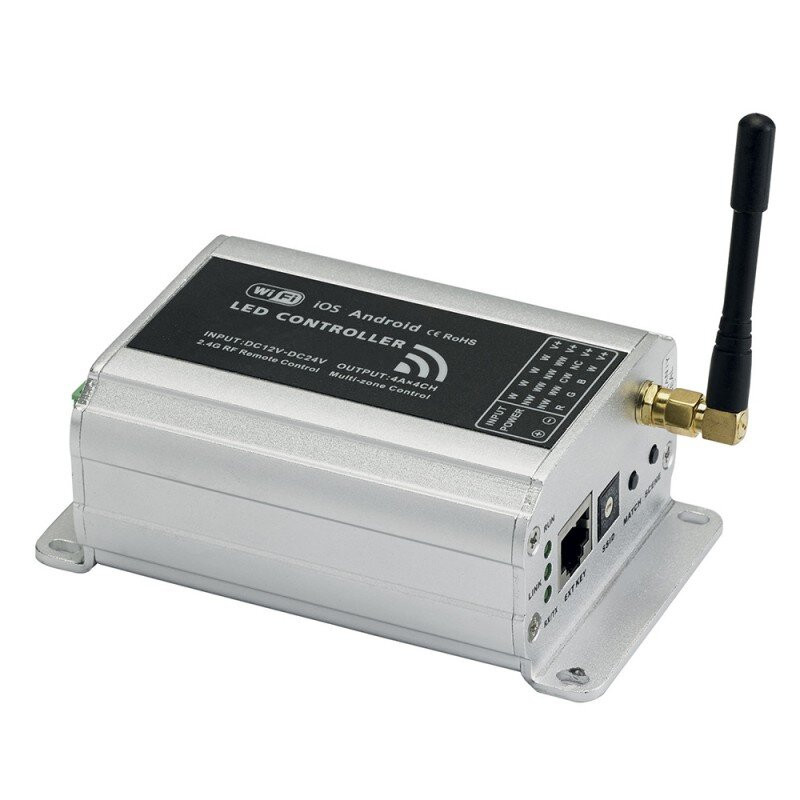

TAPElive4 is a Wi-Fi based lighting control system designed to work with the TAPEDRIVER-WIFI4 driver. It can be controlled via smartphone and remote control, thanks to a dedicated app (WiFi-104), which allows you to adjust up to twelve zones, create groups of zones with the same type of tape, and save up to four custom scenes. It supports brightness adjustment, color temperature variation, and color control on RGB and RGBW tapes. It can operate standalone or connected to a network via a router, allowing for the use of multiple units simultaneously.
The TAPEDRIVER-WIFI4, on the other hand, is a compatible receiver (sold separately) that allows you to control up to twenty meters of RGBW tape (e.g., COLORTAPE6067-WARM or COLORTAPE6020-WARM), respecting the recommended length specifications. Together, the two devices form a flexible and scalable system, suitable for professional installations such as bowling alleys, clubs, or spaces divided into multiple zones.
Technical characteristics
- Communication mode: Wi-Fi 2.4 GHz, 802.11b/g/n protocol
- Power supply: 12 - 24 VDC
- Operating range: 100 m (depending on environment) in open field, with a phone
- Intensity (max. load in A) 4 A x 4 (outputs) = 16 A max.
- Power: 192 W / 384 W (12 V / 24 V)
- Dimensions: 128 x 73 x 45 mm
- Weight: 382 g

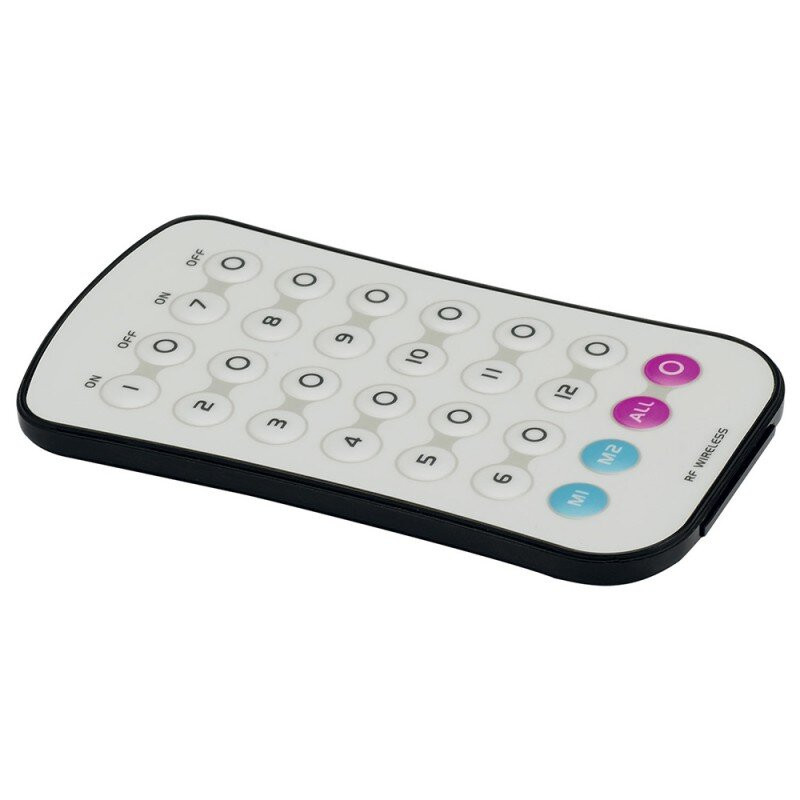

Remote control
- Communication mode: 2.4 GHz
- Power supply: 3 V (CR2032 battery)
- Operating range: 25 m
- Dimensions: 104 x 60 x 9 mm
- Weight: 42 g
More..
Show less
12 zones controller, Wi-Fi, 4 channels, 12 - 24 V DC, 4 x 4A, 2.4 GHz remote
