There are no product attachments at the moment. Please come back soon for the updatesProduct Details

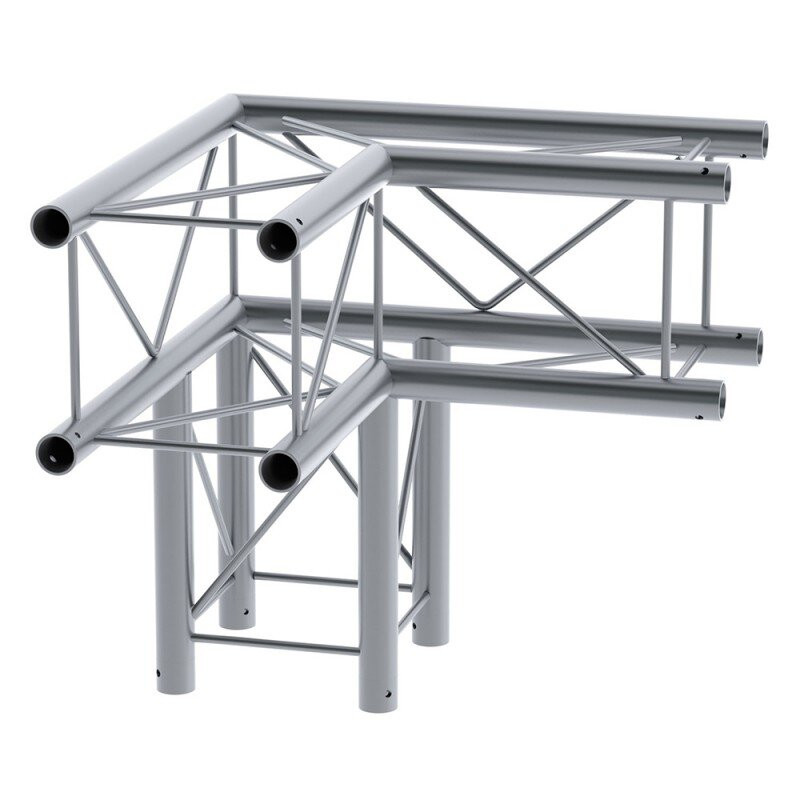

220 mm square truss 3 directions corner joint. 90° angle. 50 cm lenght. ISO DIN 4113 and TÜV certified. Made in aluminium alloy (EN AW 6060-T, diameter 35 mm, thickness 1.6 mm). Conical connectors and pins for quick set up and disassembling. Safe, stable and resistant installation guaranteed. Suitable for shop structures, exhibition booths, DJ stages, discoteques, lounges, gardens and outdoor events. Supplied with 2 x connection kit.
- 35 mm tubes
- 8 mm braces
- Distance between each tube: 185 mm
- Can be assembled with conical connectors and pins
- Width: 220 mm
- Angle: 3 directions - 90°

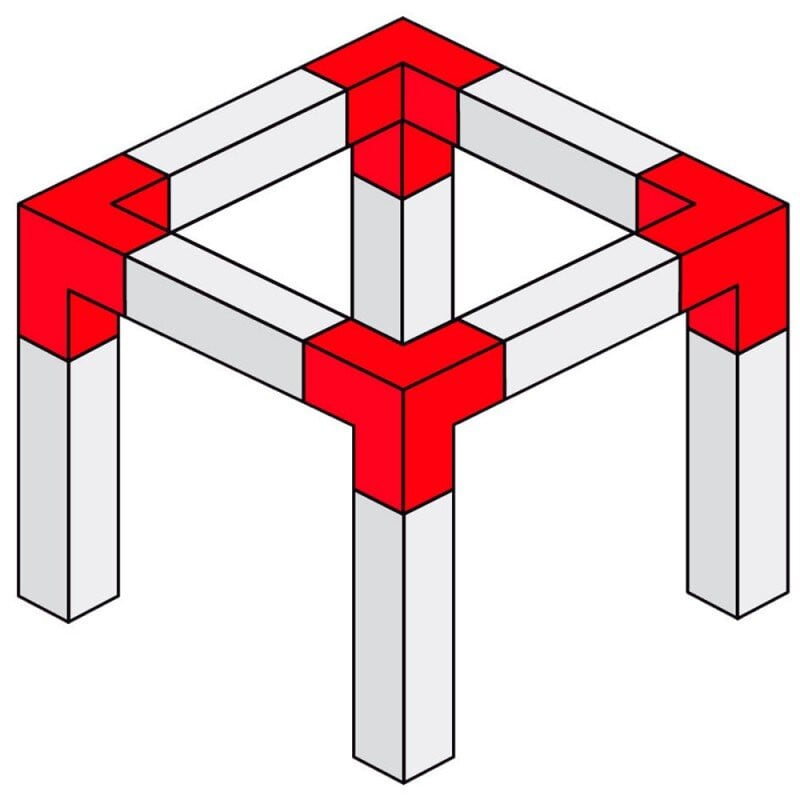

- Use: horizontal or vertical corner joint

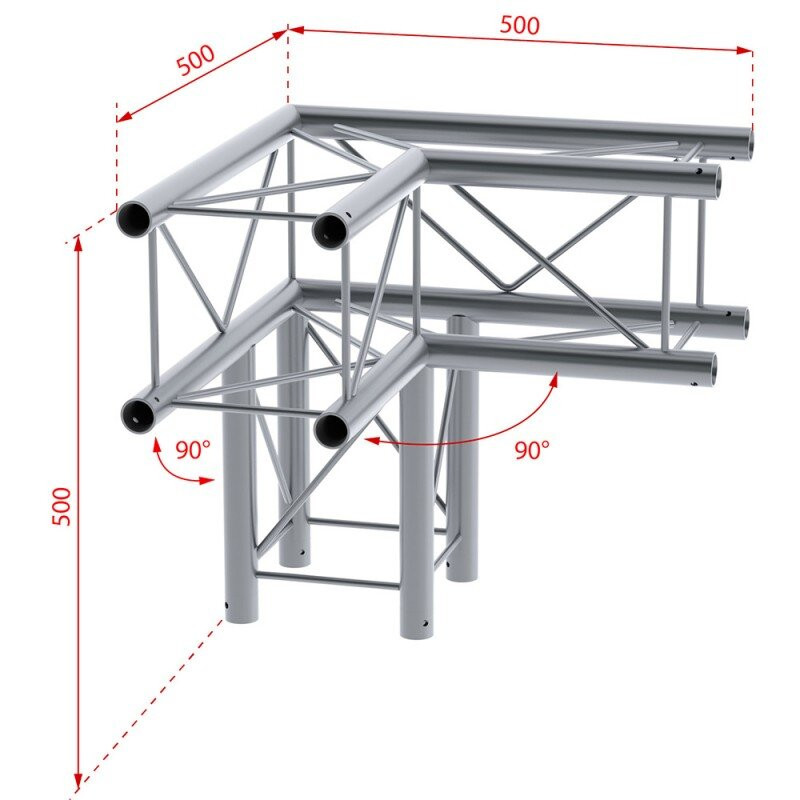

- Max. size: 50 cm x 50 cm
More..
Show less
220 mm Quatro side piece - 3 directions - 90° - 50 cm
