CYP - AU-A220

The AU-A220 is a compact Class-D stereo amplifier with 20 W per channel at 8 ohm, designed for multi-room installations and zoned AV systems.

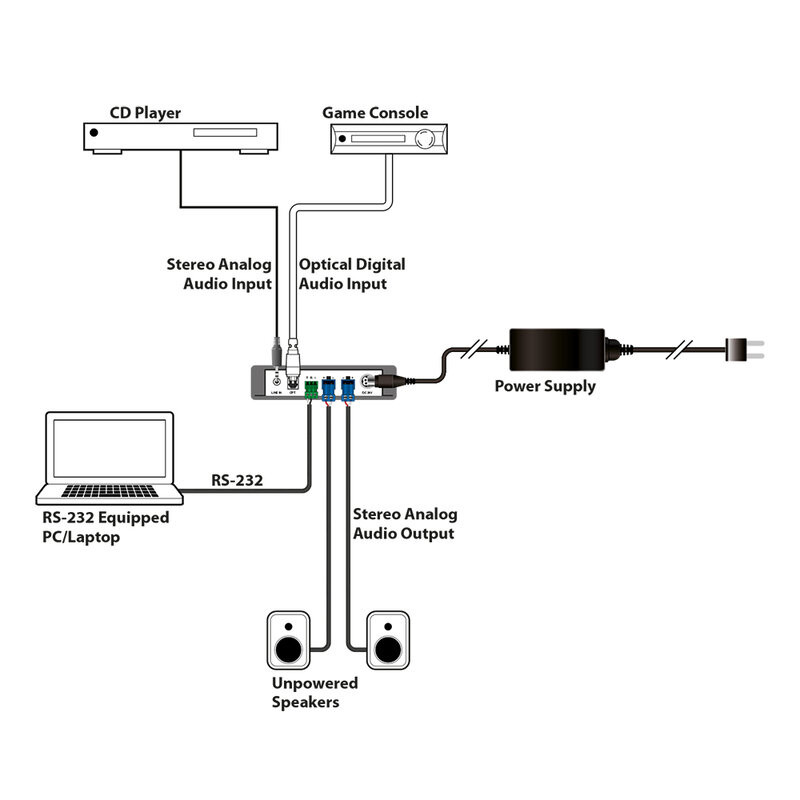

It can handle both analog and digital audio signals, integrating sources within the rack or receiving audio from a compatible matrix switcher for distribution to multiple zones. Its compact size allows for installation in rack cabinets or directly behind a display in the local zone, offering great design flexibility.

The unit is compatible with the RAX-300 series and can be powered, up to four units, by a single RAX-PSU-24V power supply. Input selection and volume control are available via front-panel buttons or RS-232, with a digital volume meter for precise adjustment.

Main features

• 20 W per channel digital stereo amplifier
• Class-D amplifier stage

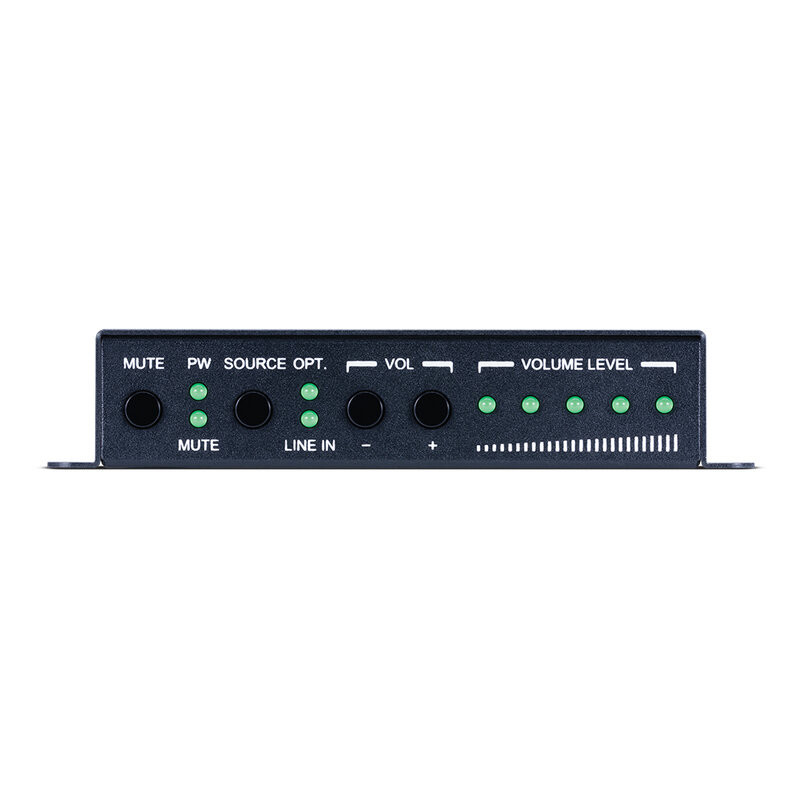

• Front-panel volume and input selection controls
• Single-zone amplifier
• Digital volume indicator
• Compact design
• RS-232 control
• Compatible with the RAX-300 series

User benefits

• Instant integration into professional AV systems via RS-232 control with remote management
• Extremely flexible installation thanks to the miniature format that allows for installation in small spaces
• Reduced costs and simplified power supply (when using multiple units) thanks to compatibility with RAX-PSU-24V
• Intuitive on-site operation thanks to front-panel controls with digital volume indicator

Areas of use

• Multi-room systems
• Zone AV systems in meeting rooms, classrooms, and corporate spaces
• Hospitality
• Retail and commercial environments
• Residential applications where a compact amplifier is required
• Integration into centralized AV racks with management remote via RS-232

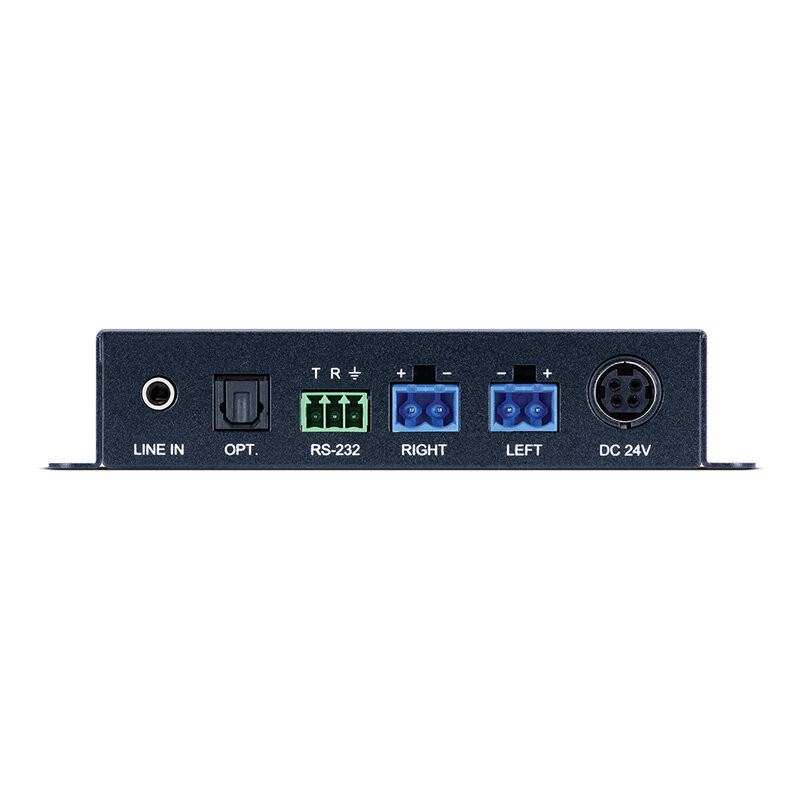

Technical characteristics

• Inputs: 1 × 3.5 mm stereo mini-jack [1 × analogue stereo (L/R)]
• Inputs: 1 × Toslink (1 x optical 2 channel LPCM)
• Inputs: 1 × Phoenix (3-pin) [1 × RS-232]
• Outputs: 2 × Phoenix (2-pin) [1 × loudspeaker level stereo output]
• PSU: 24 V_DC 2.7 A
• Dimensions: 12.8 × 2.5 × 10.8 cm
• Weight: 360 g
