SKU: CR-KP5-R
EAN: 5060067157074
CYP - CR-KP5-R
Compact keypad controller, four RGB buttons and a rotary encoder, supporting up to 32 macros, 128 commands, scheduling, PoE and full control via WebGUI and Telnet
Prime
fast delivery is available for this product.
This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.
Free Shipping for order equal or above € 199 are limited for delivery within Europe
Variants of this product
119.50 €
RAX 600 blanking tray
159.00 €
RAX 600 cooling fan system
1,091.50 €
RAX power manager, 8 x individual 12 V DC power outputs + 2 x 12 V DC power outputs dedicated to RAX-FAN modules
11.50 €
Context Sensitive 8 button IR remote
V-Mount battery designed for Accsoon CineView M7/M7 Pro
Product Details

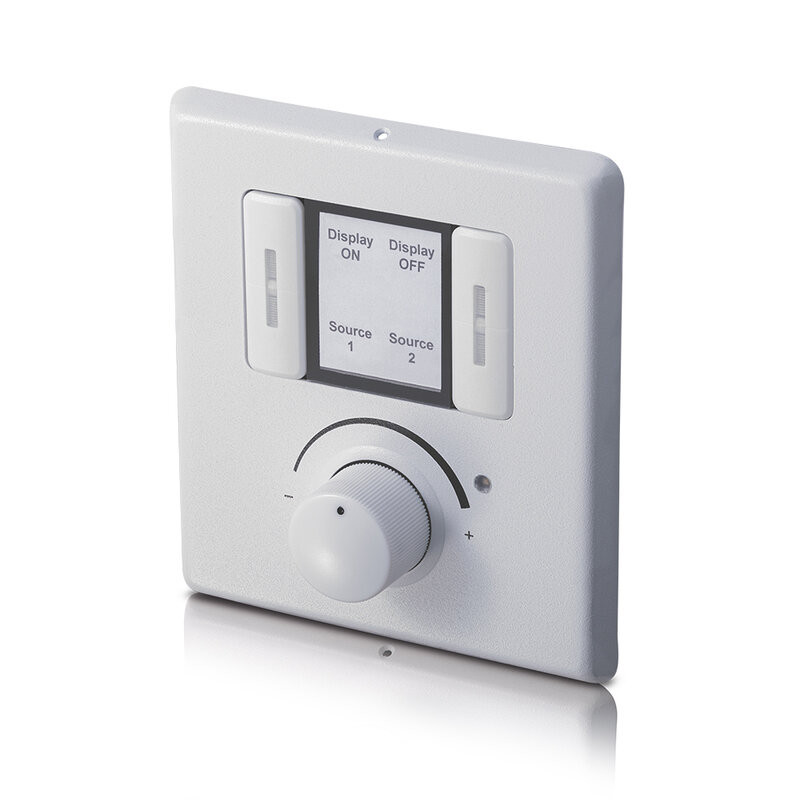

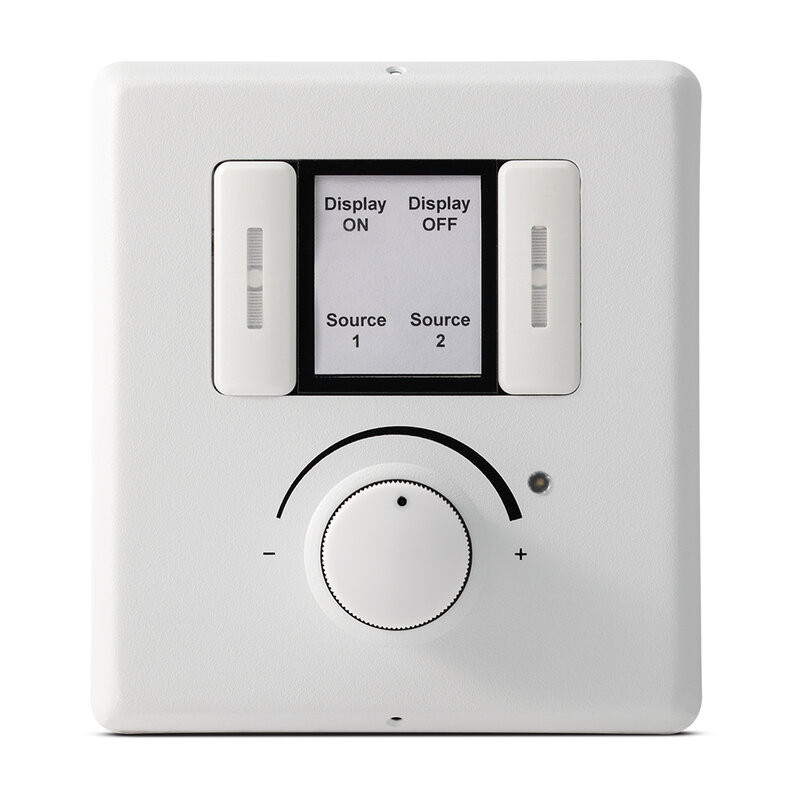

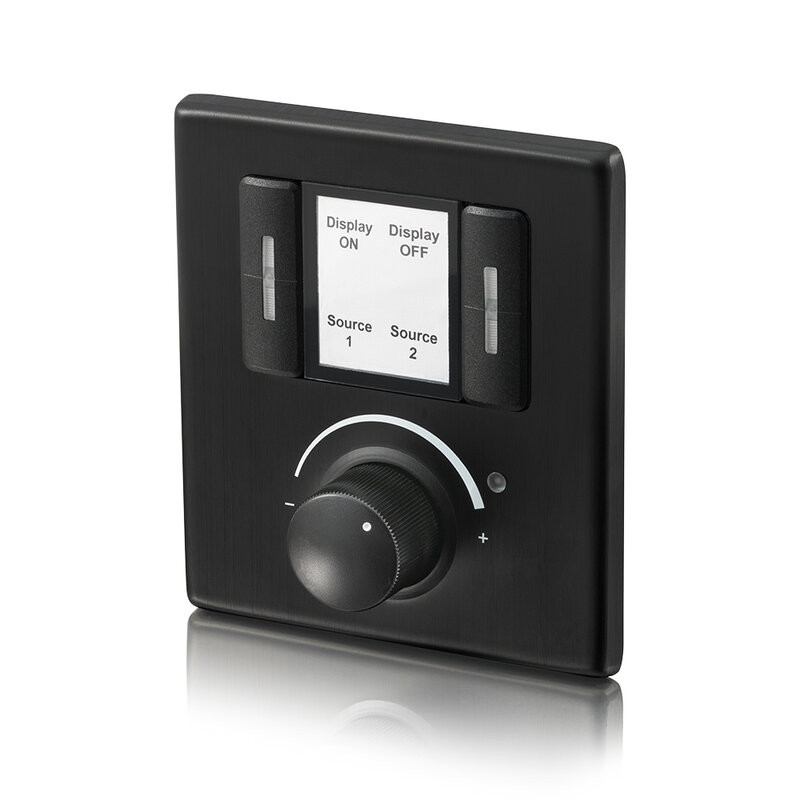

The CR‑KP5‑R is a 1-module wall controller with four RGB backlit buttons and a rotary knob with push function, designed to control AV devices and home automation systems via Ethernet.
It allows you to recall up to seven distinct macros and can store up to 128 commands. Control is via WebGUI and Telnet, with the ability to program time- and calendar-based events using the internal clock.
PoE support allows for installation without a local power supply, while the RGB backlighting of the buttons ensures high visibility in any environment. The knob can be configured for custom functions such as volume or brightness adjustment, offering maximum operational flexibility.
Main features
- Single-module design with tri-color LED buttons
- Up to 32 macros for device control
- Stores up to 128 total commands, up to 16 per macro
- Supports programming of macros based on date and time
- Supports conditional control within macros
- Internal battery with two-year battery life for clock and schedules
- Customizable daylight saving time configuration
- Powered via PoE according to IEEE 802.3af standard
- Controllable via keyboard, Telnet, and Web GUI
Areas of use
- Meeting rooms
- Corporate environments
- Classrooms
- Advanced residential installations
Technical characteristics
- Inputs: 1 x phoenix (4 pin) [1 x RS-232 local control], 1 x RJ45 [1 x LAN & PoE IP]
- PoE PSU: PoE
- PSU: 5 VDC 2.6 A
- Dimensions (W x H x D): 90 x 100 x 40.15 mm
- Net weight: 180 g
More..
Show less
Compact keypad controller, four RGB buttons and a rotary encoder, supporting up to 32 macros, 128 commands, scheduling, PoE and full control via WebGUI and Telnet
