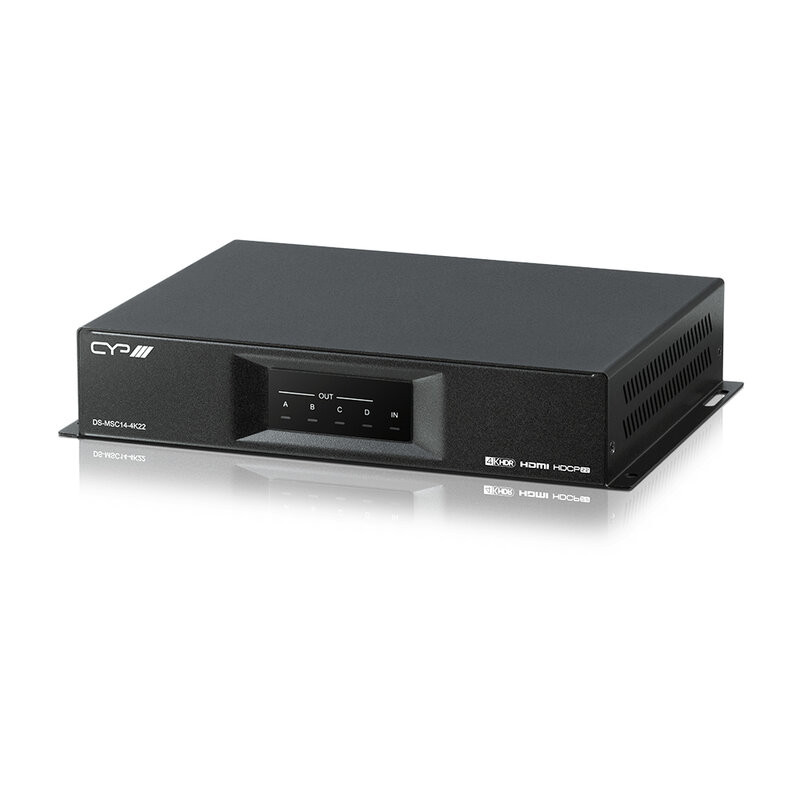

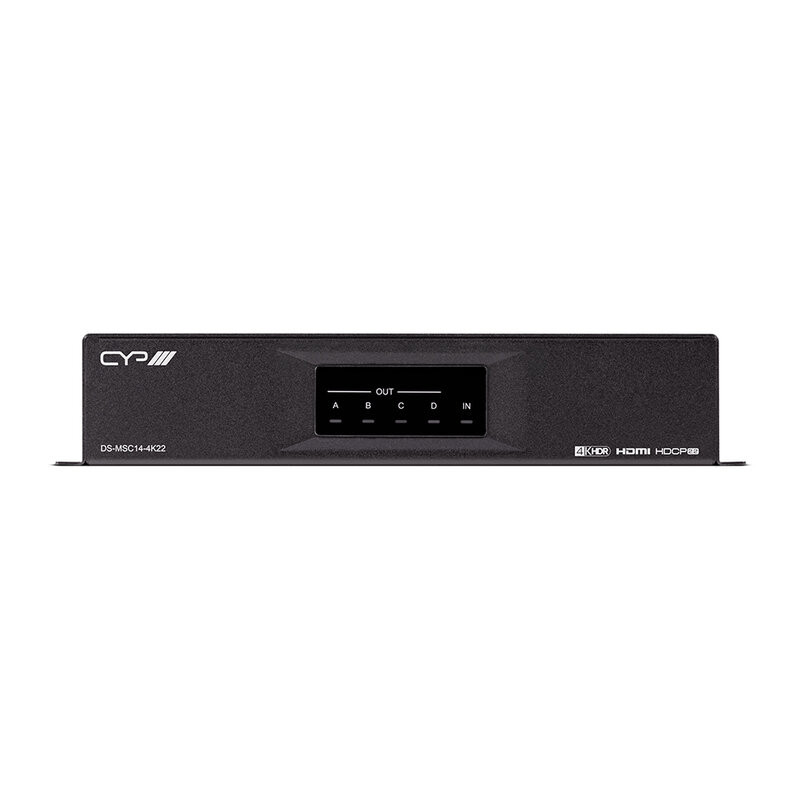

CYP - DS-MSC14-4K22

4 x 4 HDMI Video wall processor designed to transform any HDMI source up to 4K @ 60Hz 4:4:4 into a high-quality 2 x 2 video wall, with frame compensation and full audio bypass.

The HDMI input supports 4K UHD signals, including 10/12-bit HDR content, while each of the four outputs outputs 1080p @ 60 Hz video, enabling the creation of a full-resolution 4K Video wall.

The device integrates advanced EDID (internal, external, and custom) and HDCP management functions, ensuring compatibility with virtually any source. Multiple units can be combined to create video walls up to 8 x 8, while the dedicated PC application allows complete configuration of the layout and operating parameters.

Control is possible via RS-232, Telnet and proprietary software.

Main features

• HDMI 2.0 and DVI 1.0 compliant
• HDCP 1.x and 2.2 compliant
• 1 x HDMI input and 4 HDMI outputs
• Input support up to 4K UHD+ 18 Gbps (4096 x 2160 @ 60 Hz 4:4:4, 8-bit)
• Fixed HDMI outputs at 1080p @ 60 Hz
• Supports 10 and 12 bit HDR signals, with automatic conversion to 8 bit output
• Audio pass-through support: up to 8 channels of LPCM, Bitstream, and High Bitstream

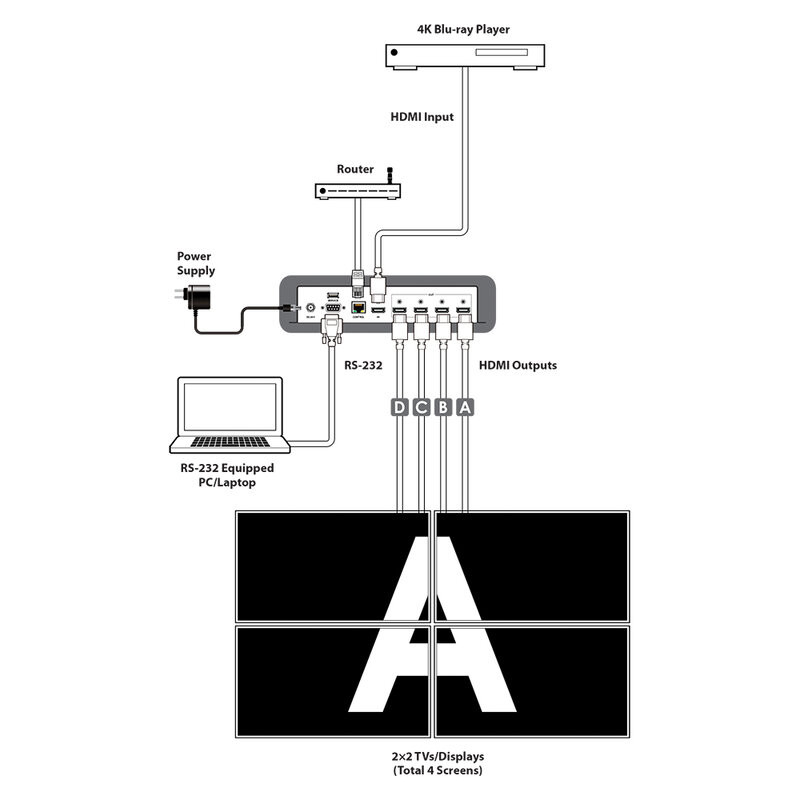

• Generates 2 x 2 Video walls with a single unit; up to 8 x 8 with multiple units
• Horizontal and vertical frame compensation
• Advanced EDID and HDCP management
• Control via PC App, Telnet, and RS-232

User benefits

• Advanced EDID and HDCP management ensures compatibility with any modern HDMI source
• High image quality thanks to 4K @ 60Hz 4:4:4 and HDR input support
• Full scalability: multiple units can be combined for video walls up to 8 x 8
• Flexible control via PC software, Telnet, or RS-232, ideal for AV integration
• Bezel compensation enhances the visual impact of the Video wall

Areas of use

• Advertising
• Digital Signage
• Digital Presentations
• Retail installations and "dynamic" window displays
• Information displays for financial markets and corporate environments

Technical characteristics

• HDMI bandwidth: 18 Gbps
• Input port: 1 x HDMI (Type-A)
• Output ports: 4 x HDMI (Type-A)

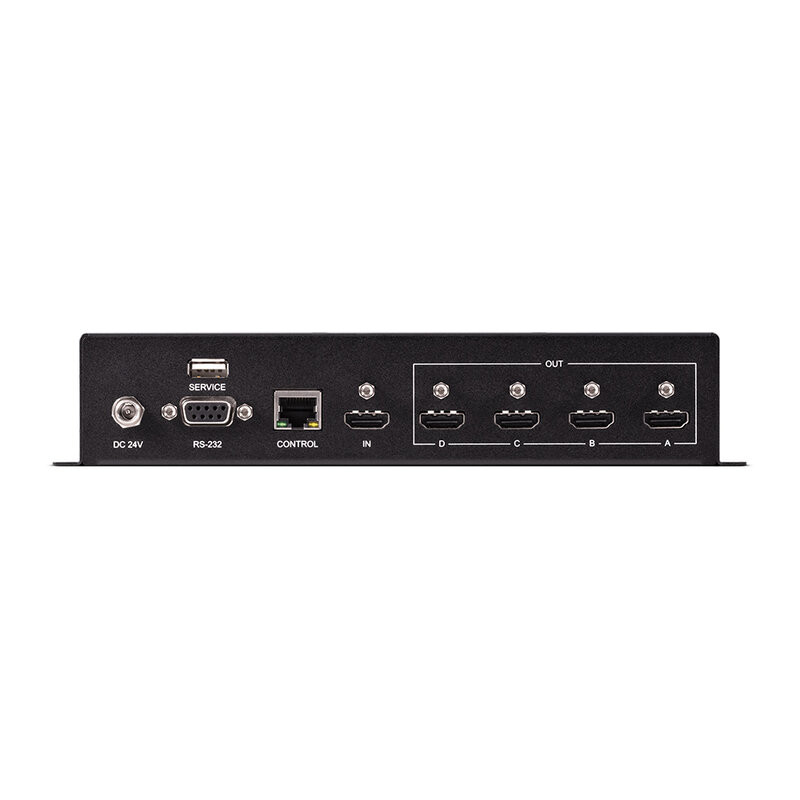

• Control ports: 1 x RS-232 (DE-9), 1 x control (RJ-45)
• Service port: 1 x USB 2.0 (Type-A)
• Baud rate: 19,200
• HDMI LPCM up to 8 channels
• Sampling rates: 32 – 192 kHz
• Bitstream: standard & high-definition
• Power supply: 24 V_DC / 1.25 A  (US / EU standards, CE / FCC / UL certified)
• ESD protection (HBM): ±8 kV (air discharge), ±4 kV (contact discharge)
• Chassis material: metal
• Chassis color: black
• Operating temperature: 0 to 40 ˚C
• Storage temperature: -20 to 60 ˚C
• Relative humidity: 20 to 90% RH (non-condensing)
• Power consumption: 9.5 W
• Dimensions (W x H x D): 23.15 x 4.4 x 16.7 cm (case only), 23.15 x 4.4 x 17.4 cm (all inclusive)
• Weight: 652 g
• What's in the box:

• • 1 x UHD+ 1 by 4 HDMI Video wall processor
  • 1 x 24 V_DC /1.25 A power adapter
  • 1 x shockproof feet (set of 4)
  • 1 x operation manual
