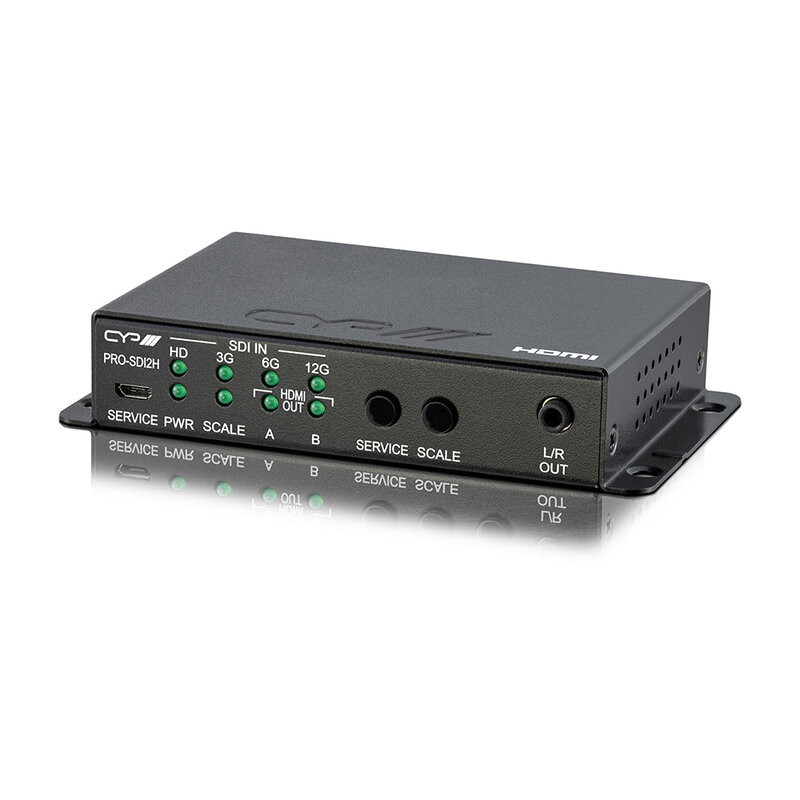

CYP - PRO-SDI2H

PRO-SDI2H is an SDI to HDMI converter that lets you display SD, HD, 3G, and 12G-SDI signals on HDMI monitors, simplifying SDI signal distribution and extension in broadcast and AV environments.

With L/R analog audio outputs and 12G SDI loop-through, you can simultaneously monitor content on SDI and HDMI displays. It supports resolutions up to 4K UHD (12 Gbps, 4K @ 50/60 Hz 4:2:2 8-bit) and includes 1080p downscaling for cost-effective local monitors.

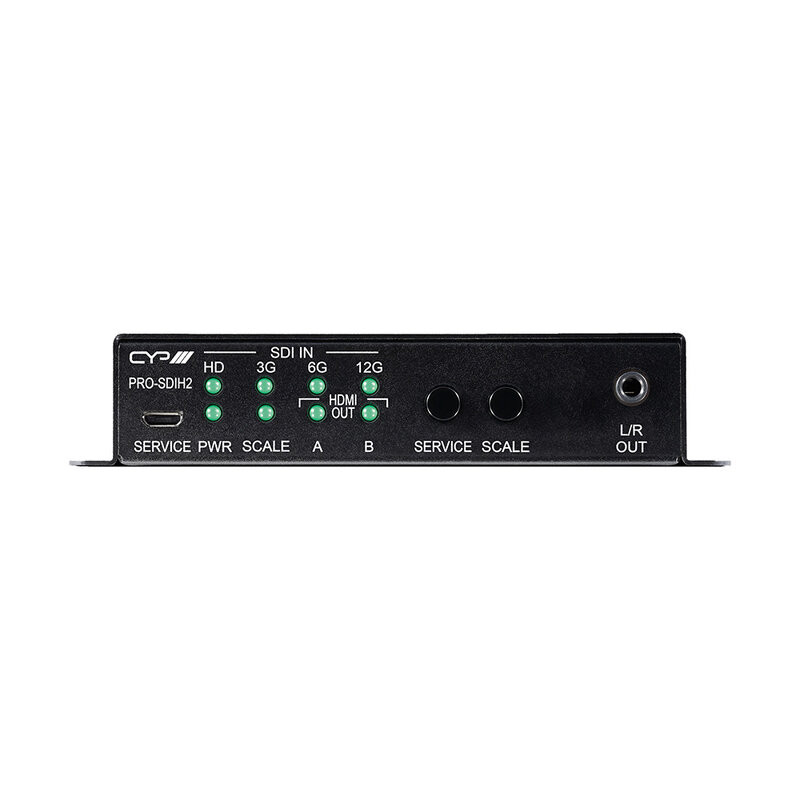

It is controlled via front panel controls and fully compliant with all major SMPTE standards.

Main features

• Complies with HDMI 2.0 and DVI 1.0 standards
• Features 1 SDI video input
• Offers 3 mirrored outputs, including 2 HDMI and 1 12G-SDI, as well as an analog stereo audio output
• Supports digital video signals up to 4K UHD at 12 Gbps with 4K@50/60 Hz 4:2:2 8-bit resolution
• The SDI input is compliant with SMPTE ST 292-1 Level A, ST 425-1, ST 2081-10, and ST 2082-10 standards
• The SDI loop-through output is reclocked to ensure signal stability
• The SDI signal extension distance varies by format: 80 m for 12G-SDI, 100 m for 6G-SDI, 200 m for 3G-SDI and 260 m for HD-SDI
• 4K sources can be downconverted to 1080p when sent to HDMI outputs
• Supports up to 8 channels of LPCM audio pass-through

User benefits

• Multiple outputs allow simultaneous monitoring of HDMI and SDI signals
• Automatic downscaling to 1080p allows the use of inexpensive monitors
• Ensures greater signal stability with reclocked SDI loop-through
• Easily integrates into SDI infrastructures up to 12G
• Extends SDI signals over long distances without additional converters

Areas of use

• Broadcast control rooms and live production systems
• Local monitoring in television studios and OB vans
• Integration into professional SDI systems requiring HDMI output
• Live events, rentals, and AV installations
• SDI-to-HDMI conversion for technical monitors, preview and multiview

Technical characteristics

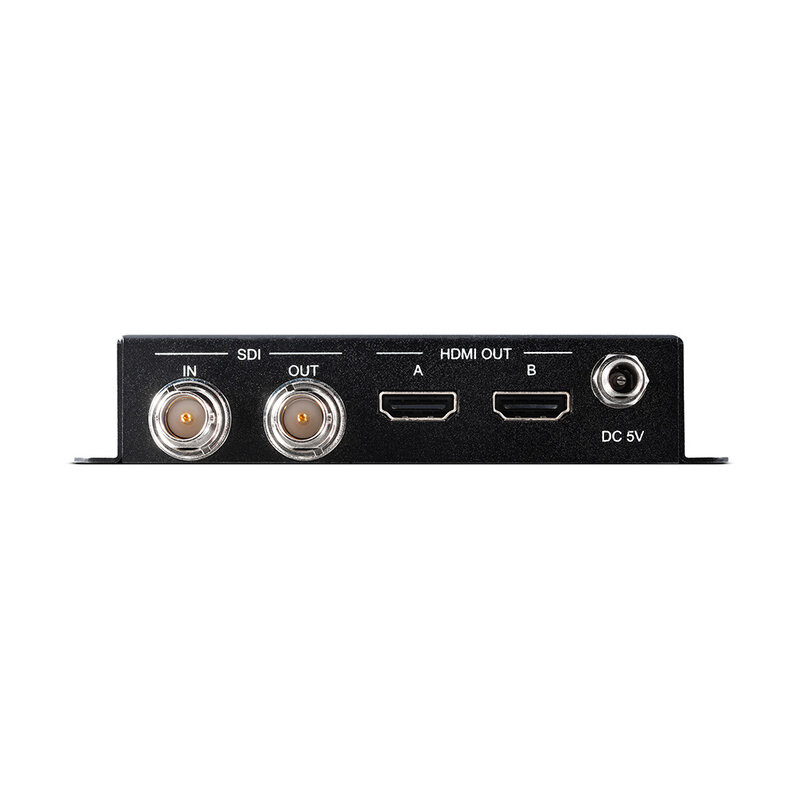

• Inputs:
  • 1 × BNC (1 × SDI HD‑SDI/3G‑SDI/6G‑SDI/12G‑SDI)
• Outputs:
  • 1 × BNC (1 × SDI HD‑SDI/3G‑SDI/6G‑SDI/12G‑SDI)
  • 1 × HDMI (1 × HDMI uncompressed AV and data)
  • 1 × 3.5 mm stereo mini‑jack (1 × analogue stereo L/R)
• PSU: 5 V_DC / 2.6 A
• Dimensions (W × H × D): 12.8 × 2.5 × 7.5 cm
• Net weight: 0.34 kg
