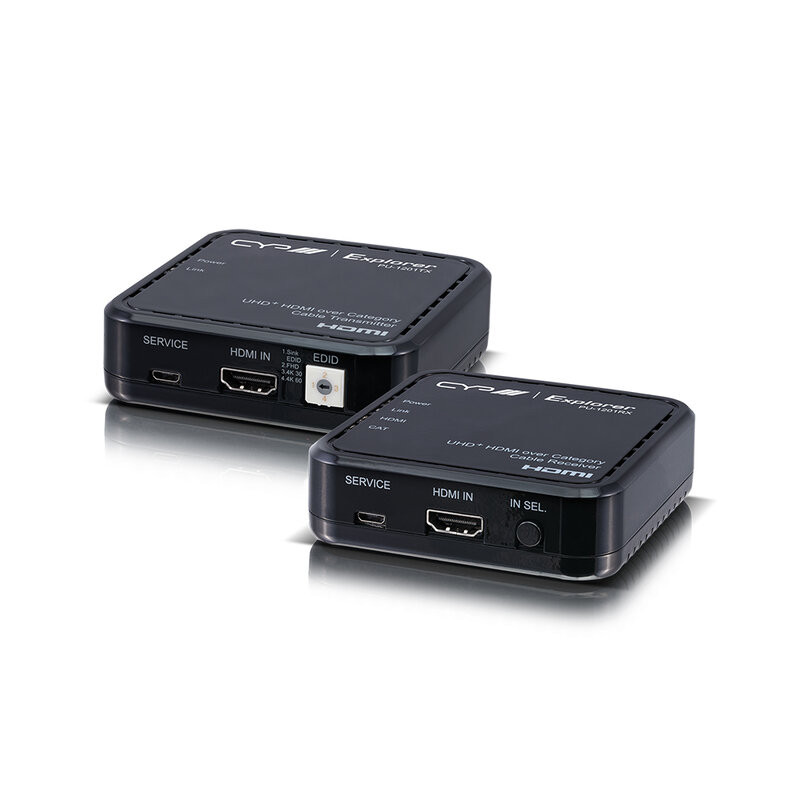

CYP - PU-1201-KIT

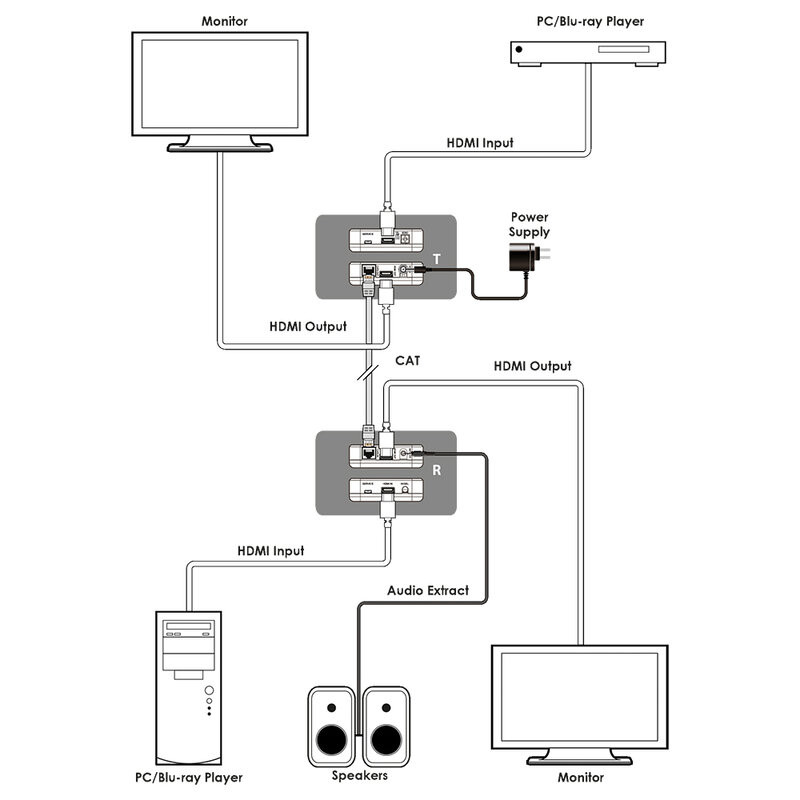

PU-1201-KIT is a 4K HDMI extension system that transmits uncompressed UHD video, audio, and data signals over a single Cat.6a/7 cable up to 60 m, maintaining quality and synchronization without delay.

The transmitter integrates EDID management functions, a local HDMI bypass output, and provides PoC power to the included receiver. The receiver also features a local HDMI input and a stereo analog audio output, offering maximum flexibility in AV installations.

Main features

• HDMI 2.0 and DVI 1.0 compatible
• HDCP 2.2 and HDCP 1.x compliant
• TX: 1 × HDMI input, 1 × CAT.6 output, 1 x HDMI bypass output
• RX: 1 × HDMI output, 1 × CAT.6 input, 1 x local HDMI input
• Supports resolutions up to 4K @ 60Hz (4:4:4, 8-bit) via HDMI and CAT.6
• Extends up to 60 m via CAT.6a/7 and up to 40 m via CAT.5e/
• Supports up to 8-channel LPCM and standard bitstream formats
• EDID management with 3 built-in EDIDs and bypass mode
• Top panel LEDs for link status, power, and RX input selection
• PoC device (PSE) capable of powering the compatible receiver
• EDID can switch between 4 modes: Sink EDID, FHD, UHD, and UHD+

User benefits

• Stable transmission of uncompressed 4K HDMI signals over relatively long distances
• Reduction in cabling thanks to the receiver's PoC power supply
• Greater flexibility thanks to the local HDMI input on the receiver
• Immediate source monitoring via the HDMI bypass output on the transmitter
• Guaranteed compatibility with professional displays and sources thanks to integrated EDID management

Areas of use

• Point-to-point 4K AV installations
• Conference rooms and meeting rooms
• Digital signage with centralized player and remote displays
• Advanced residential applications

Technical characteristics

PU-1201-TX

• Inputs:

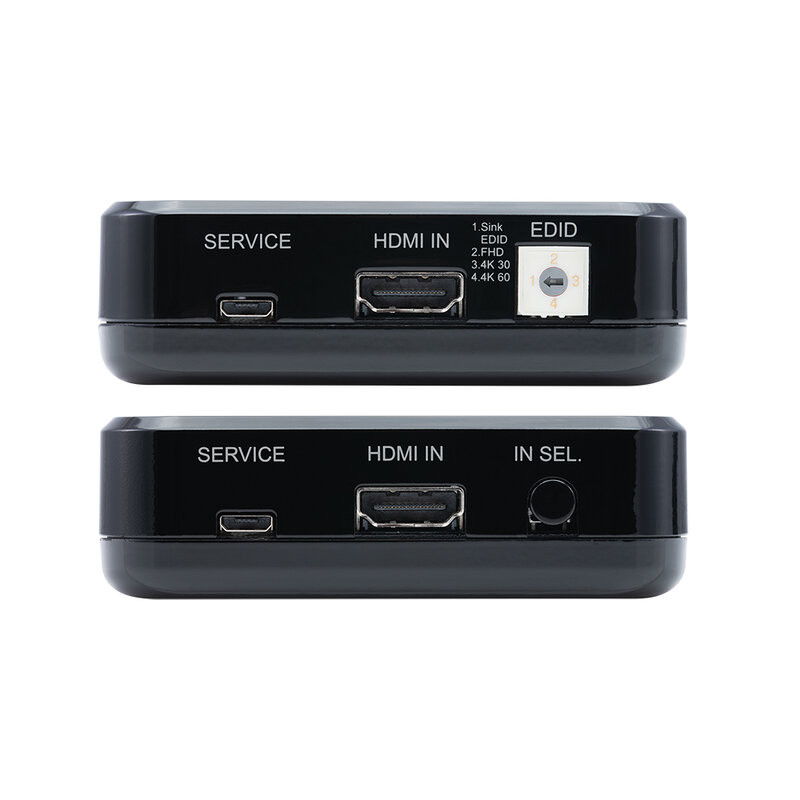

  • 1 × HDMI (uncompressed AV and data)
  • 1 × USB micro (service port propriety data)
• Outputs:

  • 1 × HDMI (uncompressed AV and data)

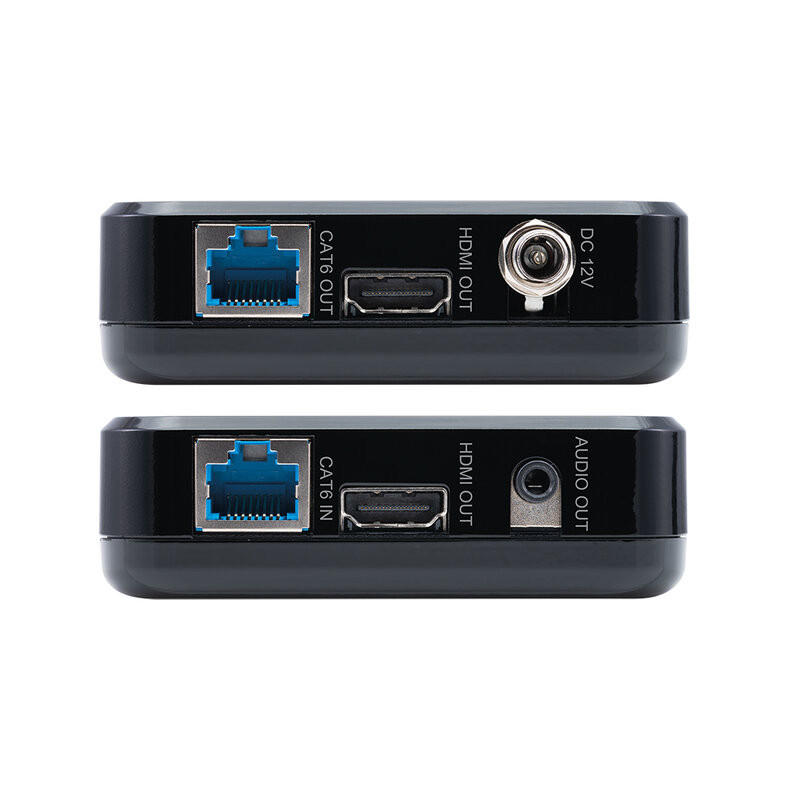

  • 1 × RJ45 (extender Cat. OUT HDMI & propriety data)
• PSU: 12 V_DC 3 A
• Dimensions (W × H × D): 8.5 × 2.6 × 8.5 cm
• Weight: 180 g

PU-1201-RX

• Inputs:

  • 1 × RJ45 (extender Cat. OUT HDMI & propriety data)
  • 1 × HDMI (local HDMI IN uncompressed av and data)
• Outputs:

  • 1 × HDMI (uncompressed av and data)
  • 1 × 3.5 mm stereo mini-jack (analogue audio OUT)
• PSU: powered by TX (poc)
• Dimensions (W × H × D): 8.5 × 2.6 × 8.5 cm
• Weight: 180 g
