SKU: PU-1H3HBTPL

EAN: 5060067153038

CYP - PU-1H3HBTPL

Name: PU-1H3HBTPL
Brand: CYP
SKU: PU-1H3HBTPL
Price: 509.5 EUR
Availability: OutOfStock

1 HDMI input to 3 HDBaseT Lite outputs (60 m) + HDMI bypass, supporting 4K UHD, PoC, IR and cascading up to 5 layers

(0)

765.00 €

- 33%

509.50 €

Pay in 4 interest-free payments of 127.38 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

CYP - QU-2-8K23

337.50 €

(0)

1 × 2 HDMI 2.1 8K distribution amplifier with HDR support, HD audio formats, EDID management, stereo audio breakout

CYP - QU-4-4K22

289.50 €

(0)

1 × 4 4K @ 60 4:4:4 HDR HDMI distribution amplifier with HDCP engine, EDID tools, down‑scaling, CEC system reset

CYP - QU-2-4K22

199.50 €

(0)

1 × 2 full 4K HDMI distribution amplifier with HDR support, HD audio formats, EDID/HDCP configuration switches, down‑scaling, CEC System Reset

CYP - QU-8MS

286.00 €

(0)

1 × 8 HDMI distribution amplifier with 4K support, EDID tools, HDCP 1.4 and System Reset (CEC active source)

CYP - QU-10-4K22

569.50 €

(0)

1 × 10 full 4K HDMI distribution amplifier with HDMI 2.0, HDCP 2.2, UHD support, HD audio formats, buffered outputs

Product Details

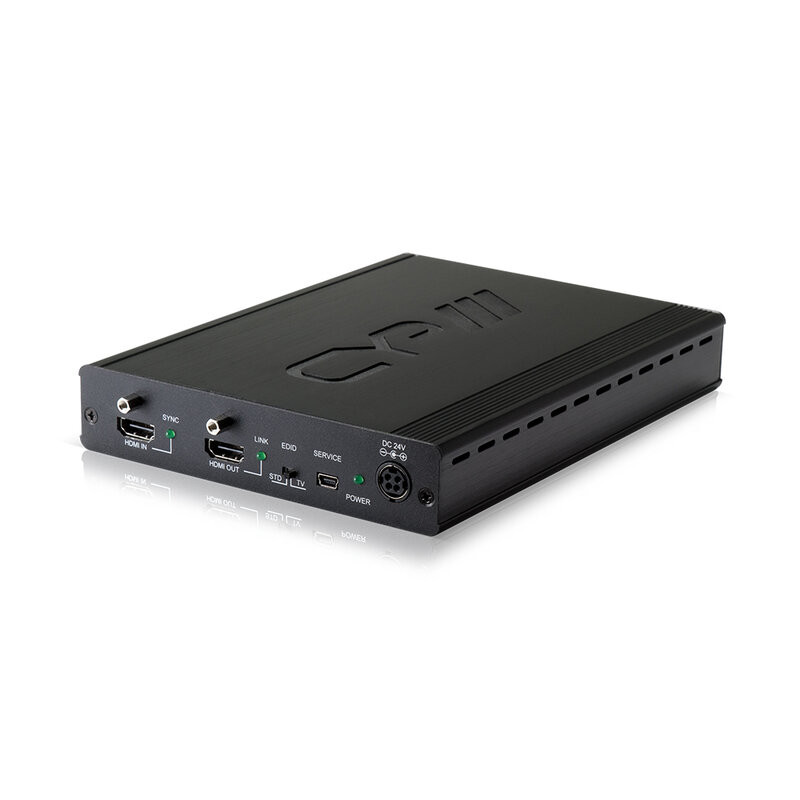

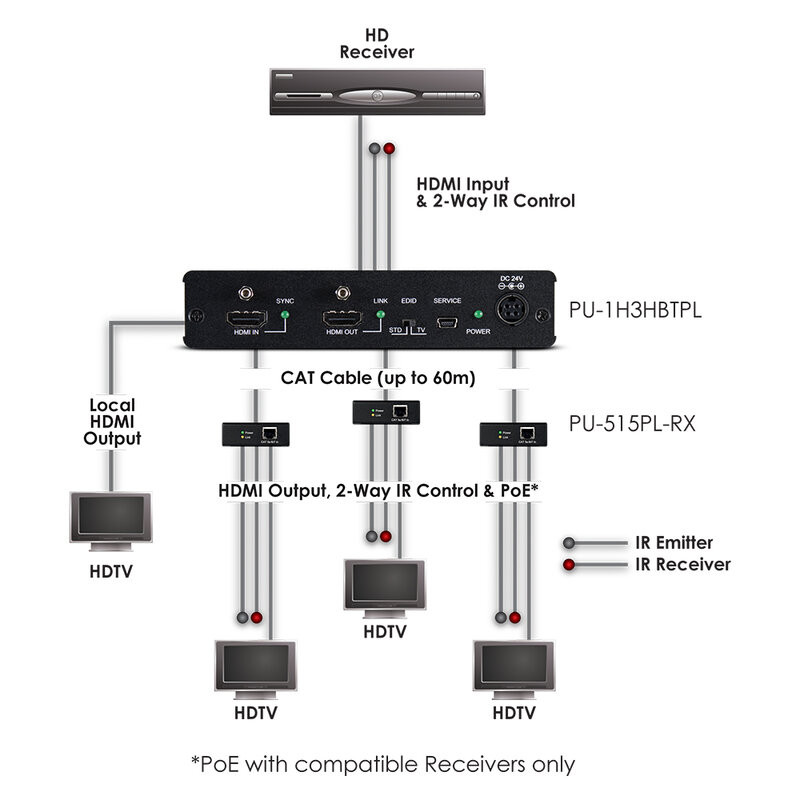

The PU‑1H3HBTPL is a splitter that allows you to distribute a single HDMI signal to 3 HDBaseT Lite outputs with PoC and an additional local HDMI output.

It supports video signals up to 4K UHD, audio up to 7.1 channels, and IR transmission, ensuring stable, uncompressed AV distribution over a single Cat. 5e/6/7 cable up to 60 m. We recommend using the PU‑515PL‑RX receivers to take full advantage of this device's HDBaseT Lite capabilities with PoC outputs.

It is ideal for AV installations requiring simultaneous distribution of a single source to multiple displays, with the option of cascading up to 5 levels.

Main features

Supports all HDMI v1.4 resolutions + 4K
Compatible with HDMI, HDCP, and DVI
Supports uncompressed video/audio up to 10.2 Gbps
VGA - WUXGA resolutions, 480i - 1080p, 4K UHD @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), 4K UHD @ 60 Hz (YUV 4:2:0), 4K/2K @ 24/25/30 Hz (RGB 4:4:4 & YUV 4:2:2), and 4K/2K @ 60 Hz (YUV 4:2:0) based on the display's EDID
HDCP repeating and CEC functions
Supports 1080p distances up to 60 m via Cat.5e/6
Audio up to 7.1 CH and Dolby TrueHD, DTS-HD
Supports HDMI/IR and 3D signals
PoC (Power over Cable) to power receivers
4K/2K and 4K UHD – Cat.5e/6 = 35 m & Cat.6a/7 = 40 m

User benefits

Reduced cabling thanks to HDBaseT Lite transmission over a single Cat. 5 cable
Powering of receivers via PoC without additional power supplies
Flexibility thanks to local HDMI output and cascading capability up to 5 levels
Compatible with 4K UHD signals and multi-channel audio

Areas of use

Showrooms and retail stores
Digital signage with centralized source and screens distributed across multiple rooms
Corporate installations with multiple monitors for presentations and meeting rooms
Museums, exhibition spaces, and multimedia paths
Advanced residential systems with multi-room HDMI distribution

Technical characteristics

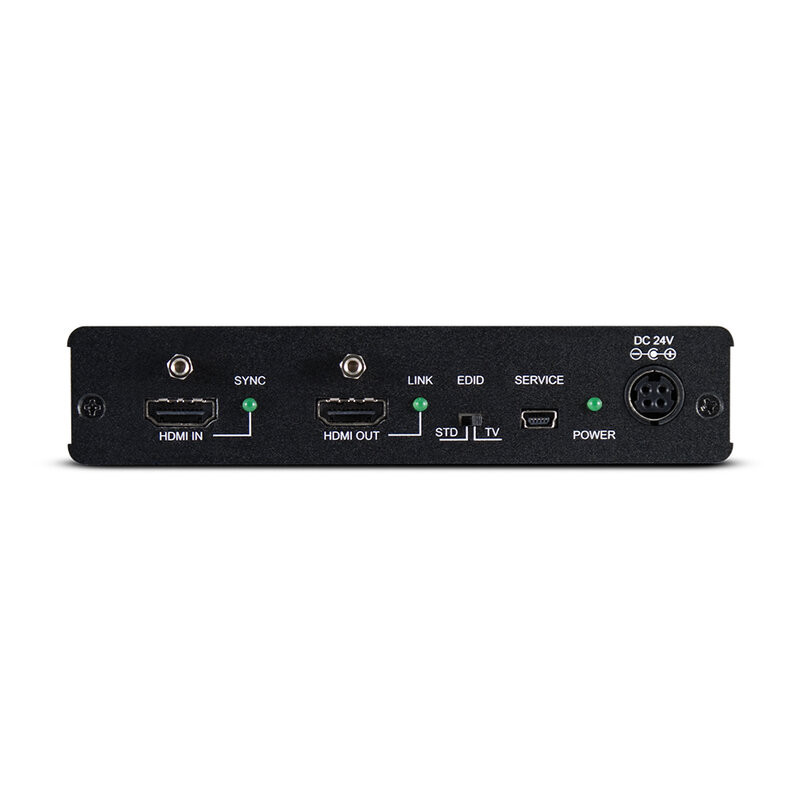

Inputs:
- 1 × HDMI (uncompressed AV and data)
- 1 × 3.5 mm stereo mini-jack (infrared receiver)

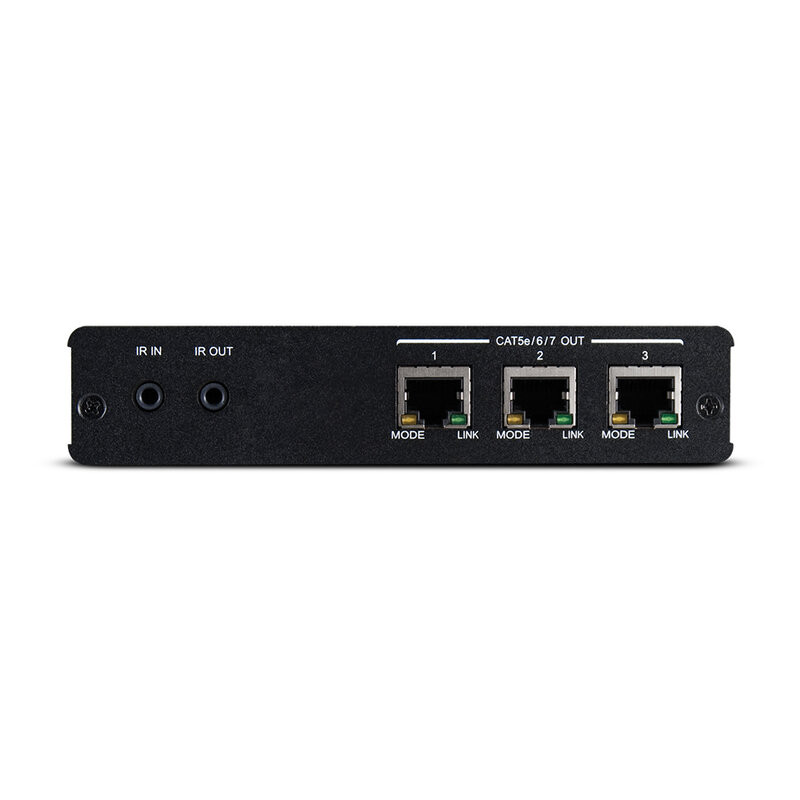

Outputs:
- 1 × HDMI (uncompressed AV and data)
- 3 × RJ45 (7 × HDBaseT Lite PoC HDMI & propriety data)
- 1 × 3.5 mm stereo mini-jack (infrared emitter)
PSU: 24 V_DC 2.7 A
Dimensions (W × H × D): 14.5 × 3 × 19.9 cm
Weight: 620 g
