SKU: PU-304-KIT

EAN: 5060067151591

CYP - PU-304-KIT

Name: PU-304-KIT
Brand: CYP
SKU: PU-304-KIT
Price: 169.5 EUR
Availability: OutOfStock

Digital audio extender kit over CAT5e/6, coaxial and optical SPDIF, up to 150 m, includes TX and RX units, supports LPCM, DTS, Dolby Digital, Dolby Digital Plus, sample rates up to 96 kHz

(0)

227.00 €

- 25%

169.50 €

Pay in 4 interest-free payments of 42.38 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

CYP - PU-305BDA-RX

159.50 €

(0)

Bi‑directional analogue audio receiver over single Cat. cable, PoE powered, RS-232 pass‑through, up to 300 m transmission distance, compatible with PU‑305BDA‑TX and PU‑305BD‑TX

Rondson - XLMRJ

7.00 €

(0)

M. XLR to RJ45 adapter

Rondson - XLFRJ

6.50 €

(0)

F. XLR to RJ45 adapter

CYP - PU-305BDA-TX

159.50 €

(0)

Bi‑directional analogue audio transmitter over single Cat. cable, PoE to receiver, RS 232 pass‑through, up to 300 m transmission distance, compatible with PU‑305BDA‑RX and PU‑305BD‑RX

Audiophony - BOXRJ4XM3

38.50 €

(0)

RJ45/XLR3M adapter box for audio/DMX signal - 100 m

Product Details

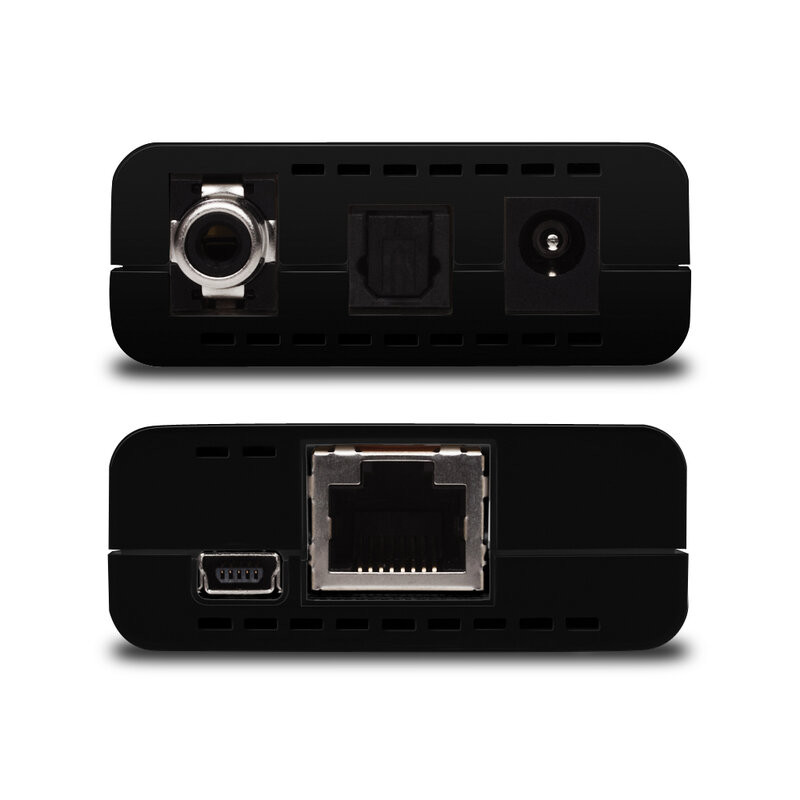

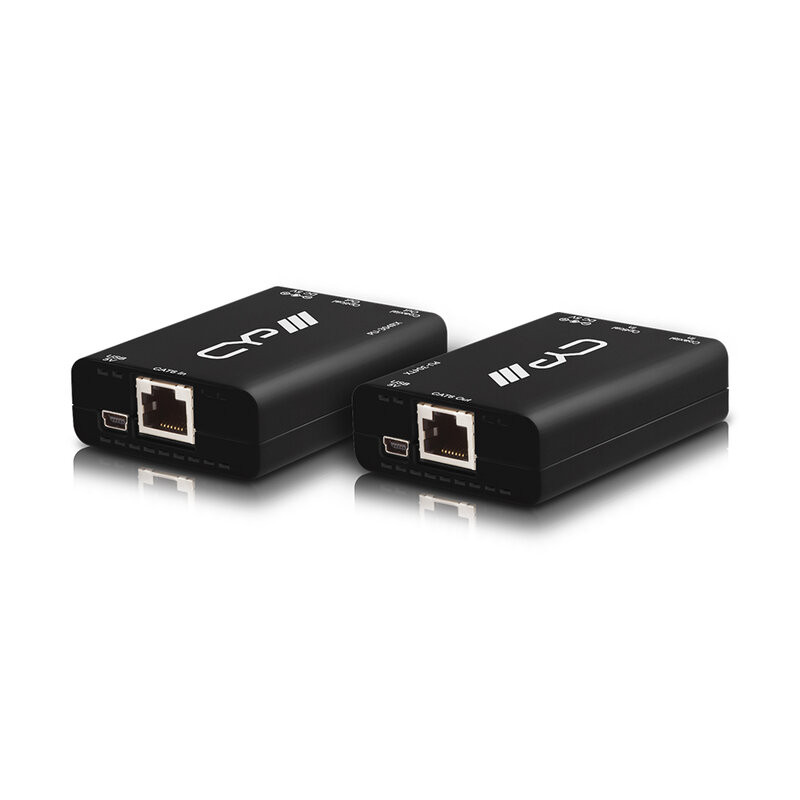

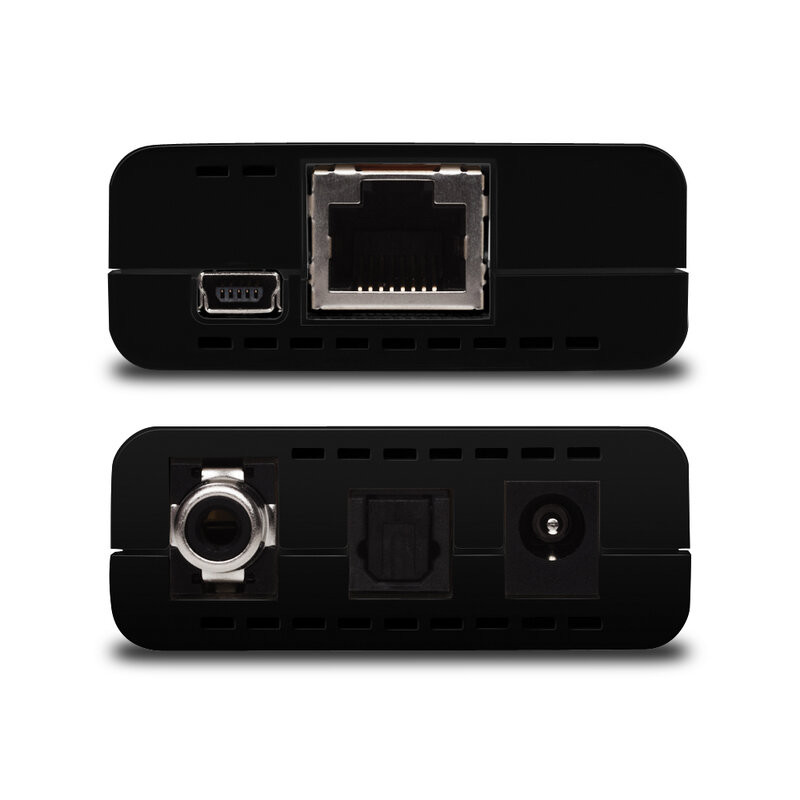

The PU-304-KIT is an extender system consisting of a compact transmitter (PU-304TX) and receiver (PU-304RX), powered via USB or an external power supply, designed to transmit coaxial or optical digital audio signals over a single Cat.5e/6 cable up to 150 m.

Supports SPDIF signals up to 96 kHz and stereo and multi-channel audio formats such as LPCM, DTS, Dolby Digital, and Dolby Digital Plus.

Main features

Supports coaxial or optical SPDIF digital audio signals
Supports stereo and multi-channel digital audio (LPCM, DTS, Dolby Digital, Dolby Digital Plus)
Supports sampling rates up to 96 kHz
Dual transmission: 1 coaxial and 1 optical
Signals can be extended over a single Cat.5e/6 cable up to 150 m

User benefits

Extension of digital audio over long distances via Cat. 6 cabling
Compatibility with multi-channel audio formats
Flexible installation thanks to USB or PSU power supply
Complete, ready-to-use TX + RX kit
Reduction in cabling compared to traditional coaxial/optical cables

Areas of use

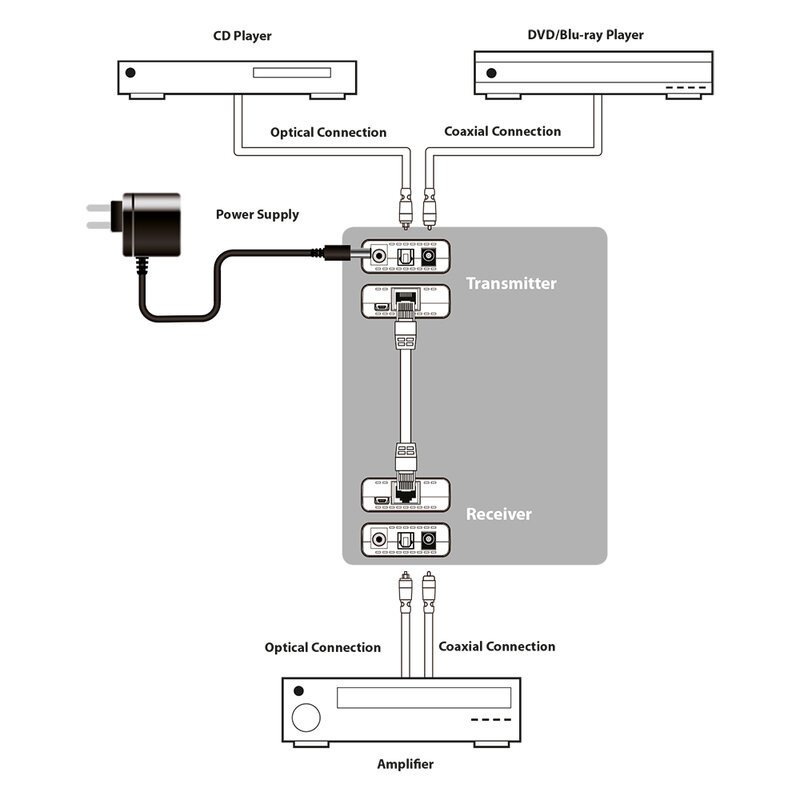

Digital audio distribution in conference rooms and meeting rooms
Connection of remote digital audio sources in systems AV
Home Theater integration with remote sources
Audio installations for museums, showrooms, and exhibition spaces
Digital audio extensions for temporary events and mobile installations

Technical characteristics

PU-304RX

Inputs:
- 1 × RJ45 [1 × digital audio propriety data]
Outputs:
- 1 × RCA [1 × coaxial 2 channel LPCM/DTS/Dolby Digital/Dolby Digital Plus]
  1 × Toslink [1 × optical 2 channel LPCM/DTS/Dolby Digital/Dolby Digital Plus]
PSU: 5 V_DC 1.2 A & USB
Dimensions (W × H × D): 7.5 × 2.2 × 5.5 cm
Net weight: 100 g

PU-304TX

Inputs:
- 1 × RCA [1 × coaxial 2 channel LPCM/DTS/Dolby Digital/Dolby Digital Plus]
- 1 × TOSLINK [1 × optical 2 channel LPCM/DTS/Dolby Digital/Dolby Digital Plus]
Outputs:
- 1 × RJ45 [1 × digital audio propriety data]
PSU: 5 V_DC1.2 A & USB
Dimensions (W × H × D): 7.5 × 2.2 × 5.5 cm
Net weight: 100 g
