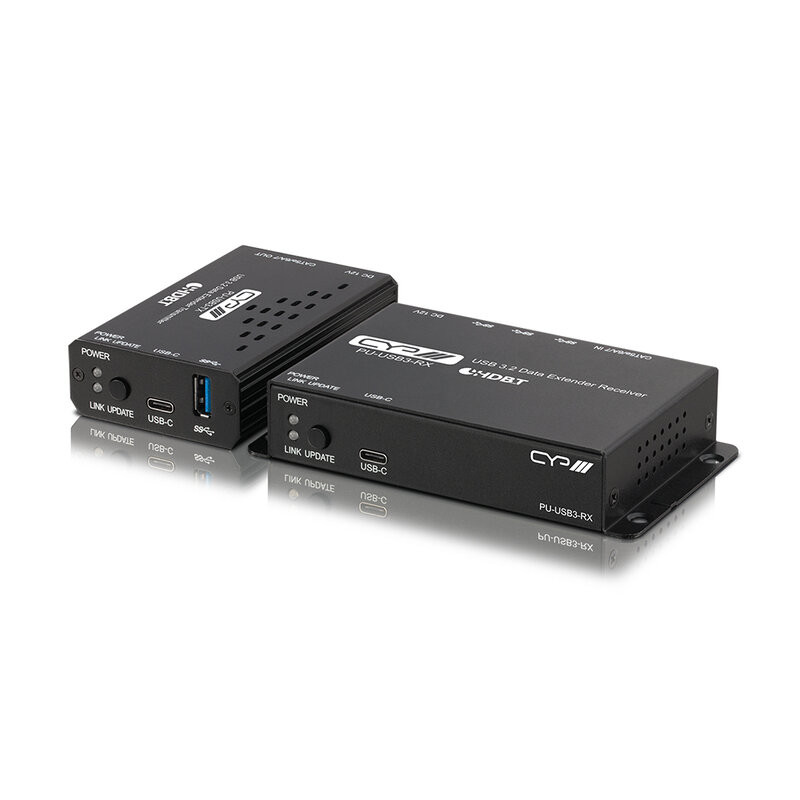

CYP - PU-USB3-KIT

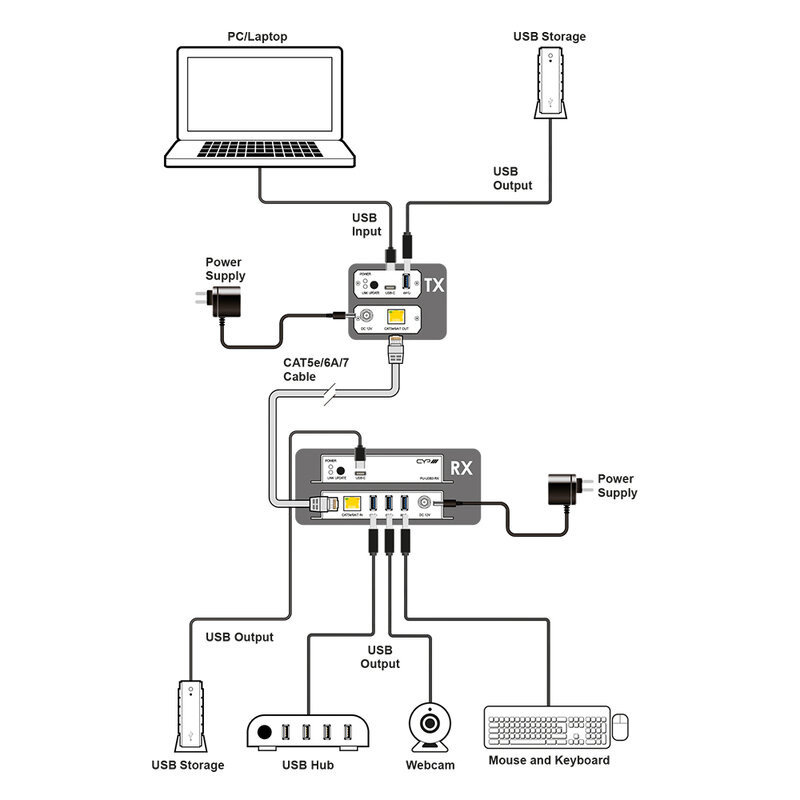

PU-USB3-KIT is a USB 3.2 Gen 1 extender kit designed to extend the signal from a USB host to multiple USB devices up to 100 meters via Cat. 10 cabling.

The transmitter allows extension from a host USB-C port to a local USB device and to USB devices connected to the receiver. The transmitter can be powered directly from the host, such as a computer or laptop, without an external power supply. The USB Type-A port can supply up to 5 VDC 900 mA when the unit is active.

The receiver allows extension to up to four remote USB 3.2 devices, such as flash drives, keyboards, and USB cameras.
With an adapter, the USB-C port supports 5 VDC 3 A, and the USB-A ports provide 5 VDC 900 mA to connected devices.

The kit also includes a hotkey function for convenient firmware updates on the transmitter side, with remote firmware updates also available on the receiver.

Key features

• USB 3.2 Gen 1 with 1 USB-C host port and 1 USB-A device port
• Point-to-point transmission via Cat. 6 cabling
• Transmission up to 100 meters
• The transmitter can be powered by the connected host, such as a computer or laptop
• The host can control multiple USB devices on both the transmitter and receiver sides
• Firmware update via hotkey from the transmitter, with remote updates also available for the receiver
• Backward compatible with USB 2.0
• The receiver supports 4 USB 3.2 Gen 1 ports

User benefits

• USB 3.2 extension up to 100 meters via Cat. 6 cabling
• Powered directly from the host device without an external power supply
• Management of multiple USB devices on both the transmitter and receiver sides
• Compatible with USB 2.0 and USB 3.2 devices
• Simplified firmware update via hotkey

Areas of Use

• Remote workstations with peripherals USB
• Conference rooms and meeting rooms
• AV installations with high-speed USB devices
• Industrial and IT applications with long-distance USB extension

Technical characteristics

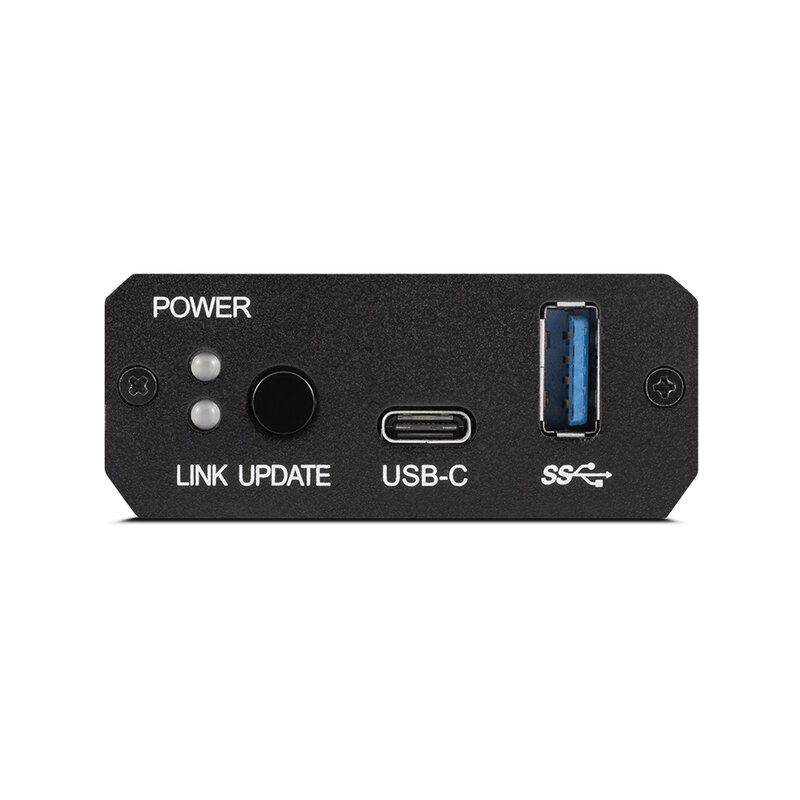

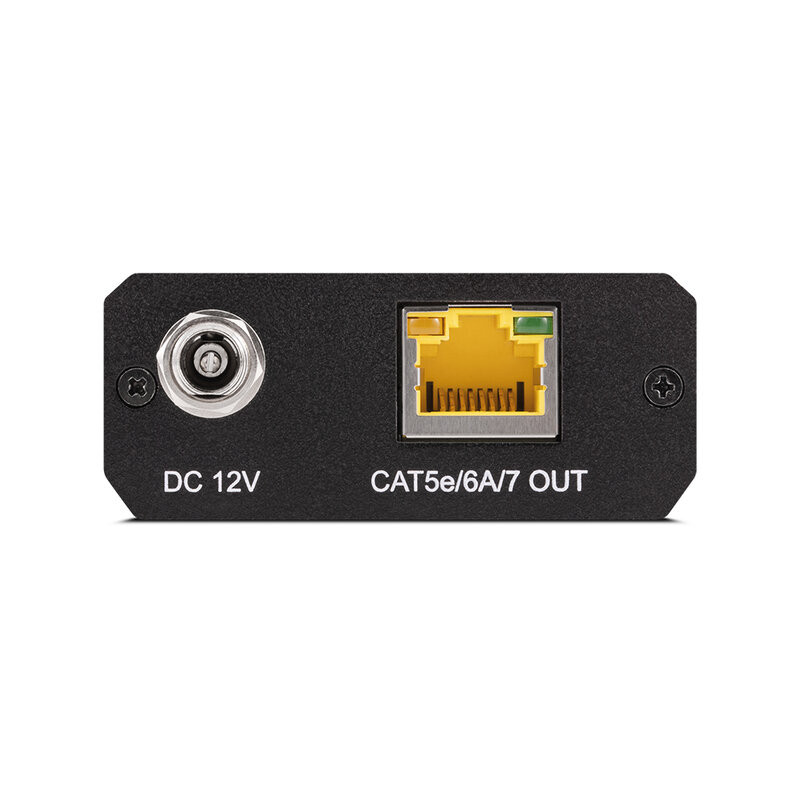

TX

• Inputs:

  • 1 × USB-C (USB-C host port proprietary data)
• Outputs:

  • 1 × RJ45 (USB data extension proprietary data)
  • 1 × USB Type-A (USB device port proprietary data)
• PSU (TX): 12 V_DC 3 A, USB powered
• Dimensions (W × H × D): 60 × 25 × 95 mm
• Weight: 140 g

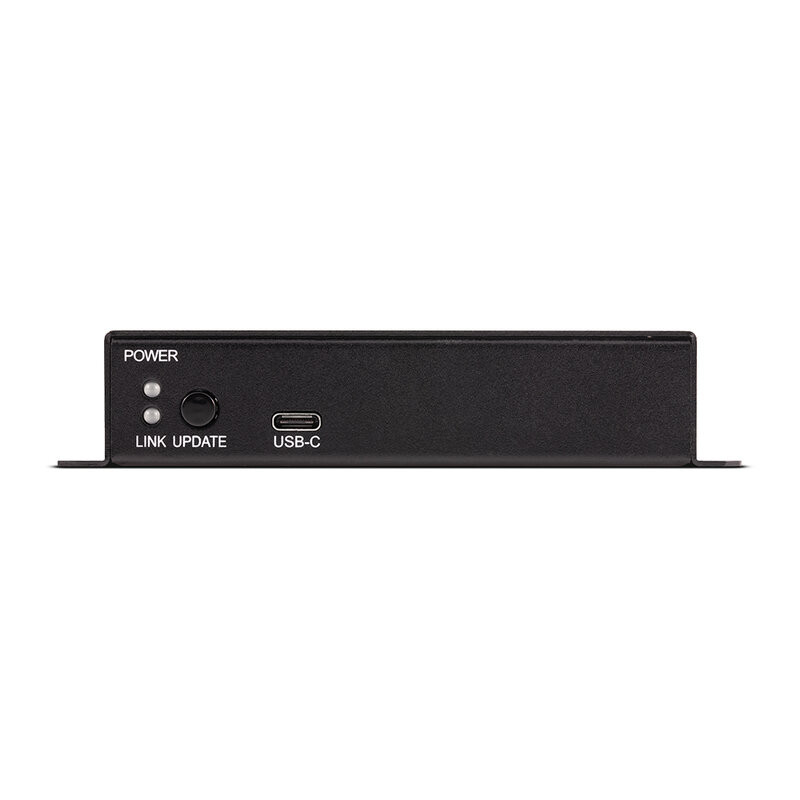

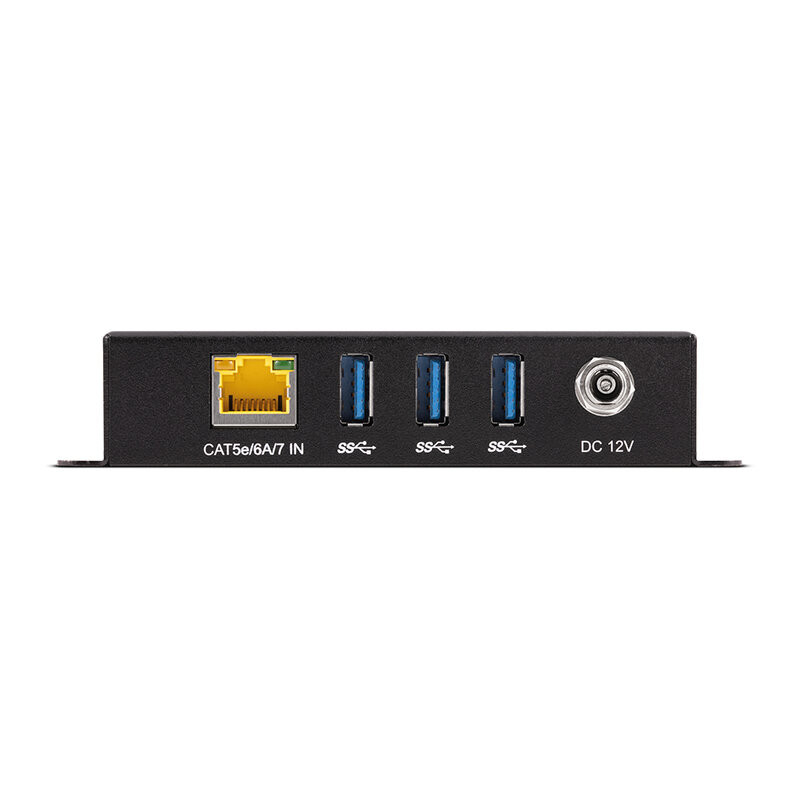

RX

• Inputs:

  • 1 × RJ45 (USB data extension proprietary data)
• Outputs:

  • 3 × USB Type-A (USB device port proprietary data)
  • 1 × USB-C (USB-C device port proprietary data)
• PSU: 12 V_DC 3 A
• Dimensions (W × H × D): 128 × 25 × 75 mm
• Weight: 280 g
