SKU: 2510-8520
EAN: 0672255008706

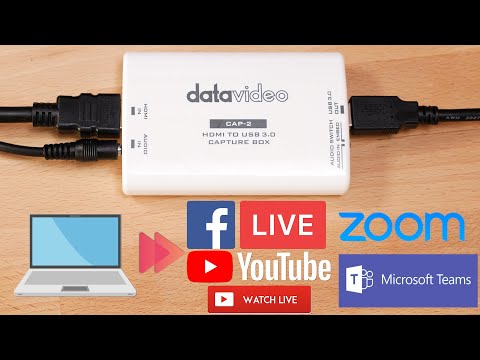

Datavideo - CAP-2
HDMI to USB 3.0 capture box up to 1080p 60 Hz
Prime
fast delivery is available for this product.
This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.
Free shipping for orders over € 199 (within Europe)
Variants of this product
Facilitates input and output of various signal types with your A/V system
418.00 €
4 channels PCIe capture and playback card up to 1080p60
Add HDMI 2.0 input and output to DeckLink 4K Extreme 12G capture cards
All-in-one capture and playback SDI and HDMI card up to 1080p60
SDI and HDMI USB capture card up to 1080p60
Watch it in action
Close the video
Product Details
CAP-2 HDMI to USB 3.0 Capture Box is an HDMI-USB Capturing Device which supports up to 1080p 50/60 Hz and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing.
The USB compliant CAP-2 is ideal to use with any HDMI equipped camera or switcher and it’s Plug & Play design requires no drivers to install. Stream from your HDMI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.
USB 3.0 Interface and no external power is needed. Plug-and-Play and support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Switched as HDMI embedded audio or external mini-jack audio.
Compatible with various operating systems:
- Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
- Linux: VLC, OBS
- Mac OS X: OBS, Quicktime player, VLC, Facetime
Technical characteristics
| Input |
1 x HDMI |
| Output |
1 x USB 3.0 (Micro B) |
| Input video bandwidth |
150 MHz (pixel clock rate) |
| Output video bandwidth |
Up to 350 Mbps (USB) |
| Supported input & output video formats |
1920 x 1080p @ 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.976 |
| Supported output video formats |
1920 x 1080p @ 60 / 50 / 30 / 25 / 24 |
| Audio input |
HDMI Embedded audio & 3.5 mm stereo input |
| Audio support |
2-channel, 44.1 and 48 kHz sample rate, up to 24-bit PCM |
| Capture video format |
YUY2 (USB3.0), MJPG (USB2.0/3.0) |
| Firmware update |
via USB |
| Firmware update |
USB Port |
| Power consumption |
2 W |
| Operation temperature |
0 to 40 °C |
| Storage temperature |
-20 to 60 °C |
| Humidity |
20 to 90% RH |
| Minimum system requirement |
|
| Dimension (L x D x H) |
105 x 68 x 23 mm |
| Weight |
70 g |
