Datavideo - HDR-10

Datavideo HDR-10 is an instant replay system, a device that can quickly record and playback key moments of an event. It features slow motion, giving referees, coaches and spectators a detailed view of the game action.

It supports multiple video resolutions, including 1080p, 1080i and 720p, ensuring compatibility with different cameras and production systems. It has a 4 GB internal buffer, allowing you to record up to 30 seconds of video for immediate playback. The captured content can be repeated at variable speeds or in normal playback mode, allowing you to analyze every detail with precision.

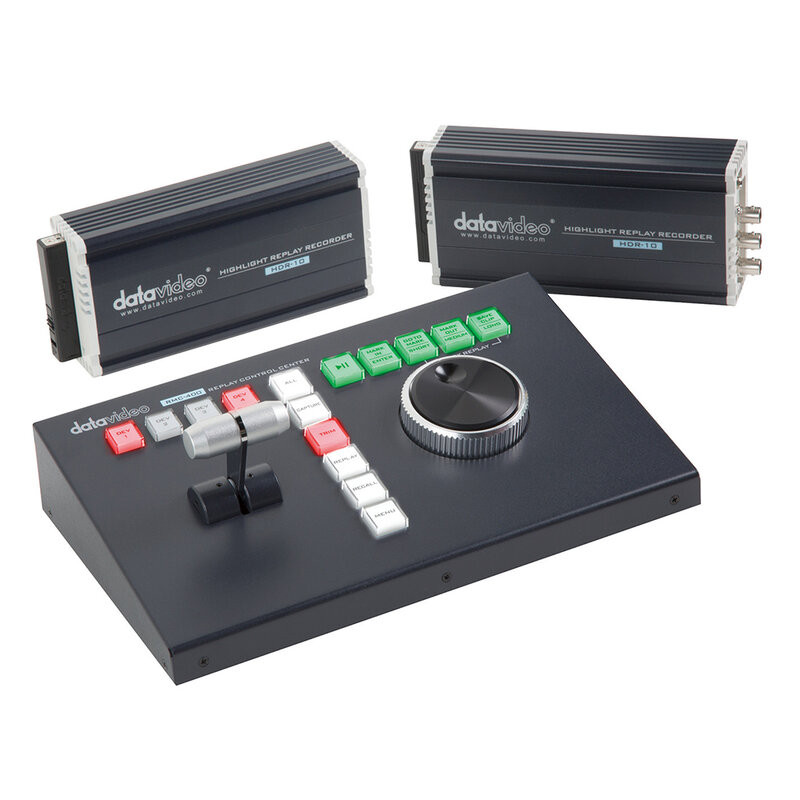

The HDR-10 features a GPI interface, which allows other devices, such as switchers and controllers, to activate automatic playback. It is also compatible with the RMC-400, a control device that allows you to manage up to four HDR-10 units simultaneously, simplifying the operations of the director.

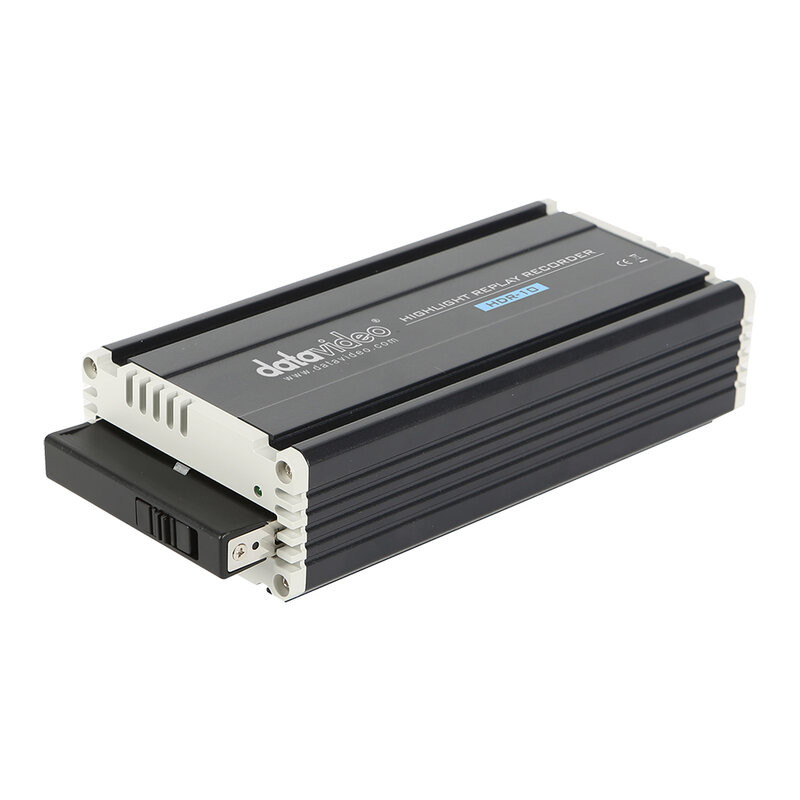

In terms of design, it is compact and easy to integrate into existing setups. Its intuitive interface, with hotkeys and jog wheels, makes replaying immediate and smooth.

Users benefits

• Immediate and smooth replay thanks to the 4 GB internal buffer
• Compatible with different resolutions
• Interface with hotkeys and jog wheels
• Integration with other devices thanks to the GPI interface
• Ability to control up to four HDR-10 units at the same time

Areas of use

• Sports events
• Refereeing
• Live broadcasts

Technical characteristics

• 3G / HD recorder, player, highlight replay recorder
• Housing: standalone type
• Storage: no size limitation

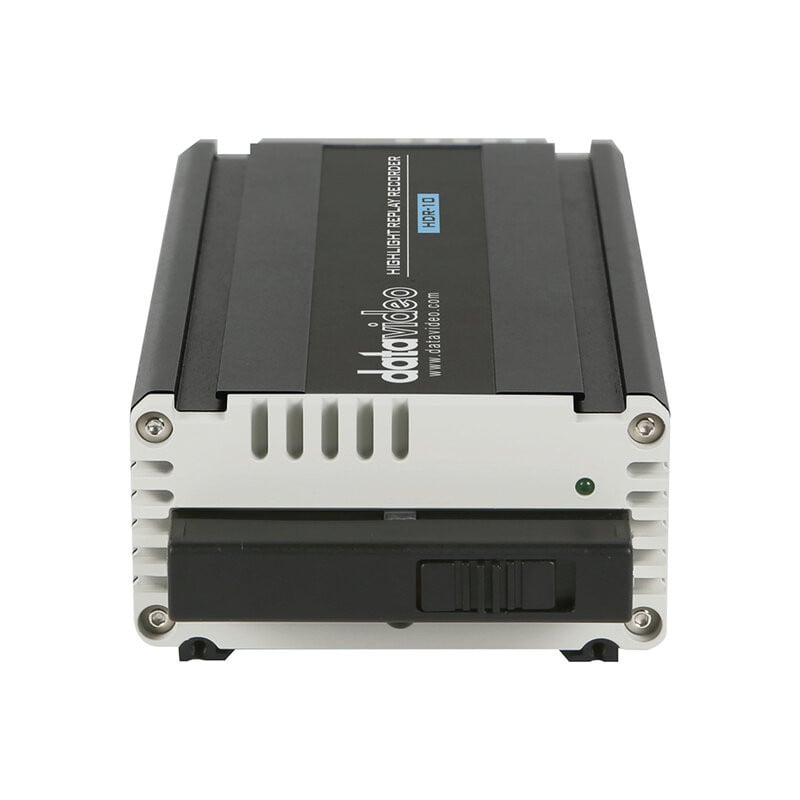

• Removable SSD / HDD: supported
• File format: MOV

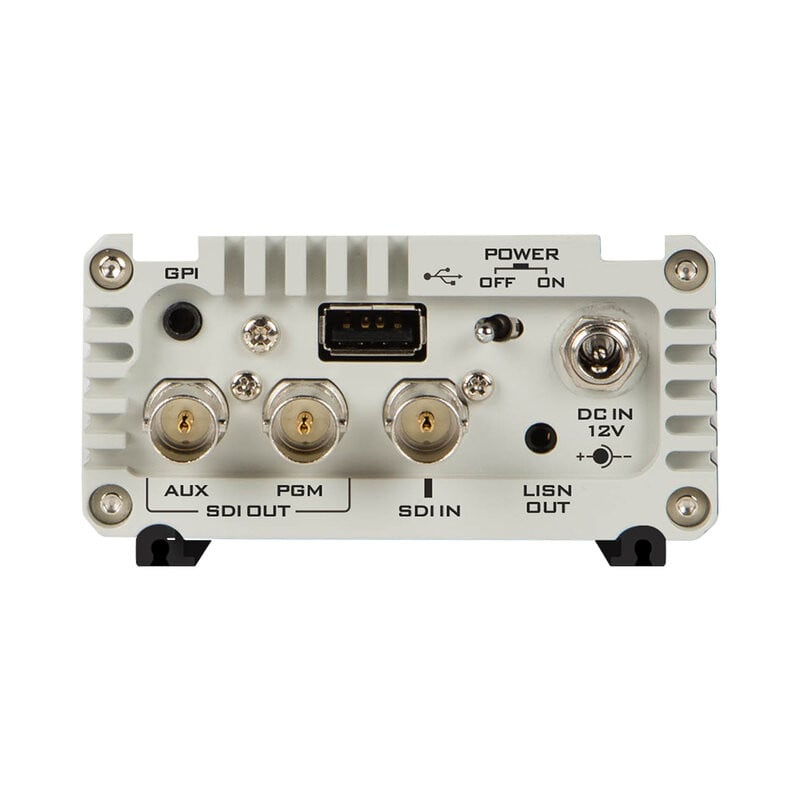

Connectors

• 3G / HD-SDI Input: 1 (level A signal)
• 3G / HD-SDI Output: 2 (one programmable as loop-through or independent output)
• LISN: 1 (connection interface for main unit, remote controller, and other devices)
• USB: 1 (connection for remote controller - Contour Shuttle Express)
• GPI: 1 (trigger interface)
• DC IN: 1 (power input)

Video specifications

• Supported formats:
  • HD: 720p @ 50 / 59.94 / 60
  • 1080i @ 50 /59.94 / 60
  • 3G (Level A signal only): 1080p @ 50 / 59.94 / 60 (highlight replay recorder mode only)
• Color format: 4:2:2
• Codec: uncompressed 10-bit or 8-bit
• Internal buffer size: 4 GB (standard memory module)
• Channels: 1 input, up to 2 outputs
• Navigation modes: slow motion, normal speed, fast speed
• Cue markers: 2 (CUE IN and CUE OUT, controlled by controller)
• Highlight recording: captures clip marked by CUE IN and CUE OUT
