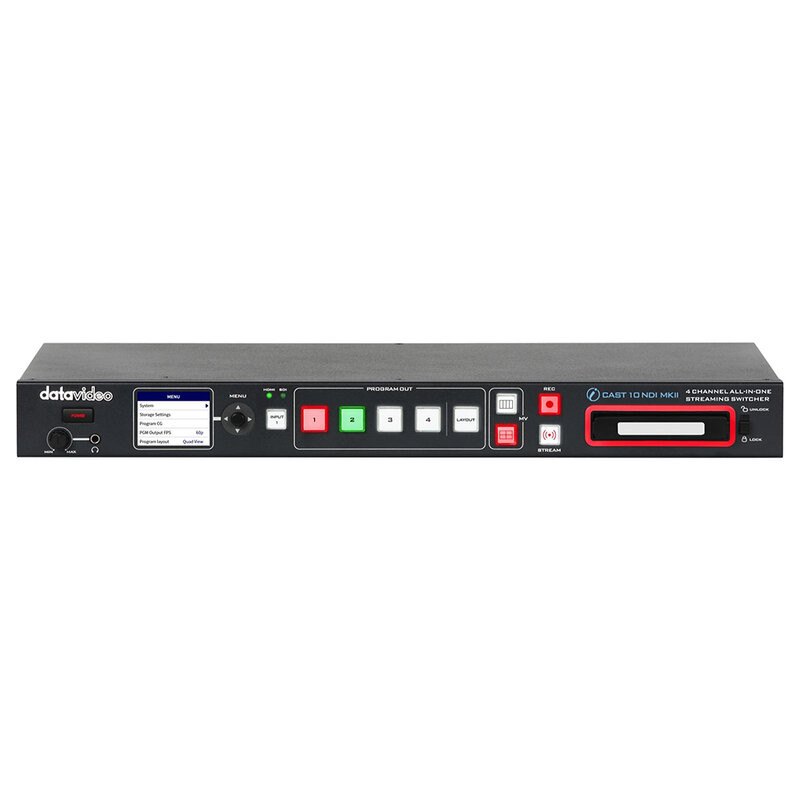

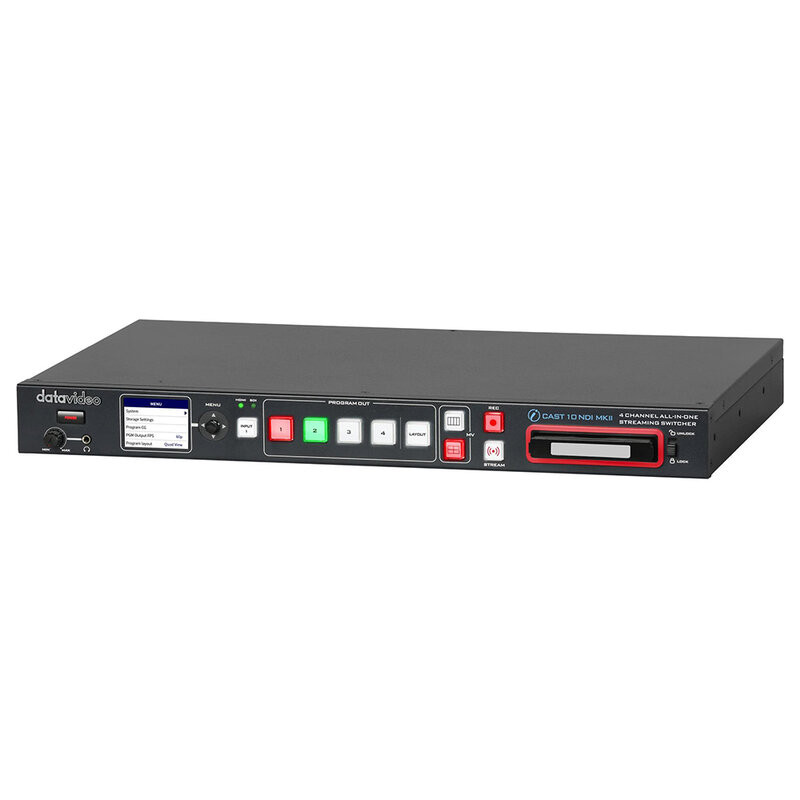

Datavideo - iCast 10NDI MKII

iCAST 10NDI MKII is an all-in-one switcher designed for hybrid production and streaming: it integrates a video switcher, controller, streaming encoder and recorder into a single device.

It allows you to simultaneously connect SDI, HDMI, IP (RTSP, SRT, NDI|HX), and computer sources, allowing you to easily and quickly manage presentations, PTZ cameras, and multimedia content. The built-in encoder allows you to stream the main program to multiple platforms and record directly to SSDs via the 2.5" SATA bay, ensuring efficient content storage and distribution.

The system supports HDMI multiview, picture-in-picture (PIP), logo insertion an internal audio mixer, and a wide range of streaming protocols, including RTMP/RTMPS, HLS, SRT, and WebRTC, offering maximum operational flexibility. The 1U rack-mountable design and comprehensive Web UI management make the iCAST 10NDI MKII an ideal solution for a variety of applications.

User benefits

• An all-in-one device that integrates switching, streaming, and recording
• Simultaneous support for SDI, HDMI, IP, and computers
• Built-in encoder for cross-platform streaming
• Direct recording to SSD via SATA bay
• PIP, logo, and multiview management
• Full control via Web UI

Areas of use

• Hybrid events and conferences
• Corporate and institutional productions
• Classrooms and online training
• Compact streaming studios
• Houses of worship and live communities
• Mobile control rooms for events and trade shows
• Corporate

Technical characteristics

• Video standard: HD & SD
• Video format
  • Input: 1080p 60/59.94/50, 1080p 30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50, 480i 59.94, 576i 50
  • Output: 1080p 60/59.94/50, 1080p 30/29.97/25/24/23.98, 1080p 30/29.97/25 (da 1080i), 720p 60/59.94/50, 480p 29.97, 576p 25 (non supporta interlacciato)

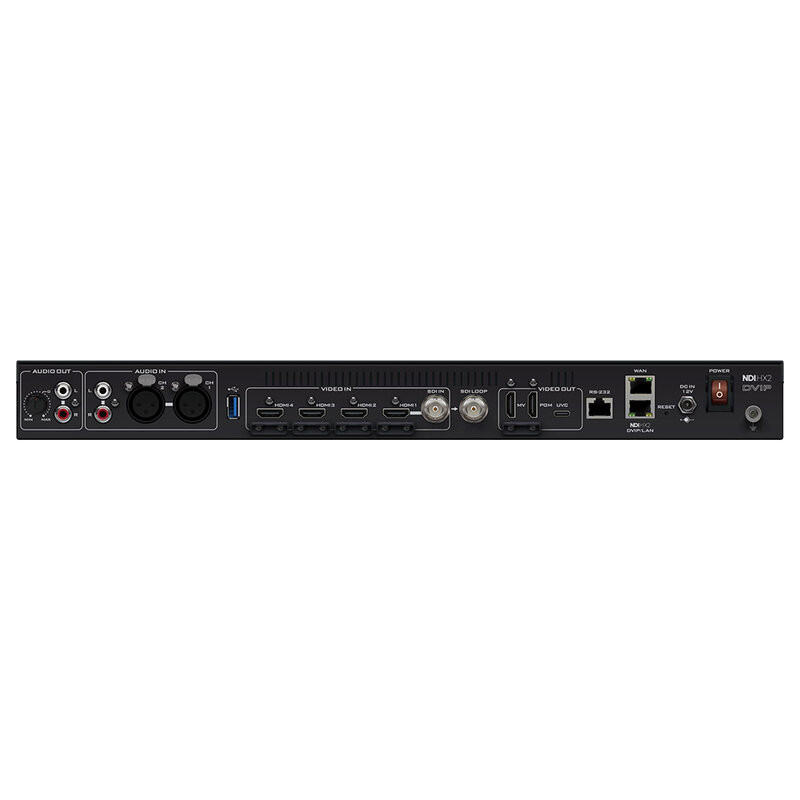

• Video inputs:
  • 1 × 3G/HD/SD-SDI (BNC 75 ohm)
  • 4 × HDMI 1.4 (CH1 selezionabile SDI/HDMI)
  • 3 × IP stream (RTSP/SRT/NDI|HX)
• Mix HD & SD source: yes
• Computer graphic interface: 4 via HDMI
• Video outputs:
  • 1 × SDI loop-through
  • 1 × HDMI 1.4
  • 1 × HDMI 1.4 Multiview
  • 1 × USB 3.0 UVC
  • 2 × RJ‑45 (LAN & WAN, 10/100/1000M)
• Down-converted output: 1080p
• Built-in multiview monitoring out: 1 × HDMI
• Analogue audio inputs: 2 × XLR balanced, 1 × RCA stereo, SDI embedded audio, HDMI embedded audio, IP audio (RTSP AAC‑ADTS, PCM)
• Analogue audio output: 1 × 3.5 mm headphone (PGM monitoring)
• Audio delay calibration: 0 – 3000 ms per channel
• Picture in picture: yes (PGM)
• Logo insertion: yes
• Effects: cut
• PC remote control: Web UI, RS‑232 (RJ‑45)
• Built-in audio mixer: yes
• Storage: SATA 6 Gb/s
• Recording file system: FAT, exFAT
• Recording file format: MP4
• Video encode: H.264
• Audio encode: AAC‑LC, 48 kHz 16 bit, bitrate 128K/256K/384K
• Streaming protocol: DHCP client, TS over UDP (unicast & multicast), RTSP over HTTP/TCP/UDP, RTMP/RTMPS, HLS, SRT Caller/Listener, WebRTC (encode/decode), NDI|HX
• Firmware update: Web UI, USB 3.0
• Special features: vertical video crop/rotate, vertical video multiview
• Power: 12 V_DC 2 A (24 W)
• Operating temperature: 0 to 40 °C
• Chassis: 1U rack mount
• Dimensions (w/o rack mount ear): 44 × 28.4 × 4.4 cm
• Dimensions (with rack mount ear): 48.4 × 28.4 × 4.4 cm
• Weight: 2.926 kg
• What's in the box:
  • iCAST 10NDI MKII
  • 1 × iCAST 10NDI MKII main unit
  • 1 × 12 V_DC power adaptor
  • 2 × 1U rack mount ears
  • 6 × M4 screws
  • 1 × 2.5” removable HDD/SSD enclosure
  • 4 × screws for enclosure
  • 1 × blank label
  • 1 × SATA to USB 3.0 cable
