Datavideo - PTC-325

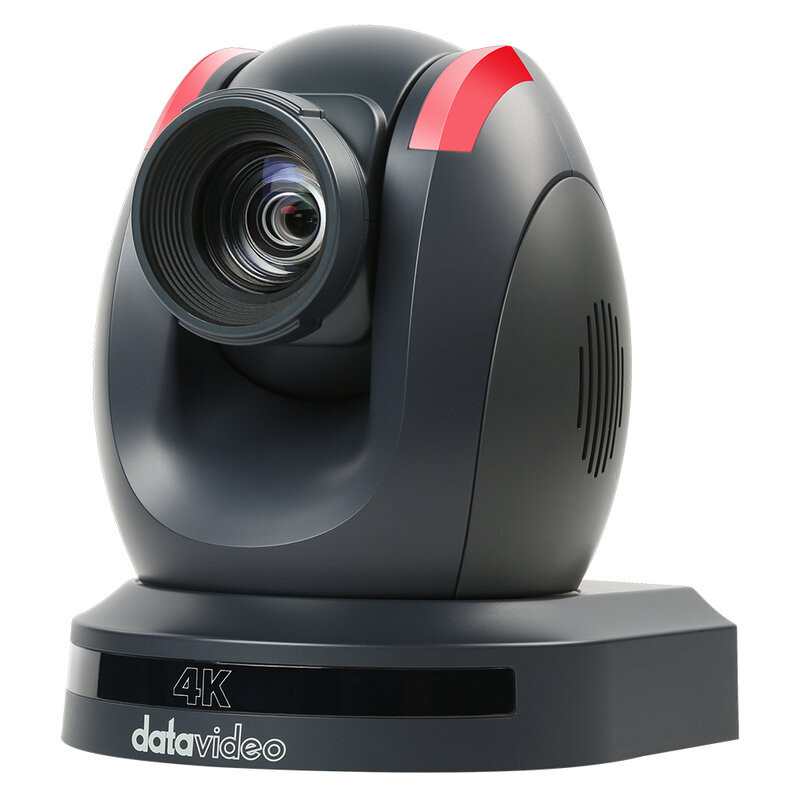

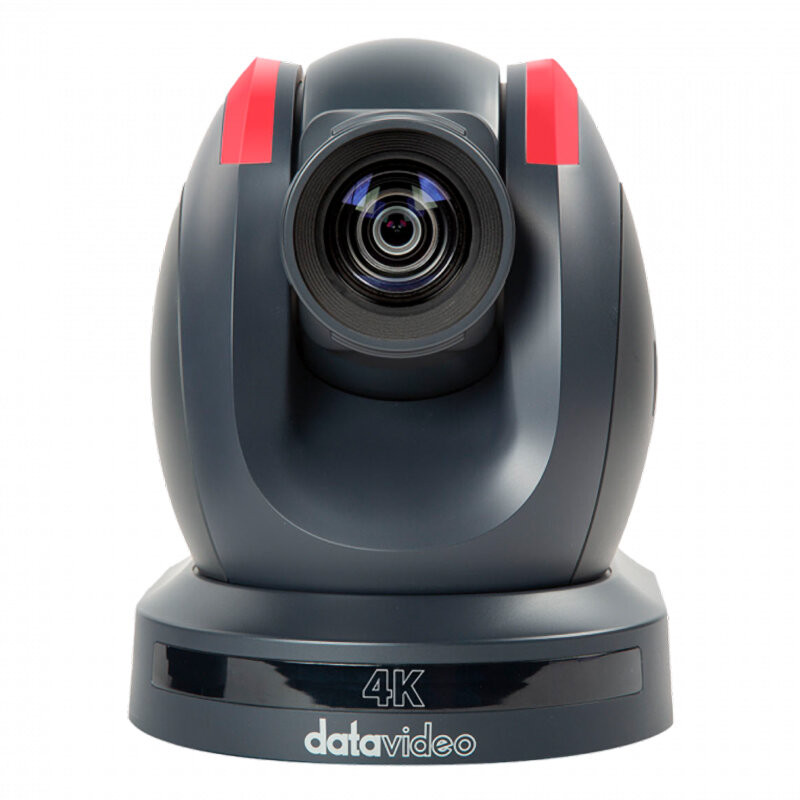

Datavideo PTC-325 is an advanced PTZ camera designed to deliver high-level performance in a professional environment.

Equipped with a 1/2.8" Sony CMOS sensor, it guarantees excellent image quality with a resolution of up to 4K 50/60p, supported by YUV 4:2:2 encoding for accurate and detailed color reproduction. The 30x optical and 16x digital zoom allow you to capture clear images even at a great distance, with a maximum aperture of f/1.8, ideal for low-light conditions. Thanks to 3D noise reduction technology, the camera maintains high clarity even in low-light environments.

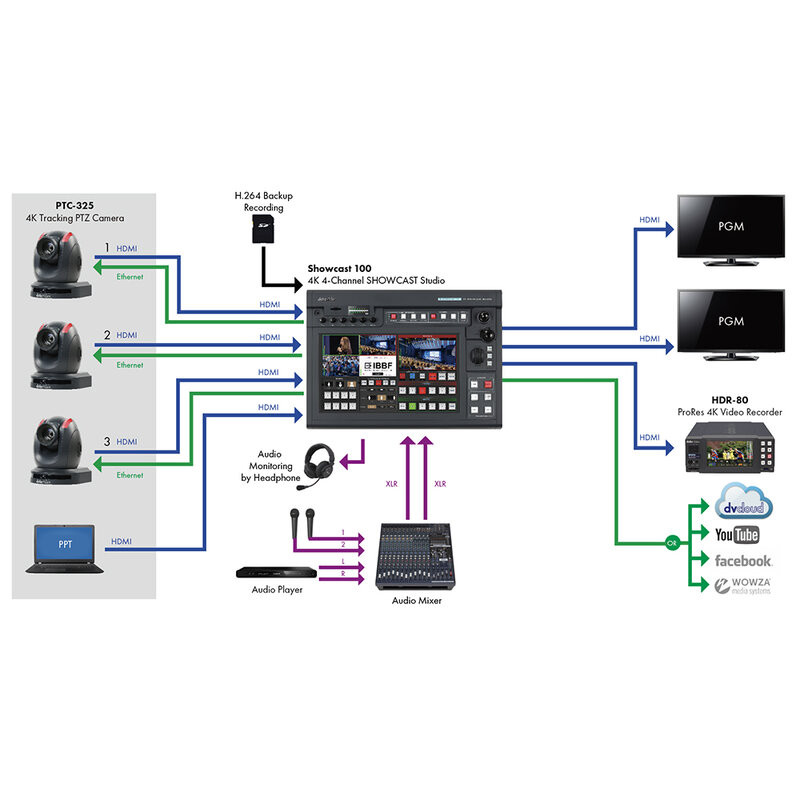

One of the main strengths of the PTC-325 is the auto tracking function, which allows the camera to automatically follow the moving subject, making it perfect for applications such as conferences, live events and television productions. Support for the NDI protocol ensures low-latency video transmission over an IP network, facilitating integration into professional workflows. The camera offers simultaneous HDMI 2.0, 3G-SDI and IP outputs, allowing connecting to multiple devices at the same time. It is also compatible with ONVIF Profile S, ensuring interoperability with various video management systems.

From a management perspective, the PTC-325 offers remote control via IR, RS-422, RS-232, DVIP and VISCA, providing great flexibility in operations. There is also a Tally LED to indicate the transmission status, while support for PoE+ simplifies installation by eliminating the need for a separate power supply.

The camera is designed for long operating life, with optimized power consumption and a robust structure.

Customer benefits

• 30x optical zoom, bringing subjects much closer
• 3D noise reduction function
• Auto Tracking
• NDI support
• ONVIF Profile S compatibility
• Easy installation with PoE+

Areas of Use

• Live events
• TV studios
• Conferences

Technical characteristics

• Video format / resolution
  • HDMI:
    • 2160p 60 / 59.94 / 50 / 30 / 29.97 / 25
    • 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25
    • 1080i 60 / 59.94 / 50
    • 720p 60 / 59.94 / 50
    • *2160p 60 / 59.94 / 50 YUV 4:2:2
  • SDI:

    • 1080p 60 / 59.94 / 50 / 30 / 29.97 / 25
    • 1080i 60 / 59.94 / 50
    • 720p 60 / 59.94 / 50
• Image sensor: Sony 1/2.8" CMOS
• Effective pixels (approx.): 8.46 Mpixel
• SNR: ≥ 55 dB
• Min. illumination: 0.5 lux @ (F1.8, AGC ON)
• Electronic shutter: 1/30 s - 1/10,000 s
• Zoom ratio: 30x optical, 16x digital zoom
• Effective zoom ratio: 30x
• Iris control: auto / manual
• Digital noise reductions: 3D
• On-screen display (OSD): English / simplified Chinese / traditional Chinese
• White balance: auto, indoor, outdoor, OnePush, manual, VAR
• AGC / gain control: yes
• Mirror / flip image: yes
• Focus mode: auto / manual
• Panning / tilting range: Pan 300°, Tilt +90° to -15°
• Panning / tilting speed: Pan 0.876°/s - 43°/s, Tilt 0.693°/s - 21.32°/s
• Preset: 255
• Focal length: 30x, f = 4.5 - 135 mm, F1.8 - F4.7
• Field of view (horizontal, wide): 62.3°
• Image compensation: back light compensation

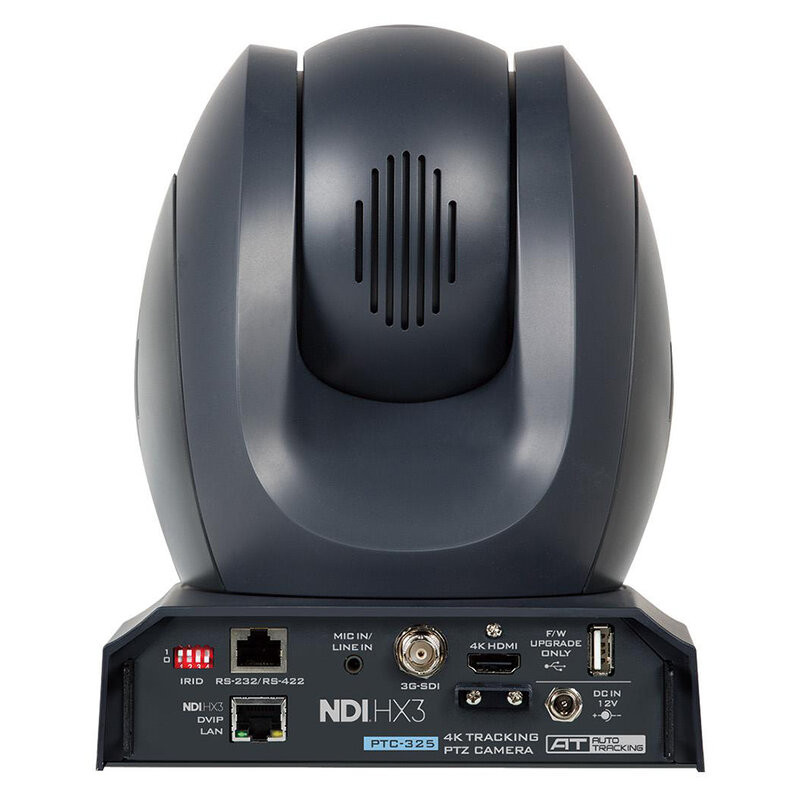

• Video output:
  • 1 x HDMI 2.0
  • 1 x 3G-SDI
  • 1 x 10/100/1000M RJ45 (PoE)
• Audio input: 3.5 mm x 1 (MIC / line IN), switch from Web UI
• Tally LED: yes
• Control protocol: Pelco-D, Pelco-P, VISCA, VISCA over IP, DVIP, ONVIF, NDI
• Remote control interface: IR, Web GUI, RS-422/RS-232, DVIP, NDI
• Video compression format: H.264 / H.265 / MJPEG
• Audio compression format: AAC, G711
• Audio bitrate: 96 kbps, 128 kbps, 256 kbps
• Streaming protocols: RTSP, RTMP(S), ONVIF, Multicast, SRT, NDI|Hx3 (1080p)
• First stream supported resolution: 3840 x 2160, 1920 x 1080, 1280 x 720, 1024 x 576, 960 x 540, 640 x 480, 640 x 360
• Second stream supported resolution: 720 x 480, 640 x 360, 480 x 270, 320 x 240
• Video bitrate: 32 kbps - 50 Mbps (single stream)
• Video bitrate mode: VBR, CBR
• Encoding frame rate: 50 Hz 1 - 50 fps, 60 Hz 1 - 60 fps
• PoE: IEEE 802.3at, PoE+
• F/W update: via Web UI or USB 2.0
• IR control: yes
• Camera control unit: RMC-2P, RMC-180 series, RMC-300 series, PTZ View Assist APP
• Tripod mount: 1/4-20 UNC
• Optional accessories: WM-1 / WM-10 / WM-11
• Operating temp. range: 0 - 40 °C
• Power: 12 V_DC 21 W
• Color: black
• Dimension (W x H x D): 17.3 x 21.9 x 18.9 cm
• Weight: 2.6 kg
• What's in the box:
  • 1 x PTC-325
  • 1 x IR remote controller
  • 1 x ceiling mount bracket-A
  • 1 x ceiling mount bracket -B
  • 6 x ceiling mount bracket screw M3 x 4 mm
  • 1 x 12 V_DC power adaptor
  • 1 x safety cable
