SKU: EASYFLEX-P2.5-100

EGO Display - EasyFLEX-P2.5-100

Indoor, 3-in-1 SMD, 800 nit, 5000:1, ≥ 3840 Hz, 500 x 1000 mm, 10 kg high-performance LED panel, flexible design, right angle splicing for option
856.00 €
- 47%

455.00 €

Pay in 4 interest-free payments of 113.75 € with Discover More

145 items available in our Italian warehouse

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.
Unfortunately, the quantity you have selected exceeds the amount available in stock.
455.00 €
Condition: New

Prime

fast delivery is available for this product.

This product is available in our warehouses in Italy, therefore it will be delivered within 2 - 5 working days.

Free Shipping for order equal or above € 199 are limited for delivery within Europe



EN Instruction Manual (4.55MB)

NO DESC

Documentation

IT Brochure (3.65MB)

NO DESC

Documentation

EN Instruction Manual (4.55MB)

NO DESC

Documentation

IT Brochure (3.65MB)

NO DESC

Documentation

Technical drawing (6.05MB)

NO DESC

Documentation

EN Instruction Manual (4.55MB)

NO DESC

Documentation

IT Brochure (4.27MB)

NO DESC

Documentation

Technical drawing (6.05MB)

NO DESC

Documentation

EN Instruction Manual (4.55MB)

NO DESC

Documentation

IT Brochure (4.27MB)

NO DESC

Documentation

Technical drawing (6.05MB)

NO DESC

Documentation

Product Details

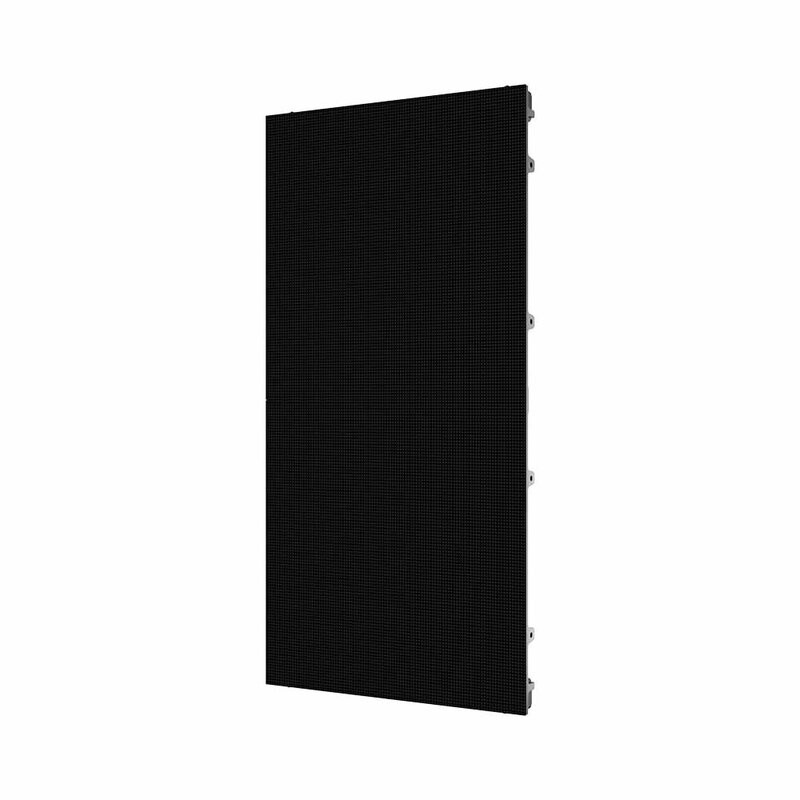

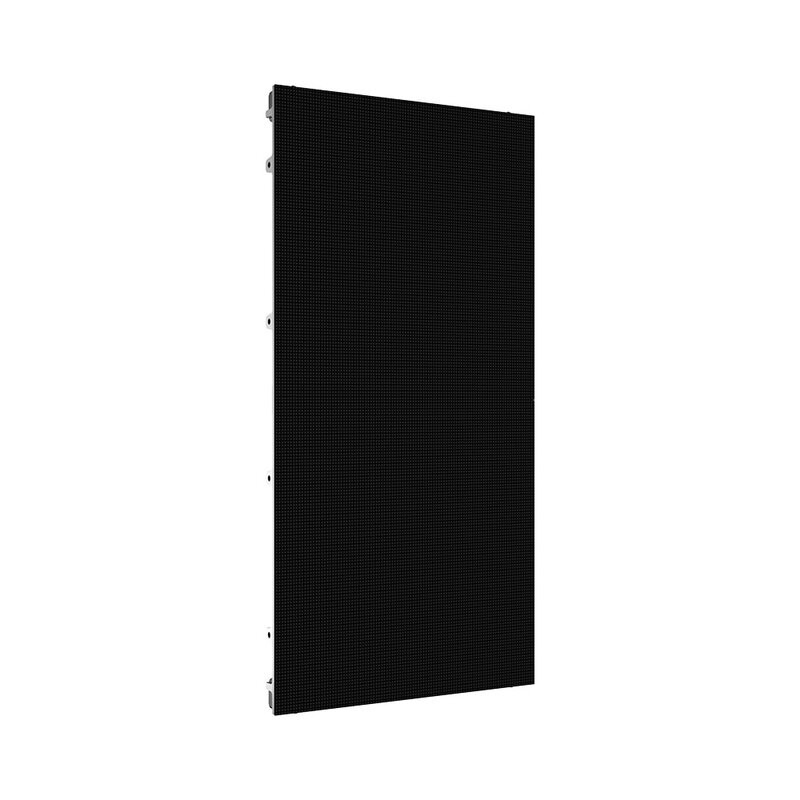

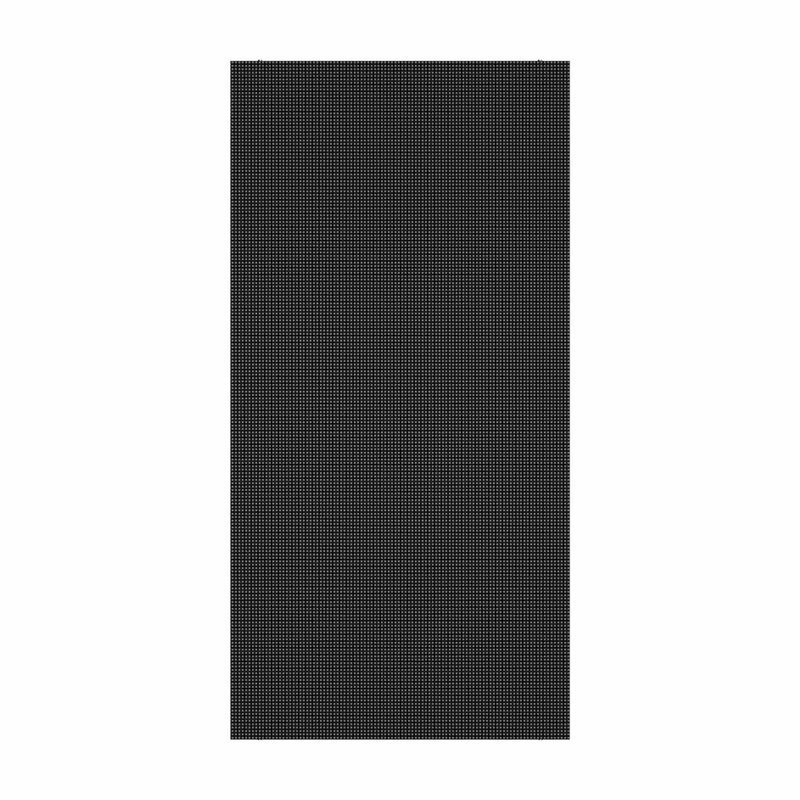

The EasyFLEX P2.5-100 is an innovative P2.5 LED panel designed for professional and commercial environments, a smart technical solution for installations of all types, especially where custom-fit solutions are required.

Its main feature is its freely rotatable cabinet and module system, allowing for flexible configuration without color alterations, adapting to different installation needs, whether horizontal or vertical. The mounting mechanisms are identical on the top and sides of the cabinet, so you can rotate and arrange them side by side to create the desired geometric shape and fill any empty spaces you need. Each module has a double connection on the back (rotated 90°) so it can always be mounted in the correct orientation regardless of cabinet rotation.

This allows LED walls to be created in 25 cm steps, both horizontally and vertically (using the other two available cabinets of the same type), which normally required a custom design, resulting in additional costs and extended delivery times. The structure integrates a rigid connection between the modules and a compact design with a combined receiver board and hub. The Plug-in power supply simplifies installation and maintenance, while the 90° angle mounting option allows for great configuration versatility.

The display supports front-facing maintenance, facilitating rapid interventions and reducing downtime. Dust protection ensures longer life, maintaining optimal performance even in demanding environments. Perfect for conference rooms, control centers, and broadcast environments, the EasyFLEX P2.5-100 combines performance and functionality to offer a reliable, cutting-edge solution.

User benefits

  • Allows for creative shapes, offering greater design freedom
  • Rotatable modules and cabinets for flexible configuration (up to 20 types of mixed joints)
  • Rigid connection between modules for improved signal stability and quick disassembly

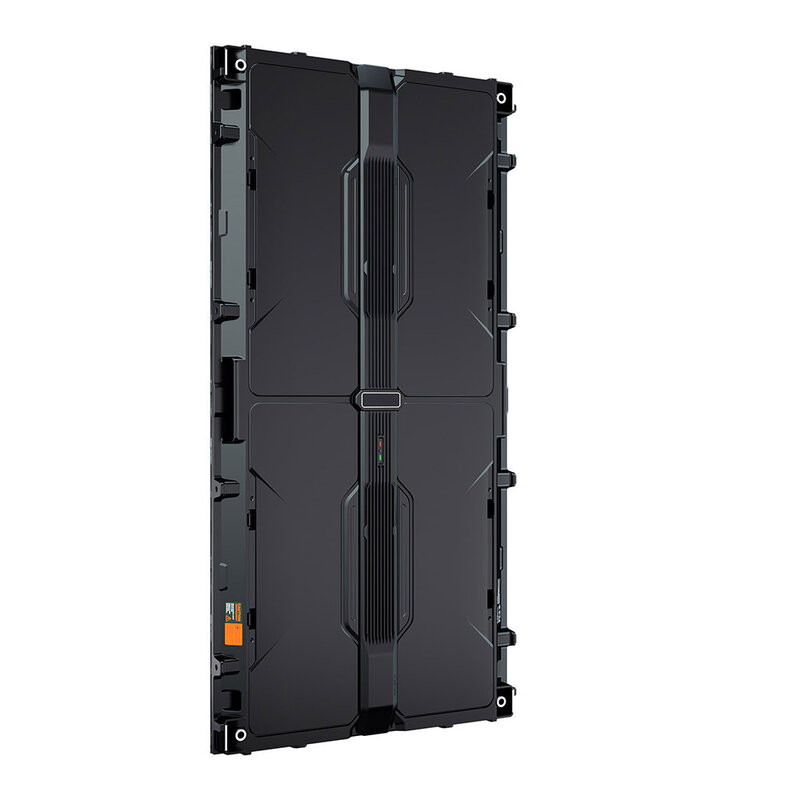

  • Rear cabinet with no exposed cables
  • Compact design with combined receiver board and hub
  • Plug-in power supply
  • Easy front and rear maintenance
  • Screw-on protective covers, making them tamper-proof
  • Dust protection for longer life
  • High brightness option for semi-outdoor use (up to 3500 nits)

Areas of use

  • Shopping malls
  • Shops (even with people passing behind them)
  • Airports
  • Subway stations
  • Trade fairs
  • Radio and television broadcasts

Technical characteristics

  • Pixel pitch: 2.5 mm
  • LED Type: 3-in-1 SMD
  • Cabinet resolution (W x H): 200 x 400
  • Maintenance: full front maintenance
  • Protection: IP30
  • Cabinet material: die-casting aluminum
  • White balance brightness: 800 cd/m²
  • Viewing angle (H / V): 160° / 160°
  • Contrast ratio: 5000:1
  • Max. power consumption: 450 W/m2
  • Typical power consumption: 150 W/m2
  • Processing depth: 14 bit
  • Refresh rate: ≥ 3840Hz
  • Standard mounting configuration: fixed / floor-mounted / hanging
  • Optional mounting configuration: round shape, corner shape
  • Input voltage: 100 - 240 VAC
  • Operating temperature / humidity: -10 to 45 ℃ / 10 to 80% RH
  • Storage temperature / humidity: -20 to 55 ℃ / 10 to 85% RH
  • Cabinet dimensions: 500 x 1000 mm
  • Weight: 10 kg
