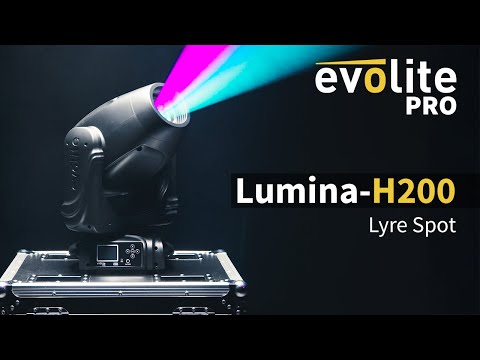

Evolite PRO - Lumina H200 Set

The Evolite Lumina H200 moving head pair is a perfect solution for installations in clubs, theatres or indoor or outdoor events.

These moving heads are equipped with 200 W white LEDs, which offer an impressive light output of 8000 lm and an adjustable beam that goes from 4.3° to 36.2°. This range of values ​​allows for both focused and wide beams, ideal for covering large scenes ensuring precise and dynamic lighting. Automatic repositioning and 16-bit resolution ensure smooth and precise movements, with 540° Pan and 265° Tilt rotations, covering the entire scene.

Thanks to its advanced design, the Lumina H200 is equipped with functions such as remote ON/OFF control via DMX and RDM function to adjust critical parameters such as X/Y inversion or DMX address.
It also incorporates an 8-facet rotating prism and a Frost effect to create complex lighting atmospheres, perfect for shows that require creativity. Gobos, both rotating and fixed, add a captivating visual dimension, with the possibility of indexing, shaking and distinctive animation effects.

Software updates via DMX or USB and intelligent temperature management with a thermo-regulated fan ensure optimal and safe operation, even during long performances.

Supplied in a robust flight case, the Lumina H200 moving heads are ready for use on the move, combining power, versatility and durability in a compact and affordable package.

Technical characteristics

• 2 Lumina H200 evolite moving heads delivered in a flight case
• Light source: 200 W white LED
• Pan: 540° (2.62 s), Tilt: 265° (1.3 s)
• Luminous flux: 8000 lumens, 61,600 lx @ 5 m @ 4.3°
• LED life: 20,000 hours
• Control: remote ON/OFF via DMX
• Ballast: switching power supply
• Beam angle: 4.3° to 36.2°
• 16-bit resolution
• Automatic repositioning
• Colors: 11+ white, indexable and two-way rainbow effect
• Color bounce
• Gobos: outside Æ 13.9 mm / inside Æ 11 mm
• Actual indexing and gobo shaking
• Distinctive Gobo animation effect
• DMX channels: 21 / 17
• Fixed Gobo wheel: 17 gobos
• Rotating Gobo wheel: 8 interchangeable Gobos
• Motorized autofocus
• Full dimming from 0 to 100%
• Various strobes
• 8-facet rotating prism
• Frost
• RDM function to change DMX address, display, X/Y reverse, etc.
• Software update via DMX or USB
• Hibernation in case of loss of DMX for a predefined period of time
• Base temperature indication, LED
• Automatic change of fan speed according to temperature
• 2.4" LCD display
• Automatic locking and flipping
• Maximum power consumption: 305 W
• Power supply: self-adjusting electronics
• Power IN / OUT: powerCON
• 3 and 5-pin DMX connectors
• Input voltage range: 100 - 240 V_AC 50-60 Hz
• Fuse T 5 A , 250 V
• IP20
• Dimensions: 530 x 358 x 245 mm
• Weight: 14.74 kg
