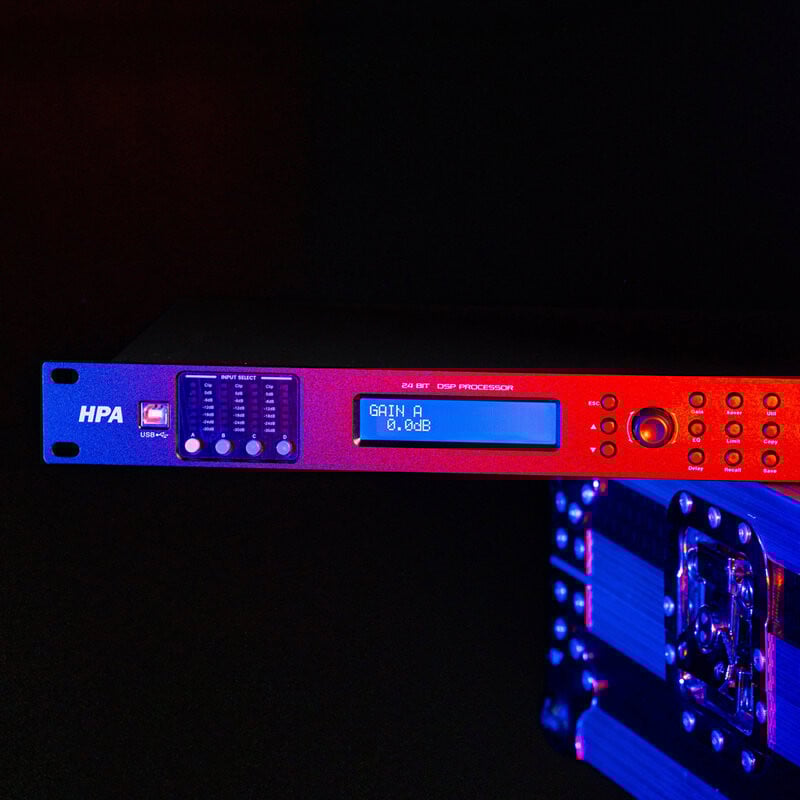

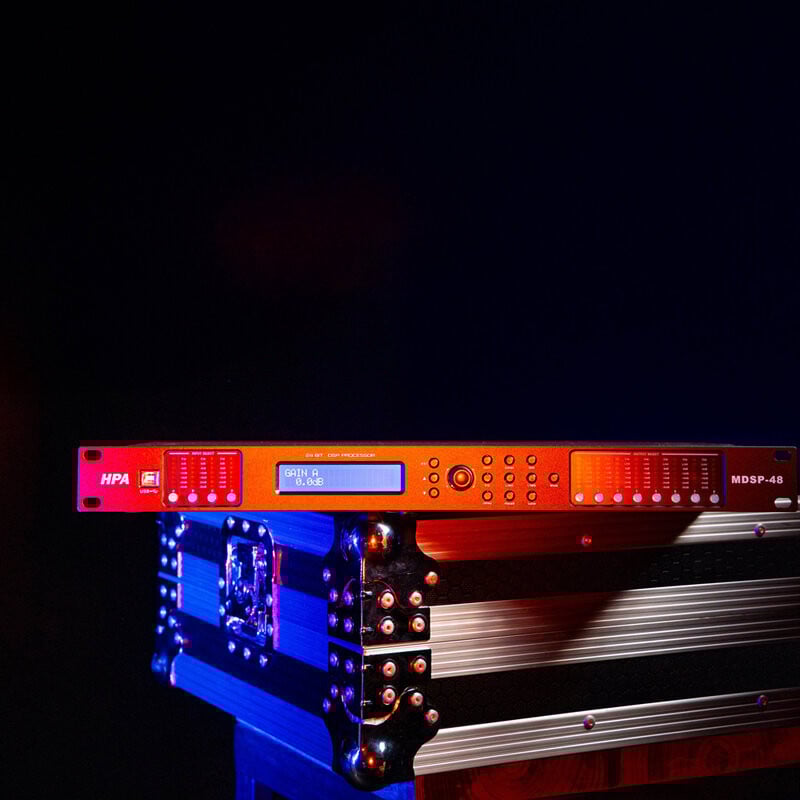

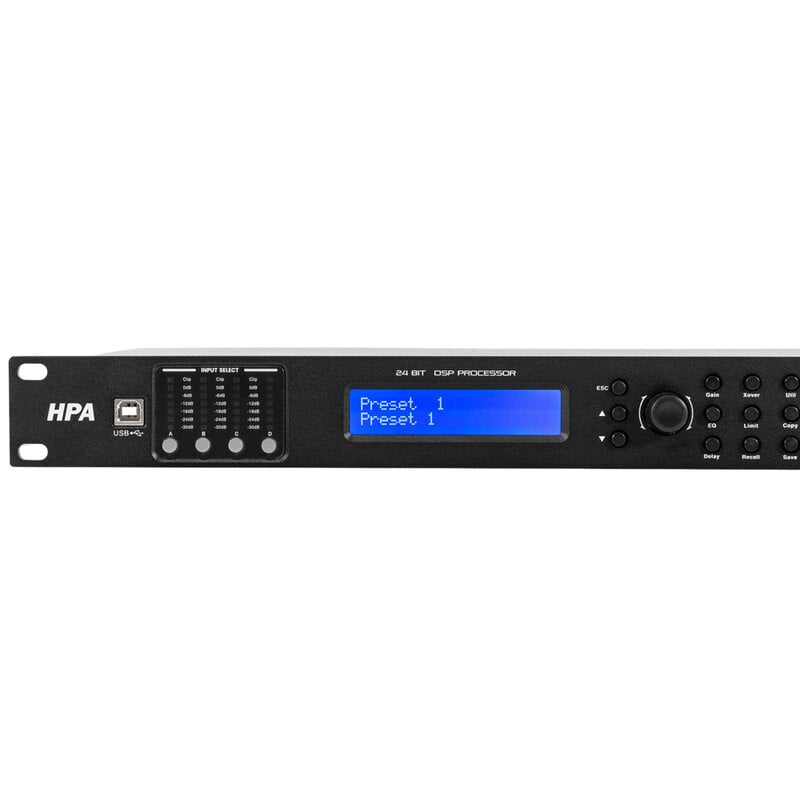

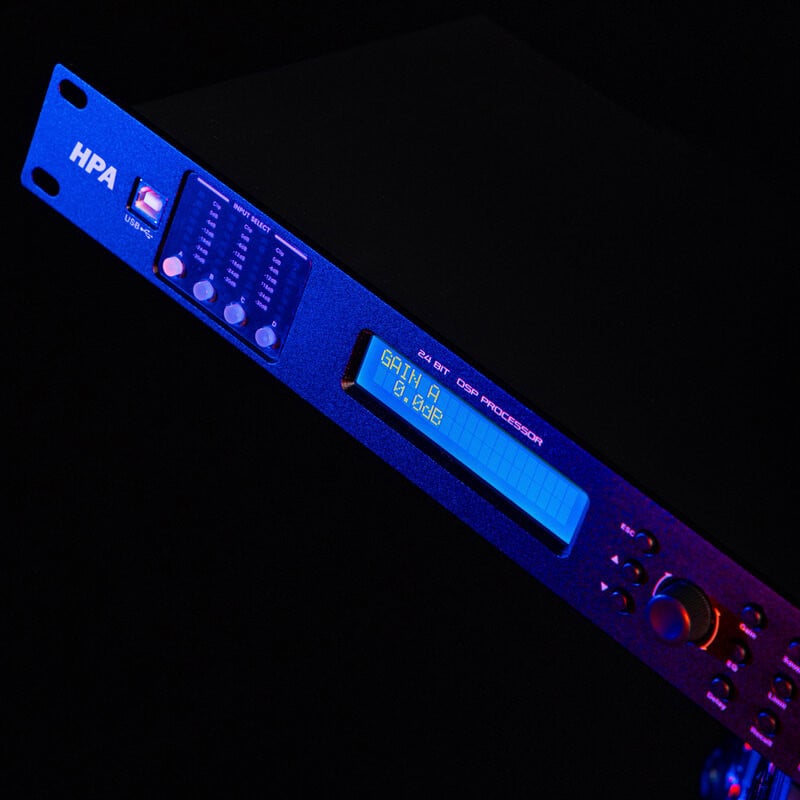

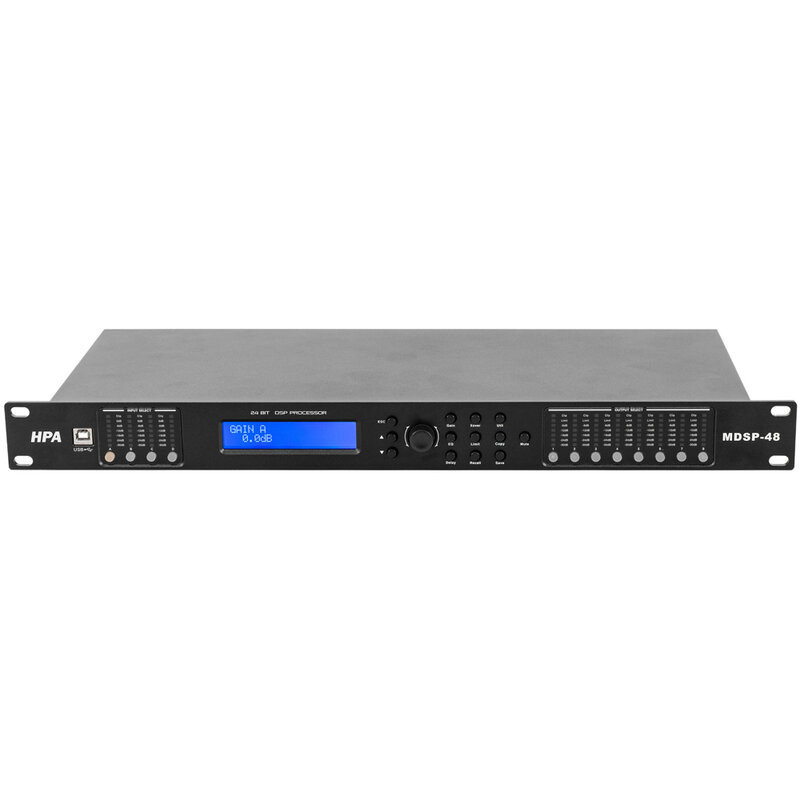

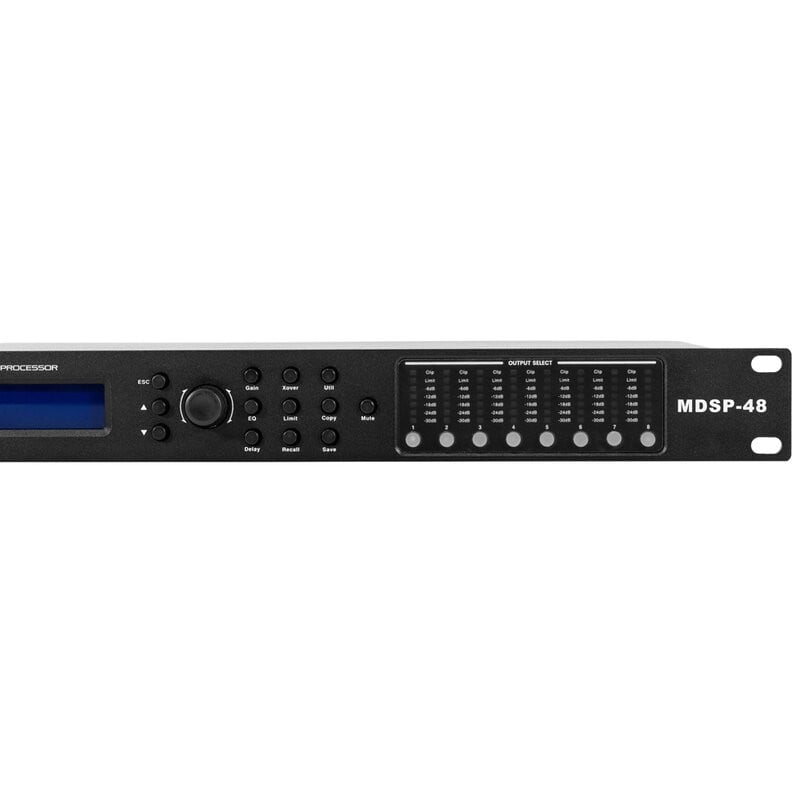

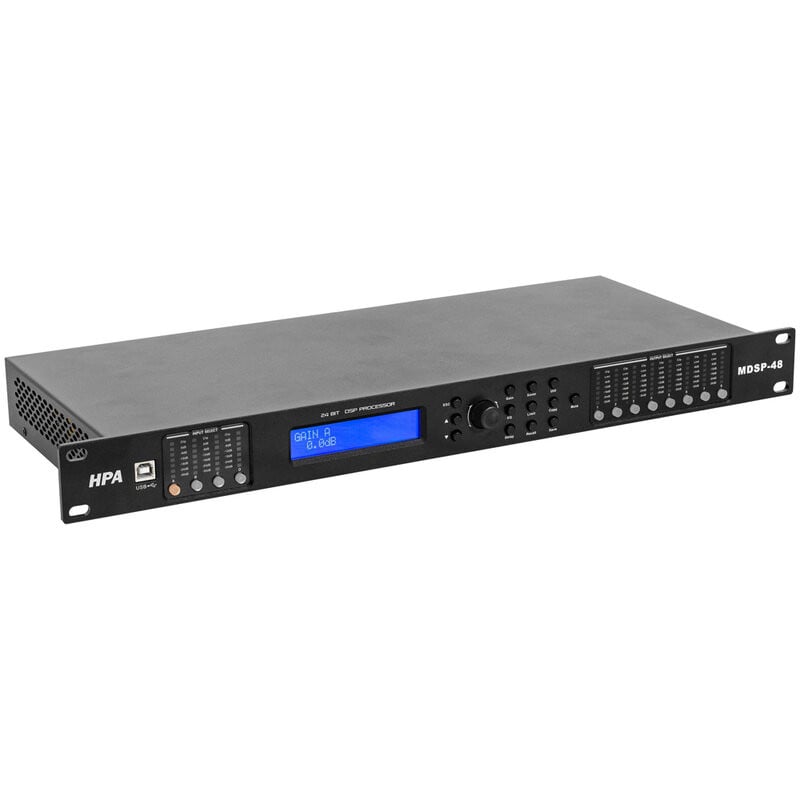

The HPA MDSP-48 is a compact, 1U rack-mount loudspeaker management processor designed to precisely optimize any audio system, whether for live performance or fixed installation.

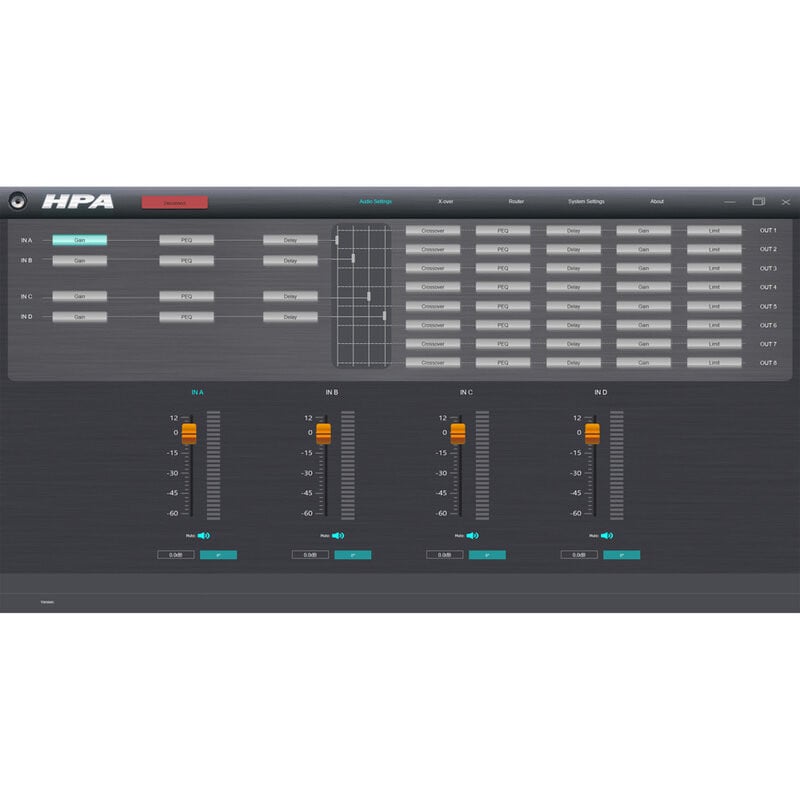

Featuring 4 inputs and 8 balanced XLR outputs, it offers completely flexible routing, allowing you to easily configure multi-way systems, setups with dedicated subwoofers, or complex systems. The included PC control software provides a clear and intuitive interface for adjusting equalization, high and low-pass filters, delays, and all the essential functions to adapt the sound to the acoustics of any room. Built-in limiters protect the speakers from overload and unwanted saturation, while audio quality is guaranteed by a linear frequency response from 20 Hz to 20 kHz and extremely low distortion of 0.002% at +4 dB.

User benefits

Fully flexible 4 x 8 routing for managing multi-way systems and complex configurations
Intuitive PC software for fast and precise programming
Built-in equalizers, filters, delays, and limiters for total sound control
High audio quality
Compact and lightweight 1U rack format, ideal for mobile installations and setups

Areas of use

Mobile control rooms and touring racks
Permanent installations in auditoriums, clubs, bars, and restaurants
Conference rooms
Houses of worship

Technical characteristics

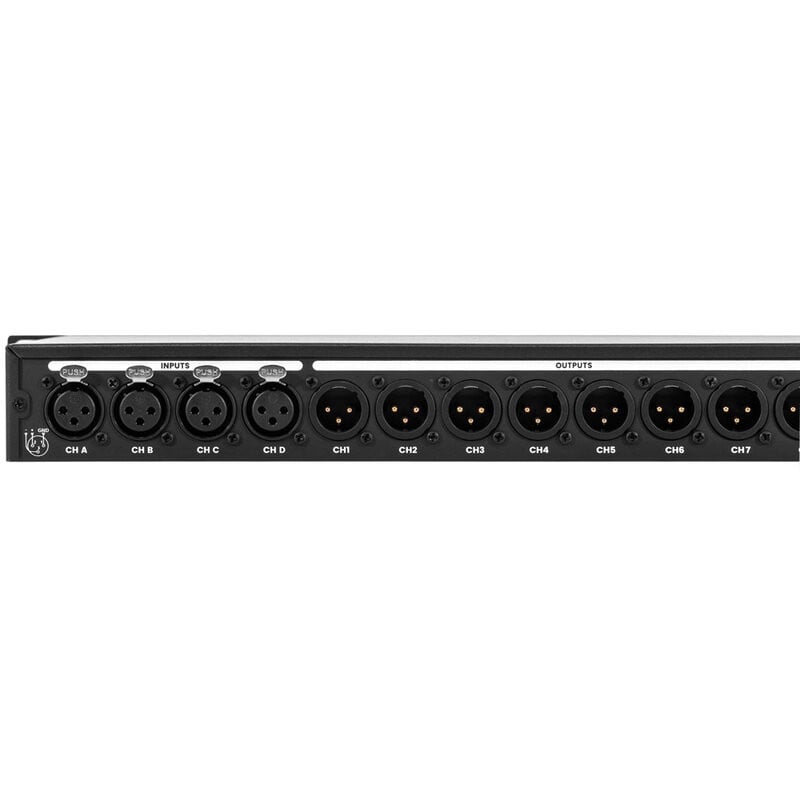

4 balanced XLR inputs

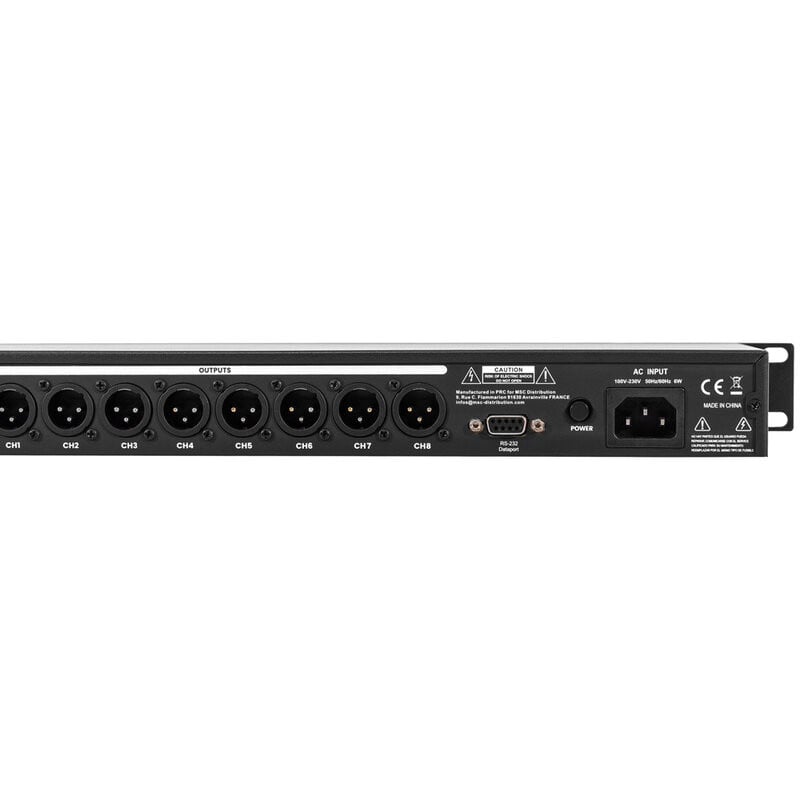

8 balanced XLR outputs
Control software: PC (Windows) compatible software included
Signal processing: on-board EQs, delays and crossovers
Controls: mute and phase reverse on inputs and outputs
Equalization: 10-band EQ on inputs and outputs

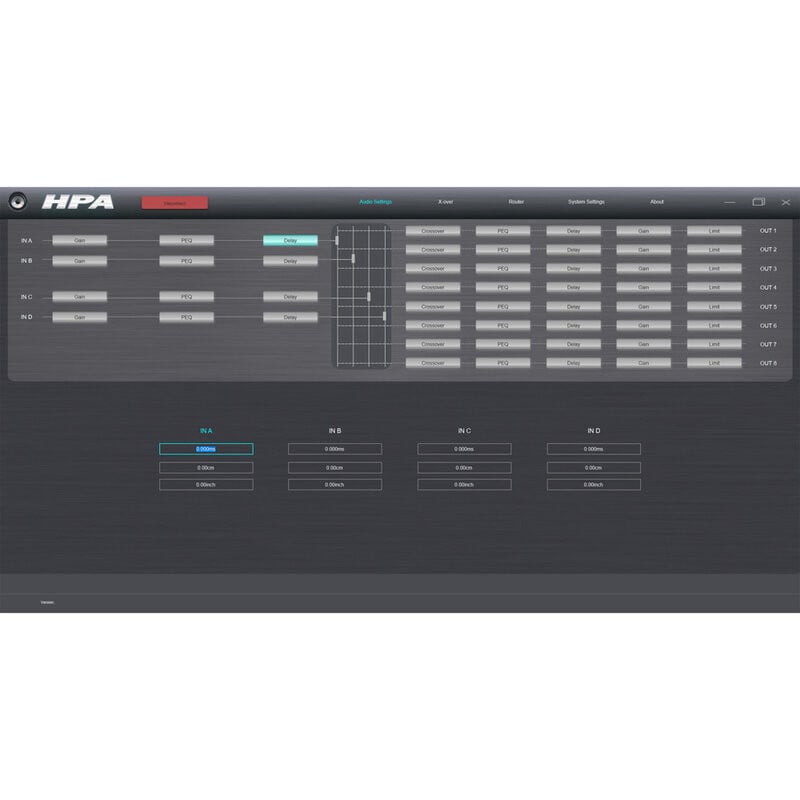

Delay: up to 682 ms on inputs and outputs

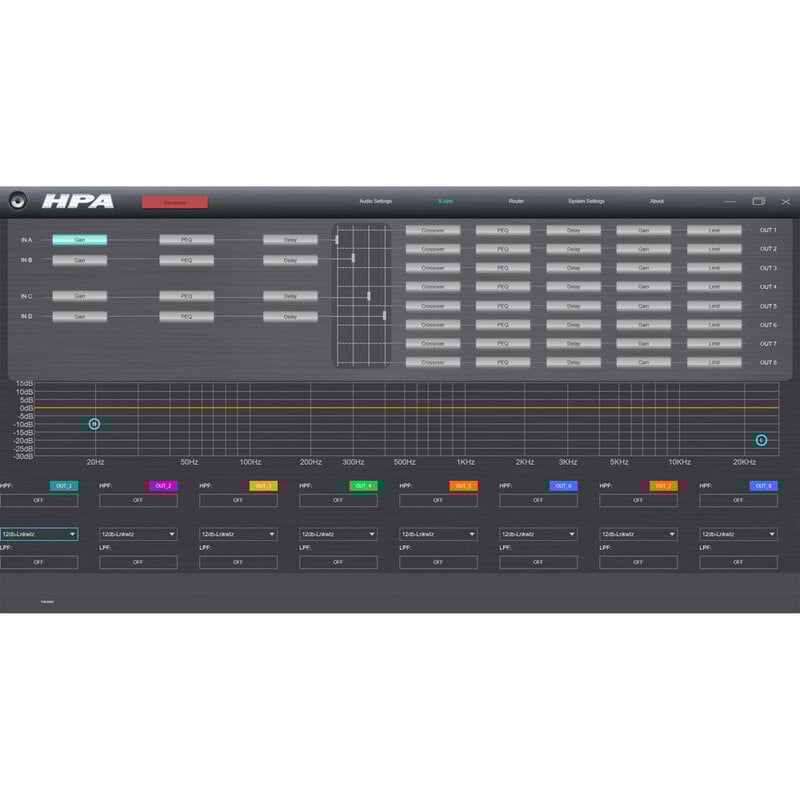

Crossover: high-pass and low-pass filters (Butterworth, Bessel, Linkwitz-Riley)

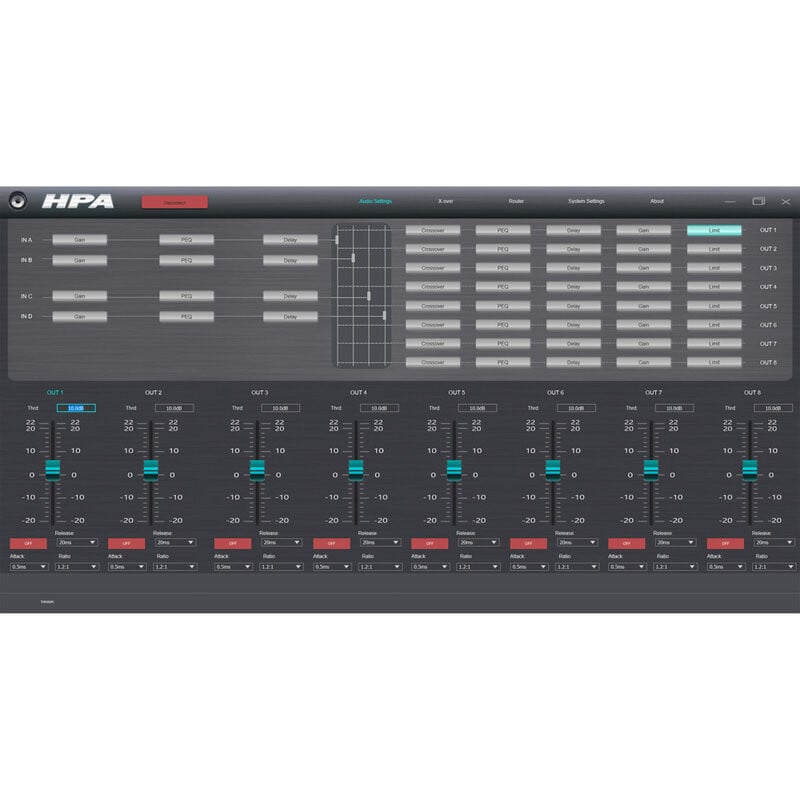

Dynamics: integrated compressor/limiter

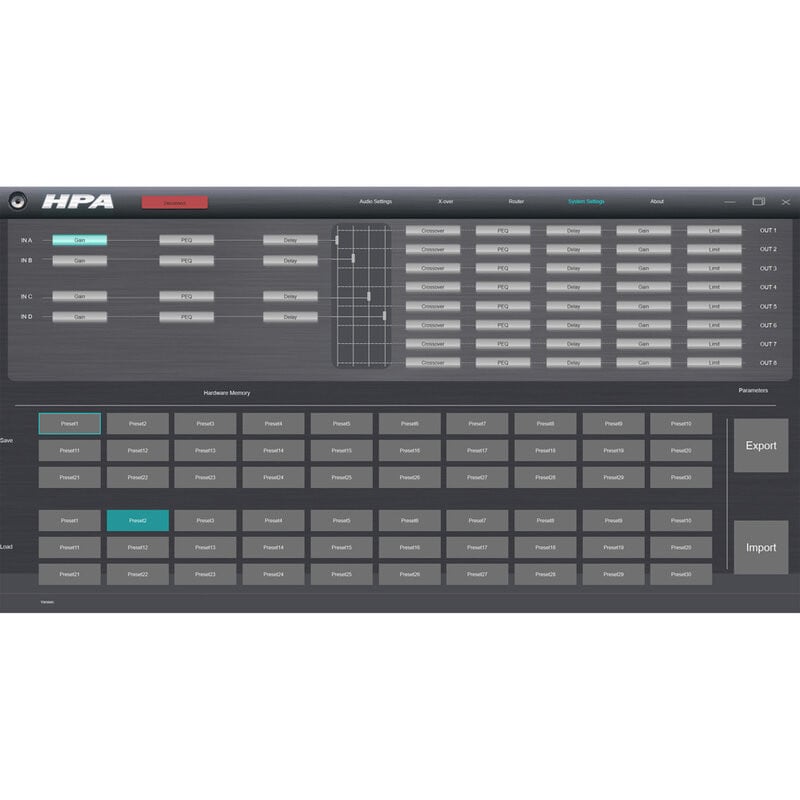

Presets: 30 user settings storable and exportable
Security: password lock available
Sampling frequency: 48 kHz
Frequency response: 20 Hz – 20 kHz ±0.25 dB
Distortion + Noise: 0.002% @ +4 dB, 1 kHz
Power supply: 100 – 240 V_AC 50/60 Hz
Dimensions: 48.3 x 4.4 x 19 cm
Net weight: 3.18 kg
