JB Systems - COB-PLANO

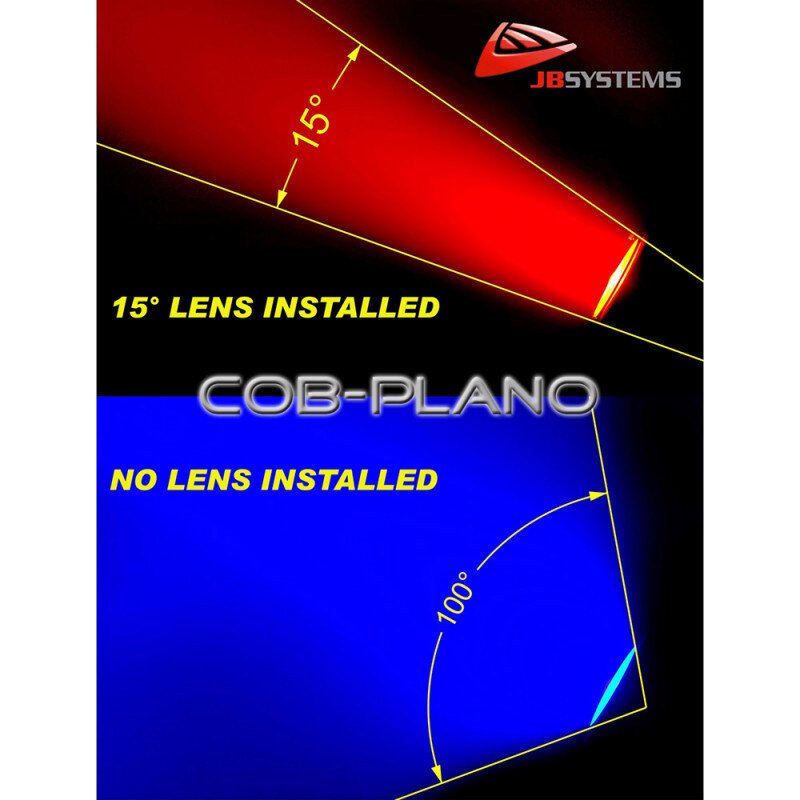

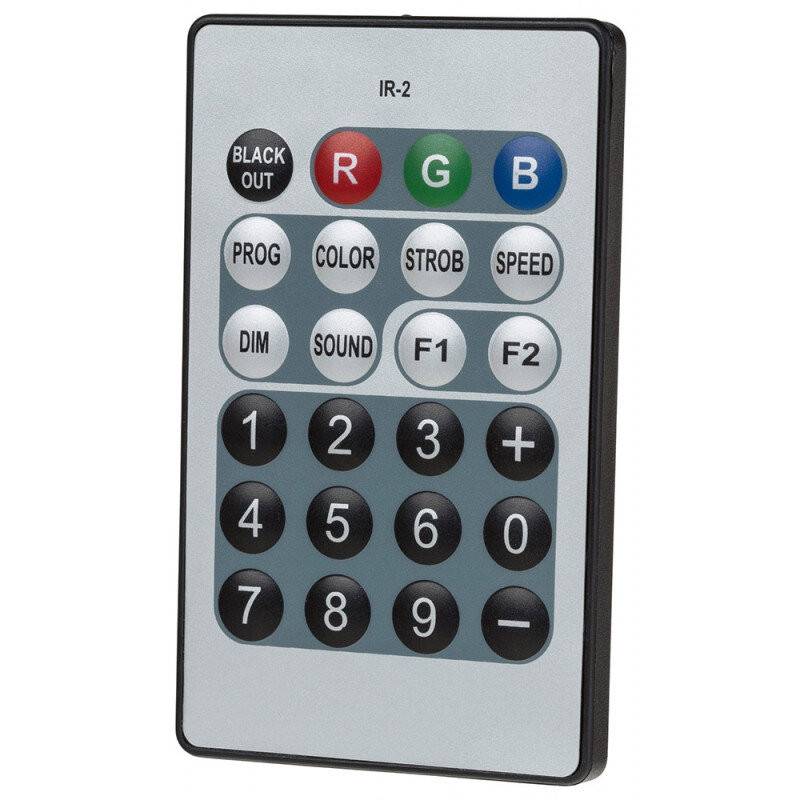

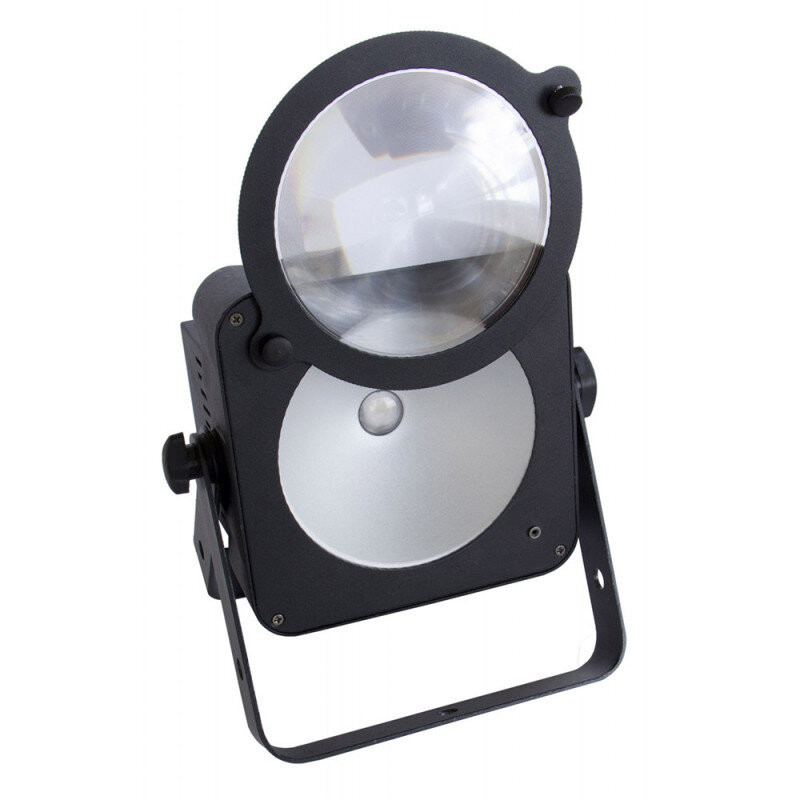

Extremely compact Chip On Board (COB) LED-projector! The innovative 36 W COB LED creates perfect color mixing with the look of a traditional lamp! Two different beam angles: 100° or 15° while using the supplied lens. IR-remote controller included: no difficult controllers needed, perfect for DJ’s and many mobile applications! Different working modes: - Standalone with IR-remote: automatic/beat synchronized color patterns. - Master/slave mode: several projectors can be linked together for wonderful music synchronized lightshows. - DMX-controlled: different channel modes with program selection and individual RGB control. - Can be used with LEDCON-02 Mk2 easy controller! Remote addressing is possible using the IR-remote! Perfect for mobile applications: extremely small and efficient Perfectly suited for many applications: rental companies, discotheques, DJs, live shows etc. 0-100% dimming and ultra-fast strobe function (no additional strobes needed!). 4digit LED-display for easy menu navigation. Double bracket: easy for use as floor spot! Can even be installed inside QUATTRO 290 ALU-truss AFTER the truss is installed! Weight: just 2.14 kg! P

General: Dimensions (cm)	20.2 x 12 x 22.4 cm
General: Weight ( kg)	2.14
General: Power input	AC 100 - 240V, 50/60 Hz
General: Energy Label	No
General: Power consumption W	40
General: Color	black
General: Display	LED
General: Fixation	optional standard clamp
General: IP rating	indoor
Control: manual	No
Control: Master/Slave	Yes
Control: SMART-DMX	No
Control: Standalone	automatic, sound
Control: Type included remote	IR-remote
Control: programmable	No
Control: upgradable software	No
Control: maximum DMX channels	6
Light: lamp socket	No
Light: lamp	COB
Light: colors	Red, Green, Blue
Light: mix colors	Yes
Light: min. beam angle (°)	15
Light: max. beam angle (°)	100
Light: min. refresh rate ( kHz)	3.6
Light: max. refresh rate ( kHz)	3.6
