JB Systems - QUADRA MOVE

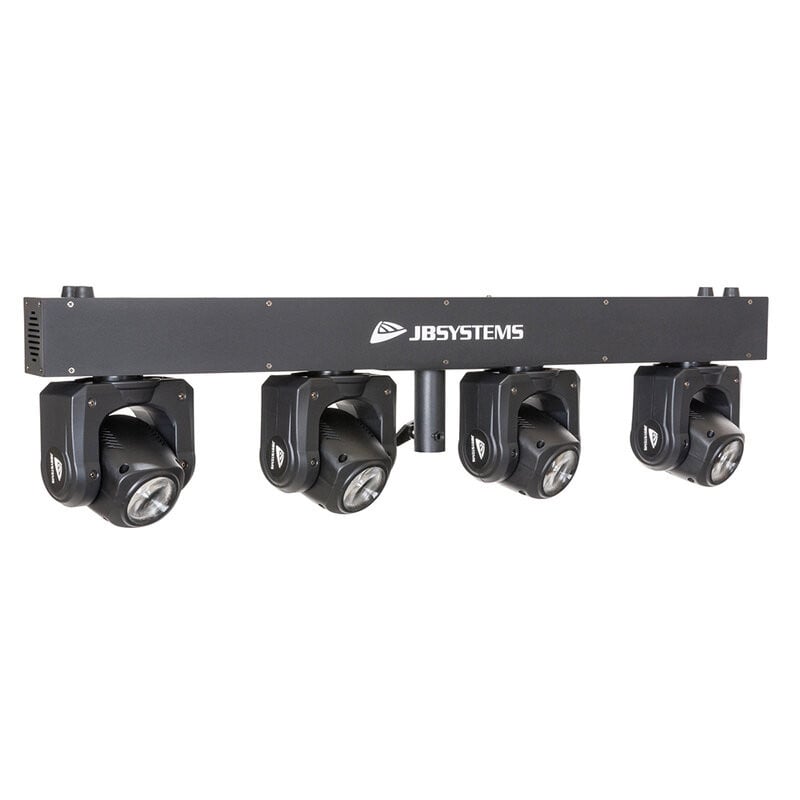

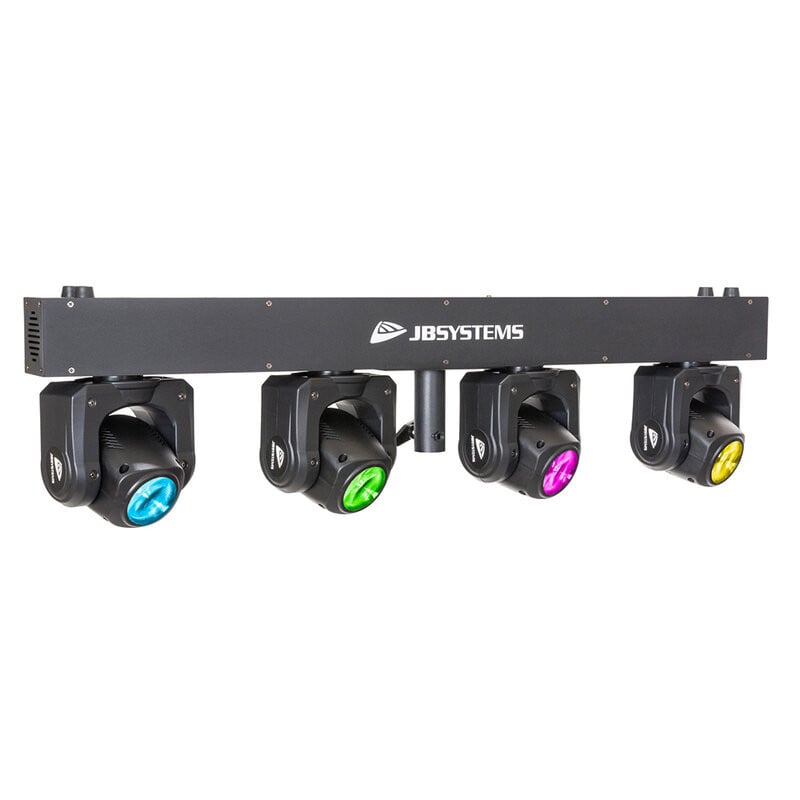

The QUADRA MOVE is a compact and versatile light bar equipped with four 40 W RGBW LED moving heads. It is designed for mobile DJs, sound / lighting companies, and stage installations requiring dynamic and easy-to-manage effects. The built-in programs offer ever-changing light shows, with the option of DMX operation (1, 5, 24, or 56 channels), stand-alone operation with sound activation via the internal microphone, or Master/Slave mode for automatic synchronization between multiple units.

The device is ready for wireless DMX control via the optional Briteq WTR-DMX dongle and can be easily mounted on trusses using the optional omega brackets or on 35 mm tripods using the included adapter. The LCD display allows for intuitive menu navigation, while the 3-pin XLR connectors ensure a reliable DMX connection.

This product is intended for indoor use only.

User benefits

• Flexible control (DMX, stand-alone, Master/Slave)
• Compatible with optional Briteq WTR-DMX dongle
• Easy installation

Areas of use

• Traveling DJs
• Sound / lighting services
• Scenographic installations (indoor controlled environments)

Technical characteristics

• Power input: 100 - 240 V_AC 50/60 Hz
• Power consumption: 200 W
• Color: black
• Display: LCD
• Fixation: 35 mm stand adaptor, optional omega bracket
• IP rating: indoor
• Control modes: stand-alone sound, stand-alone automatic, DMX
• Control protocol: wireless DMX
• Upgradable software: yes
• Min. DMX channels: 1
• Max. DMX channels: 56
• Lamp type: LED
• Colors: RGBW
• Input connections: 3-pin XLR, wireless DMX optional, powerCON or compatible
• Output connections: 3-pin XLR, powerCON or compatible
• Dimensions: 100 x 26 x 9 cm
• Weight: 11 kg
