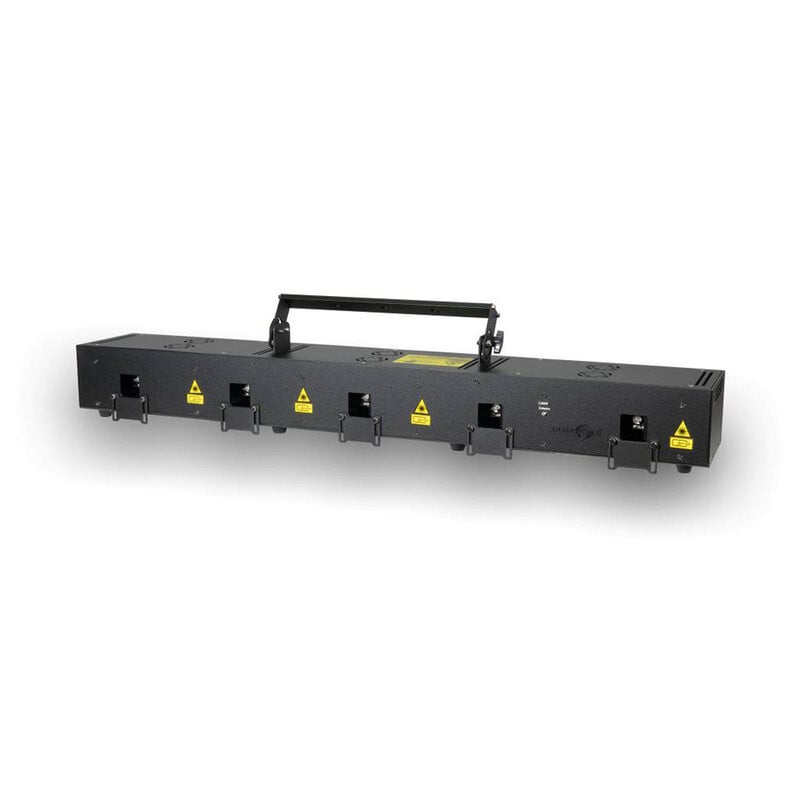

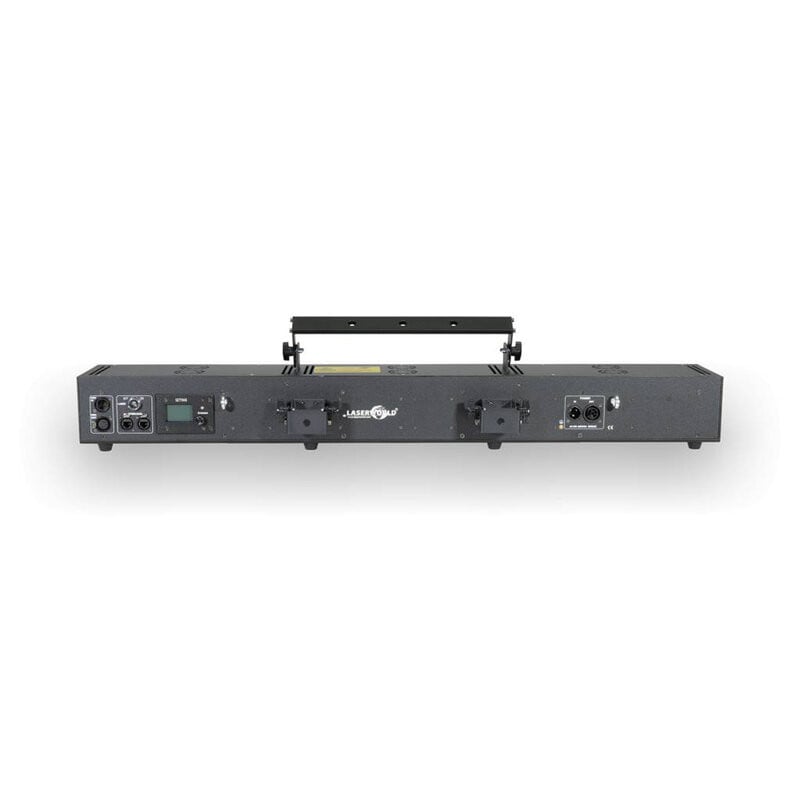

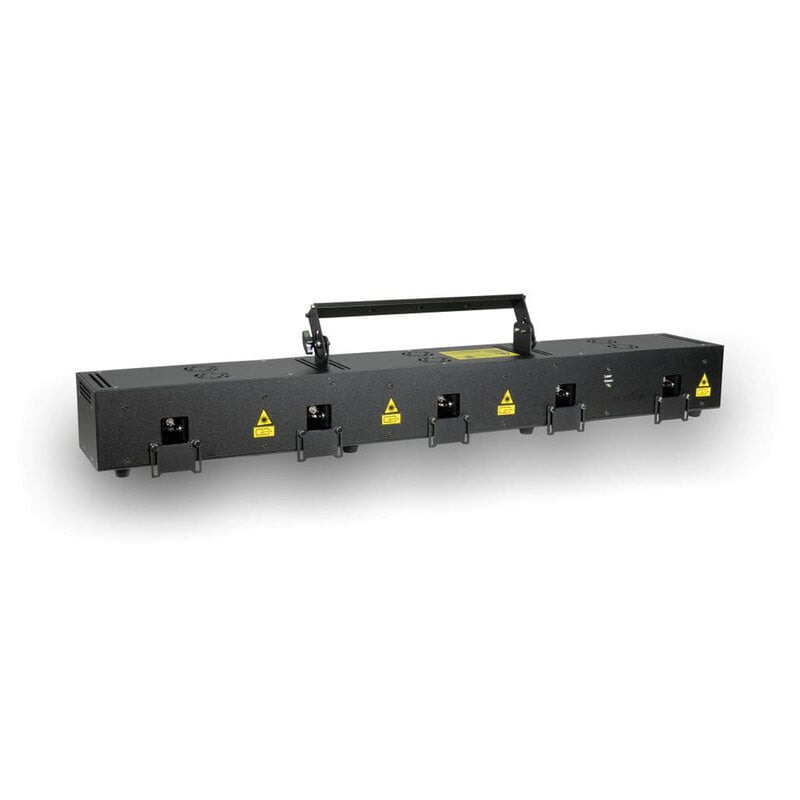

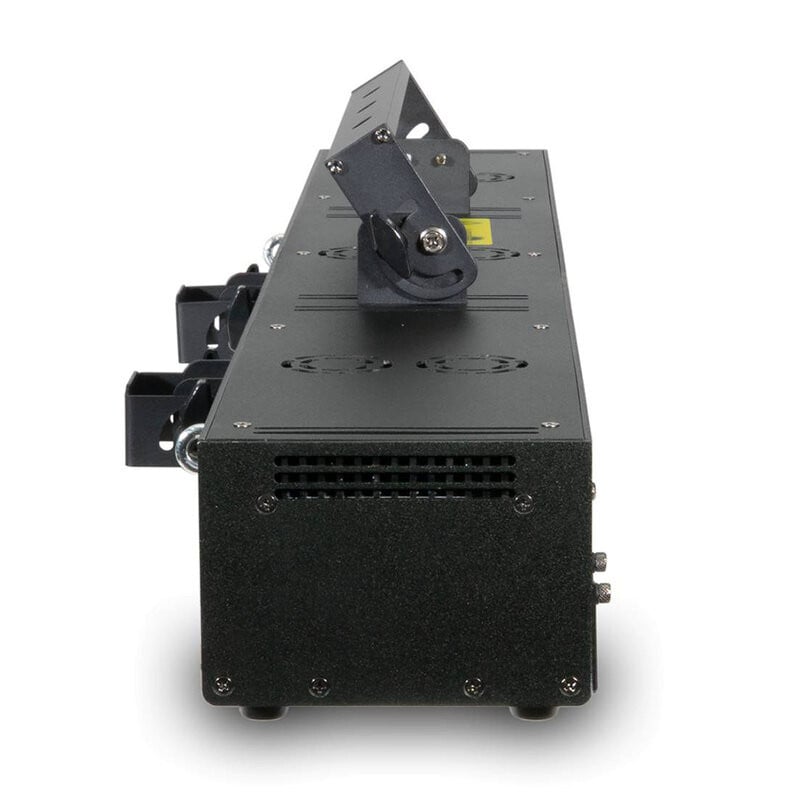

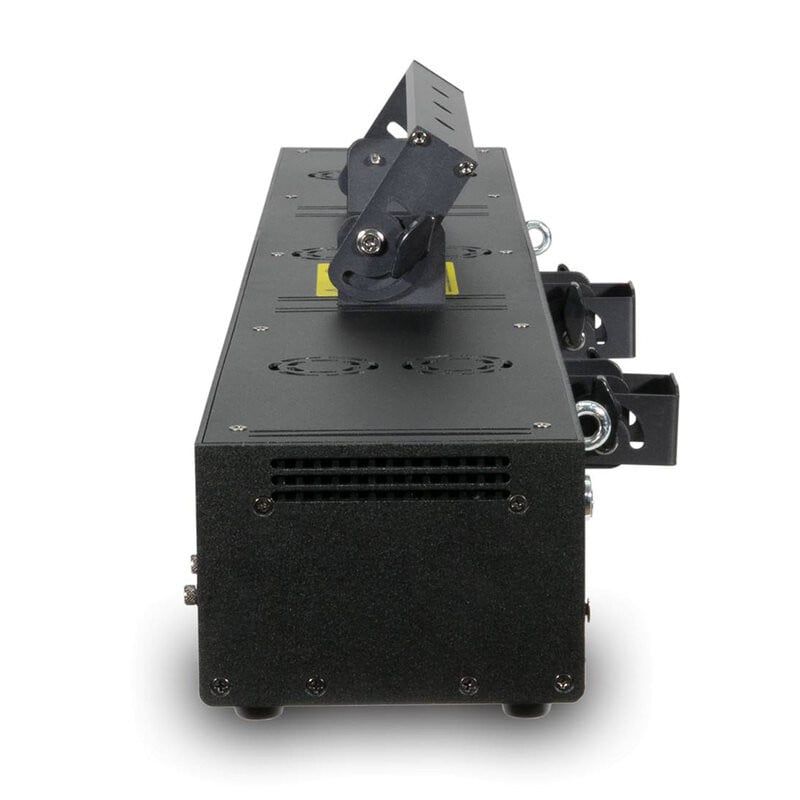

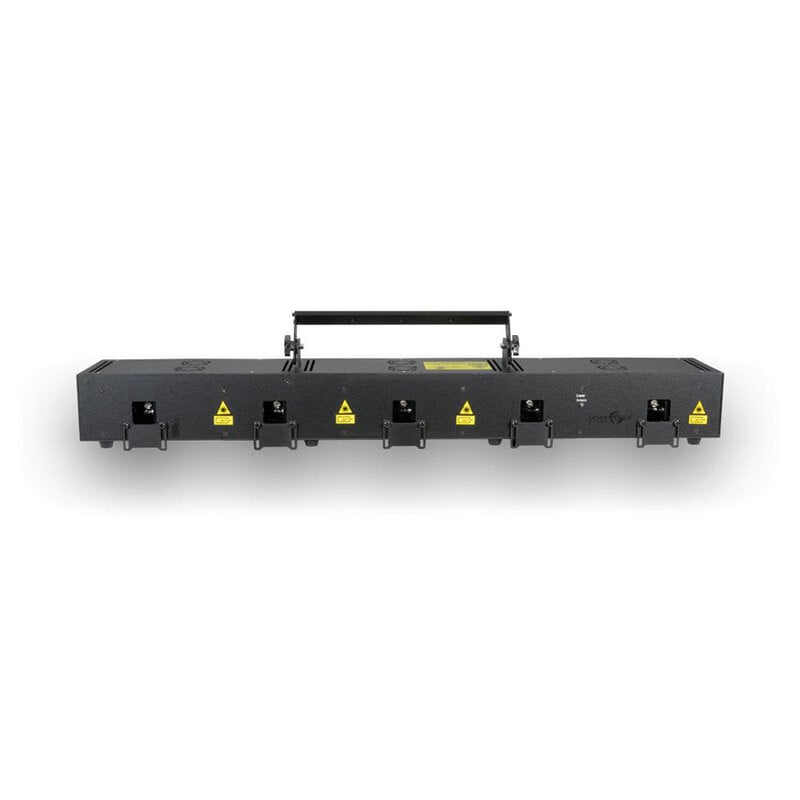

Laserworld - Laserworld ScanBar 10RGB

The Laserworld ScanBar 10RGB is a high-performance professional laser system designed for high-impact events. It integrates five RGB diode laser modules with analog color mixing and five X/Y scanning systems with speeds up to 25 kbps, ensuring precise and dynamic lighting effects.

Classified as a Class 4 laser, it offers a total guaranteed power of 10,000 mW, with a 4 mm beam and 1.1 mrad divergence. It is compatible with DMX control (4 DMX profiles), stand-alone mode and Master/Slave mode. It includes over 100 built-in patterns and is supplied with a power cable, interlock, key and user manual. Its compact size and light weight make this laser bar easy to install, even in complex configurations.

User benefits

• High power: 10 W total
• Animation accuracy guaranteed by 5 X/Y scanning systems at up to 25 kpps
• Over 100 built-in patterns without the need for additional software
• Compact dimensions and low weight

Areas of use

• Live performances
• Stage installations
• Professional video productions

Technical characteristics

• Guaranteed power at aperture: 10.000 mW
• Power red: 5 x 450 mW / 638 nm
• Power green: 5 x 600 mW / 525 nm
• Power blue: 5 x 950 mW / 450 nm
• Beam specifications: 4 mm / 1.1 mrad
• Scanner: 25 kpps at 8°
• Operation modes: DMX, stand-alone, Master/Slave
• Laser Class: 4
• Laser source: diode
• Basic patterns: > 100
• Power supply: 85 - 250 V_AC 50/60 Hz
• Power consumption: 150 W
• Dimensions (L x W x H): 100 x 15.2 x 10.5 cm
• Weight: 12 kg
• What's in the box:
  • Power cable
  • Manual
  • Interlock, key
