LEM Commercial - DriveControl-P remote wall panel

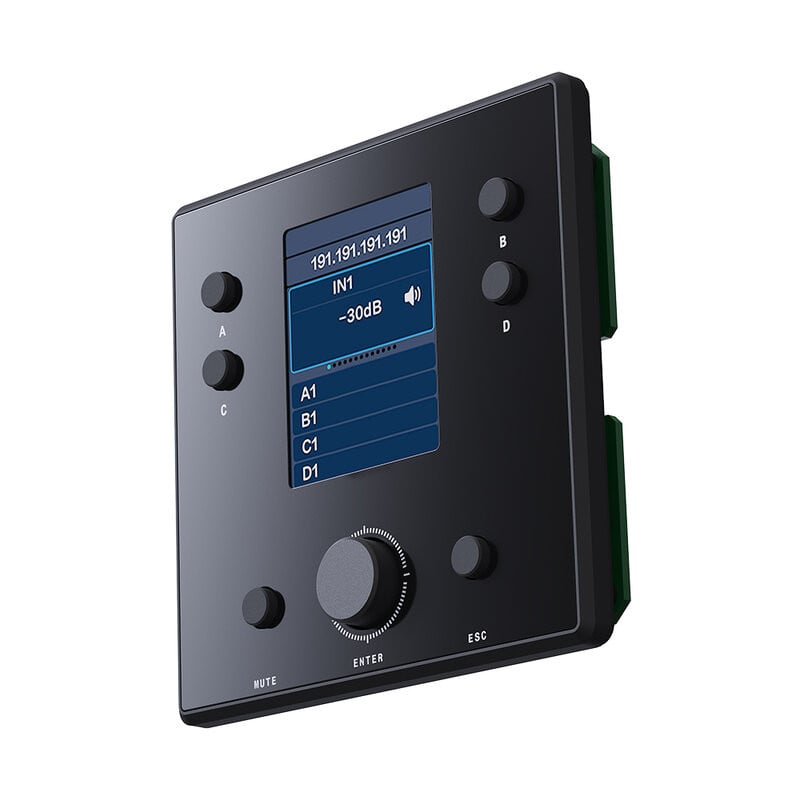

The DriveControl‑P is an 86 x 86 mm wall-mounted control panel designed for remote management of audio systems via an IP network. This accessory is designed for a specific LEM Commercial ecosystem.

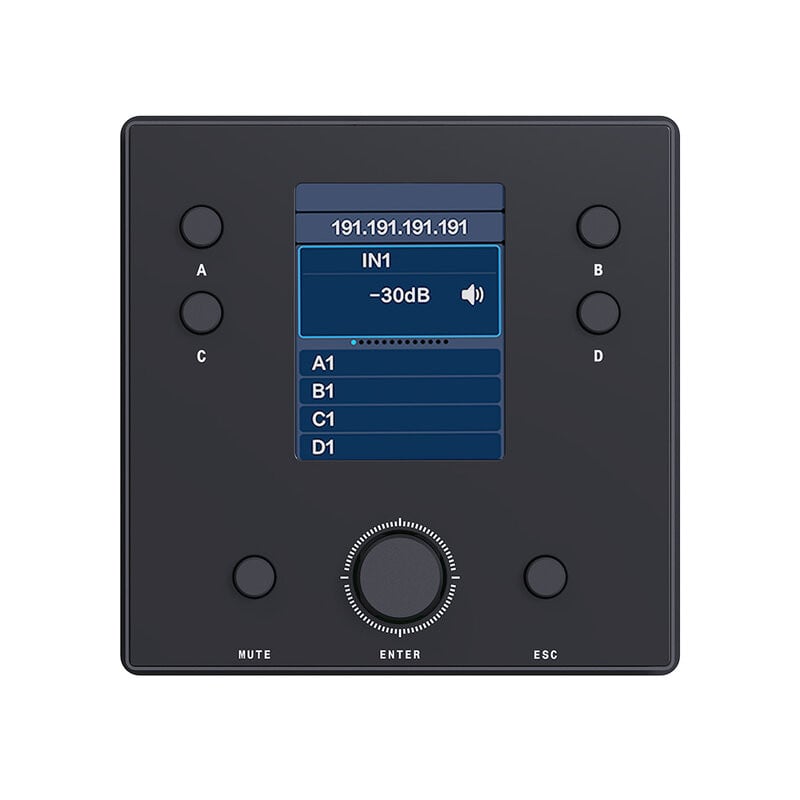

It features four function buttons, an ENTER rotary potentiometer, a MUTE button, and an ESC button, along with a 2" OLED display showing status, channel, zone, and scene information. The device supports PoE power supply with an AT/AF switch or power supply via a 12 V_DC adapter, ensuring installation flexibility in any context.

The DriveControl‑P can be combined with the D-Drive 1.2k4h-AE/DANTE and D-Drive 1.8k4-AE/DANTE, allowing control of inputs, outputs, zones, scenes, and DSP functions. Configuration is via a web interface, with management of aliases, volume limits, zone priorities, matrix routing, TCP/UDP commands, and scene recall. A single host can connect up to eight DriveControl‑P units, while the system allows for backups, firmware updates, user management, graphic themes, languages, and logo and background uploading.

The combination of physical control and advanced browser-based configuration makes DriveControl‑P a versatile solution for commercial, corporate, and hospitality installations.

User benefits

• 2.0" OLED display for clear information
• Compatibility with multiple host series for maximum flexibility
• Control inputs, outputs, zones, and scenes from a single panel
• Intuitive web configuration via browser
• PoE AT/AF and 12 V_DC power support
• Connect up to 8 panels per host
• Customizable functions via dedicated buttons
• Advanced management of scenes, themes, languages, and users
• Integrated backup and firmware updates
• Upload custom logos and backgrounds

Areas of use

• Conference rooms and meeting rooms
• Classrooms and training environments
• Corporate spaces and offices
• Hotels, resorts, and hospitality facilities
• Commercial audio systems
• Multi-zone installations
• Any context requiring simple and immediate audio control

Technical characteristics

• Display size: 2.0" OLED
• Controls: 4 function buttons, 1 potentiometer (ENTER), 1 mute button (MUTE), 1 return button (ESC)
• Power supply: PoE (supports AT and AF standard PoE switches) or 12 V_DC adapter
• Rated power: 1.02 W
• Communication interface: 1 × Gigabit RJ45 Ethernet port
• Network configuration: DHCP (default) or static IP
• Default IP when no router: 169.254.X.X (mask 255.255.0.0)
• Various host series supported
• Max. number of connected units per host: 8
• Supported controls: input control, output control, zone control, scene recall, customizable button control
• Volume adjustment range: -60 dB to +15 dB
• Alias length: up to 20 characters
• Zone audio source options: IN1 – IN32, USB-L/R, BT-L/R, MIX1, MIX2, AEC, ANC
• Scene recall: up to 79 host scenes
• Button functions: gain, mute, scene recall, TCP/UDP command trigger, matrix routing
• Matrix routing: up to 50 routes
• System backup: scenes, users, themes, language, logo images, background images
• System update options: system, MCU, screen, AI
• User accounts: password length 3 – 15 characters
• Themes: up to 20 themes, customizable colors, Day/Dark mode
• Languages: 5 selectable languages
• Logo image: max file size 2 MB
• Background image: max file size 2 MB
• Panel size: 86 × 86 mm
