SKU: RAB580

LITEC - RAB580

Name: RAB580
Brand: LITEC
SKU: RAB580
Price: 46 EUR
Availability: OutOfStock

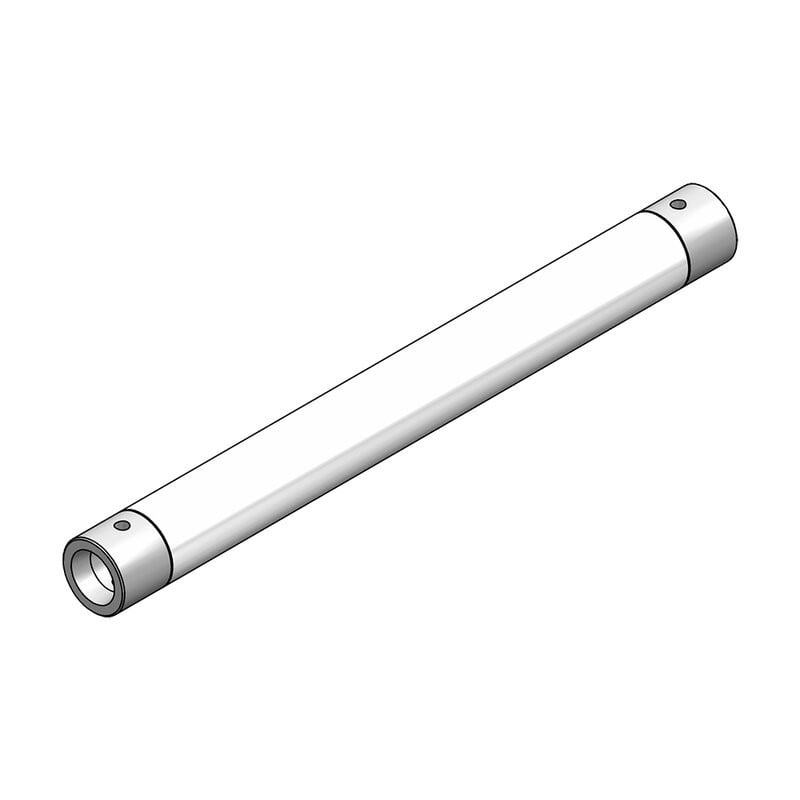

Aluminium tube 50 × 3 mm, integrated bushes, length 500 mm, made from alloy 6082‑T6 and manufactured according to Litec specifications for structural truss components

(0)

73.50 €

- 37%

46.00 €

Pay in 4 interest-free payments of 11.50 € with Discover More

Unfortunately, the quantity you have selected exceeds the amount available in stock. No problem! We will go ahead and send you the available quantity. We will then send you the reminder approximately within ten days.

Unfortunately, the quantity you have selected exceeds the amount available in stock.

Condition: New

I accept the general conditions and the privacy policy.

Not available.

delivery is not available for this product.

Free Shipping for order equal or above € 199 are limited for delivery within Europe

Variants of this product

LITEC - TXSM8

3.47 €

(0)

Bolt connection set for TX25S

LITEC - KHLP-4

28.00 €

(0)

Cylindrical pin + safety R-clip 3 mm, 4 PC Set

Contestage - MANCH

14.50 €

(0)

Conical sleeve for Ø 50 mm tube

Contestage - EMQUA-B1

93.00 €

(0)

Quatro baseplate - With connectors

Contestage - SPTE390 blk

135.50 €

(0)

Heavy‑duty hanger for QUATRO39 truss, double Ø 50 mm clamps, integrated lifting eye, 500 kg max load, black finish, ISO DIN 4113 & TÜV certified

Product Details

Structural aluminum tube made of 6082 T6 alloy, designed as an accessory component for truss systems and light carpentry applications.

The profile has an external diameter of 50 mm, a thickness of 3 mm, and a length of 500 mm, with integrated bushings. The construction complies with standards EN 10204, EN 573-3, and EN 755-2, with certified mechanical strength and chemical composition values.

The tube includes 0.5 × 45° chamfers, a surface roughness of Ra 3.2, and general tolerances to ISO 2768-m, ensuring dimensional accuracy and compatibility with Litec structures. The component weighs 1.419 kg.

Technical characteristics

Material: aluminium alloy 6082‑T6
Profile type: round tube with bushes
Outer diameter: 50 mm
Wall thickness: 3 mm
Chamfers: 0.5 × 45°
Surface roughness: Ra 3.2
General tolerances: ±0.1 mm for linear dimensions, ISO 2768‑m for angular dimensions
Inspection certificates: EN 10204 – 3.1
Chemical composition standard: EN 573‑3
Mechanical properties standard: EN 755‑2
Tensile and hardness tests: UNI EN ISO 6892‑1, UNI EN ISO 6506‑1
Length: 500 mm
Weight: 1.419 kg

More.. Show less
