Mac Mah - IZY 80 Beam

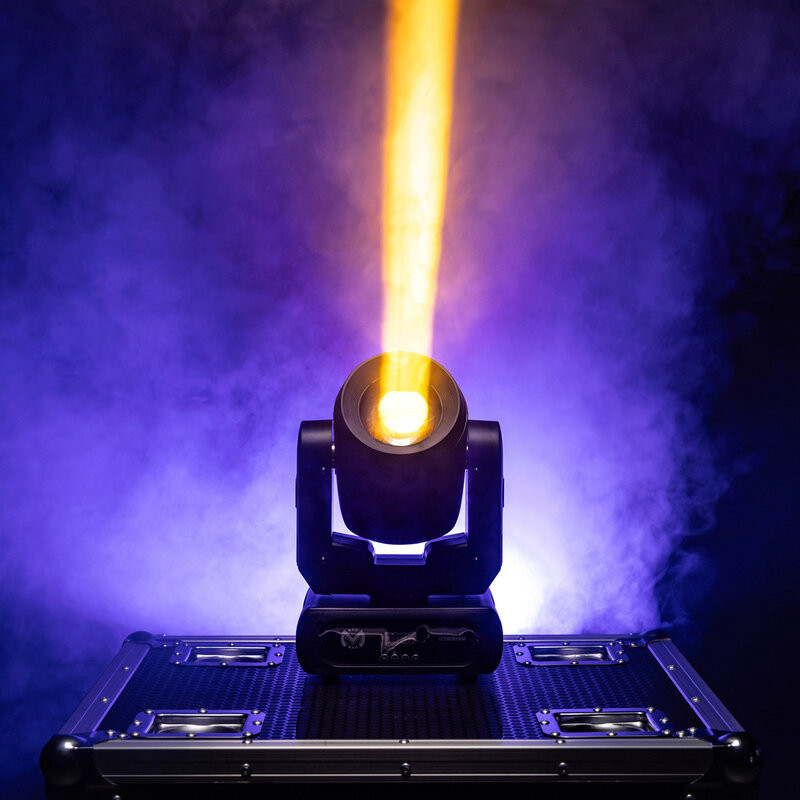

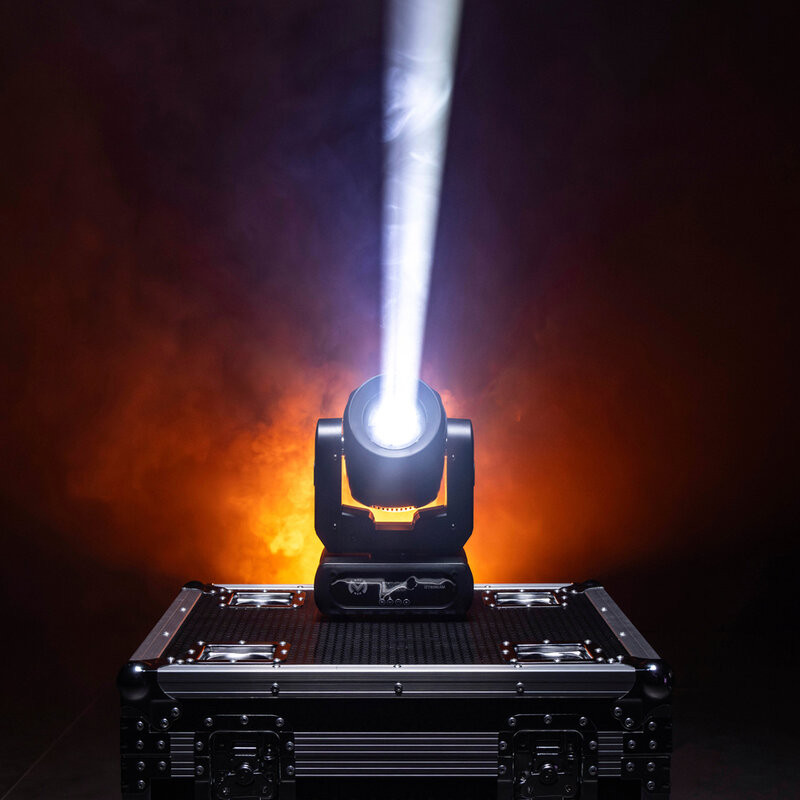

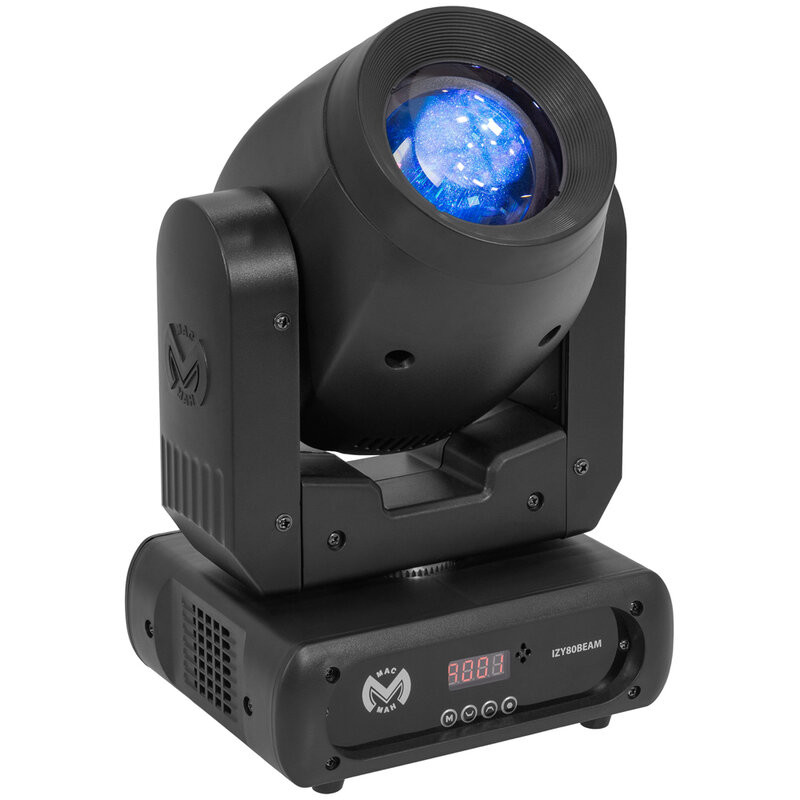

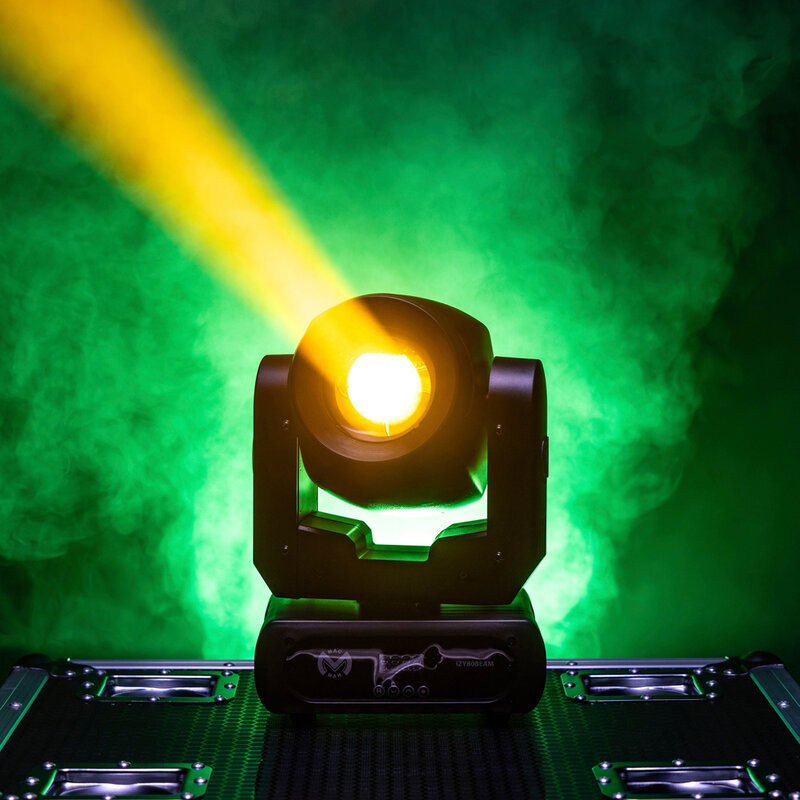

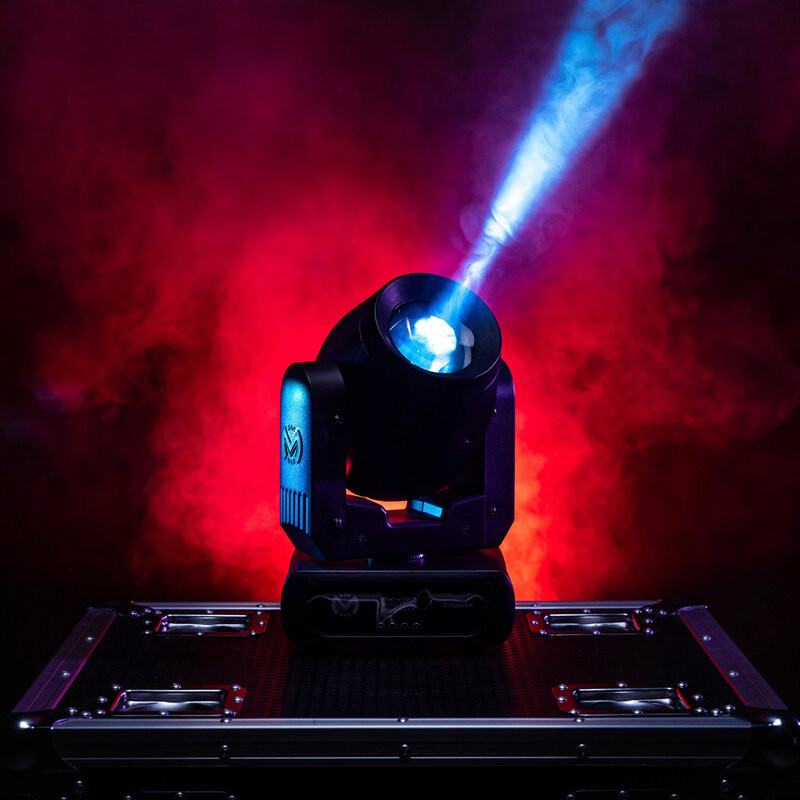

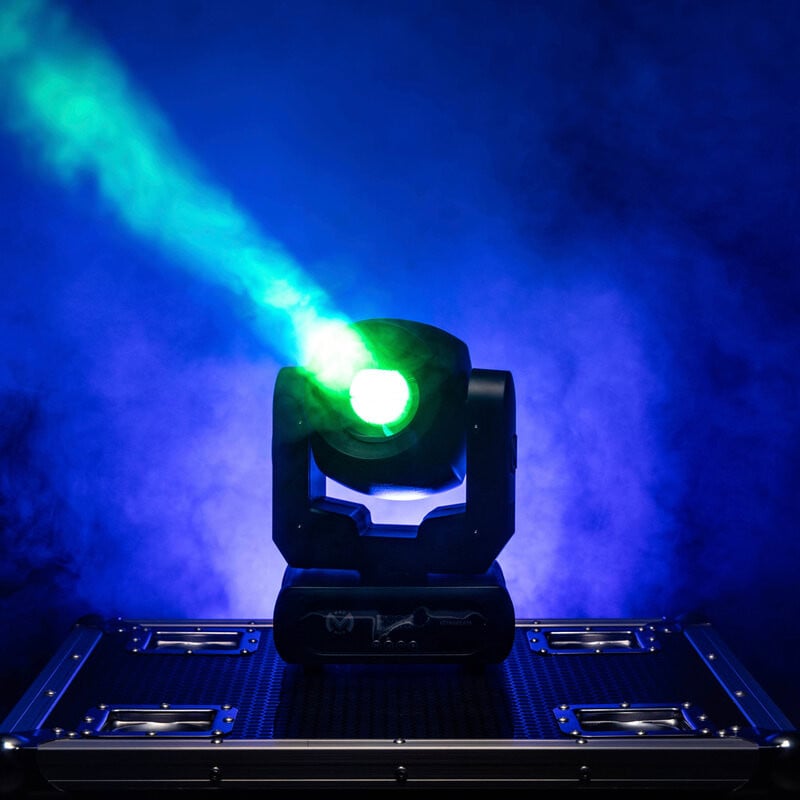

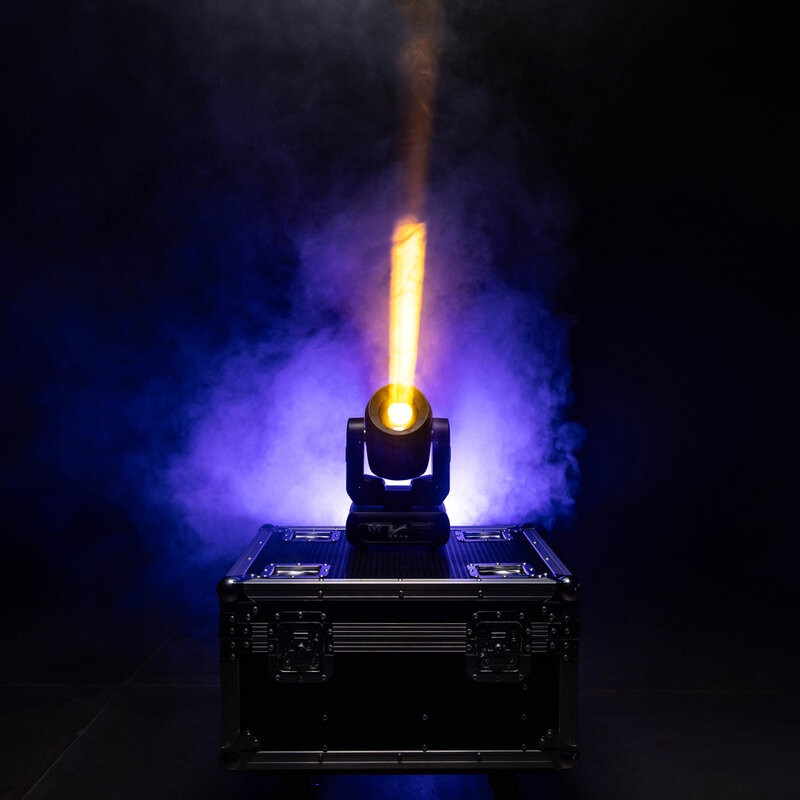

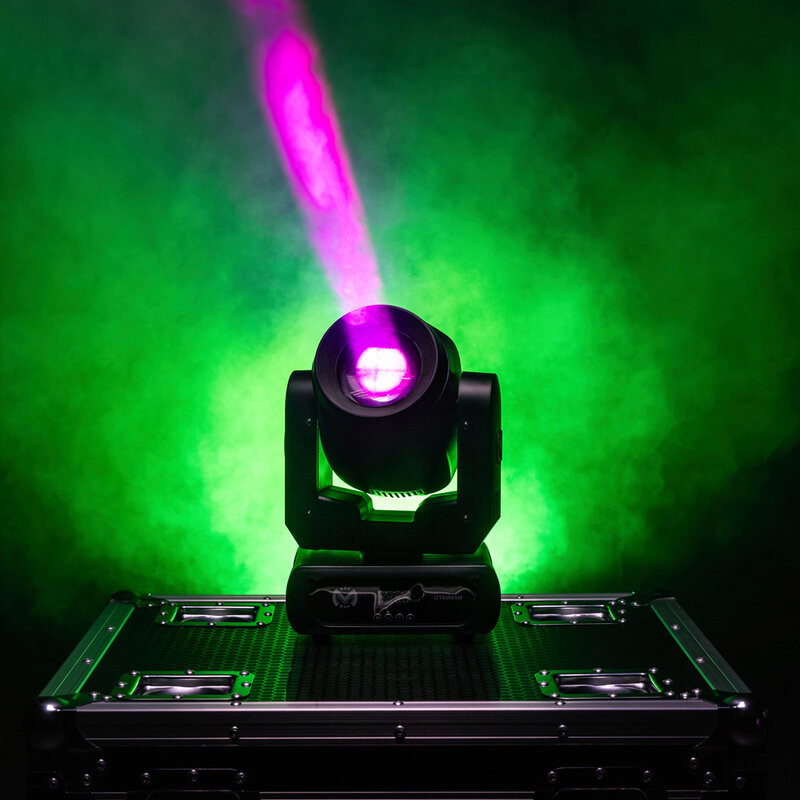

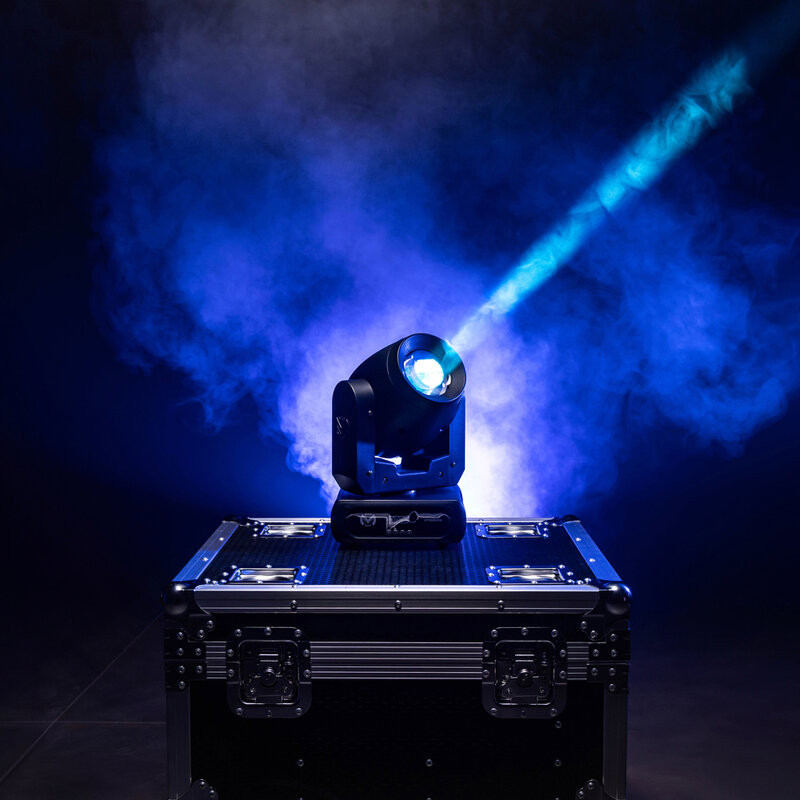

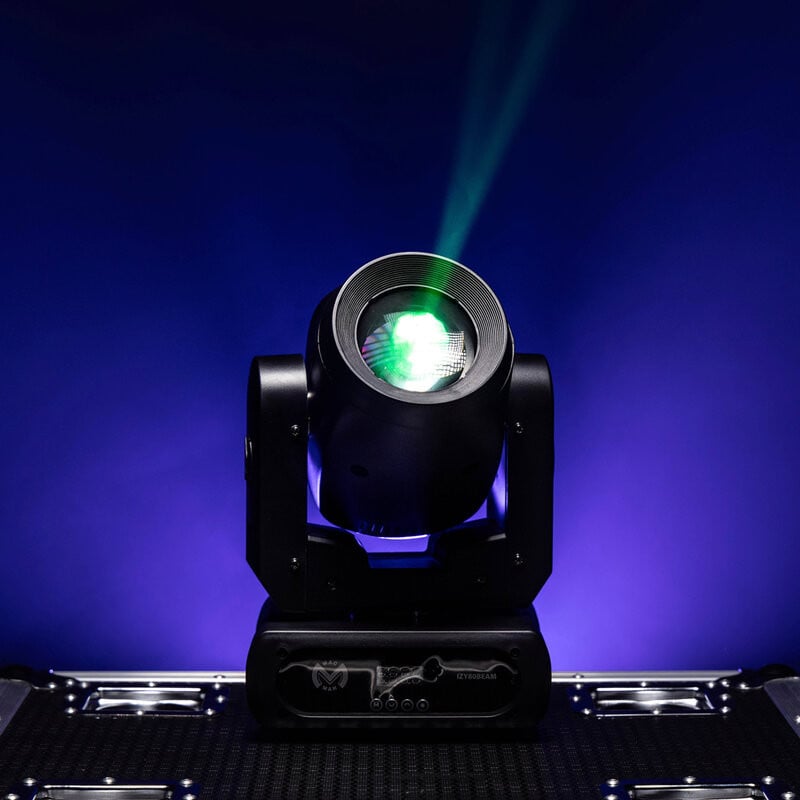

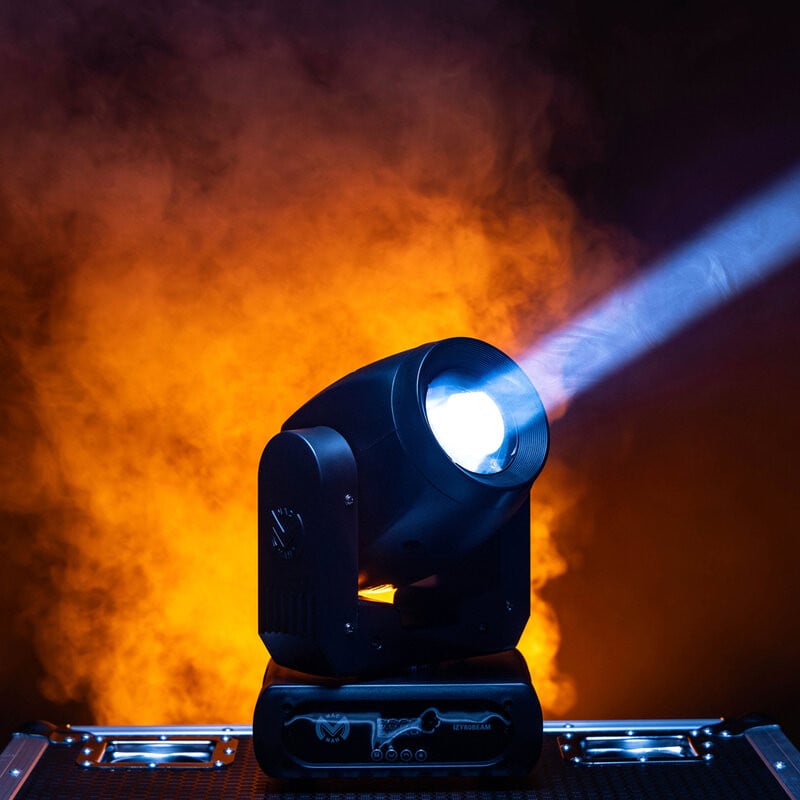

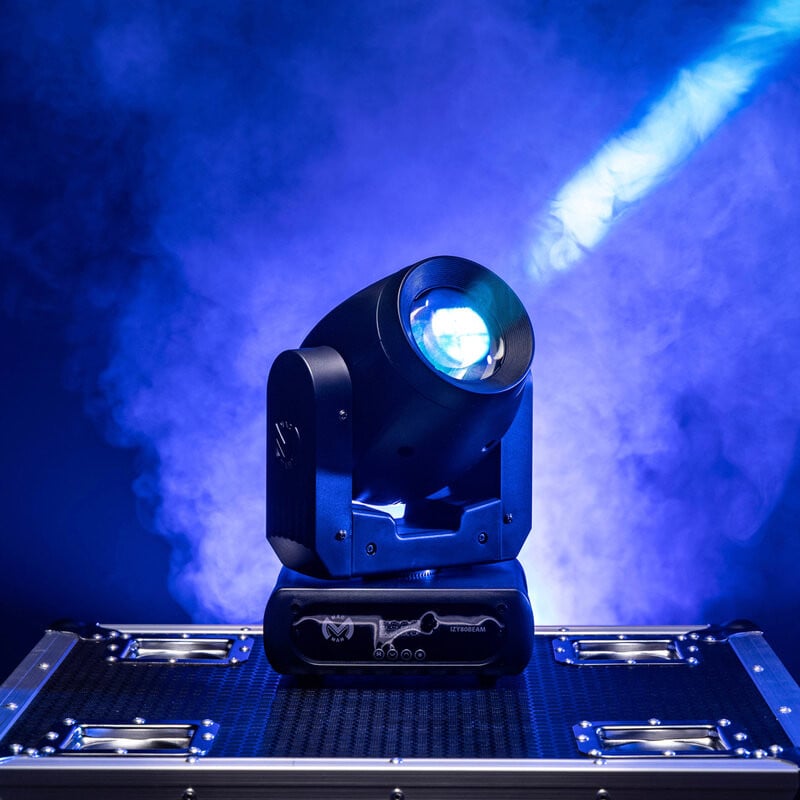

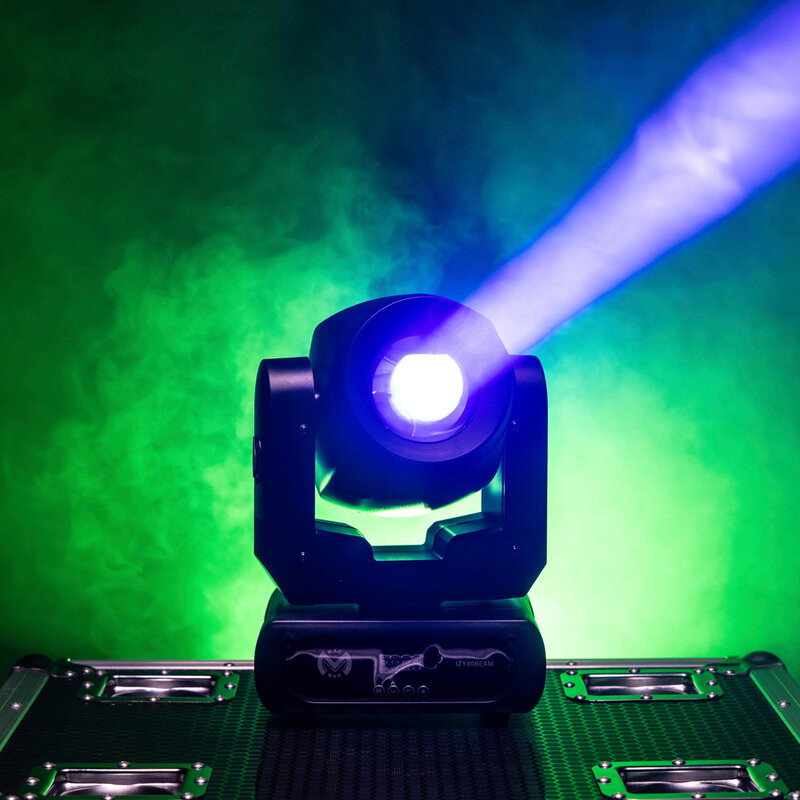

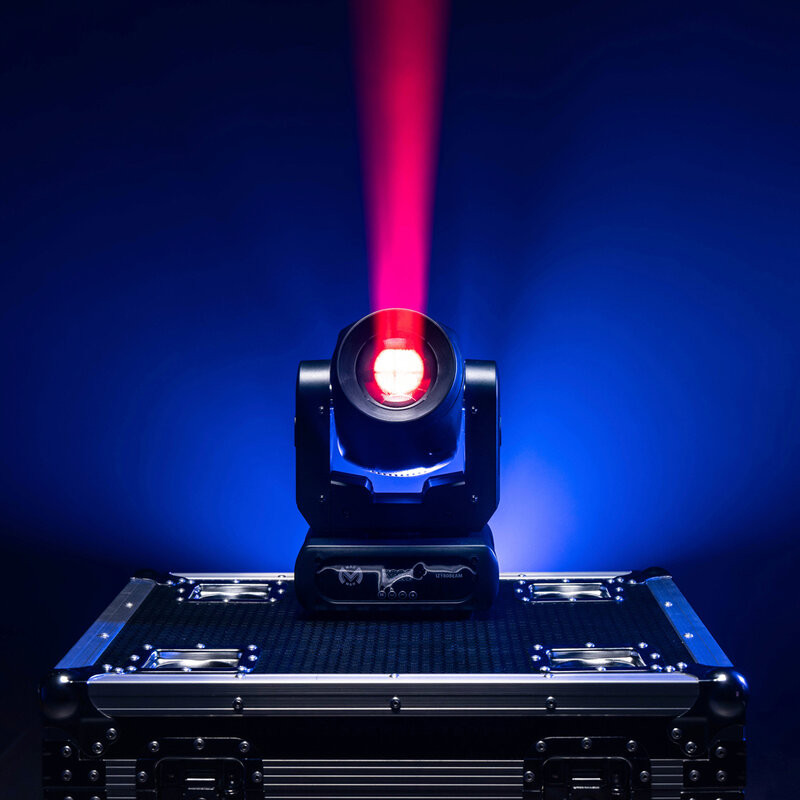

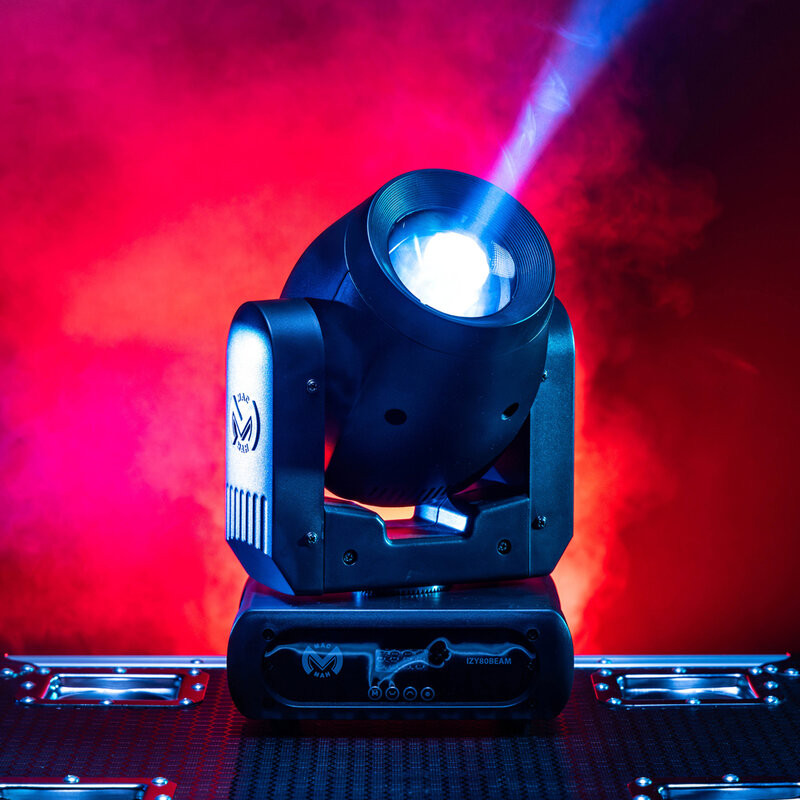

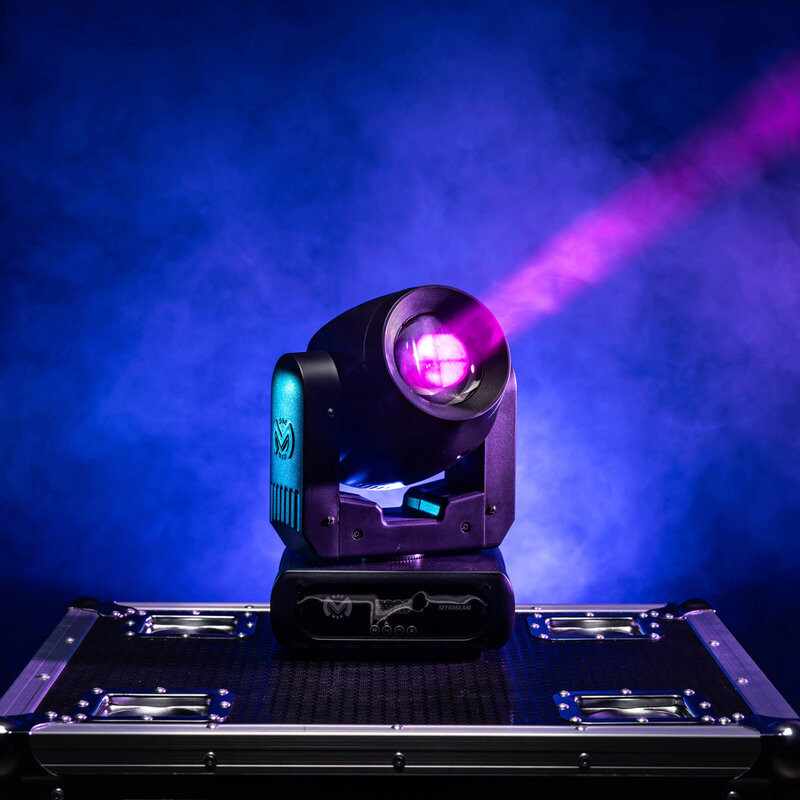

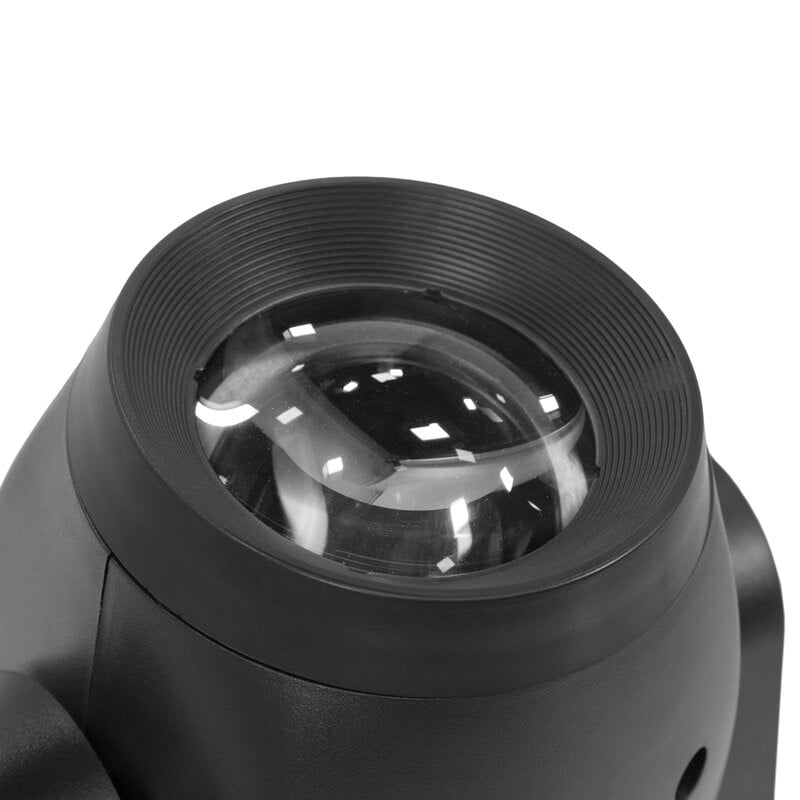

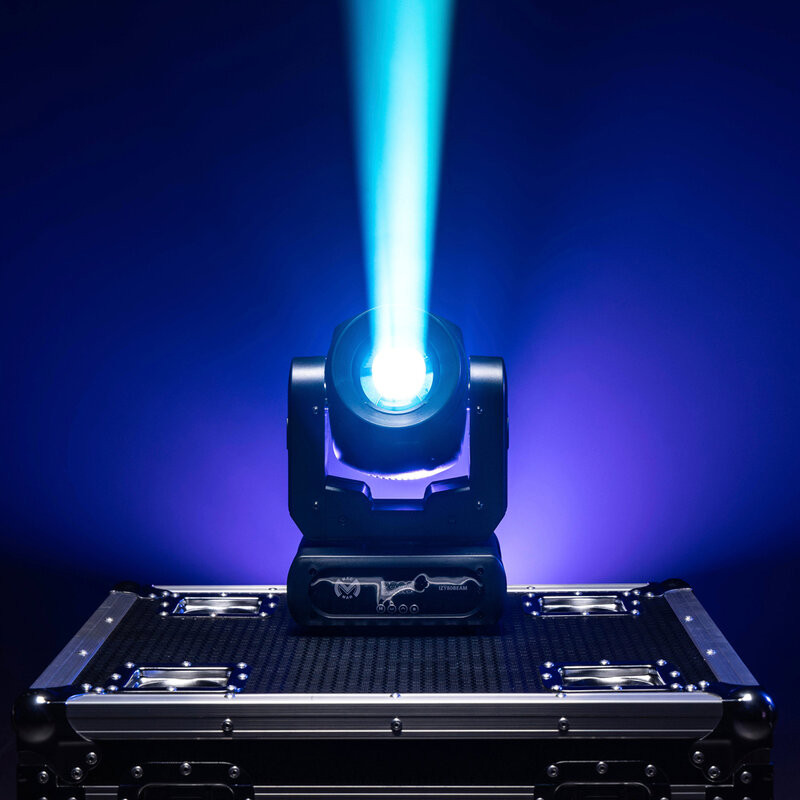

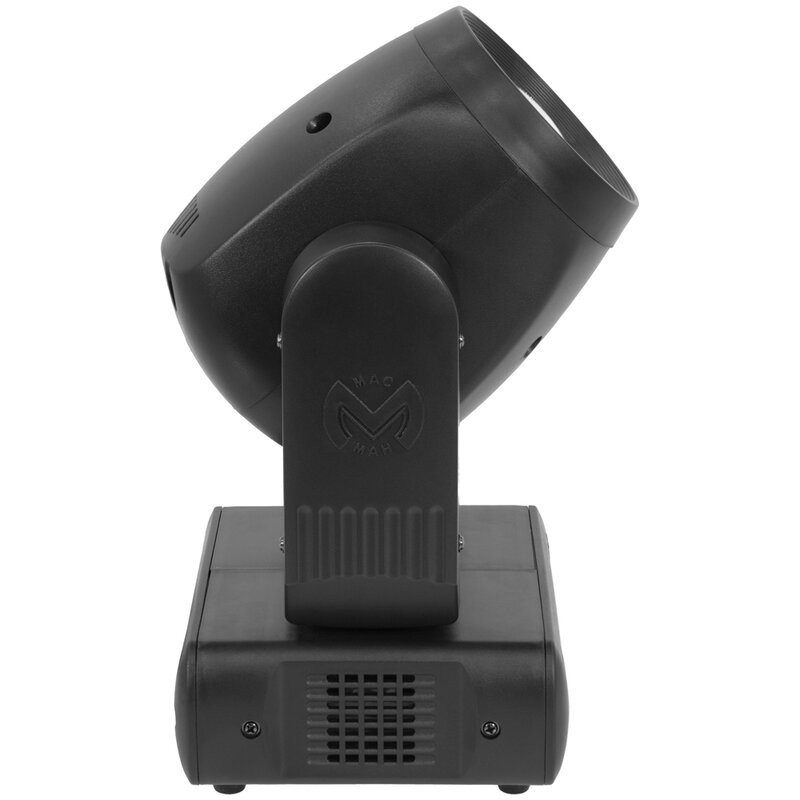

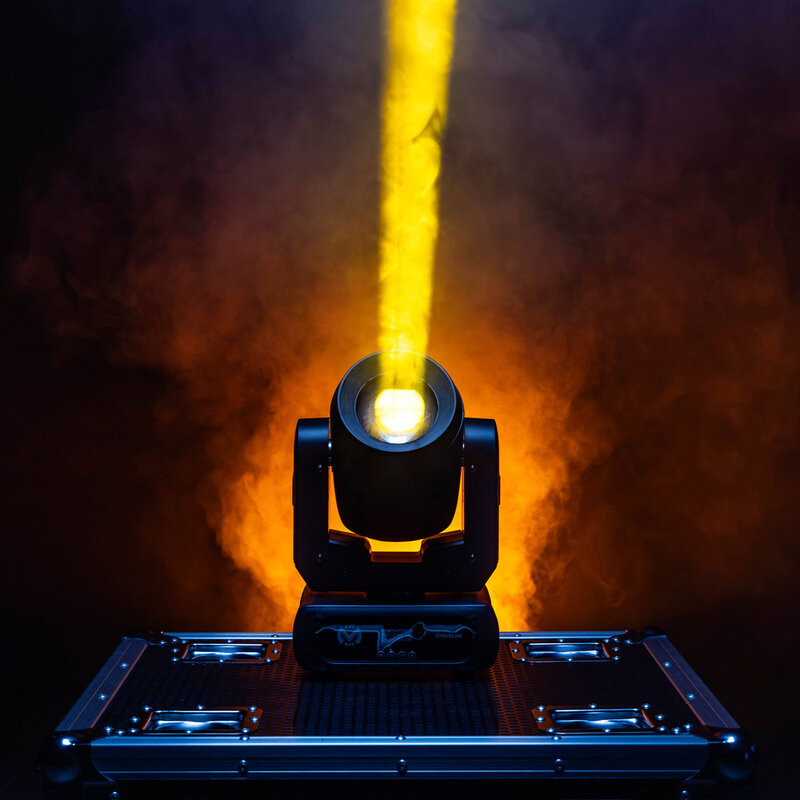

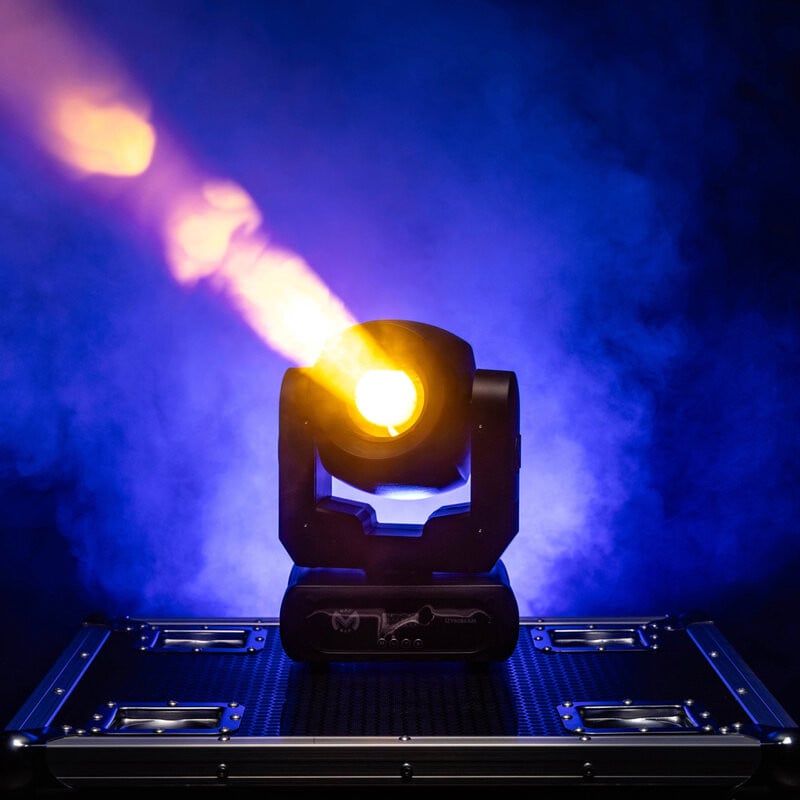

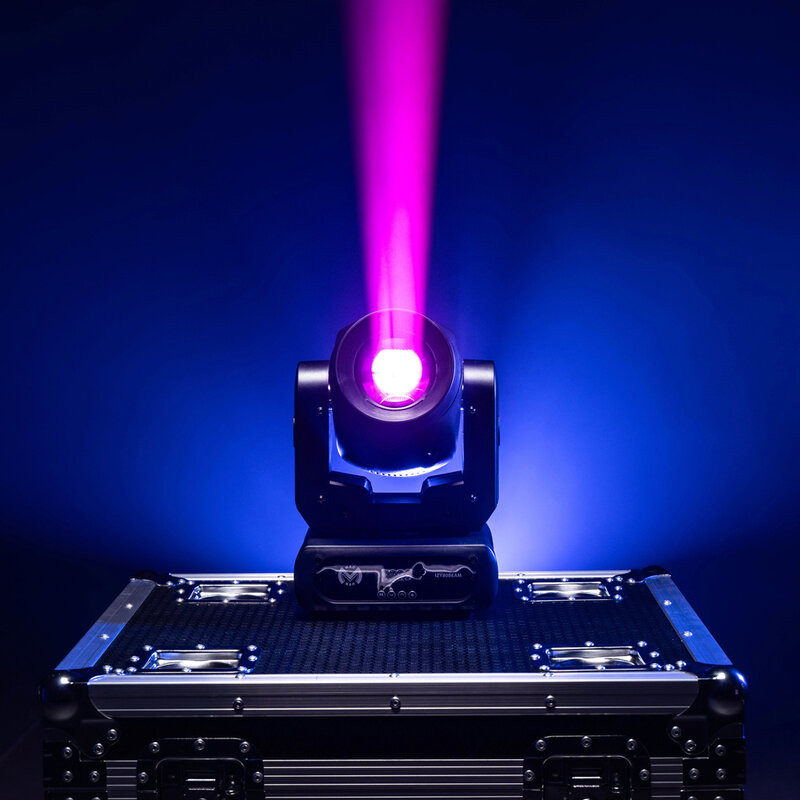

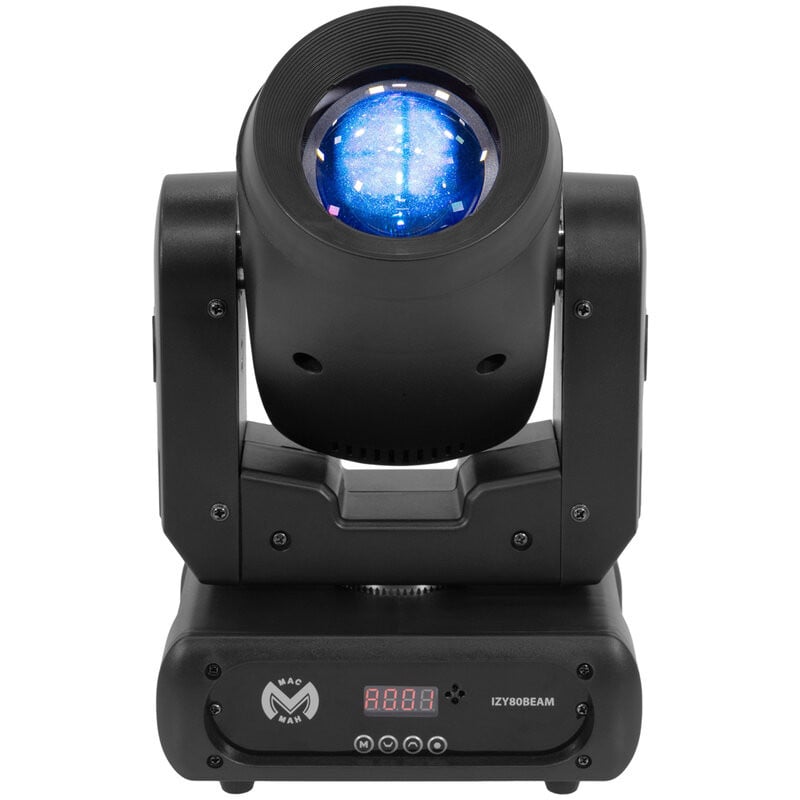

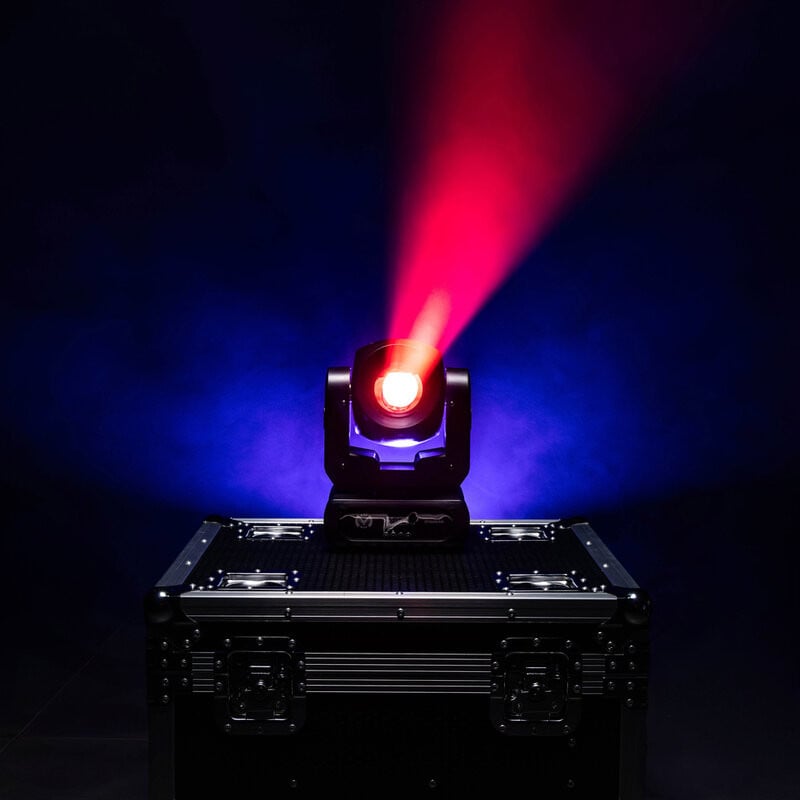

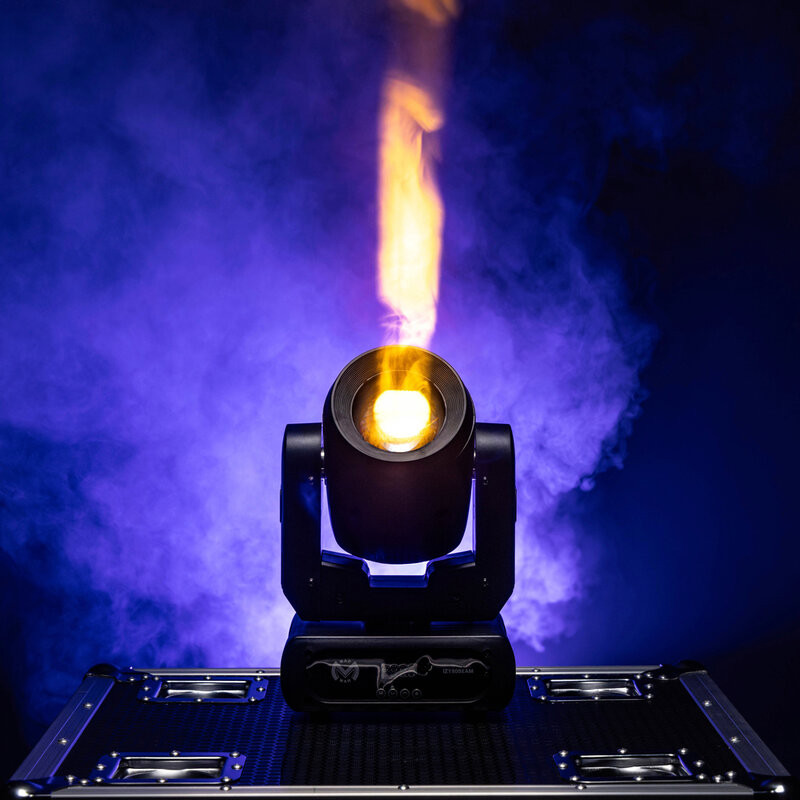

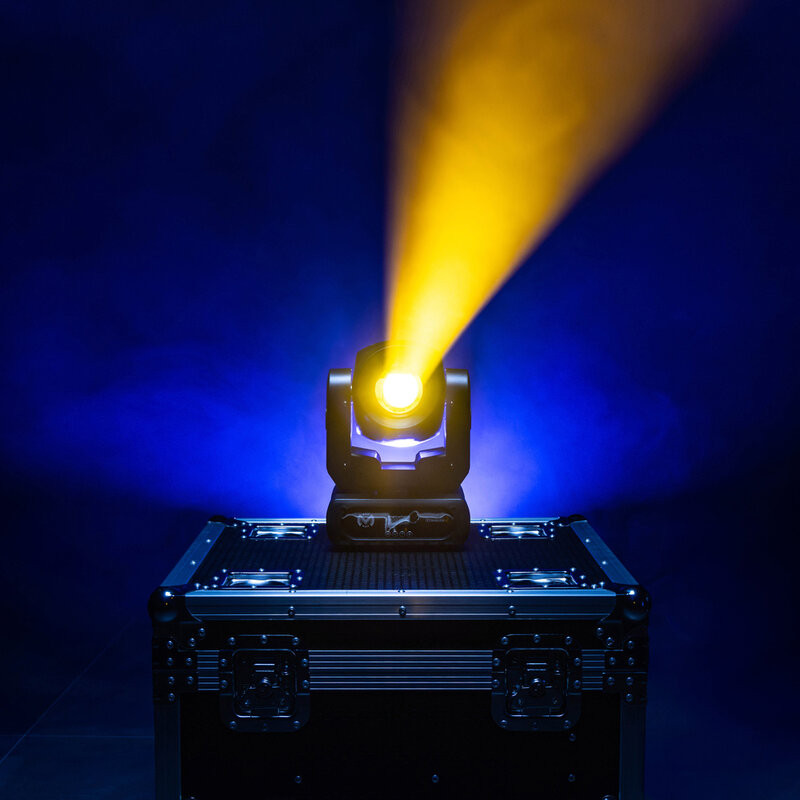

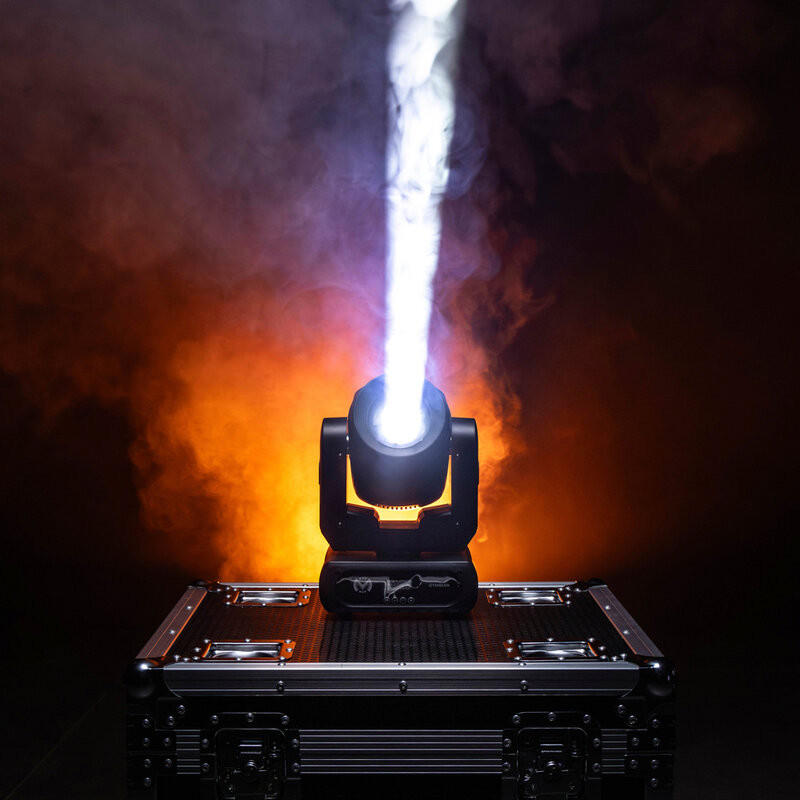

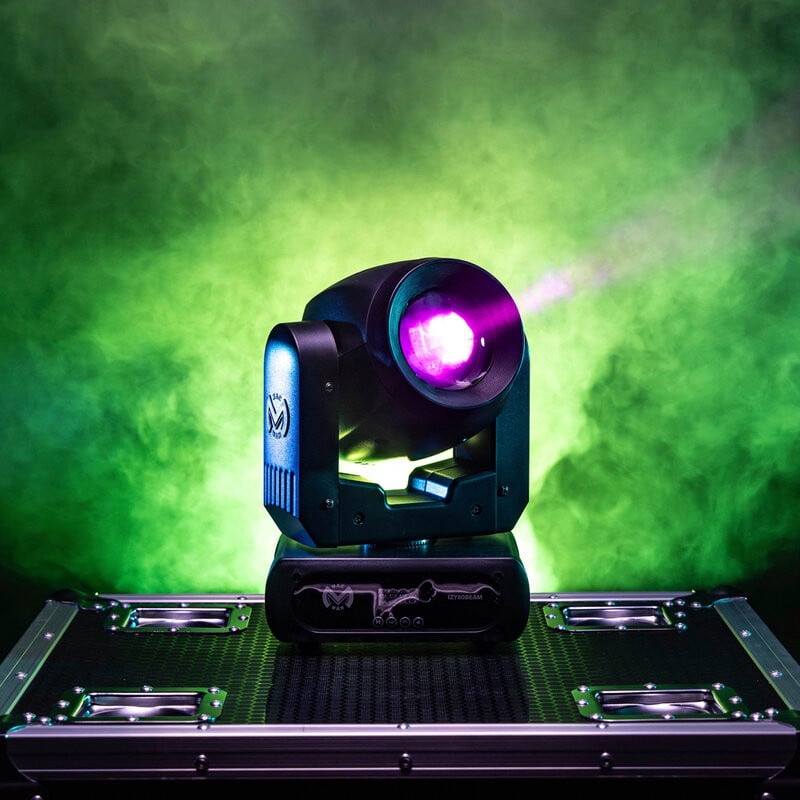

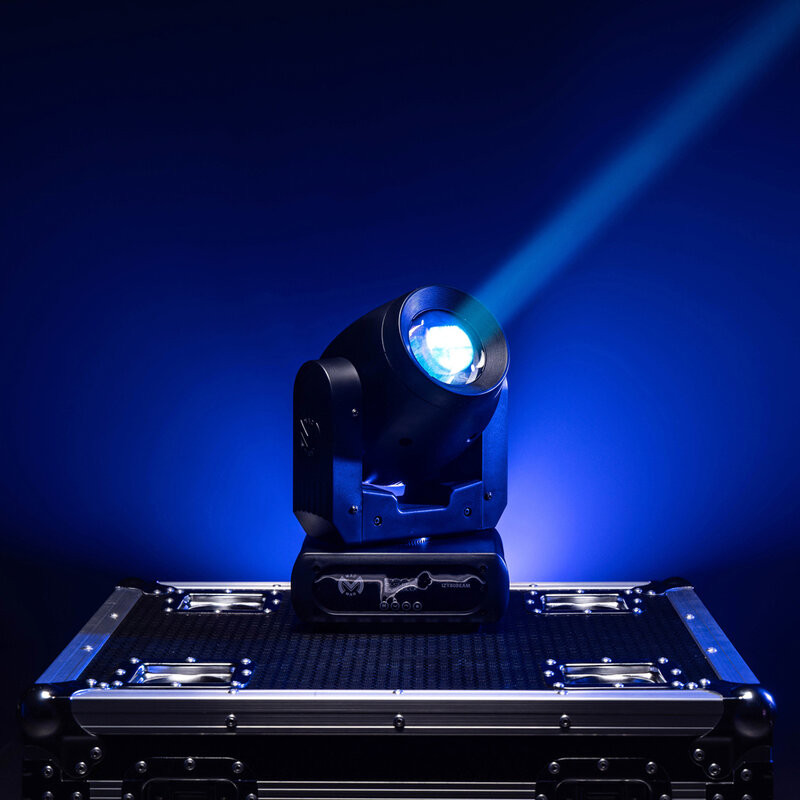

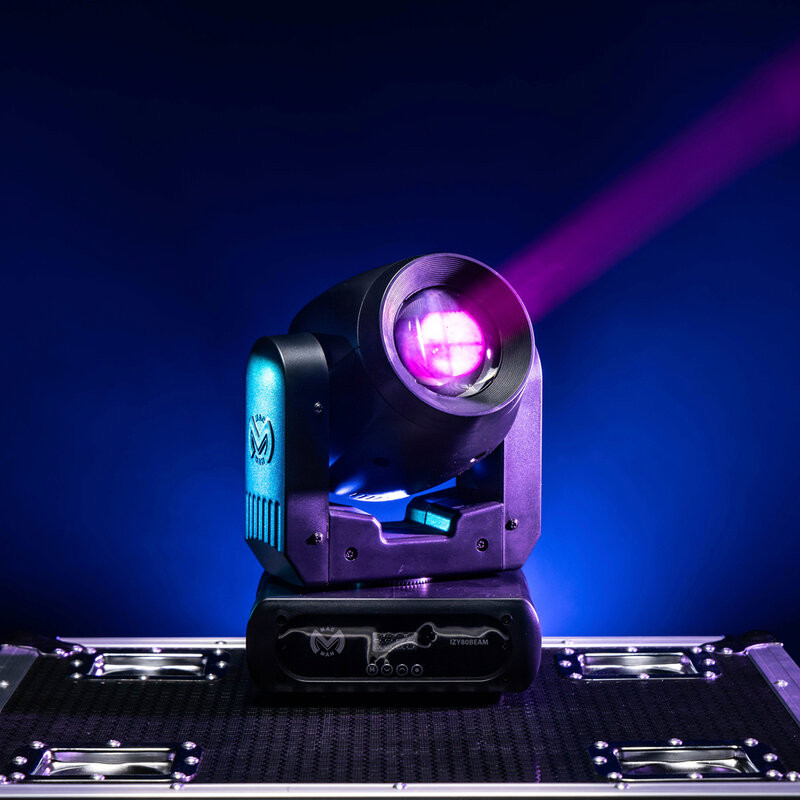

Mac Mah IZY 80 Beam is a Beam type moving head with LED source, designed to offer powerful lighting and spectacular effects. It uses a high-power 80 W white LED, with a lifespan of over 50,000 hours. The light beam is extremely concentrated thanks to a 3° angle. The Pan and Tilt movements, respectively 540° and 190°, with 16-bit fine control, allow smooth transitions and wide space coverage.

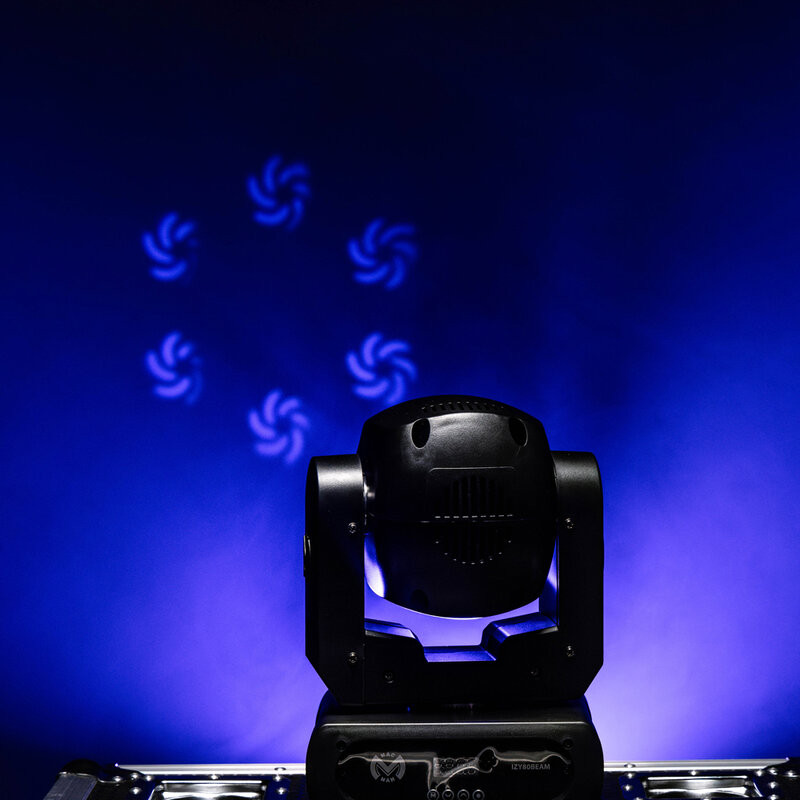

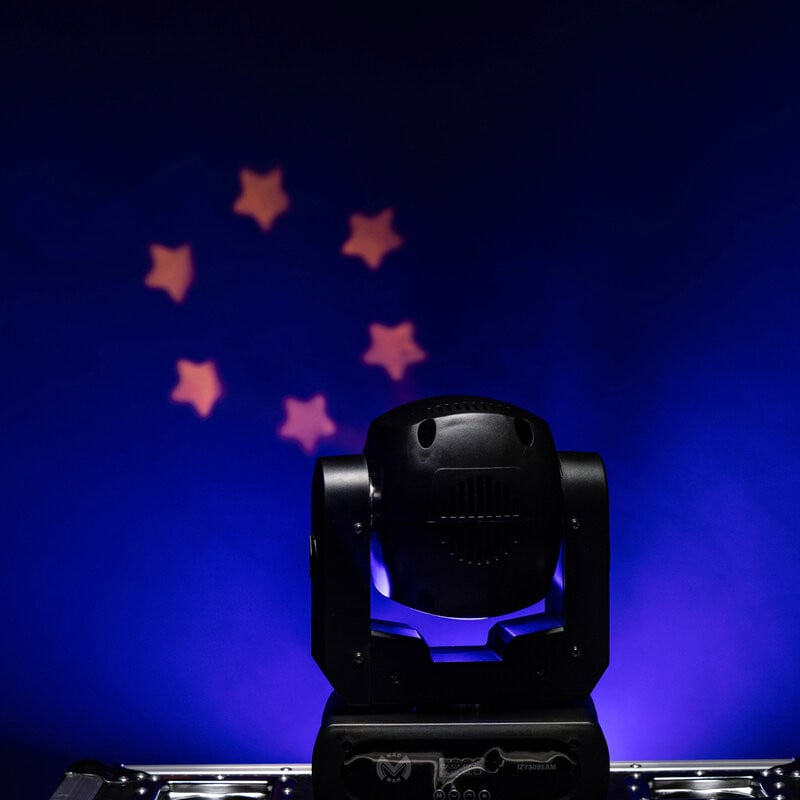

The color wheel offers seven shades plus white, with a rainbow effect, while the Gobo wheel has seven fixed patterns plus white, with a flickering function. The six-facet rotating prism enriches the dynamic effects, while the Strobe works up to 20 flashes per second. The linear dimmer, adjustable from 0 to 100%, allows precise control of the light intensity.

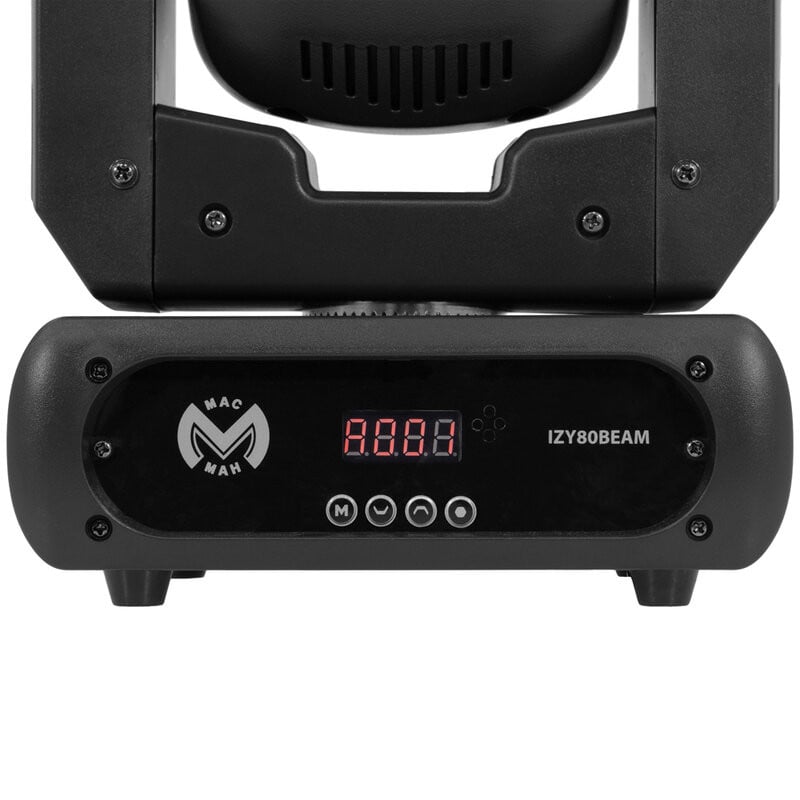

In terms of control modes, the device supports DMX512 on 12 channels, Master/Slave operation, automatic and sound activation. An LED display makes it easy to manage the parameters. Its compact size and weight of 4.06 kg make it easy to transport and install. Equipped with IP20 protection, it offers a perfect combination of power, versatility and reliability.

User benefits

• Ultra-concentrated beam with 3° angle
• Wide variety of lighting effects, Gobos, rotating prism, Strobe etc.
• Versatile control
• Compact size and low weight

Areas of use

• Events
• Shows
• Stage installations

Technical characteristics

• Series: IZY 80
• Protection: IP20
• Light source: 80 W high-power white LED
• Lifespan: more than 50,000 hours
• Beam angle: 3°
• Movements: Pan 540° / Tilt 190°
• Control signal resolution: 16 bit
• Color wheel: 7 colors + white, rainbow effect

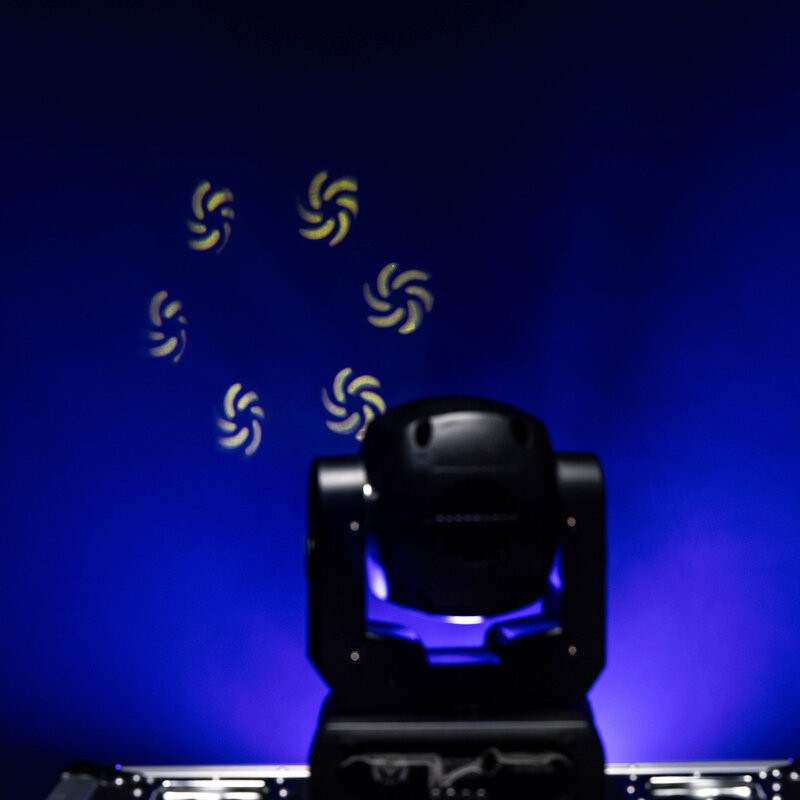

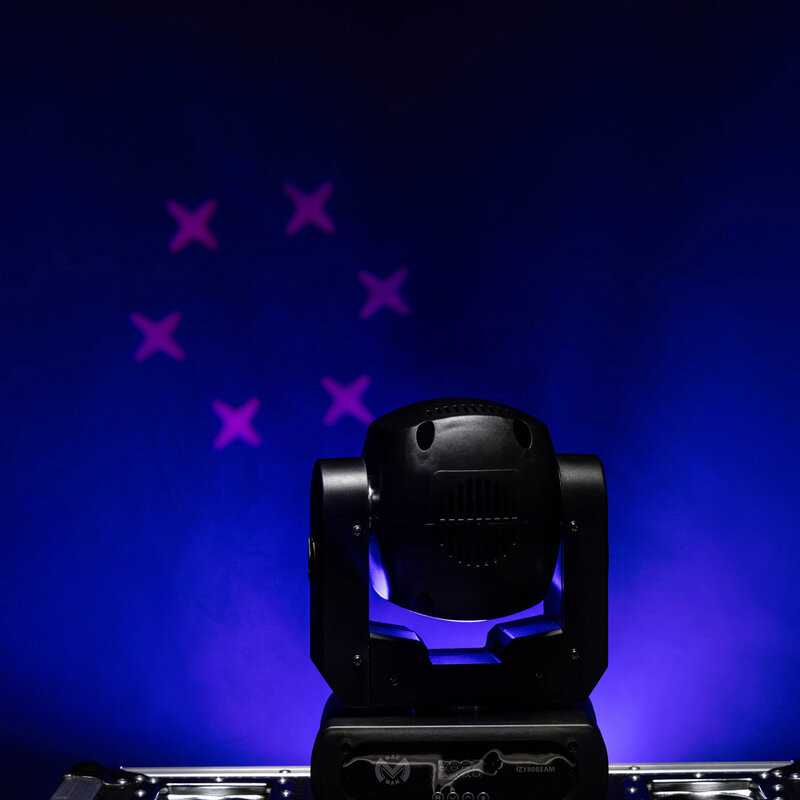

• Gobos: 7 fixed Gobos + white, Gobo shake
• Dimmer: linear from 0 to 100%
• Strobe: 20 flashes/s
• Prism: 6-facet rotating prism

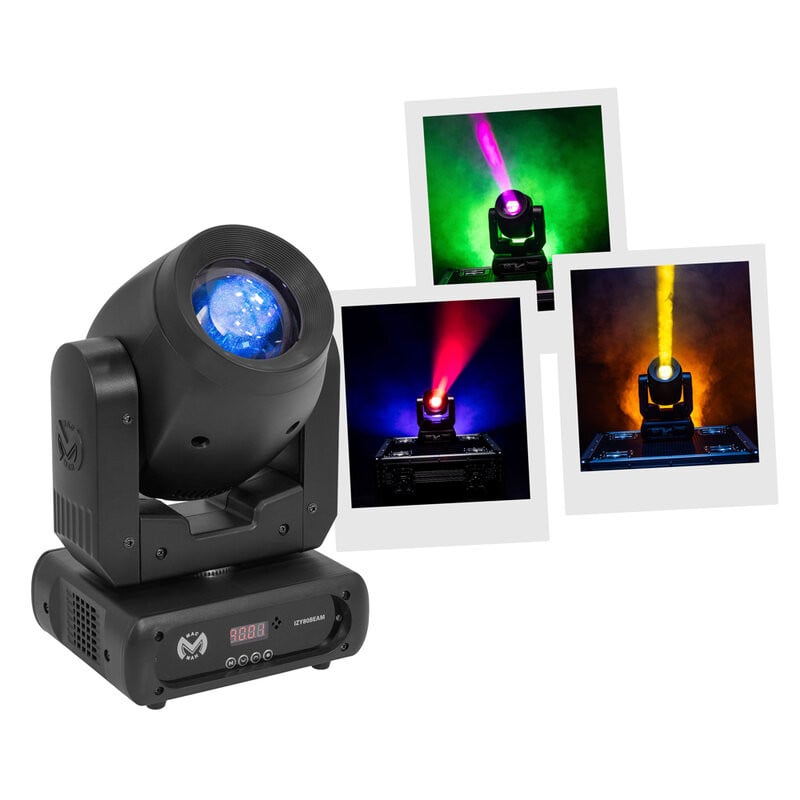

• Display: LED screen

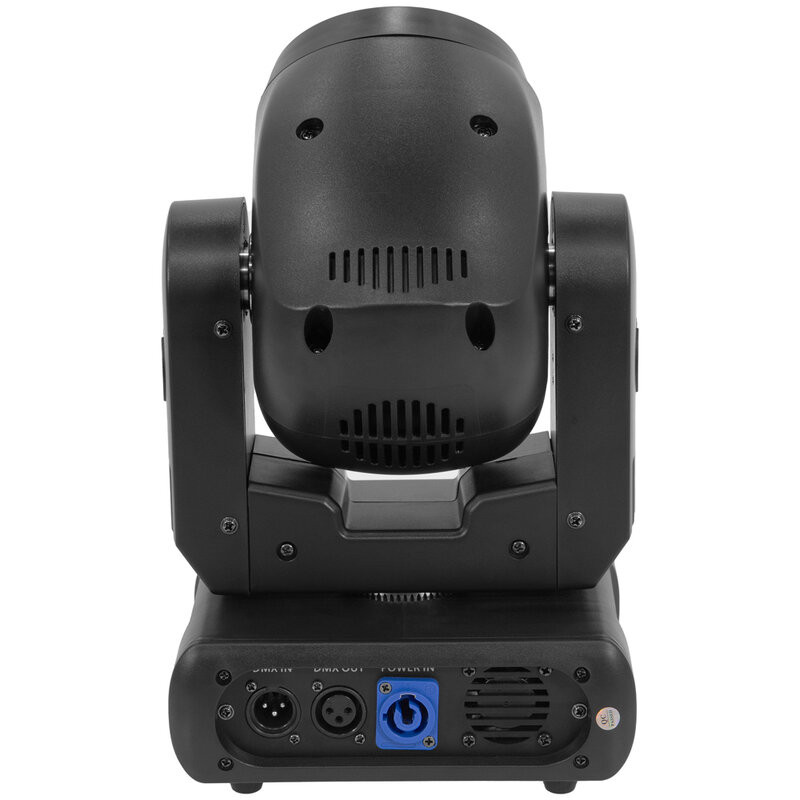

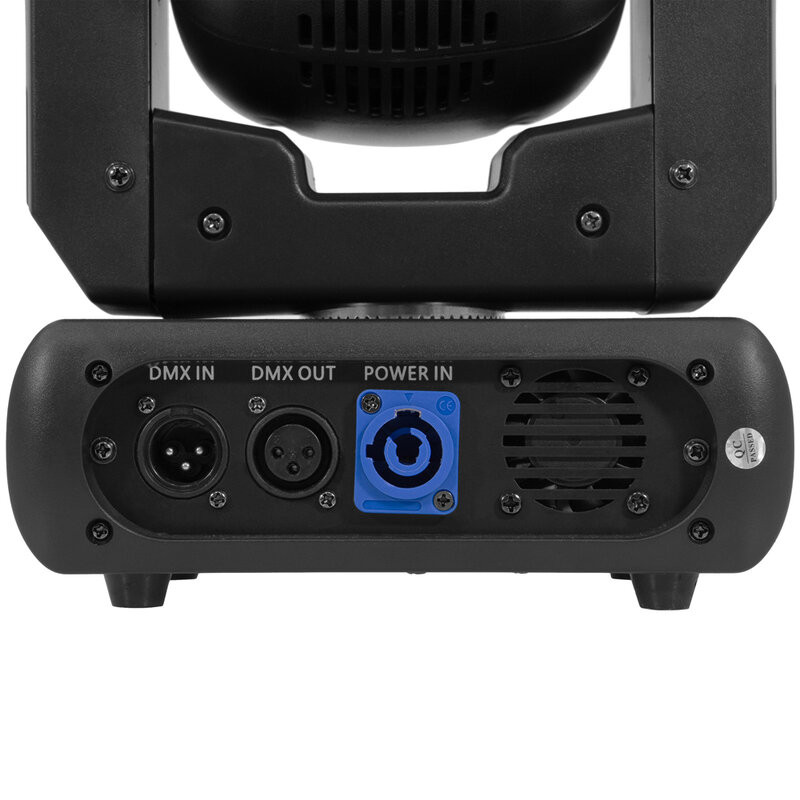

• Control modes: DMX512, Master/Slave, sound, auto
• DMX channels: 12

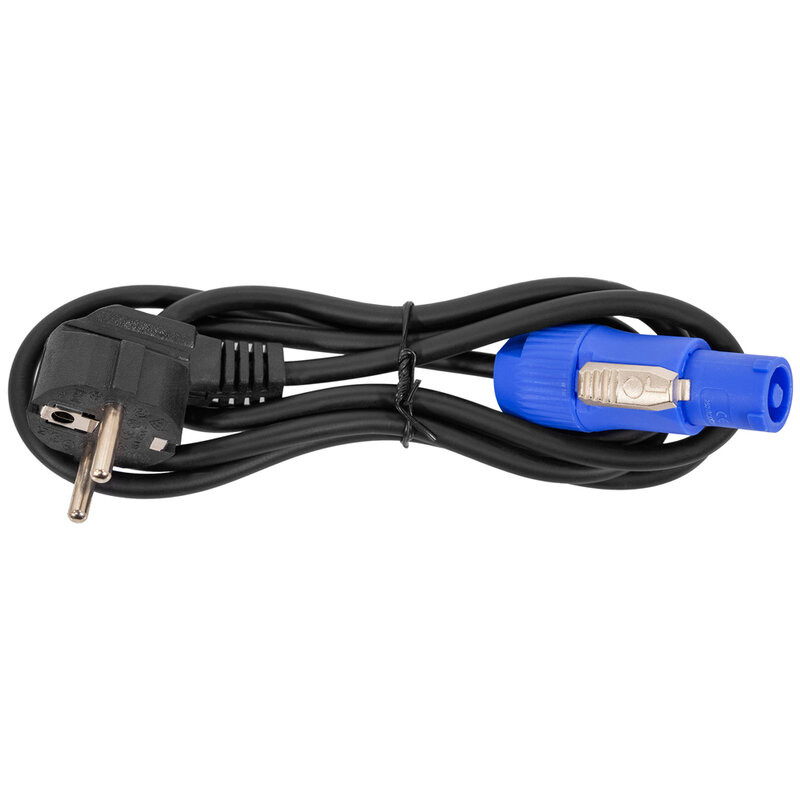

• Power supply: 100 - 240 V_AC 50/60 Hz
• Power consumption: 130 W
• Dimensions: 32 x 23.5 x 15 mm
• Weight: 4.06 kg
