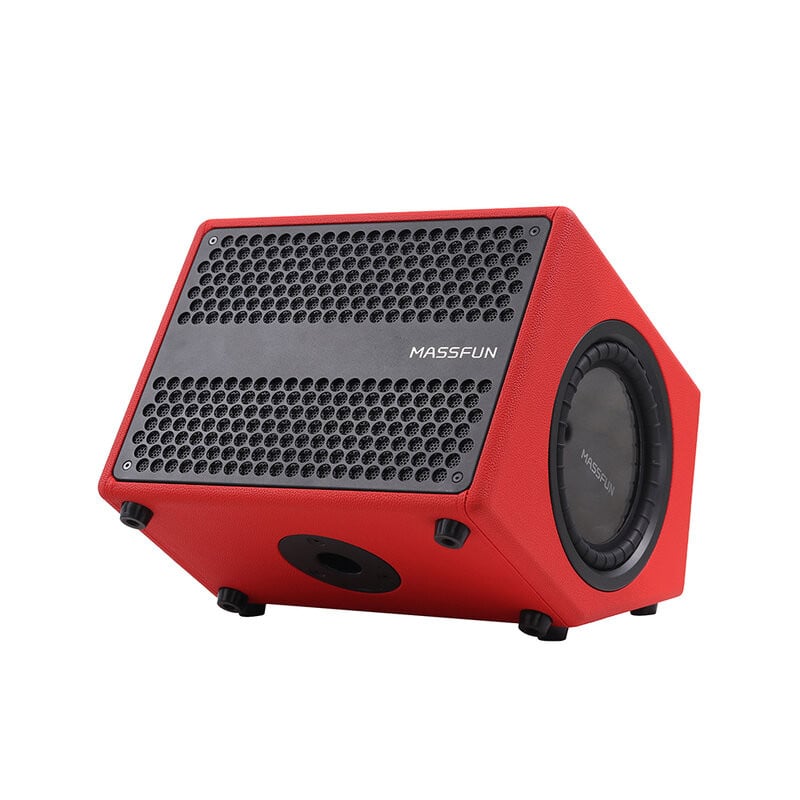

MUSICCUBE - M1 - Red

The M1 is a compact and portable outdoor speaker, designed for street performers and outdoor parties, offering a full range of features and exceptional sound. Featuring a solid wood cabinet, it is equipped with a variety of plug-in interfaces for musical instruments and microphones, with a special feature being two passive flat-diaphragm woofers positioned on the left and right sides of the speaker, designed to enhance bass response.

Capable of delivering 200 W, the M1 has one 8" woofer and four 3" mid-tweeter units, in addition to the two passive speakers mentioned above.

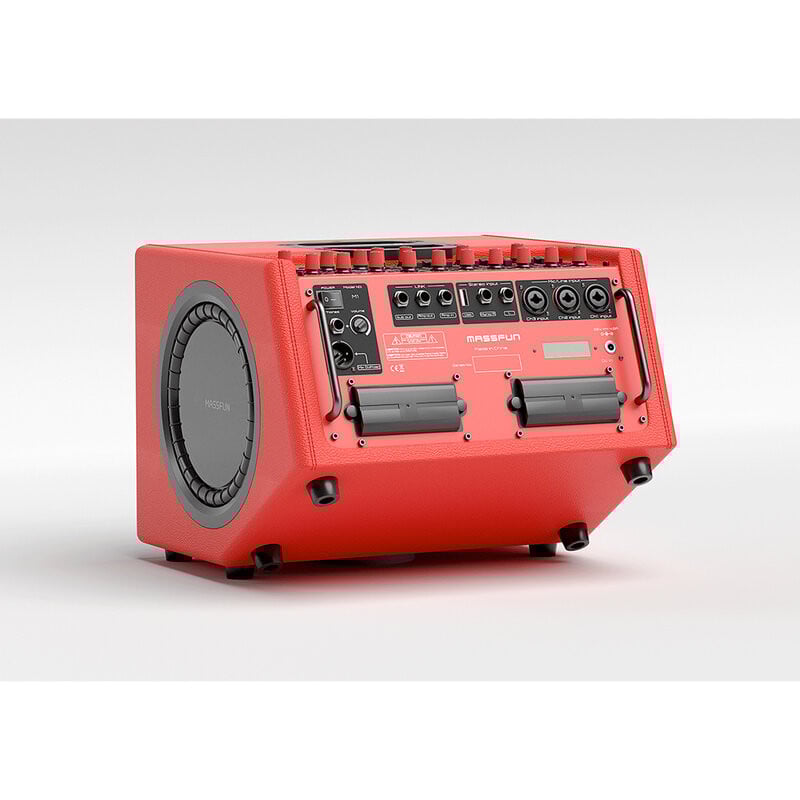

With three independent microphone, instrument (guitar), and line input channels on combo connectors, you can choose to switch between vocal and instrument inputs at will. One channel allows for microphone / instrument EQ adjustment. The MIC channels are designed to simulate the sound of a condenser microphone using the latest Musiccube tone modeling technology. This technology allows a standard dynamic microphone to replicate the sound quality of a condenser microphone.

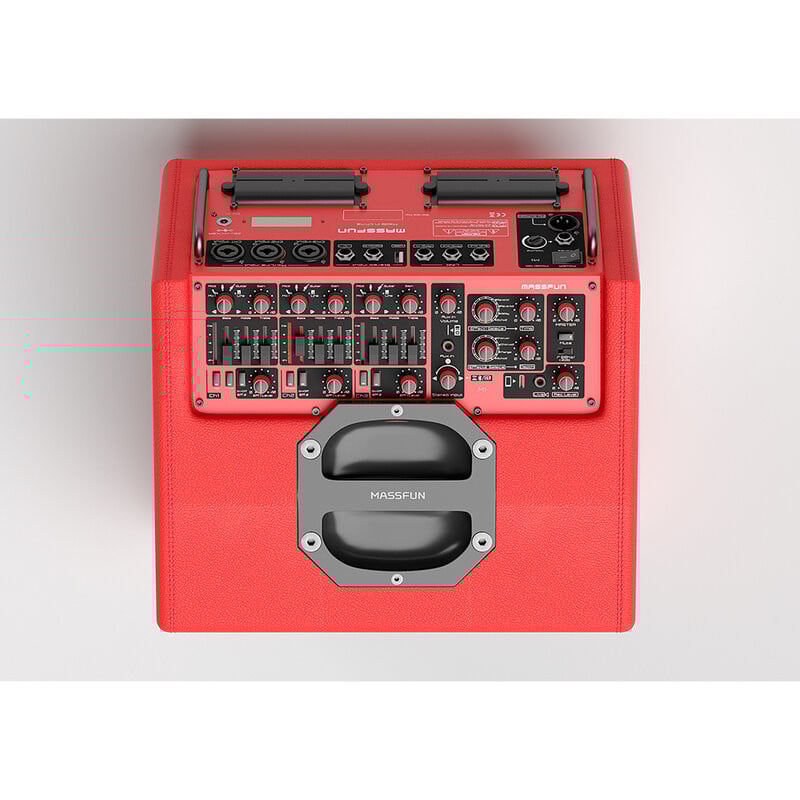

In addition, there are inputs for a USB flash drive, an AUX IN interface, and Bluetooth wireless connectivity. There is also a triple control for bass, mid, and treble with linear sliders and a VU meter for each channel.

A key feature is the ability to connect a mobile device via the USB TYPE-C port for internal recording and live streaming.

The main line output offers the option of selecting a high-pass filter or a standard full-range output. When using the 6.35 mm jack interface for the subwoofer output, the speaker will automatically enter the low-cut mode.

Power is provided by two sets of replaceable, high-capacity, long-lasting lithium batteries, and a power-saving mode can further extend battery life.

A soft bag is included.

Color: red.

User benefits

• Portability
• Low-end performance achieved by adding two passive radiators on the left and right sides of the cabinet
• Versatility due to a variety of input interfaces that can be connected to various types of musical instruments and microphones, including condenser microphones thanks to the presence of switchable Phantom power
• Possibility of use without an electrical network thanks to the internal batteries
• Advanced effects such as hall, reverb, delay, echo, chorus and flanger

Areas of use

• Street artists and outdoor shows
• Concerts and live shows

Technical characteristics

• Power: 200 W rated / 300 W peak
• Frequency range: 50 Hz - 17.5 kHz
• Audio inputs:
  • 3 x MIC / line (XLR / TRS)
  • 1 x AUX 3.5 mm mini-jack
  • 1 x Bluetooth
  • 1 x USB
• Outputs: phones, line,  1 x 6.35 mm bass output (TRS), Mix D.I. (post)
• Additional features: Type-C live streaming or internal recording, balanced output
• Effects: reverb 1, reverb 2, echo 1, echo 2, delay, chorus 1, chorus 2, flange
• Speaker drivers: 1 x 8" woofer, 4 x 3" tweeter
• Power supply: 100 - 240 V_AC, 26 V_DC 4.8 A
• Total battery capacity: 2 x 2550 mAh
• Color: red
• Softbag included
• Dimensions (L x W x H): 36.5 x 34 x 27 cm
• Net weight: 10.5 kg
