Neutrik - NL2FXX-W-S

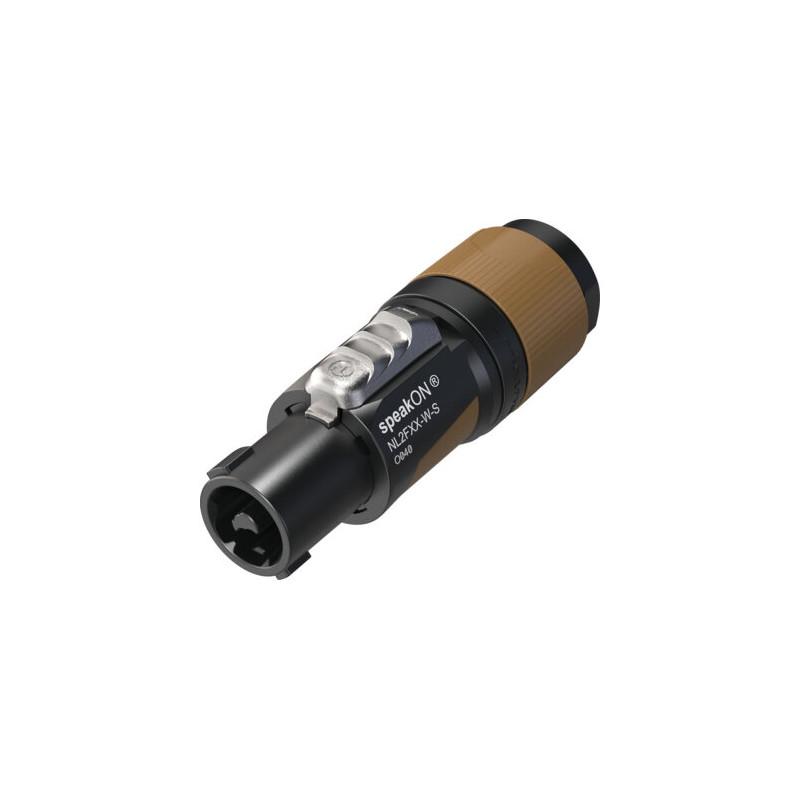

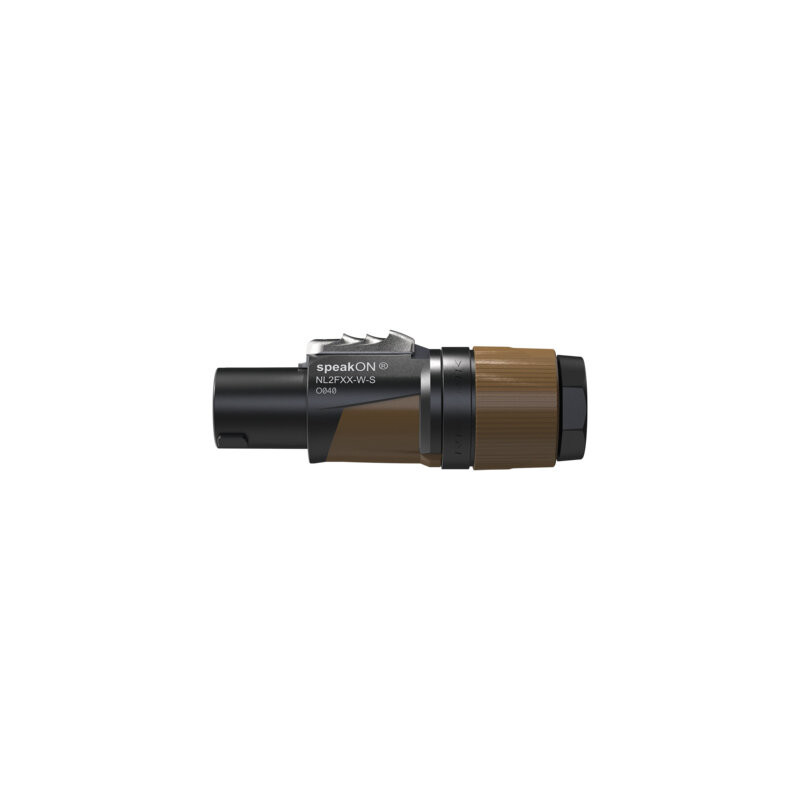

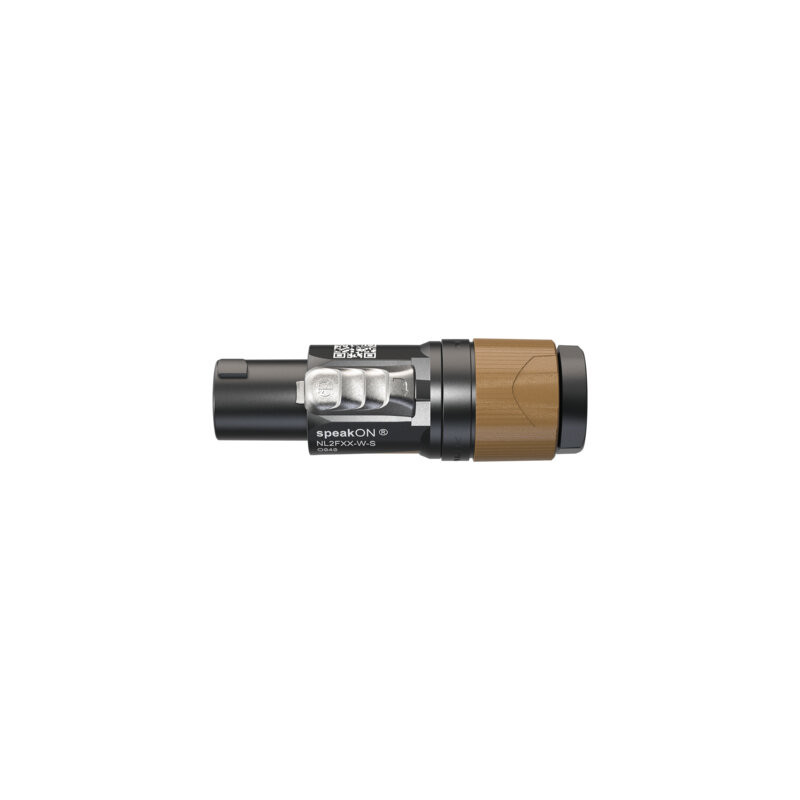

This 2-pole speakON connector is designed for audio cables and is ideal for loudspeaker connections in professional environments. Its design includes screw terminals for wire connection and a twist-lock system that ensures a secure and stable connection. It is suitable for cables with diameters between 6 and 12 mm and supports high currents, making it an ideal choice for high-power audio systems.

Its construction is solid and designed to last, with materials such as copper alloy for the contacts, polyamide for the body, and a zinc die-cast locking element. Its electrical and mechanical characteristics include very low contact resistance, high insulation resistance, and an average lifespan of approximately 5000 connection cycles.

N.B. This connector is not intended for use as an AC power connector.

Main features

• Mates with 2-pole chassis connector as well as 4-pole chassis connector (contacts +1/-1)
• Up to 37 A_RMS current rating
• Ergonomic design with slip-proof two-component molded housing
• Unique Neutrik locking bushing and strain relief for cable diameters 6 to 12 mm
• IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
• Superior NEUTRIK quality standard, extremely robust and reliable
• Easy and reliable twist lock system
• Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
• Improved kink protection by two-component bushing

Technical characteristics

Connector series: speakON 2-pole

Electrical

• Contact resistance: ≤ 2 mohm
• Dielectric strength: 2.8 kV_AC
• Insulation resistance: > 10 Gohm (initially)
• Number of electrical contacts: 2
• Rating Europe (IEC 61984): 37 A / 250 V_AC
• Attention: not for use as AC mains or power supply connector
• Caution: not for interrupting current

Mechanical

• Cable outer diameter: 6 – 12 mm
• Lifetime: typically 5000 mating cycles
• Wire size (metric): 1.5 – 4 mm²
• Wire size (AWG): 17 – 11 AWG
• Locking device: twist lock
• Termination: screw-type terminals

Material

• Contact plating: silver (Ag)
• Contacts: copper alloy
• Insert: polyamide (PA6.6)
• Locking element: zinc die-cast
• Shell: polyamide (PA6) / TPE
• Strain relief: polyketone
• Bushing: polypropylene / TPE

Environmental

• Temperature range: -33 to 80 °C
• Protection class: IP20
• Flammability (UL94): V-0
