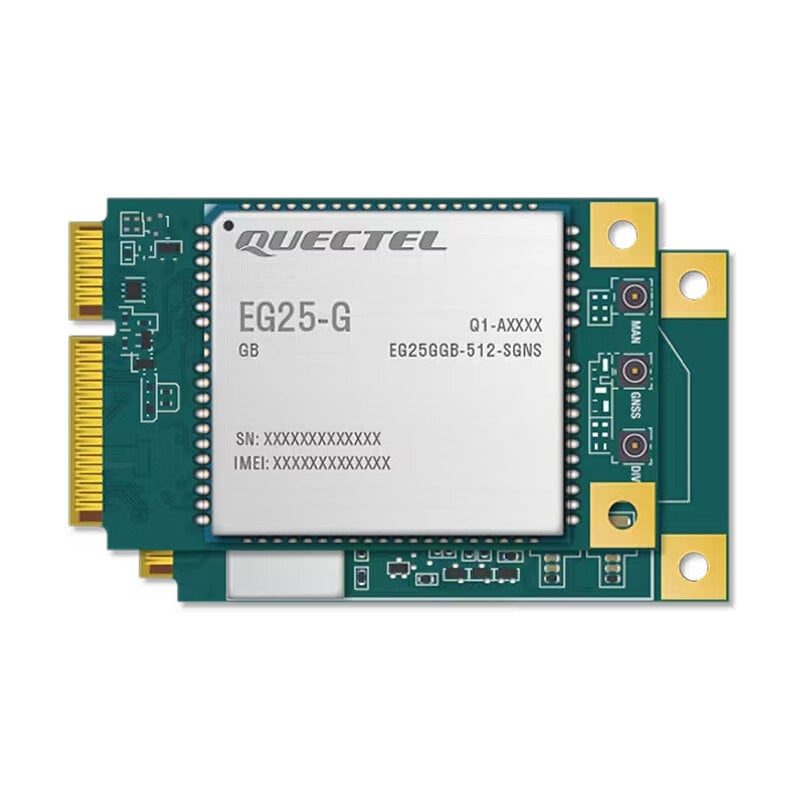

Compact, plug-and-play, high-performance 4G LTE module designed for use with all Taurus series media players. It offers reliable connectivity even without Wi-Fi or LAN networks.
By simply adding an external SIM card, you can access your Taurus media player from anywhere, anytime, via 4G. No additional drivers are required for installation.
Main features
- Compatible with Taurus T-Series media players (e.g., TB1, TB2, T30, T50, T60, TB30, TB40, TB50, TB60)
- 4G LTE (Cat. 4) connectivity with downlink speeds up to 150 Mbps and uplink speeds up to 50 Mbps
- Antenna included with all Taurus series products
- Backward compatible with EDGE and GSM / GPRS networks for seamless connectivity in areas without 3G or 4G coverage
- Integrated multi-constellation GNSS receiver with support for GPS, GLONASS, BeiDou, Galileo, and QZSS for fast and precise positioning
- Mini PCIe form factor, simplifying integration with IoT and M2M applications
- Supports a wide range of Internet protocols and industry-standard interfaces, ensuring broad compatibility with various devices and systems
Technical characteristics
Frequency bands
- LTE FDD: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28
- LTE TDD: B38 / B39 / B40 / B41
- UMTS: B1 / B2 / B4 / B5 / B6 / B8 / B19
- GSM: B2 / B3 / B5 / B8
Data rates
- LTE FDD: max. 150 Mbps (DL) / max. 50 Mbps (UL)
- LTE TDD: max. 130 Mbps (DL) / max. 30 Mbps (UL)
- UMTS: DC-HSDPA max. 42 Mbps (DL), HSUPA max. 5.76 Mbps (UL), WCDMA max. 384 kbps (DL) / max. 384 kbps (UL)
- GSM EDGE: max. 296 kbps (DL) / max. 236.8 kbps (UL)
- GSM GPRS: max. 107 kbps (DL) / max. 85.6 kbps (UL)
Voice features
- Speech codecs: HR, FR, EFR, AMR, AMR-WB
- Echo arithmetic: cancellation and noise suppression
- Audio: digital audio and Voice over LTE (optional)
Interfaces
- 2 x UART (Main + Debug)
- USB 2.0 with high speed up to 480 Mbps
- (U)SIM: 1.8 V / 3 V (U)SIM interface
- Digital audio through PCM (optional)
- 2 x NETLIGHT (NET_STATUS and NET_MODE)
- 2 x ADC
- 2 x SDIO (Wi-Fi and SD card)
- RESET, PWRKEY
- Solder pads for Primary, Rx-diversity, GNSS antennas
Enhanced features
- Wi-Fi via SDIO (optional)
- BT4.0 via UART / PCM
- eCall, DTMF, QuecFile
- Audio playback / recording
- (U)SIM card detection
- DFOTA: Delta firmware upgrade Over-The-Air
- GNSS: GPS / GLONASS / BeiDou / Galileo / QZSS (optional)
Electrical characteristics
- Output power:
- Class 4 (33 dBm ±2 dB) for GSM850
- Class 4 (33 dBm ±2 dB) for EGSM900
- Class 1 (30 dBm ±2 dB) for DCS1800
- Class 1 (30 dBm ±2 dB) for PCS1900
- Class E2 (27 dBm ±3 dB) for GSM850 8-PSK
- Class E2 (27 dBm ±3 dB) for EGSM900 8-PSK
- Class E2 (26 dBm ± 3 dB) for DCS1800 8-PSK
- Class E2 (26 dBm ± 3 dB) for PCS1900 8-PSK
- Class 3 (24 dBm +1/-3 dB) for WCDMA bands
- Class 3 (23 dBm ±2 dB) for LTE-FDD bands
- Class 3 (23 dBm ± 2dB) for LTE-TDD bands
- Power Consumption: 20 μA (power off), 3 mA (sleep, typical), 22 mA (idle)
- Sensitivity: detailed per band (LTE, WCDMA, GSM) – available on request or in full datasheet
Software features
- Drivers: USB serial, RIL (Android), NDIS (Windows), ECM / Gobinet /qmi wwan (Linux)
- Protocols: TCP, UDP, PPP, FTP, HTTP, HTTPS*, NTP, PING, QMI, NITZ, SMTP, CMUX*, MMS*, FTPS*, SMTPS, SSL*, FILE*
Approvals
- Carrier: Deutsche Telekom*, Verizon* / AT&T* / T-Mobile* / Sprint*
- Regulatory: GCF*, CE*, FCC* / PTCRB*, IC*, Anatel*, IFETEL*, CCC/SRRC* / NAL*, KC*, NCC*, JATE* / TELEC*, RCM*, FAC*, NBTC*, ICASA*
- Other: RoHS, WHQL
General features
- Supply voltage: 3.3 - 4.3 V (typ. 3.8 V)
- Package: LGA
- 3GPP: E-UTRA Release 11, TS27.007, 27.005
- Temperature range: -40 to +85 °C
- Dimensions: 29 x 32 x 2.4 mm
- Weight: approx. 4.9 g
* Under development
