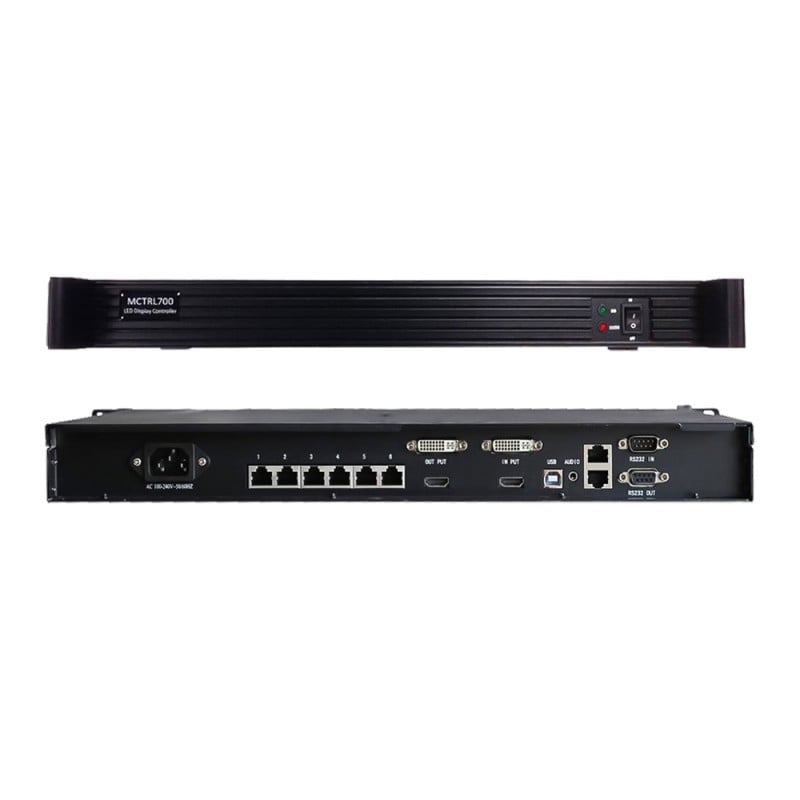

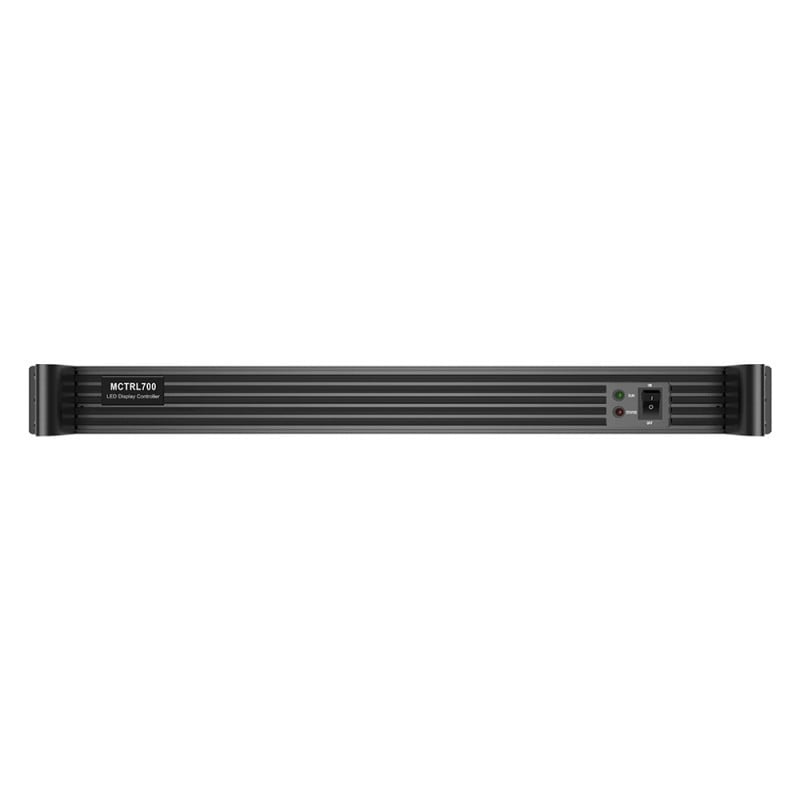

NovaStar - MCTRL700

Video controller for LED displays developed by NovaStar. Loading capacity for a single source is 1920x1200 pixels @ 60 Hz with 8-bit video, which becomes 1440x900 @ 60 Hz with 12-bit video source. There are three inputs: 1 x SL-DVI (HDCP 1.4 compatible), 1 x HDMI 1.3 (HDCP 1.4 compatible) and 1 audio input. The outputs are instead 6 Gigabit Ethernet ports on RJ45 connector with capacity up to 0.65 Mpixel per port, 1 x HDMI and 1 x SL-DVI for cascade connection. MCTRL700 uses USB IN to connect to a PC and serial UART to daisy chain (up to 20 devices!). MCTRL700 is mainly suitable for applications in the rental and fixed installation industries, such as concerts, live broadcasts, monitoring centers, olympic games, sports arenas and more. Point-to-point brightness and color calibration provided by NovaLCT and NOVACLB software. This software performs brightness and color calibration on each LED, reducing color discrepancies and ensuring uniform brightness and color across the entire display for a higher quality picture.

• 3 × Input connectors
    - 1×SL-DVI (IN-OUT)
    - 1×HDMI 1.3 (IN-OUT)
    - 1×AUDIO
• 6×Gigabit Ethernet outputs
• 1×Type-B USB control port
• 2×UART control ports
• Used for device cascading. Up to 20 devices can be cascaded.
• Pixel level brightness and chroma calibration.
• Working with NovaLCT and NovaCLB, the controller supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.

Input

DVI IN: 1x SL-DVI input connector

• Resolutions up to 1920×1200 @ 60 Hz
• Custom resolutions supported
• Maximum width: 3840 (3840×600 @ 60 Hz) Maximum height: 3840 (548×3840 @ 60 Hz)
• HDCP 1.4 compliant
• DOES NOT support interlaced signal input.

HDMI IN: 1x HDMI 1.3 input connector

• Resolutions up to 1920×1200 @ 60 Hz
• Custom resolutions supported Maximum width: 3840 (3840×600 @ 60 Hz) Maximum height: 3840 (548×3840 @ 60 Hz)
• HDCP1.4 compliant
• DOES NOT support interlaced signal input.

AUDIO: Audio input connector

Output

6x RJ45 Gigabit Ethernet ports

• Capacity per port up to 650,000 pixels
• Redundancy between Ethernet ports supported

HDMI OUT: 1x HDMI 1.3 output connector for cascading

DVI OUT: 1x SL-DVI output connector for cascading

Control

• USB: Type-B USB 2.0 port to connect to PC
• UART IN/OUT: Input and output ports to cascade devices. Up to 20 devices can be cascaded.

Power

•  AC 100V-240V~50/60 Hz
