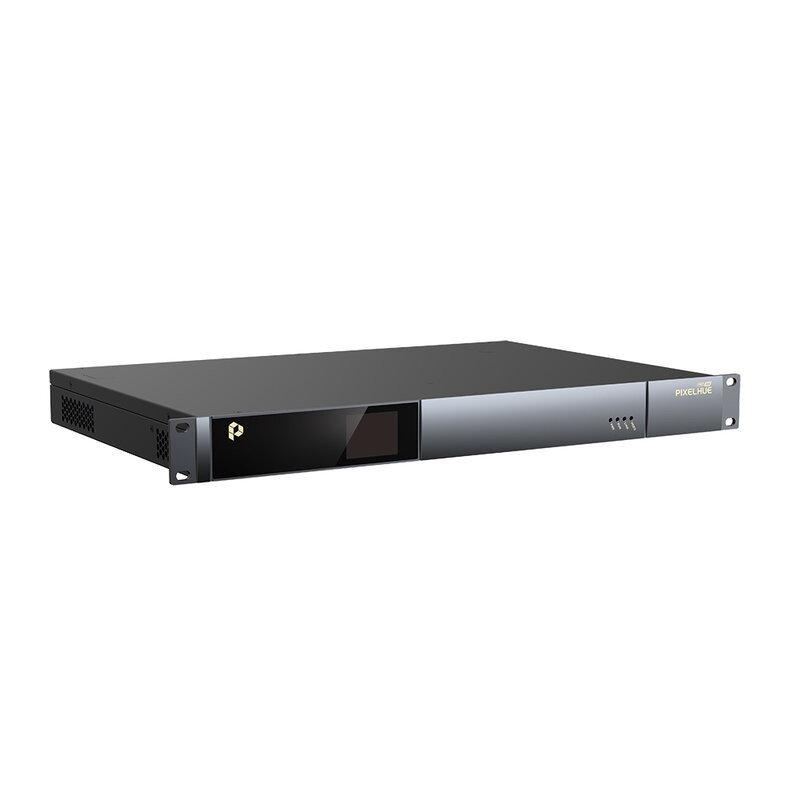

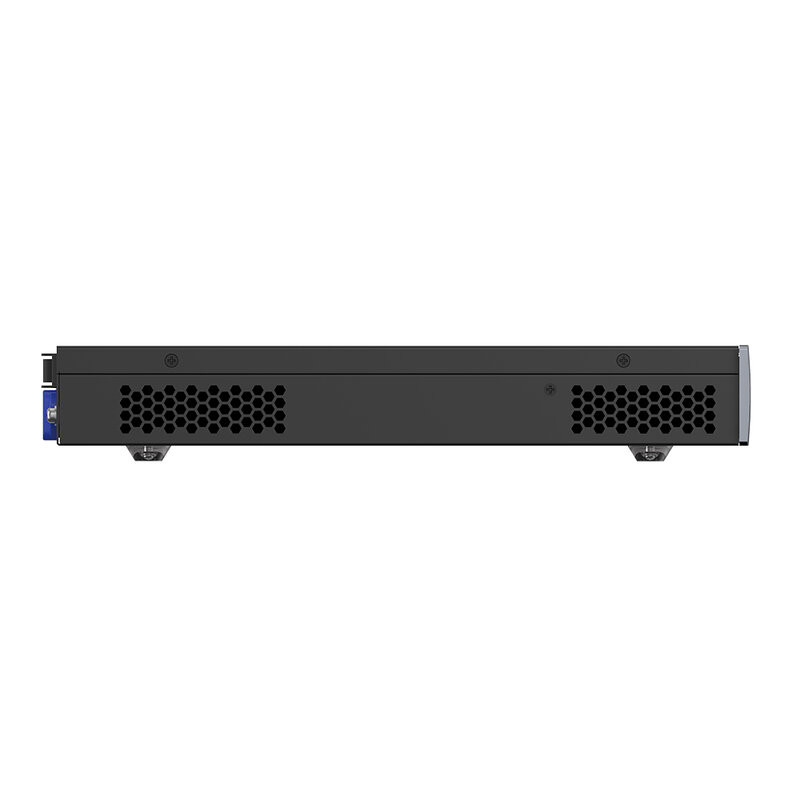

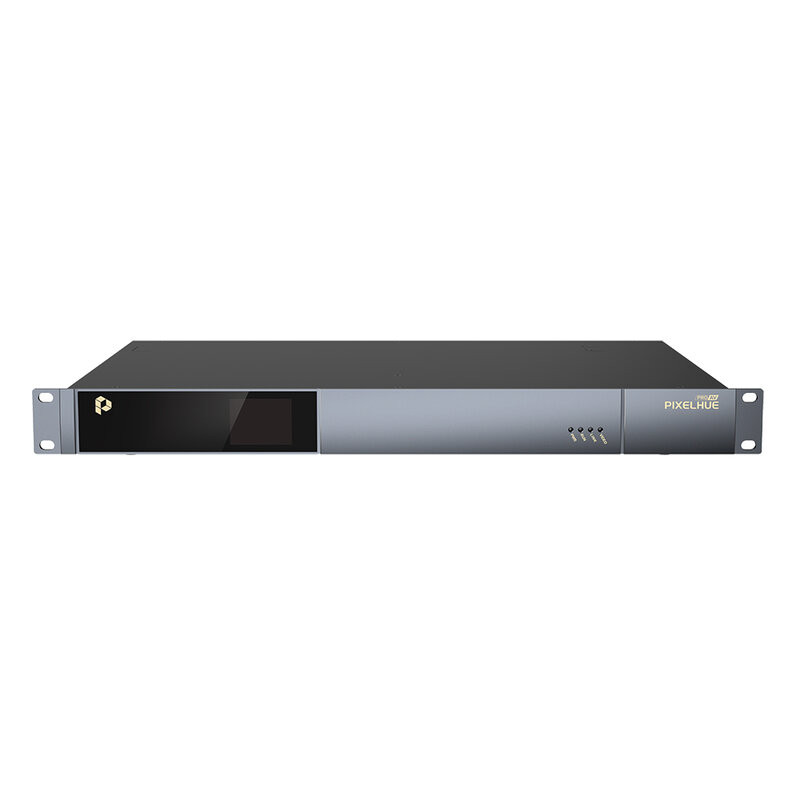

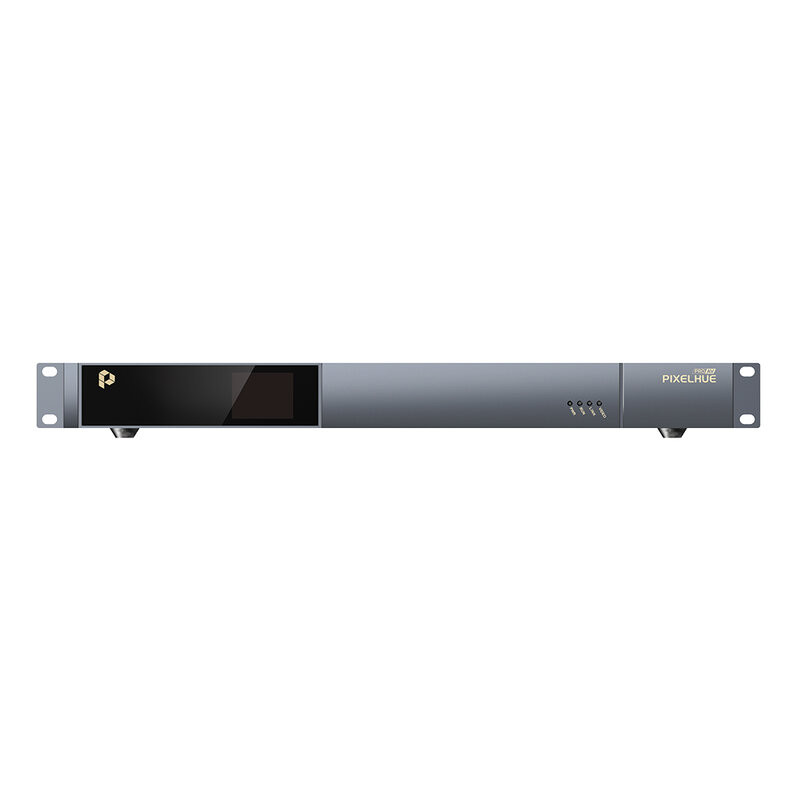

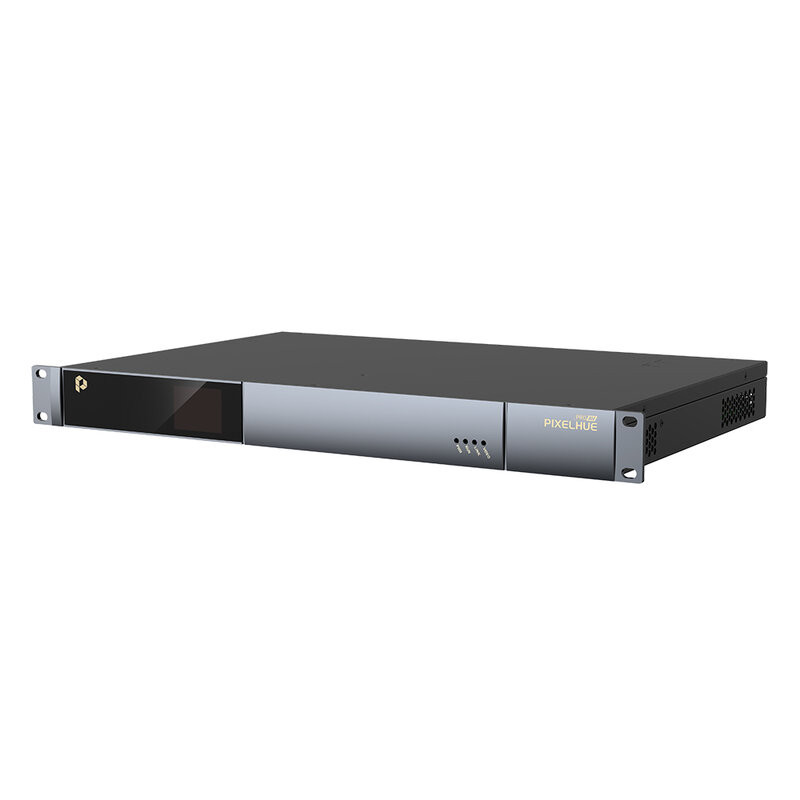

PIXELHUE - PD3-S20

The PD3-S20 is a dual-streaming LED controller and AVoIP processor, designed for professional environments requiring advanced, decentralized management of audiovisual content. Like the PD3-S10, it has no physical video inputs: it receives signals exclusively over an IP network, via an Ethernet port and a 1 Gbps optical port, compatible with RTSP, RTP, RTCP, and ONVIF protocols. This allows the PD3-S20 to directly decode video streams from distributed encoders, IP cameras, and media servers, even if they are located far from the LED walls being controlled.

The device simultaneously transmits two video streams: a high-quality primary stream, compressed with the proprietary InstSight algorithm, and a standard-quality secondary stream, based on H.264 / H.265. This dual-streaming architecture enables efficient content distribution with minimal latency (up to 2 ms) and reduced network bandwidth impact. The PD3-S20 can handle up to 24 video layers in Full HD resolution and supports a primary layer up to 4K @ 60 Hz, with nanosecond synchronization between nodes to ensure perfectly smooth, tear-free viewing.

Designed for complex and distributed installations, such as control rooms, conference centers, airports, and data centers, the PD3-S20 enables centralized content management even in multi-site scenarios, thanks to VLAN compatibility and the ability to configure each node as an autonomous control center. The visual management interface allows real-time content monitoring, free layout configuration, preset management, and remote control, even via tablet.

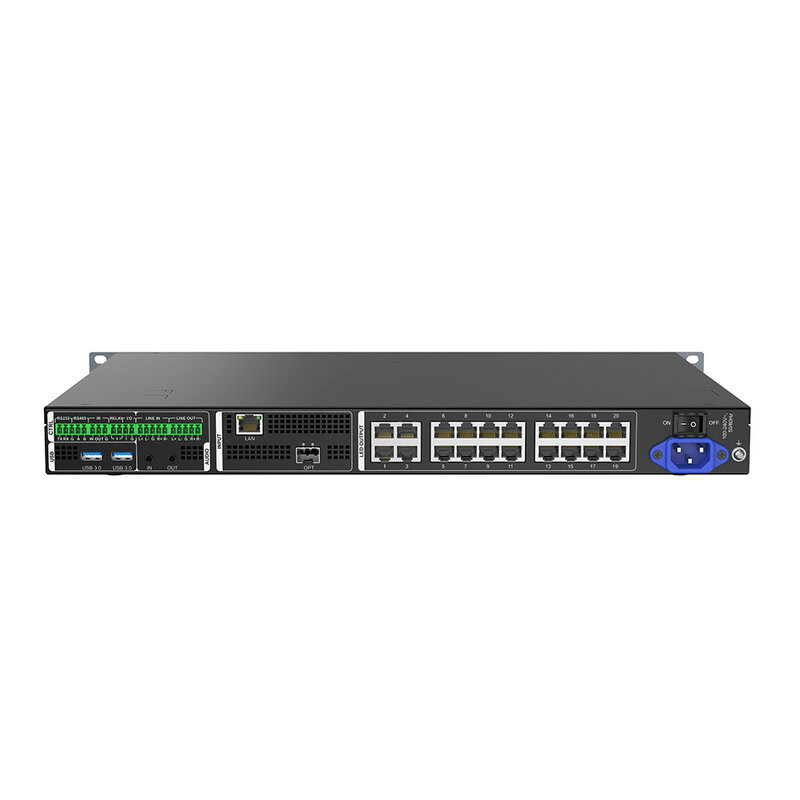

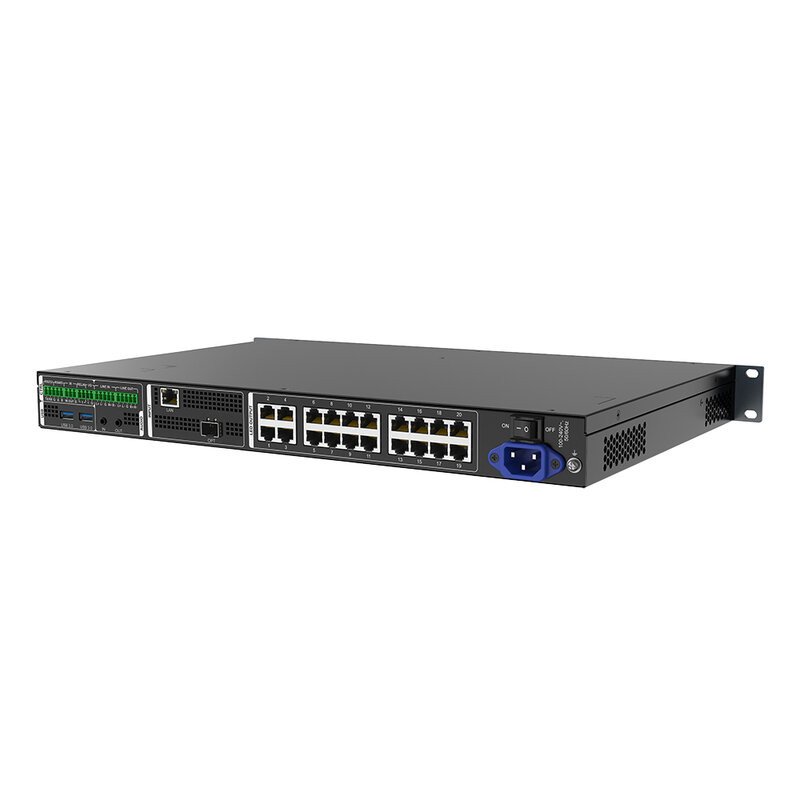

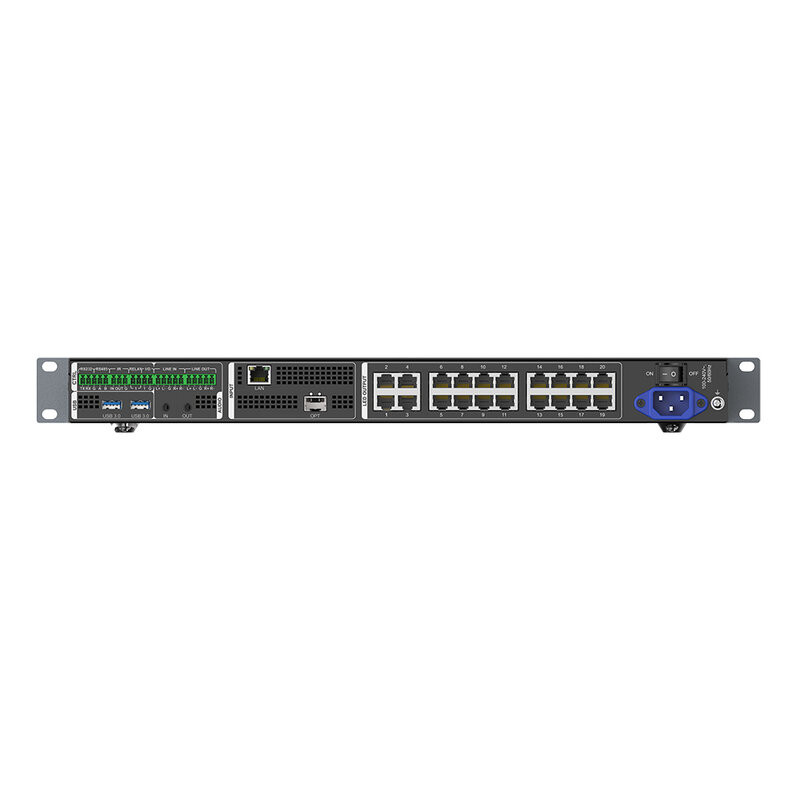

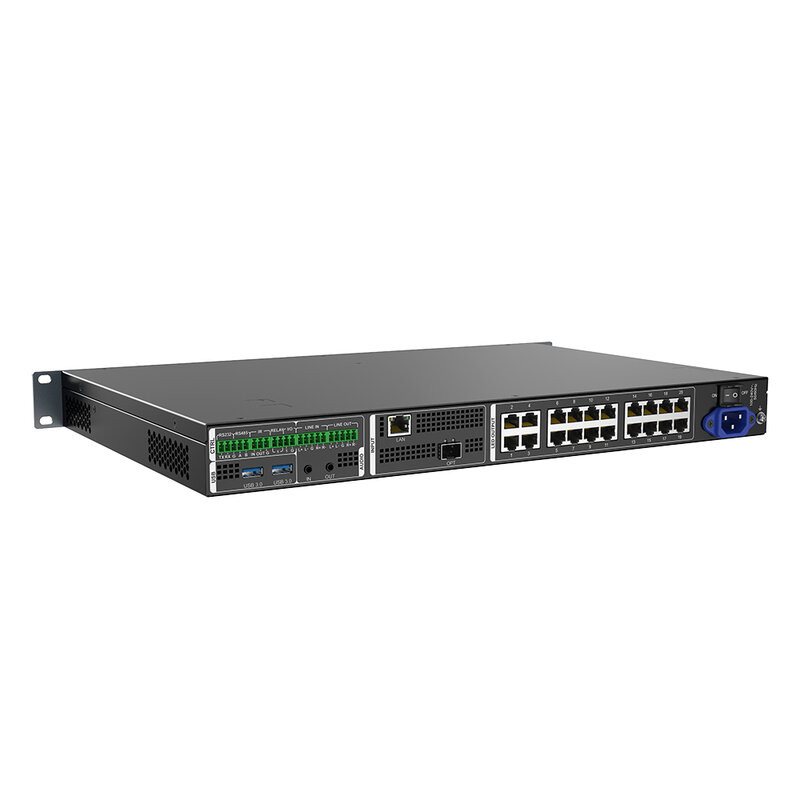

On the hardware front, the PD3-S20 is equipped with 20 Ethernet ports for direct loading of LED walls, with a maximum capacity of 13 Mpixel. It supports 8/10-bit 4:4:4 RGB output, even irregular LED screen configurations, custom EDID management, and a wide range of refresh rates. It also includes audio inputs and outputs (MIC / line IN, line OUT), with support for AAC and G.711 formats, as well as control connectors such as RS232, RS485, IR, I/O, and RELAY.

User benefits

• Simultaneous dual-stream transmission: high quality for LED walls, standard quality for monitoring and control
• Low latency thanks to InstSight technology: up to 2 ms for the primary stream
• Decentralized distribution: no central management server required
• Direct control of LED wall via 20 Ethernet ports
• Advanced visual management with customizable layouts, real-time preview, fast switching, and tablet control via the VICP platform
• Unlimited expansion thanks to IP architecture and VLAN support
• Security and reliability: each node can operate autonomously, with automatic backup
• Flexible screen configuration: supports multi-layer layouts, irregular LED screens, custom EDID management, and programmable presets
• Analog and IP audio inputs and outputs, with support for MIC/line IN, line OUT
• Nano-second synchronization between nodes for perfect display even in high-speed playback

Areas of use

• Control and command rooms
• Conference and communication centers
• Airport and railway environments
• Data IT centers and infrastructure
• Surveillance and monitoring operations
• Live events and permanent multimedia installations
• Public spaces with LED walls distributed across multiple floors or areas

Technical characteristics

• Layer specifications:
  • H.265 + InstSight: 24 x 1920 x 1080 @ 30 Hz secondary stream layers
  • 1 x 4096 x 2160 @ 60 Hz primary stream + 23 x 1920×1080 @ 30 Hz secondary layers
  • H.264 + InstSight: 16 x 1920 x 1080 @ 30 Hz secondary stream layers
  • 1 x 4096 x 2160 @ 60 Hz primary stream + 15 x 1920 x 1080 @ 30 Hz secondary layers
• MTBF: 456,412 hours
• Primary stream:
  • InstSight compression algorithm (self-developed)
  • Max. bandwidth: 716,800 Kbps
  • Min. latency: 2 ms
  • Average latency: 25 ms
• Secondary stream:
  • Self-developed H.264 / H.265 compression algorithm
  • Max bandwidth: 102,400 Kbps
  • Latency: ≤ 60 ms
• InstSight compression ratios:
  • ≤SL spec (1920 x 1080 @ 60 Hz, width ≤ 2048 px): smooth 6×, excellent 5×, ultimate 4×
  • >SL spec: smooth 400 Mbps, excellent 600 Mbps, ultimate 700 Mbps
  • Compression range: 6 x to 24 x
• Network:
  • 1 GE (Gigabit Ethernet), IPv4
  • Multicast IGMPv2 / IGMP snooping v2
  • RTP / RTCP over UDP
  • Unicast: up to 5 clients per encoder
  • Multicast supported
  • Peak bitrate: 950 Mbps
• Power:
  • Input: 100 - 240 V_AC 50/60 Hz
  • Max. consumption: 45 W
• Operating environment:
  • Temperature: 0 to 50 °C
  • Humidity: 5% to 85% RH, non-condensing
• Storage environment:
  • Temperature: -20 to 70 °C
  • Humidity: 5% to 95% RH, non-condensing
• Dimensions: 48.26 x 30 x 5.01 cm
• Net weight: 4.2 kg
• Total weight: 6.6 kg
• Packing box: 59.5 x 42 x 14 cm
• Accessories included:
  • 5 x Phoenix connectors
  • 1 x silicone dustproof plug
  • 1 x power cable
  • 1 x certificate of approval
  • 1 x safety manual
