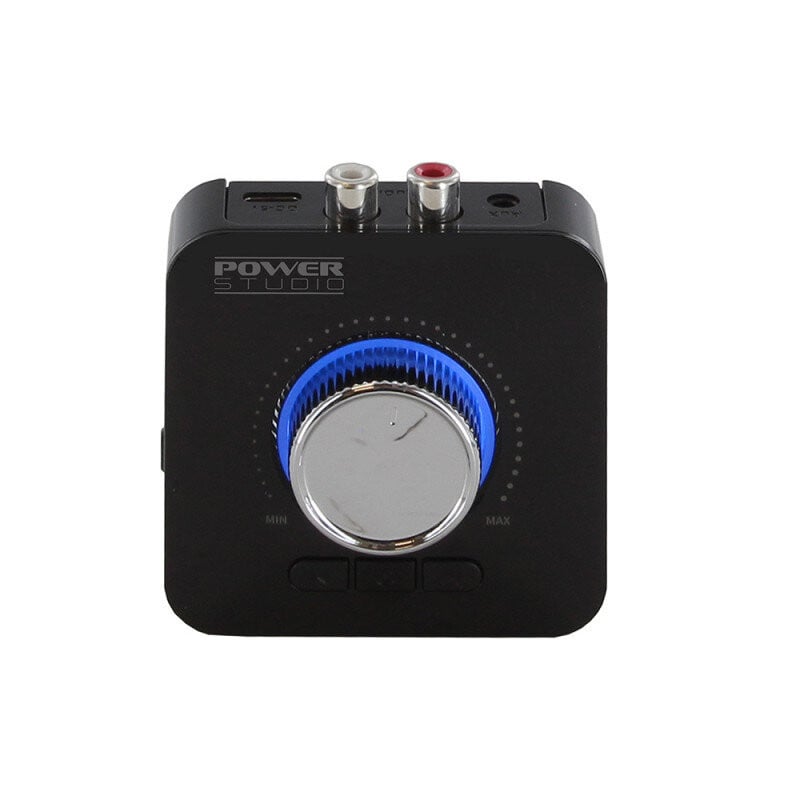

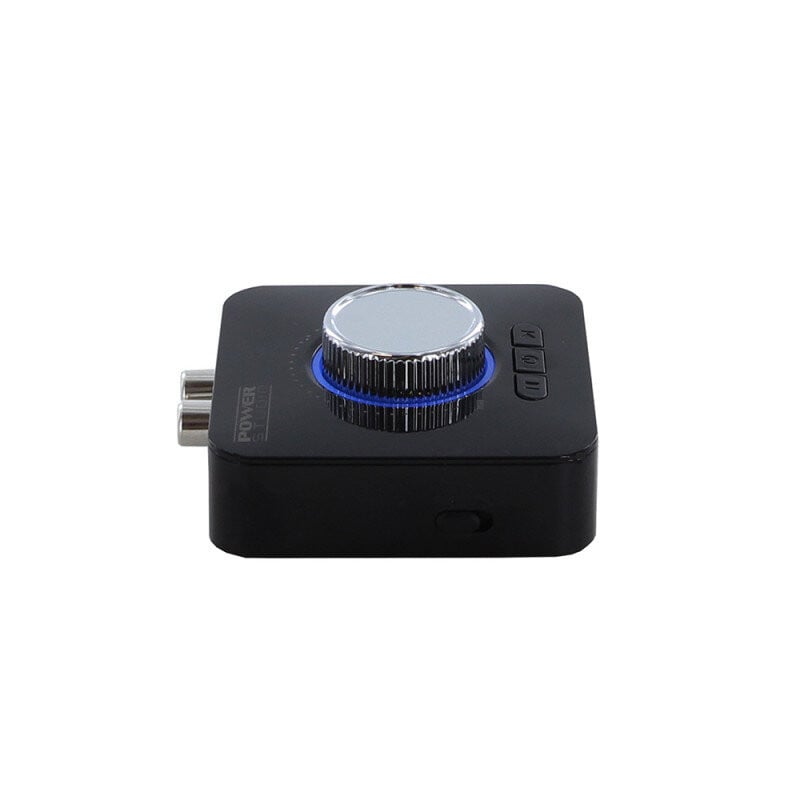

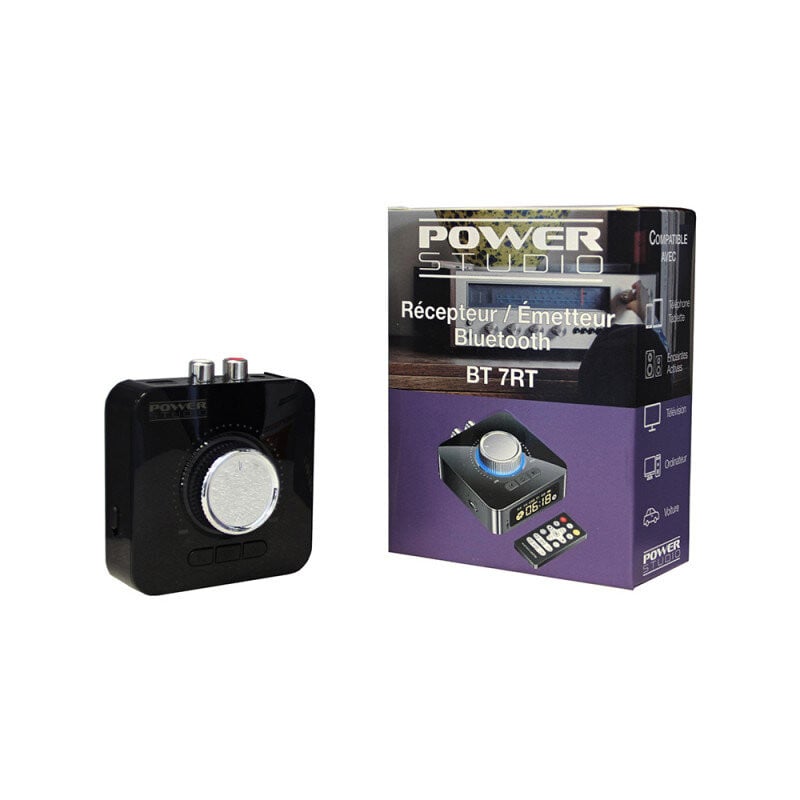

Plugger Studio - BT 7RT

Compact Plug & Play Bluetooth audio transceiver, compatible with a wide range of audio devices and equipped with numerous features and connectors.

In receiver mode, you can wirelessly render any type of audio device by connecting it to the BT 7RT's 3.5 mm or RCA AUX output and stream your audio files from a smartphone, tablet, computer or any other device equipped with Bluetooth connection. The BT 7RT then converts the audio signal received wirelessly into analog audio output.

In transmitter mode, it happens exactly the opposite, so you can connect your conventional device (turntable, TV, video projector, ...) transforming it into wireless format for any type of Bluetooth 5.0 receiver (speaker, headphones, ...).

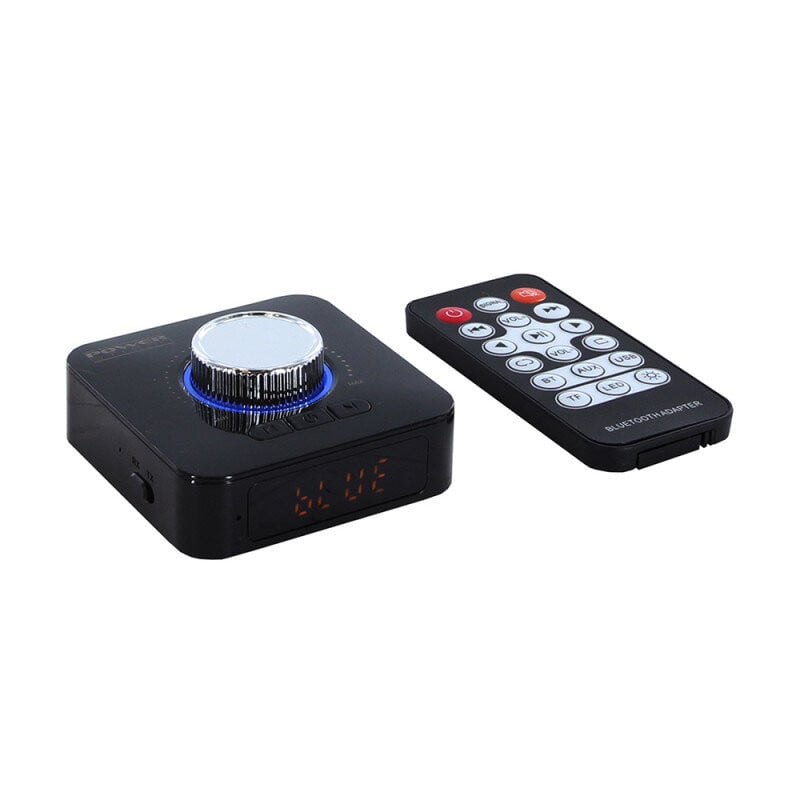

Thanks to the integrated microphone that allows hands-free use, the BT 7RT can also handle phone calls and is compatible with vehicle navigation systems. The built-in 400 mAh lithium-polymer battery allows you to enjoy your music uninterrupted for 6 - 8 hours, even while charging. BT 7RT also supports playback of audio files from USB flash drive or micro SD card in MP3, WAV, WMA, APE and FLAC formats, in both receive and transmit modes. Furthermore, you can easily control the device thanks to the infrared wireless remote control, which provides a range of 5 to 8 m.

Technical characteristics

• Transmitter / receiver selector
• Bluetooth transmission distance: about 10 m
• Rotary knob for volume and call management
• Player control buttons (previous, play/pause, next)

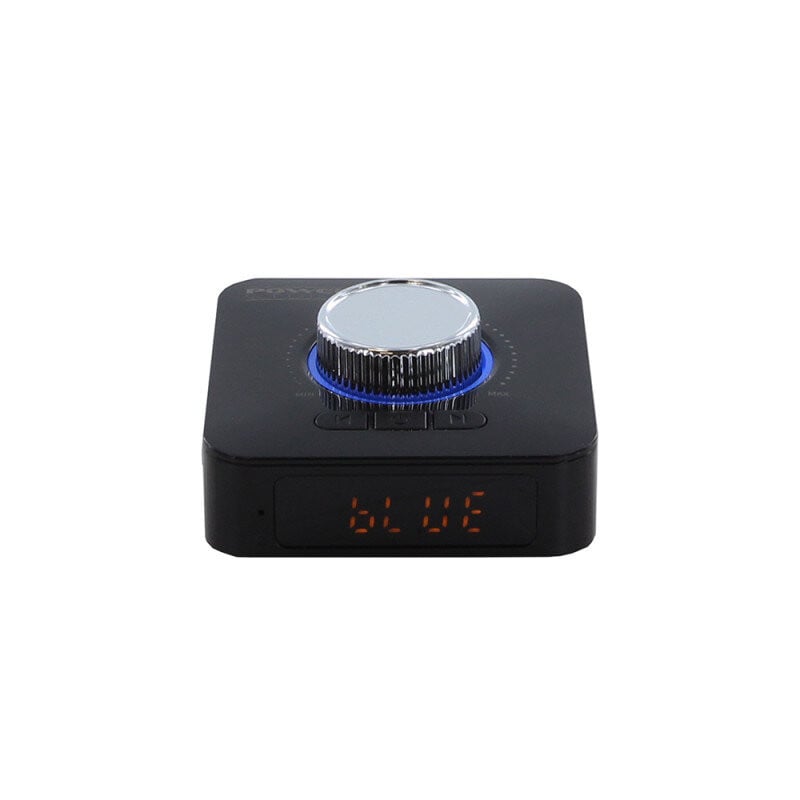

• LED screen indicating mode and operation and playback information

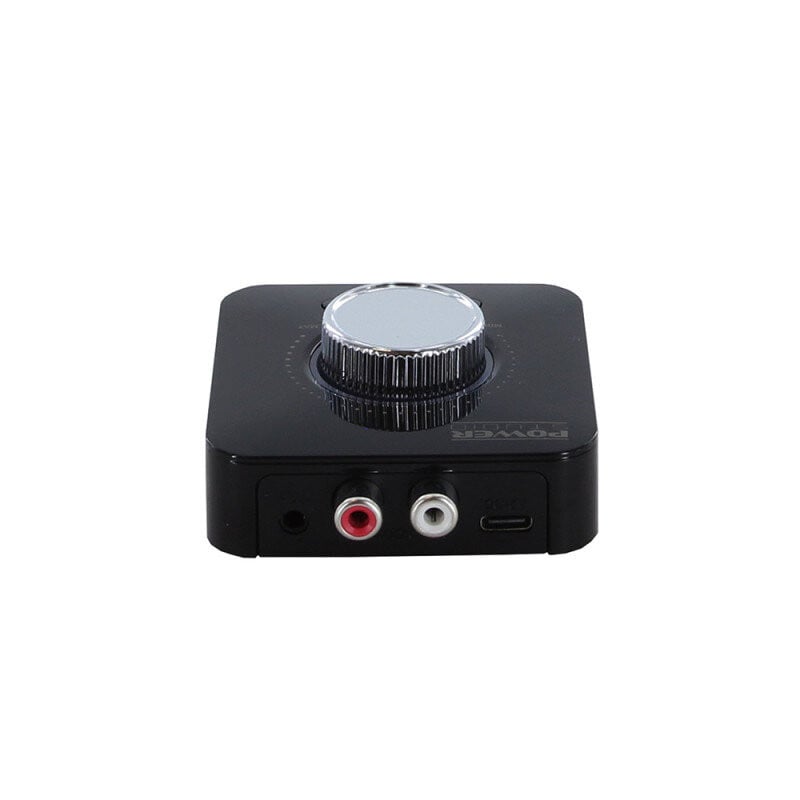

• Audio inputs and outputs on 3.5 mm jack and RCA

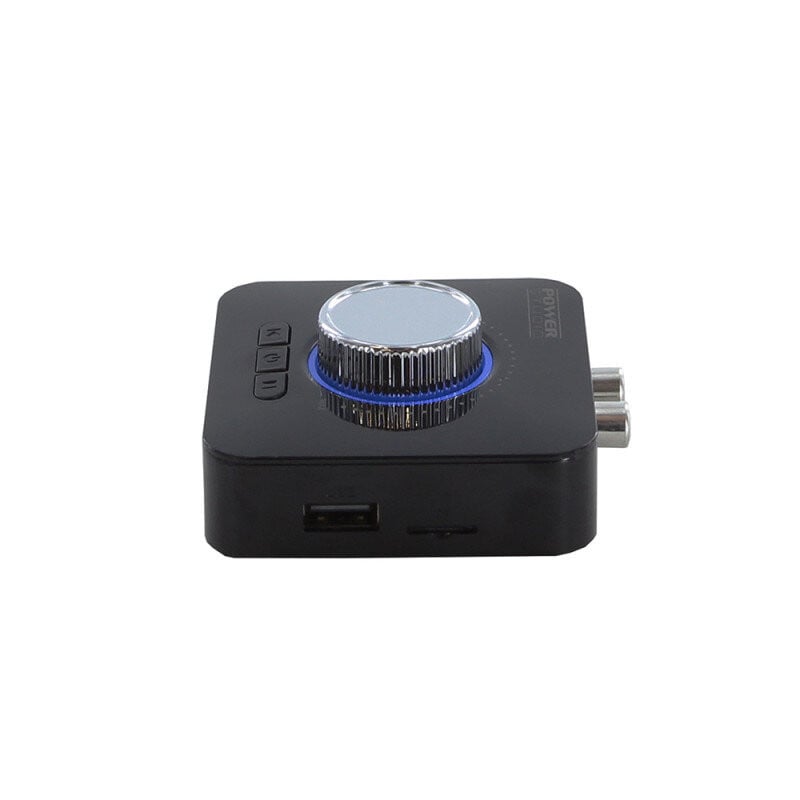

• USB and micro SD interface for playing audio files
• Audio formats supported: MP3 / WAV / WMA / APE / FLAC
• Transmission / reception frequencies: 2400 – 2483.5 MHz (Bluetooth)
• Bluetooth 5.0 standard
• Frequency response: 10 – 20,000 Hz
• Power supply: USB C
• DC 5 V_DC / 500 mA
• Battery: 3.7 V / 400 mAh
• Charging time: 1 h
• Autonomy: 6 – 8 h
• SNR: > 90 dB
• Dimensions (L x W x H): 73 x 67 x 30 mm
• Weight: approx. 68 g
• Supplied with: RCA cord, 3.5 mm cable, USB type C cable, user manual, remote control
