PTZOptics - PTZOptics MiniJoy

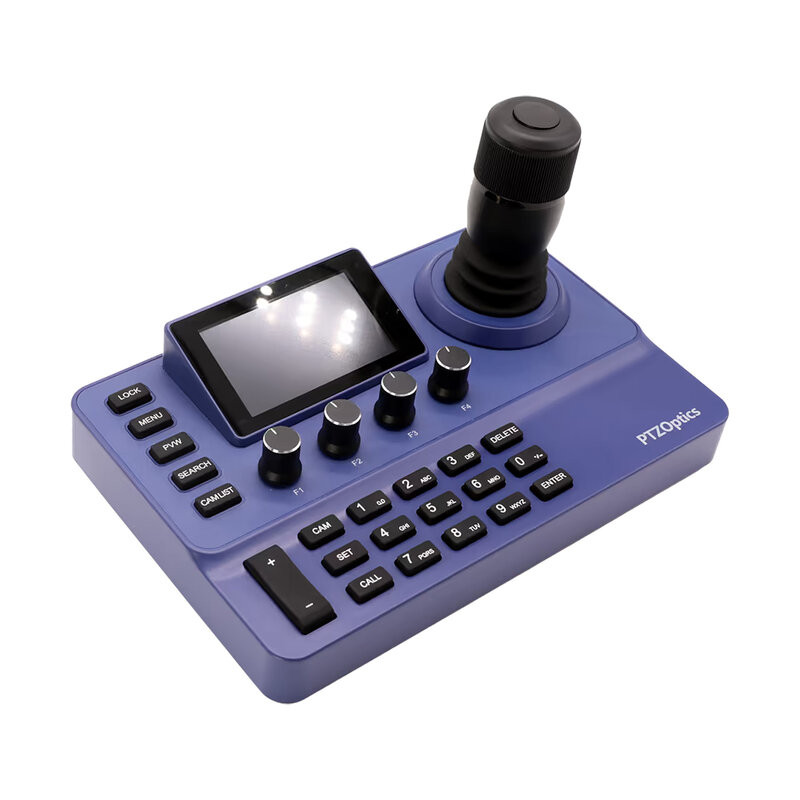

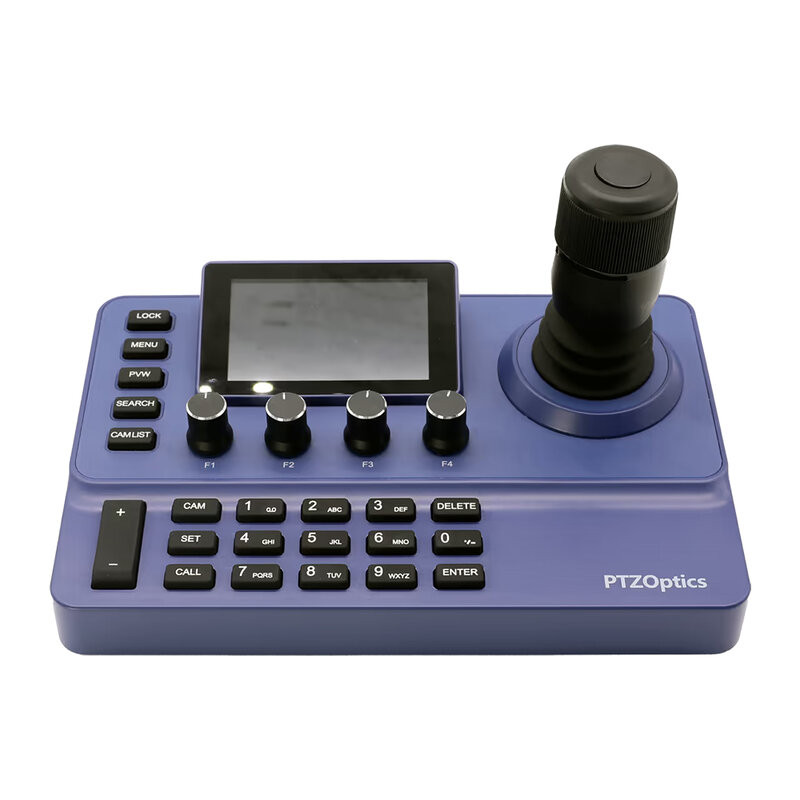

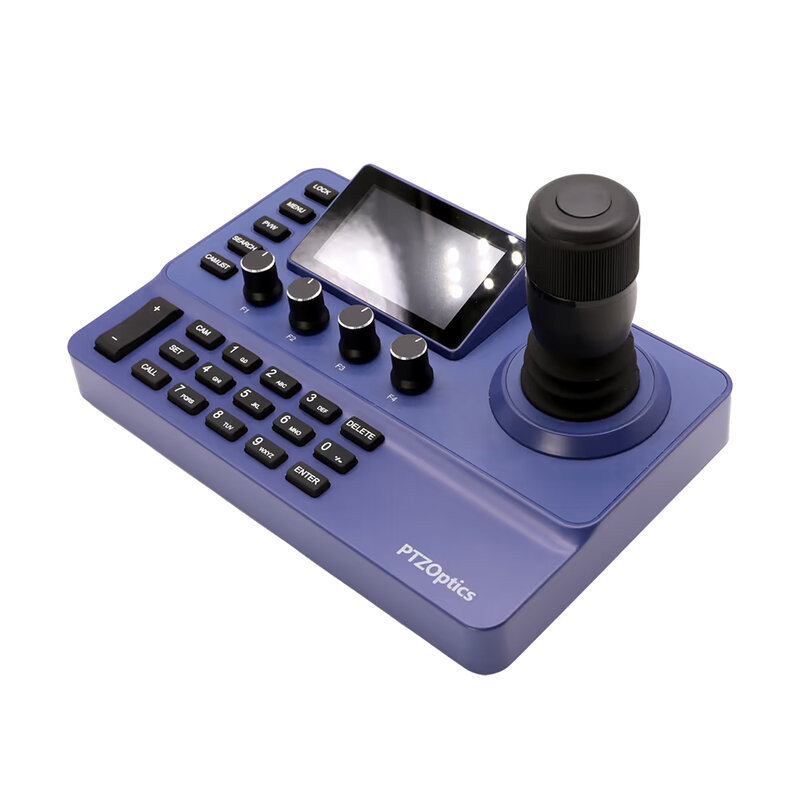

The PTZOptics MiniJoy is a compact controller designed for controlling PTZ cameras via a high-precision 4D joystick. It offers smooth and intuitive control of Pan, Tilt, Zoom, and Twist, along with advanced parameter management via 3D knobs with push-button control.

The MiniJoy supports up to 1000 cameras and 255 presets for each, integrating IP (ONVIF, VISCA over IP, VISCA TCP, NDI) and serial (VISCA, Pelco D, Pelco P) protocols. The 3" LCD display provides a clear view of settings, while backlit buttons ensure operation even in low-light environments. Thanks to 802.3af PoE compatibility, it can be powered directly from the network, simplifying installation.

The controller is ideal for productions that require speed, precision, and reliability, offering an intuitive interface and rugged construction for intensive use.

User benefits

• Faster camera discovery and setup thanks to automatic device detection on the network
• Centralized browser interface for adding cameras, managing connections, and customizing controls
• NDI and RTSP video preview directly on the integrated 3" display to confirm framing without taking your eyes off the controller
• 4K 30 HDMI output for video monitoring on larger external displays
• Customizable controls with six pages and four configurable slots to adapt the layout to production needs
• 4D joystick and 3D knobs for precise PTZ control
• Compact size ideal for crowded workstations Mobile control rooms and space-saving installations
• PoE (or DC) power supply for easy integration into any workflow

Areas of use

• Broadcast control rooms and television studios
• Live production and professional streaming
• Conference rooms and auditoriums
• Places of worship
• Mobile control rooms and OB vans
• Corporate and educational installations

Technical characteristics

Hardware

• Joystick: 4D precision joystick (Pan, Tilt, Zoom, Twist)
• Knobs: 3D rotary knobs with push-button, support scale rotation for parameter adjustment and button function for mode selection
• Buttons: high-quality silicone buttons with white/red two-color backlight
• Screen: 3" LCD color display
• Button prompt tone: ON/OFF, selectable tone style
• Lock button: one-key keyboard lock

Control

• Max. controlled cameras: 1000
• Max. preset positions: 255 per camera
• Customizable knobs: 4 (F1, F2, F3, F4) with 6 customizable pages

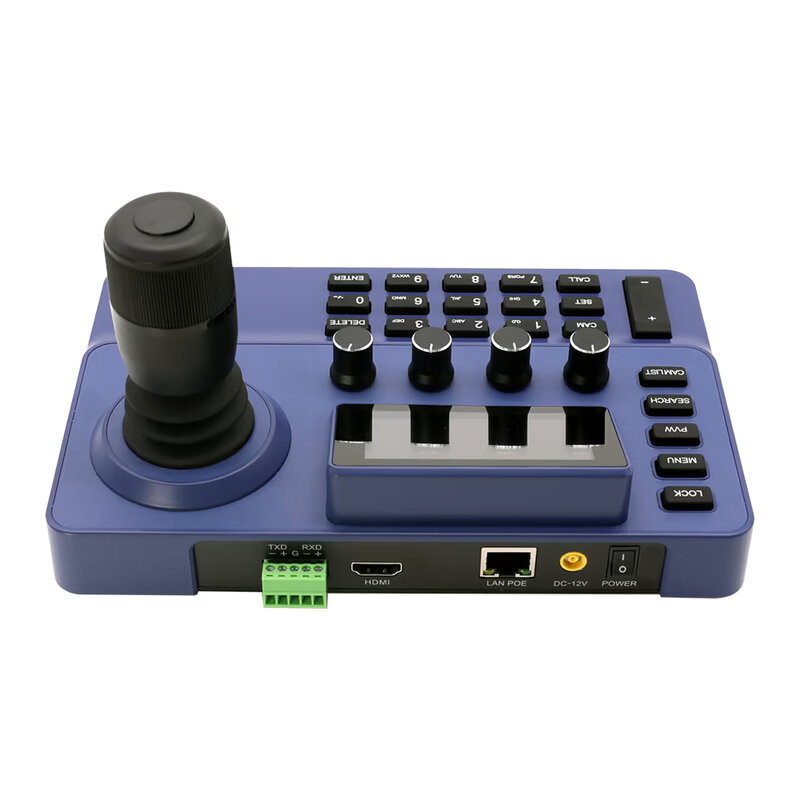

Connections

• Control port: RJ45
• Serial port: RS-422/RS-485 (Phoenix connector)
• HDMI display output: HDMI 2.0 (supports 4K 30 fps)

Protocols

• IP Control: ONVIF, VISCA Over IP, VISCA TCP, NDI
• Serial port: VISCA, Pelco D, Pelco P

Power

• Input voltage: 12 V_DC
• Input current: 0.25 A
• PoE standard: 802.3af
• Rated power: 3 W

Environmental

• Operating environment: indoor only
• Operating temperature: -10 to 40 °C
• Storage temperature: -20 to 60 °C

Physical

• Dimensions (joystick height included): 21 × 13.8 × 10.1 cm
• Weight: 0.8 kg

User manual: see here
